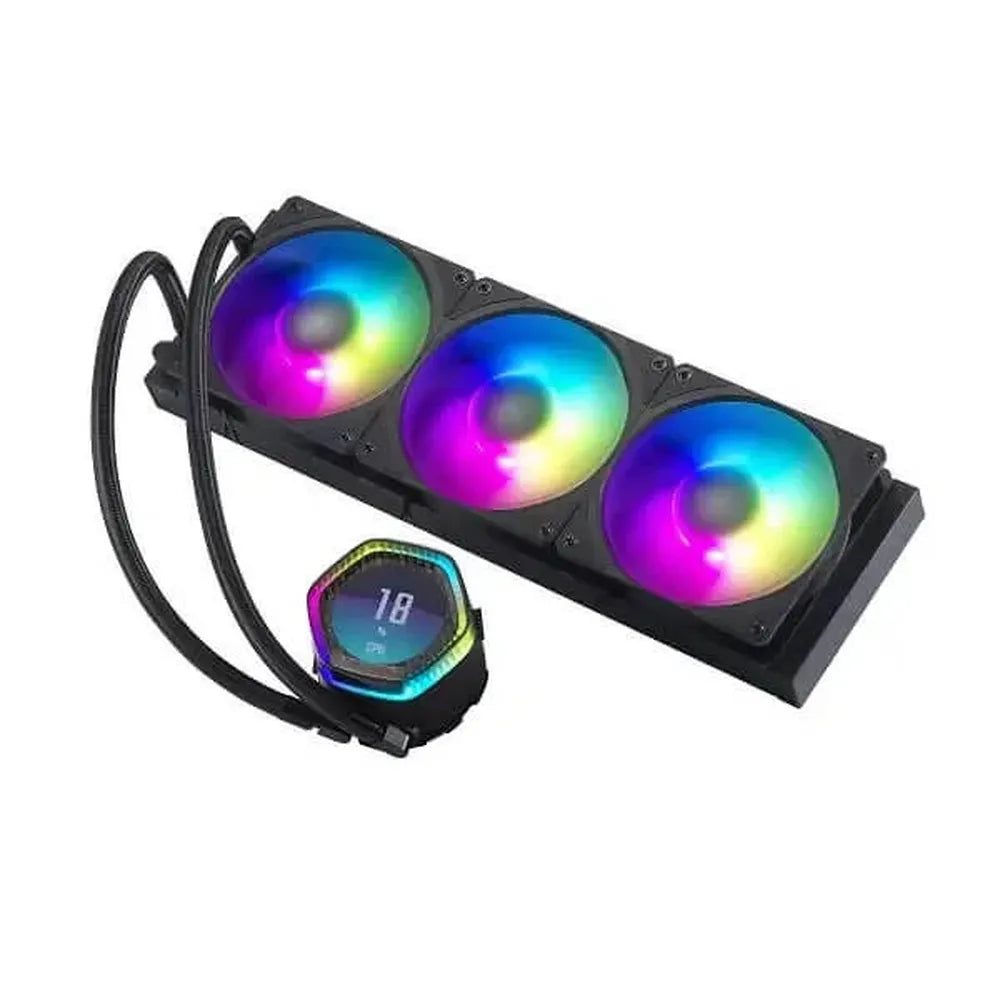

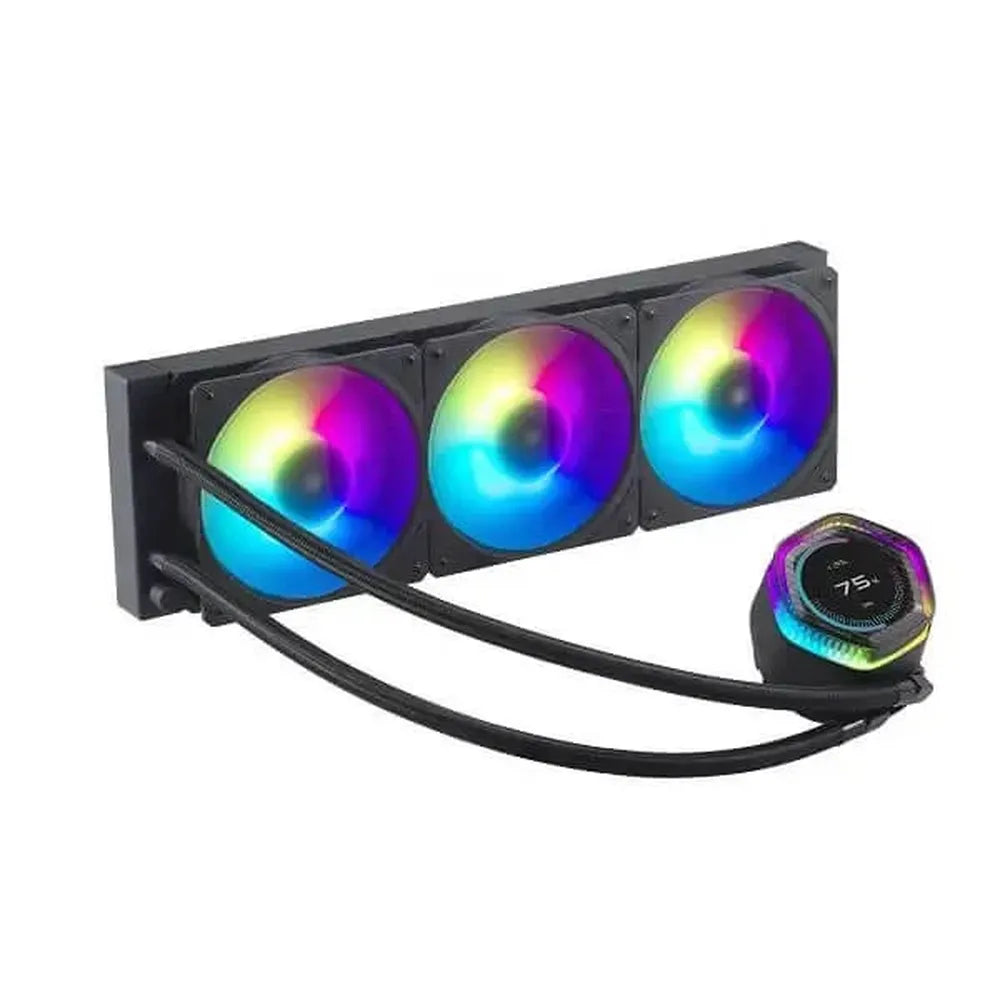

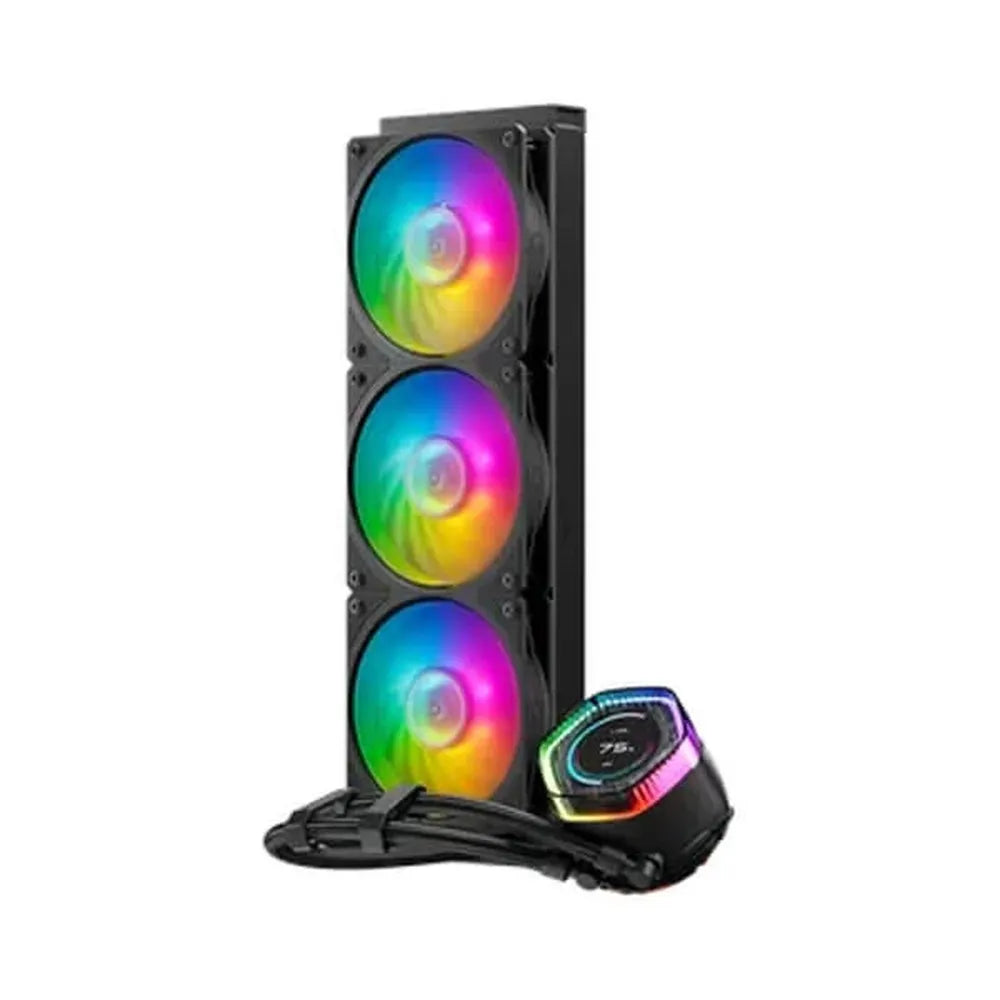

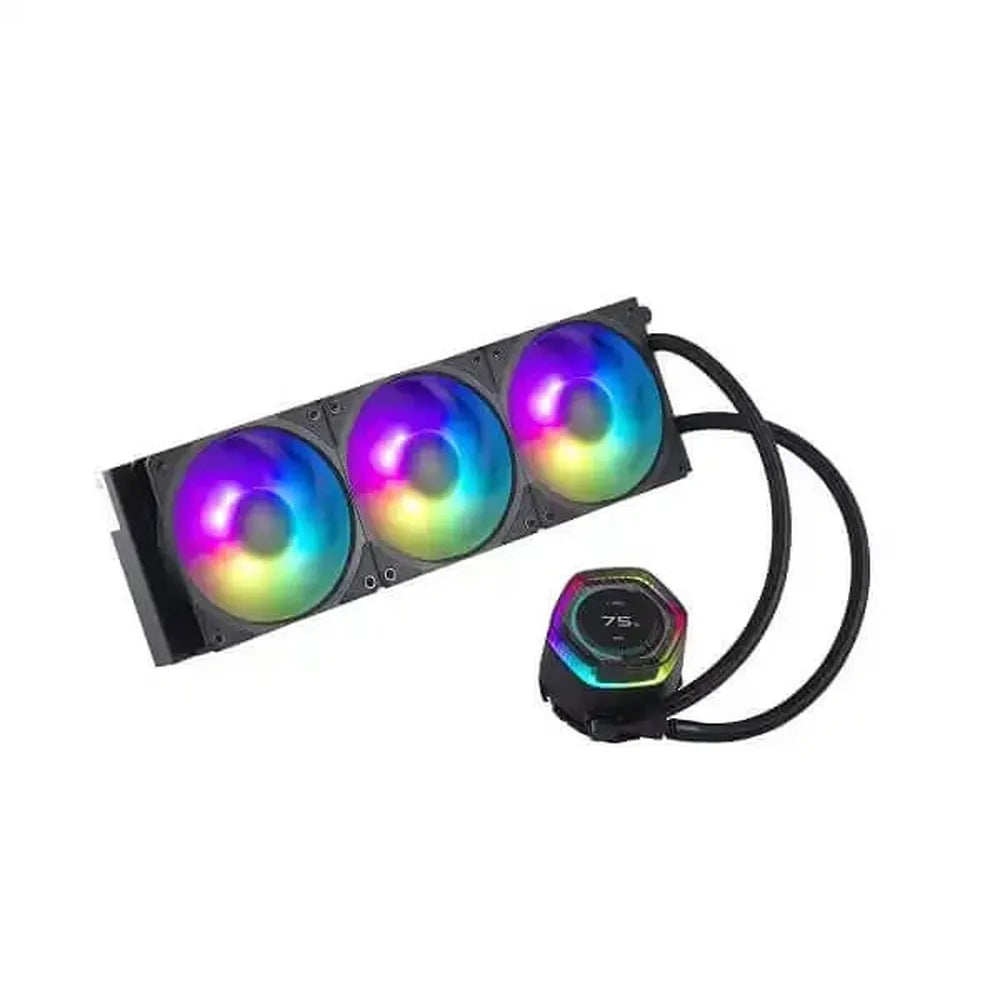

Features of COOLER MASTER MasterLiquid 360 Ion ARGB 360mm CPU Liquid Cooler ( Black )
Experience Cooling in High Definition
Cooler Master's latest flagship performance cooler, the Cooler Master MasterLiquid 360 Ion, is our first liquid cooler to feature an LCD display. The MasterLiquid 360 Ion gives you total display customization with top-tier cooling specs.
Gen X Dual Chamber Design
Our signature dual chamber pump has been refined for enhanced cooling synergy. Our impeller uses a single-piece design with improved structural strength and stability. The graphite ceramic shaft is highly sturdy and temperature resistant.
2.1-inch LCD Screen
The Ion's pump features a 2.1-inch LCD screen, fully customizable with our MasterCtrl software. Meanwhile, Our ARGB halo lighting has been designed with the Cooler Master's signature aesthetic in mind.
Highly Customizable and Compatible
Built-in features such as controllable ARGB lighting and automatic PWM adjustment are compatible with all major motherboards and allow for in-depth customization.
Mobius 120P ARGB fans
Pre-installed with three Mobius 120P ARGB fans for unmatched cooling performance. The interconnecting fan blades have been designed with a balanced P/Q curve suitable for both air and liquid cooling.
IN-HOUSE DESIGNED RADIATOR
A low-profile radiator with superior fin density and high-performance fans rapidly dissipates heat.
TUBE CLIPS INCLUDED
Included tube clips made to fit the AIO tube not only improve and strengthen your cooling setup, but they can also help with cable management.
ECO-FRIENDLY PACKAGING WITH ENHANCED PROTECTION
Building off the modular packaging of our Atmos cooler, the Ion's packaging features 30% reduced volume and an optimized internal cushioning structure.
USING EPDM + IIR COMPOSITE MATERIALS
Our AIO cooler uses ERPDM and IIR composite materials to lower the evapotranspiration rate and water flow resistance, at the same time, improve the air tightness and bendability
Specifications of COOLER MASTER MasterLiquid 360 Ion ARGB 360mm CPU Liquid Cooler ( Black )
| Product Number | MLY-D36M-A24PZ-R1 |
| Exterior Color | Black |
| CPU Socket | Intel® LGA 1700 / 1200 / 1151 / 1150 / 1155 / 1156 socket |
| CPU Socket | AMD® AM5 / AM4 socket |
| Radiator Material | Aluminum |
| Radiator Dimensions | 394 x 119.6 x 27.2 mm / 15.5 x 4.7 x 1.1 inch |
| Pump Dimensions | 88.3 x 83.6 x 65.7 mm / 3.5 x 3.3 x 2.6 inch |
| Pump MTTF | >210,000 Hours |
| Pump Noise Level | 20 dBA |
| Pump Connector | 4-Pin + SATA |
| Pump Rated Voltage | 12 VDC |
| Pump Power Consumption | 6.75W |
| Fan Dimensions (L x W x H) | 120 x 120 x 25 mm / 4.7 x 4.7 x 1 inch |
| Fan Quantity | 3 PCS |
| Fan LED Type | Addressable Gen 2 RGB |
| Fan Speed | 0-2400 RPM ± 10% |
| Fan Airflow | 75.2 CFM (Max) |
| Fan Noise Level | 30 dBA (Max) |
| Fan Pressure | 3.63 mmH₂O (Max) |
| Fan Bearing Type | Loop Dynamic Bearing |
| Fan MTTF | >200,000 Hours |
| Fan Power Connector | 4-Pin (PWM) |
| Fan Rated Voltage | 12 VDC |
| Fan Rated Current | 0.18A |
| Fan Safety Current | 0.35A |
| RAM Clearance | N/A |
| Warranty | 6 years |
| Cooler Type | Liquid Cooler |
| Series | MasterLiquid Pro |
