Description

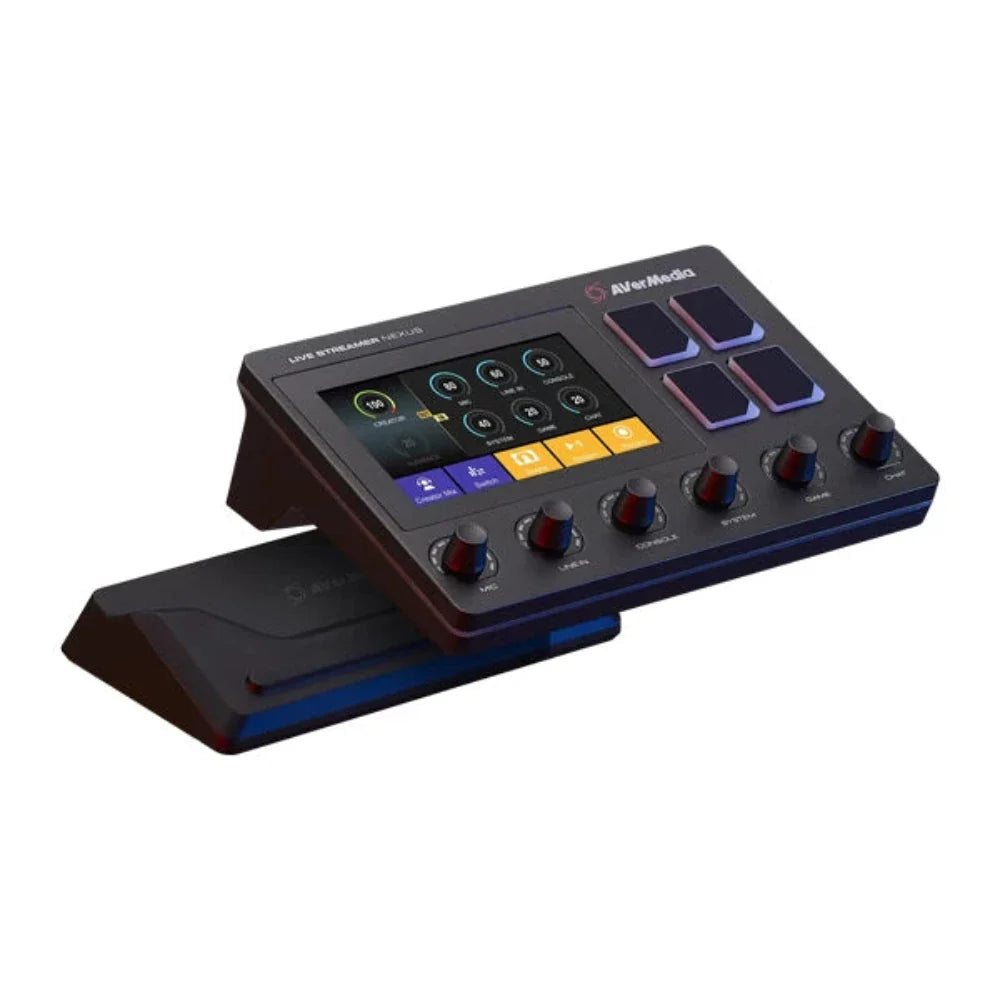

Features of AVERMEDIA Live Streamer Nexus-AX310 Streaming Deck ( Black )
Find your Mastery
With a 6 track audio mixer and a fully customizable control panel, the AVERMEDIA Live Streamer Nexus-AX310 Streaming Deck ( Black ) will ensure you have full control over the live creation process. Be more productive, create more efficiently, master your content.
Your most important Tracks, Mixed.
Your voice, alerts, music, even game sound are a huge part of your content. Controlling and monitoring all 6 tracks withe ease and in real-time.
Dual independent audio mixes
Keep your audio levels separate from your audience. With Dual Mix you and your stream can have different audio experiences, allowing each to focus on what’s most important.
NEXUS App
The NEXUS app will have you up and in control in no time. Specially designed with content creators in mind, simply drag and drop widgets, add hotkeys, tune your mic, and more. Mastering your stream is only a few clicks away.
NEXUS Widgets
Display follower, subscriber or viewer count, even real-time live chat! Widgets bring a whole new Features to the game.
Ongoing development
The NEXUS app integrates widely used streaming platforms and softwares and with its ongoing development, be sure that the NEXUS will only keep getting better and better. Learn more. Learn more
Switch ON. Switch OFF
We added a dedicated on/off switch to make it easier for you to power off your NEXUS once you are done creating. Forget about looking for that USB port on the back, Switch ON, Switch OFF, done.
Specifications of AVERMEDIA Live Streamer Nexus-AX310 Streaming Deck ( Black )
| Technical Specifications | Interface: USB 2.0, Type B (Driver Required) Mic In: XLR (Balanced) / 6.3mm (Single-End) x 1 Line In: 3.5mm TRS, Stereo x 1 Console In: Optical In (Toslink) x 1 Computer Inputs: Digital Tracks x 3 Headphone Out: 3.5mm TRS, Stereo Line Out: 3.5mm TRS, Stereo Output Mix (Independent Instances): oCreator mix oAudience mix Sampling Rate: Up to 96kHz, 24 bits Microphone Effects: Noise Gate, Reverb, Compressor, Equalizer -15231Frequency Response: 10Hz to 20kHz Dynamic Range: 114 dB Screen Panel: 5" IPS Screen with CTP Touch Panel Widgets: Interactive & Customizable Grid Rotational Encoders: 6 Lighting: RGB Function Buttons: 4 Power Switch: Yes Power Input: Standard 12V DC, Center Negative, 1.5A Power Consumption: <7W Dimensions (W x D x H): Without Stand: 21.7 x 14.5 x 6.1 cm (5.7 x 8.5 x 2.4 in) With Stand: 21.7 x 14.5 x 9.4 cm (5.7 x 8.5 x 3.7 in) Weight: Without Stand: 0.702 kg (24.76 oz) With Stand: 0.847 kg (29.87 oz) - Phantom Power +48V, switchable via NEXUS APP - Optical output settings must be set to stereo, NEXUS doesn’t support 5.1ch or 7.1ch |
| What's in the box | Live Streamer NEXUS (AX310) Magnetic Kick Stand USB 2.0 type B to Type A Cable (1.8 m / 5.9 ft.) 3.5 mm TRS Audio Cable (1.8 m / 5.9 ft.) 3.5 mm to 6.3 mm Adapter Power Adapter Quick Guide |
| System Requirements | Windows: Windows 10 (64bit) Mac: macOS 10.15 and above |
| IMPORTANT INFO | NEXUS app is not compatible with M1 based Mac-book. |
| Warranty | 1 Year |
| Note | *** Features, Price, Specifications are subject to change without notice. |
