Description
Feature of ASUS TUF B450 Plus Gaming DDR4 AMD Motherboard
- Fan Xpert 4 Core: B450-PLUS Ensures every fan achieves the best balance of cooling performance and acoustics
- B450-PLUS TUF Protection: SafeSlot, ESD Guards, DDR4 overvoltage protection, Digi+ VRM, and stainless-steel back I/O for long-term reliability
- Military-grade TUF Components: TUF LANGuard, TUF Chokes, TUF Capacitors, and TUF MOSFETs for maximum durability
- Exclusive DTS® Custom audio: Delivers positional cues to stereo headphones, helping you to pinpoint enemies and action
- Aura Sync RGB: Synchronize LED lighting with a vast portfolio of compatible PC gear

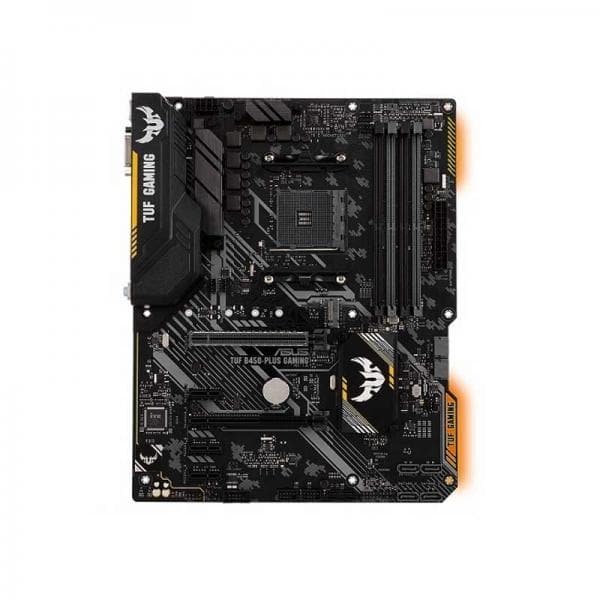

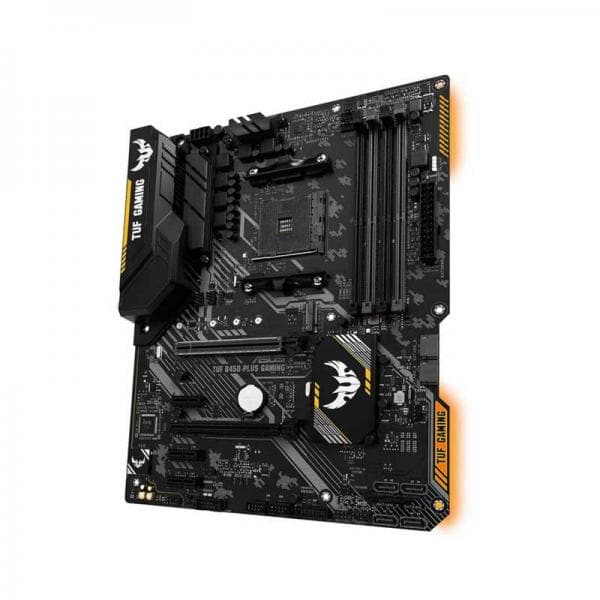

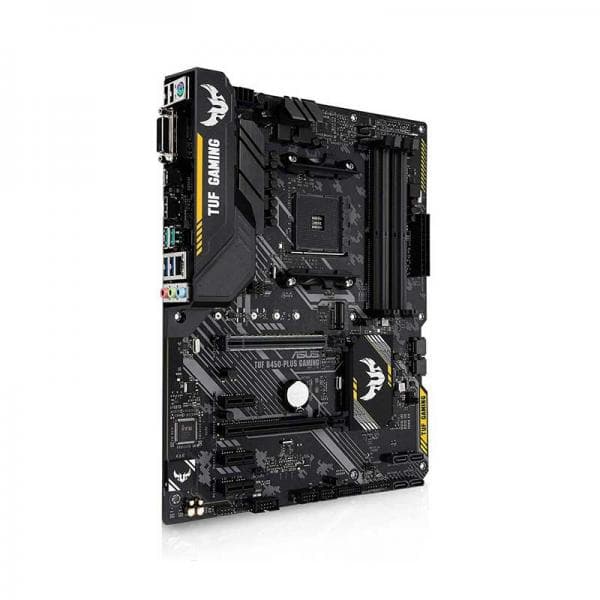

TUF B450-PLUS GAMING Arm Your Battlestation
ASUS TUF B450 Plus Gaming motherboards are specially designed and tested to survive and thrive in conditions where other boards would struggle. Engineered with highly durable components, these motherboards deliver unwavering stability for gaming sessions that last as long as you demand.
When you build with a TUF Gaming motherboard, you also benefit from the TUF Gaming Alliance — an ASUS collaboration with trusted industry partners that ensures easier building, the best compatibility, and complementary aesthetics from components to case.
TUF gaming alliance
TUF Gaming Alliance is the marque of collaboration between ASUS and major PC-component manufacturers, including trusted brands like Antec®, Apacer®, Ballistix, Cooler Master®, Corsair®, Deepcool, Enermax, G.Skill, GeIL®, In Win, Scythe, SilverStone, Team Group and XPG. A growing range of compliant parts, from PC chassis and power supplies to CPU coolers and DRAM, guarantee both compatibility and aesthetic harmony. We’re also continually increasing our partnerships to make the TUF Gaming Alliance ever stronger.
B450-PLUS TUF PROTECTION SAFESLOT Protect your graphics card investment
SafeSlot is the PCIe slot reinvented by ASUS and engineered to provide superior retention and shearing resistance. Manufactured in a single step using a new insert-molding process, SafeSlot integrates fortifying metal for an inherently stronger slot, which is then firmly anchored to the PCB through additional solder points.
Electrostatic discharge protection
ESD Guards prolong the life of components while preventing damage from electrostatic discharge, providing protection for up to +/- 10kV of air discharge and +/- 6kV of contact discharge — greatly surpassing the respective industry standards of +/- 6kV and +/- 4kKV
LAN PORT
ESD TVS diode protection on the LAN Circuit.
KEYBOARDS AND MOUSE CONNECTORS
Additional on-circuit ESD transient-voltage-suppression.
VGA PROTECTION
Additional on-circuit ESD TVS diodes to protect D-Sub functionality.
USB CONNECTORS
TVS diode for surface-mount and dual-inline package.
TUF CHOKES
Certified military-grade TUF chokes deliver rock-steady power to the CPU, helping to improve system stability.
TUF CAPACITORS
+20% temperature tolerance and 5X-longer lifespan.
TUF MOSFETS
Certified military-grade MOSFETs with lower RDS(on)*.
*Lower RDS(on) results in better power efficiency and reduced heat generation.
BEST SURGE PROTECTION
TUF LANGuard is a military-grade innovation that integrates advanced signal-coupling technology and premium surface-mounted capacitors to improve throughput, protecting the motherboard from lightning strikes and static electricity.
GPU TEMPERATURE SENSING
System temperatures are key to a stable gaming rig ― especially GPU temperatures. TUF Gaming motherboards include Fan Xpert 4 Core software that’s able to intelligently control system fans based upon the input of multiple sensors, including the temperature of ASUS graphics cards*. This ensures that your TUF Gaming system stays perfectly cooled, no matter how long you play.
* ASUS GeForce 700 and later cards supported.
DDR4 SUPPORT
TUF Gaming motherboards are subjected to stringent tests to ensure they’re ready for any gaming environment. That foundation is backed by extensive validation lists that include memory kits for a range of budgets. Whether you’re building a gaming PC that hits the performance sweet spot or aiming for sensible specs, it’s easy to pick the right kit for your TUF Gaming rig.
GAME YOUR WAY OUTSHINE THE COMPETITION AURA SYNC
A well-tuned system deserves a matching aesthetic. ASUS Aura offers full RGB lighting control with a variety of functional presets for the built-in RGB LEDs as well as strips connected to the onboard RGB headers. And it can all be synced with an ever-growing portfolio of Aura-capable hardware.
ULTRAFAST TRANSFER SPEED Native 10Gbps USB 3.1 Gen 2 Type-A Support
B450-PLUS With dual backward-compatible USB 3.1 Gen 2 Type-A, you’ll experience ultimate connection flexibility and blazing data-transfer speeds of up to 10Gbps – or twice as fast as USB 3.1 Gen 1.
Specifications of ASUS TUF B450 Plus Gaming DDR4 AMD Motherboard
| CPU |
AMD AM4 Socket AMD Ryzen™ 2nd Generation/Ryzen™ with Radeon™ Vega Graphics/Ryzen™ 1st Generation Processors Supports CPU up to 8 cores |
| Chipset | AMD B450 |
| Memory |
AMD Ryzen™ 2nd Generation/ Ryzen™ with Radeon™ Vega Graphics/ Ryzen™ 1st Generation Processors 4 x DIMM, Max. 64GB, DDR4 3200(O.C.)/3000(O.C.)/2800(O.C.)/2666/2400/2133 MHz Un-buffered Memory Dual Channel Memory Architecture ECC Memory (ECC mode) support varies by CPU. |
| Graphic |
Integrated in the AMD Ryzen™ with Radeon™ Vega Graphics Processors Multi-VGA output support : HDMI/DVI-D ports - Supports HDMI 2.0b with maximum resolution of 4096 x 2160 @ 60 Hz - Supports DVI-D with max. resolution 1920 x 1200 @ 60 Hz |
| Multi-GPU Support | Supports AMD CrossFireX™ Technology |
| Expansion Slots |
AMD Ryzen™ 2nd Generation/ Ryzen™ 1st Generation Processors 1 x PCIe 3.0/2.0 x16 (x16 mode) AMD Ryzen™ with Radeon™ Vega Graphics Processor 1 x PCIe 3.0/2.0 x16 (x8 mode) AMD B450 chipset 1 x PCIe 2.0 x16 (max at x4 mode) 3 x PCIe 2.0 x1 |
| Storage |
AMD Ryzen™ 2nd Generation/ Ryzen™ with Radeon™ Vega Graphics/ Ryzen™ 1st Generation Processors : 1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)*1 2 x SATA 6Gb/s port(s) AMD B450 chipset : 4 x SATA 6Gb/s port(s) Support Raid 0, 1, 10 |
| LAN |
Realtek® RTL8111H TUF LANGuard |
| Audio |
Realtek® ALC887-VD2 8-Channel High Definition Audio CODEC *2 Audio Feature : - Exclusive DTS Custom for GAMING Headsets. - Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference - Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals - Premium Japanese-made audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity - Audio Cover: Effective shielding preserves the integrity of audio signals to ensure best quality. |
| USB Ports |
AMD Ryzen™ 2nd Generation/ Ryzen™ with Radeon™ Vega Graphics/ Ryzen™ 1st Generation : 2 x USB 3.1 Gen 1 port(s) (2 at back panel, , Type-A) AMD Ryzen™ 2nd Generation/ Ryzen™ with Radeon™ Vega Graphics/ Ryzen™ 1st Generation : 1 x USB 3.1 Gen 1 port(s) (1 at back panel, , USB Type-CTM) AMD B450 chipset : 2 x USB 3.1 Gen 2 port(s) (2 at back panel, , Type-A) AMD B450 chipset : 2 x USB 3.1 Gen 1 port(s) (2 at mid-board) AMD B450 chipset : 6 x USB 2.0 port(s) (2 at back panel, , 4 at mid-board) |
| Special Features |
ASUS TUF PROTECTION - ASUS SafeSlot: Protect your graphics card Investment - ASUS ESD Guard: Enhanced ESD protection - ASUS Overvoltage Protection: World-class circuit-protecting power design - ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability! - ASUS DIGI VRM: 6 Phase digital power design AURA : - Aura Lighting Control - Aura RGB Strip Headers ASUS Exclusive Features : - AI Suite 3 - Ai Charger - PC Cleaner - File Transfer ASUS Quiet Thermal Solution : - Stylish Fanless Design Heat-sink solution & MOS Heatsink - ASUS Fan Xpert 4 Core ASUS EZ DIY : - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode ASUS Q-Design : - ASUS Q-Shield - ASUS Q-Slot - ASUS Q-DIMM Overclocking Protection : - ASUS C.P.R.(CPU Parameter Recall) |

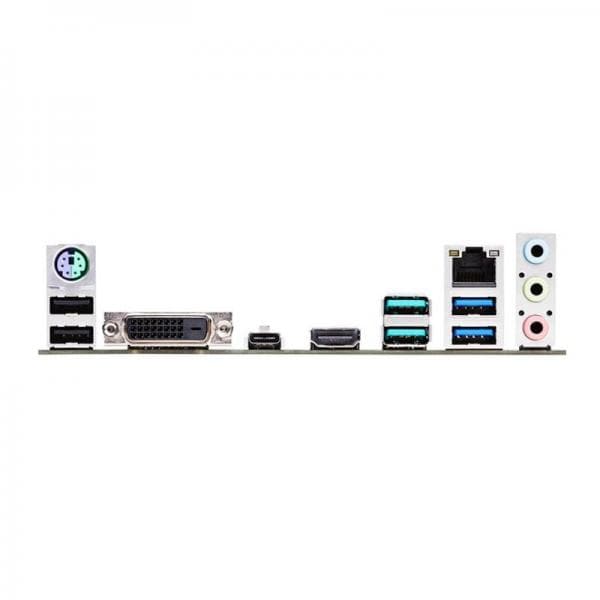

| Back I/O Ports |
1 x PS/2 keyboard/mouse combo port(s) 1 x DVI-D 1 x HDMI 1 x LAN (RJ45) port(s) 1 x 5Gb/s port(s) USB Type-CTM 2 x USB 3.1 Gen 2 (teal blue)Type-A, 2 x USB 3.1 Gen 1 (blue) Type-A, 2 x USB 2.0 3 x Audio jack(s) |
| Internal I/O Ports |
1 x Aura RGB Strip Header 1 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s) (19-pin) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) 1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode) 6 x SATA 6Gb/s connector(s) 1 x CPU Fan connector(s) (1 x 4 -pin) 3 x Chassis Fan connector(s) (3 x 4 -pin) 1 x AIO_PUMP connector (1 x 4 -pin) 1 x S/PDIF out header(s) 1 x 24-pin EATX Power connector(s) 1 x 8-pin ATX 12V Power connector(s) 1 x Front panel audio connector(s) (AAFP) 1 x System panel(s) 1 x Clear CMOS jumper(s) 1 x COM port header |
| Accessories |

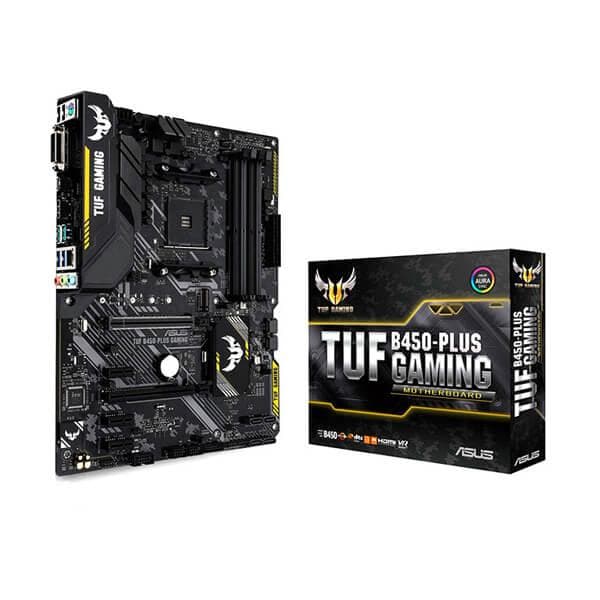

User's manual ASUS Q-Shield 2 x SATA 6Gb/s cable(s) 1 x M.2 Screw Package 1 x Supporting DVD 1 x TUF GAMING Sticker 1 x TUF Certification card(s) |
| BIOS | 128 Mb Flash ROM, UEFI AMI BIOS, PnP,SM BIOS 3.1, ACPI 6.1, Multi-language BIOS, ASUS EZ Flash 3, ASUS CrashFree BIOS 3, F3 My Favorite, Last Modified log, F12 PrintScreen,F4 AURA ON/OFF, F9 Search and ASUS DRAM SPD (Serial Presence Detect) memory information |
| Manageability | WOL by PME, PXE |
| Operating System | Windows® 10 64-bit |
| Form Factor |
ATX Form Factor 12.0 inch x 9.6 inch ( 30.5 cm x 24.4 cm ) |
| Warranty | 3 Years |
| Note | ***Features, Price and Specifications are subject to change without notice. |
