Features of ASUS RT-AC53 Wifi Router

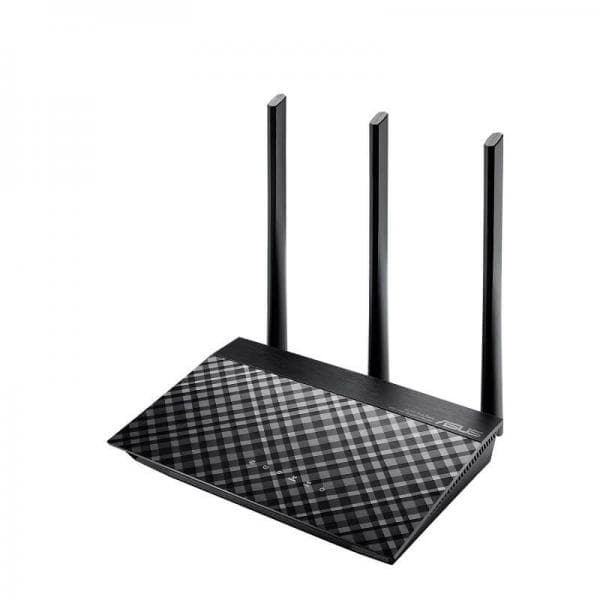

ASUS RT-AC53 Dual Band WiFi Router with high power design, VPN server and time scheduling
-
High-speed performance
Concurrent speed up to a combined 750 Mbps data rate. -
Smart control with ASUSWRT
With the ASUSWRT dashboard UI, setup, monitor, and control network applications all in one intuitive area. -
Robust external antenna
3 external strong antenna enhances signal transmission -
High Power Design
In pursuit of ultimate capability -
Gigabit Ethernet
Data transfer 10 times faster than 10/100 Fast Ethernet devices
Super-fast AC Wi-Fi with 256QAM™ Wi-Fi acceleration
Powered by 5th generation Wi-Fi (5G Wi-Fi), the 802.11ac chipset gives the RT-AC53 faster wireless speeds than N technology. At 2.4 GHz, it reaches 300 Mbps, while on the 5GHz band it blazes to 433 Mbps. The upgraded bandwidth has the higher capacity you need to increase Wi-Fi enjoyment at home. With notebooks, desktops, pads, and smartphones now all Wi-Fi-reliant, it’s time to upgrade to the next generation to expand you connectivity now and in the future.

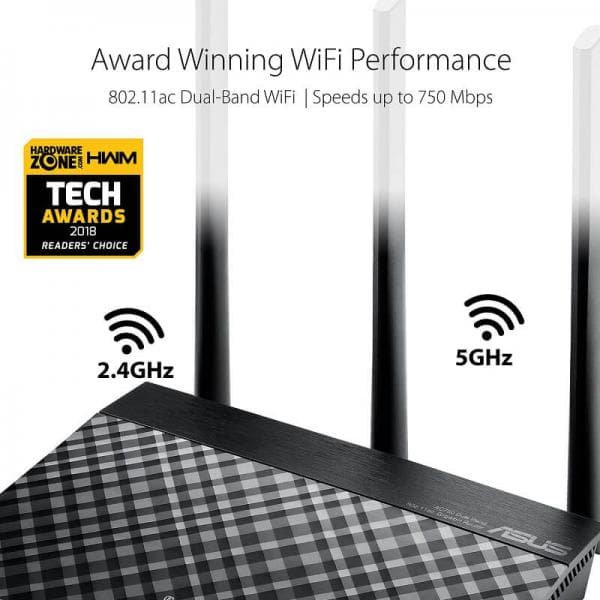

Dual-Band Connectivity for Lag-Free Entertainment
Delivering both 2.4 GHz and 5 GHz concurrent bands up to 300Mbps and 433Mbps respectively, the RT-AC53 has a total speed of up to 733Mbps connectivity to provide speed with stability. Perform basic internet tasks like Web browsing and file downloading under the 2.4 GHz band, while also simultaneously streaming 3D HD content and other demanding applications smoothly on the 5 GHz band.
Control your network anywhere
In your increasingly mobile-enabled life, having control over your network via an app is more important than ever. The new ASUS Router App is built from the ground-up to be both intuitive and robust, allowing you to setup your router, manage network traffic, diagnose connection issues and even update firmware, all without needing to boot up a PC.
Optimized for Fiber-optic internet
10X faster Gigabit WAN lets you fully enjoy the internet speed subscribed from fiber internet service provider.
EZ Switch (Software)
Flexible 3-in-1 router/AP/Repeater mode
Instantly select router, access point and repeater modes with extra-quick settings in the user-friendly interface. No delays and no hassles – whatever your situation, take your pick and get connected.
Keep Up to Date!
Remember to always keep your device’s firmware up to date so you can benefit from the very latest service and security enhancements — and get exciting new features!
Specifications of ASUS RT-AC53 Wifi Router
| Network Standard | IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IPv4, IPv6 |
| Product Segment | AC750 complete AC performance : 300 433 Mbps |
| Coverage | Medium homes |
| Data Rate |
802.11n : up to 300 Mbps 802.11ac : up to 433 Mbps |
| Antenna | External antenna x 3 |
| Transmit/Receive |
MIMO technology 2.4 GHz 2 x 2 5 GHz 1 x 1 |
| Memory |
8 MB Flash 64 MB RAM |
| Operating Frequency | 2.4 GHz / 5 GHz |
| Encryption | 64-bit WEP, 128-bit WEP, WPA2-PSK, WPA-PSK, WPA-Enterprise , WPA2-Enterprise , Radius with 802.1x, WPS support |
| Firewall & Access Control |
Firewall ：SPI intrusion detection Access control ：Guest access, Parental control, Network service filter, URL/Port filter |
| WAN Connection Type | Internet connection type : Automatic IP, Static IP, PPPoE(MPPE supported), PPTP, L2TP |

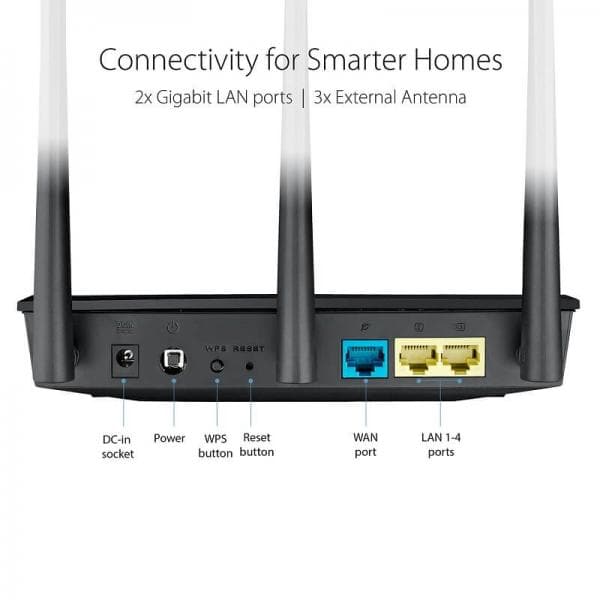

| Ports | RJ45 for 10/100/1000 BaseT for WAN x 1, RJ45 for 10/100/1000 BaseT for LAN x 2 |
| Button | WPS Button, Reset Button, Power Button |
| Features |
SmartQoS - WMM - User definable rules for IP/MAC/Port - Upload and download bandwidth management - ACK/SYN/FIN/RST/ICMP with highest priority Parental Control Guest Network : 2.4 GHz x 3, 5 GHz x 3 VPN server : IPSec Pass-Through, PPTP Pass-Through, L2TP Pass-Through, PPTP Server VPN client : PPTP client, L2TP client |
| LED Indicator |
LAN x 2 Wi-Fi x 2 WAN x 1 Power x 1 |
| Power Supply |
AC Input : 110V~240V(50~60Hz) DC Output : 12 V with max. 1 A current |
| OS Support |
Windows® 10 Windows® 8.1 Windows® 8 , 32bit/64bit Windows® 7 , 32bit/64bit Windows® Vista , 32bit/64bit Windows® 2000 Windows® XP , 32bit/64bit Windows® Server 2003 Windows® Server 2008 Mac OS X 10.1 Mac OS X 10.4 Mac OS X 10.5 Mac OS X 10.6 Mac OS X 10.7 Mac OS X 10.8 Mac OS X Linux Kernel (Support Ubuntu only) Linux Android |

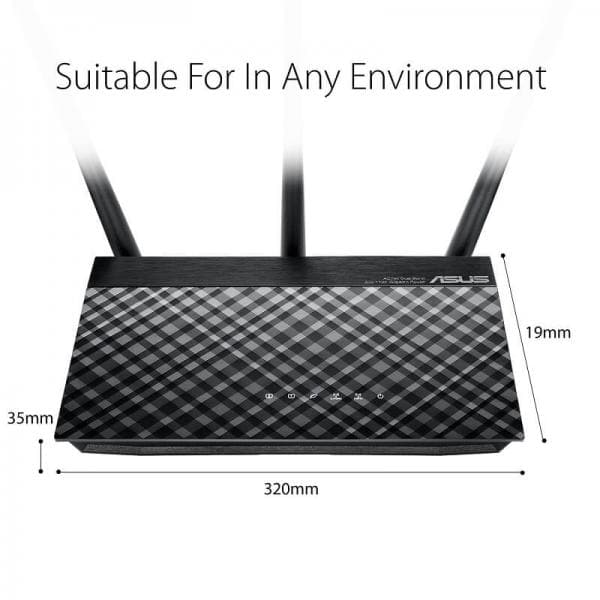

| Dimensions | 320 x 190 x 35 ~ mm (WxDxH) (Without Bezel) |
| Weight | 285 g |
| Package Content |
．RT-AC53 Wireless-AC750 Router ．RJ-45 Cable ．Power Adapter ．Quick Start Guide ．Warranty Card |
| Operation mode |
Wireless router mode Range extender mode Access point mode |
| Warranty | 3 Years |
| Note | ***Features, Price and Specifications are subject to change without notice. |
