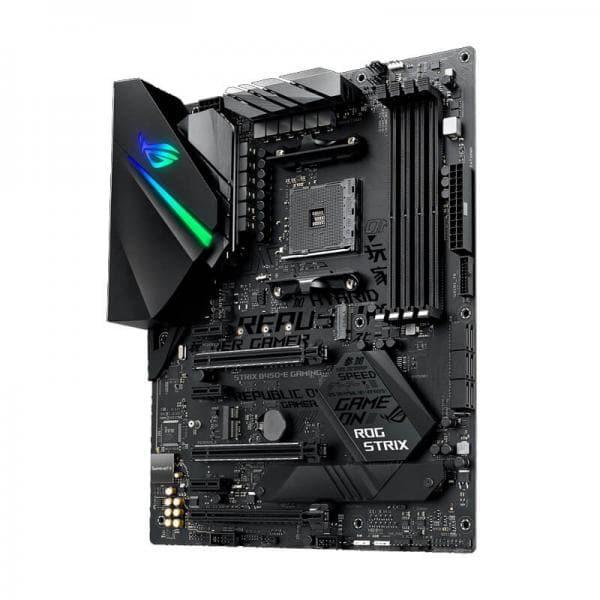

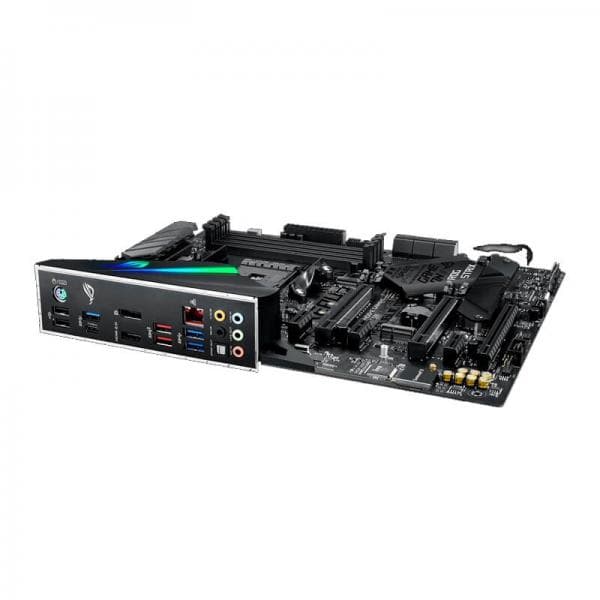

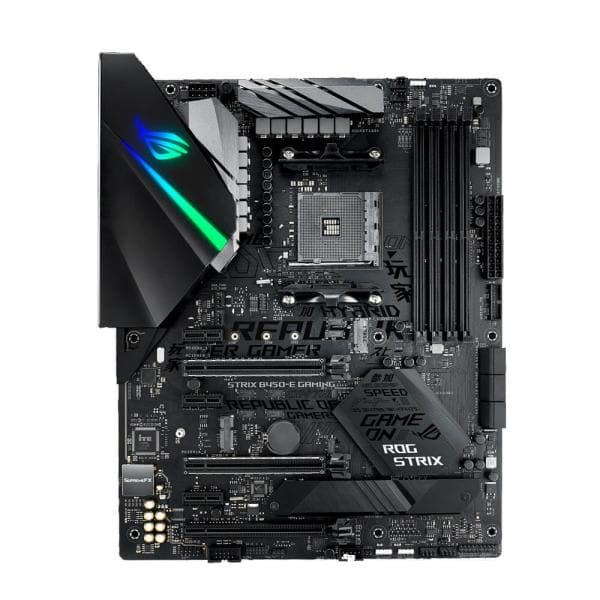

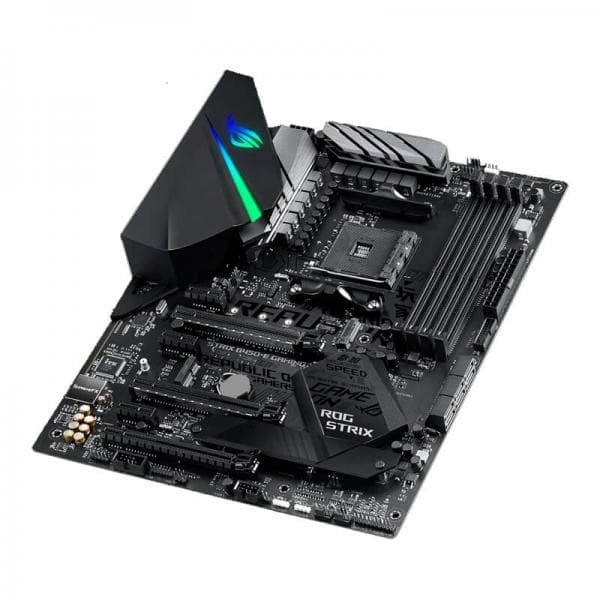

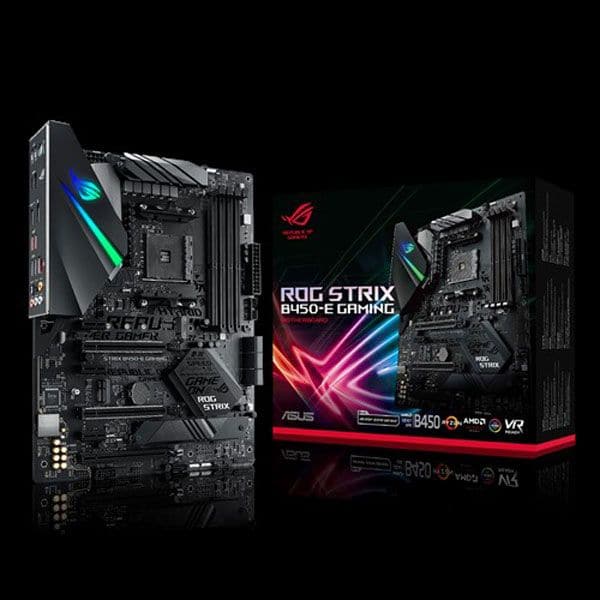

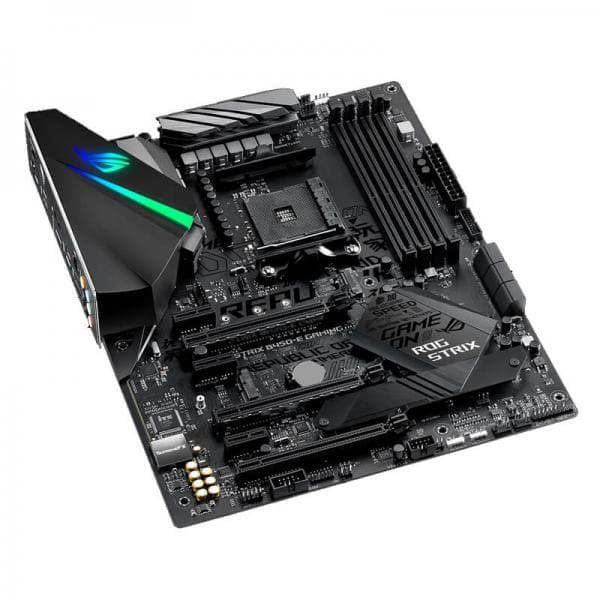

ASUS ROG Strix B450-E Gaming WiFi Motherboard
- AM4 socket: Ready for AMD Ryzen™ processors
- Fast memory and storage: Dual-channel DDR4 4400MHz (OC) and NVM Express® RAID supported.
- Aura Sync RGB: Synchronized RGB lighting technology works with a vast portfolio of Aura Sync-capable PC gear and includes support for addressable light strips.
- Gaming connectivity: Dual M.2 and USB 3.1 Gen 2 Type-A connectors
- Gaming networking: Intel® Wireless-AC 9260 Wi-Fi, Intel Gigabit Ethernet, plus ASUS LANGuard and GameFirst technologies.
- One-click Optimization: Automated system-wide tuning, providing overclocking and cooling profiles that are tailor-made for your rig.
- Gaming audio: SupremeFX S1220A teams with Sonic Studio III to create an aural landscape that draws you deeper into the action.
- Gamer’s Guardian: Pre-mounted I/O shield, M.2 heatsink, ASUS SafeSlot and premium components for maximum endurance.
ASUS ROG Strix B450-E Gaming Wifi series provides a feature set distilled from the high-end ROG Strix X470 Gaming series that gives you all the essentials for a well-balanced build. With comprehensive cooling options, dual PCIe 3.0 M.2 slots and AMD StoreMI support for incredible storage speeds, improved DDR4 memory stability much more, ROG Strix B450 Gaming delivers the performance you need with room to focus your budget on accompanying hardware. The motherboard also offers rich customization options with lighting synchronization as well as guided performance tuning and optimization via intuitive ROG software that makes it easy for experienced and first-time system builders alike to create a gaming system that really stands out.
SOLID HARDWARE SPECS FOR GAMING AND MORE
With ample power to fuel Ryzen's cores, plus cooling, storage and connectivity options for a range of hardware, the ROG Strix B450-E Gaming motherboard has everything you need to build on a budget or load up with high-performance components to game in the big leagues.
DESIGN, CUSTOMIZATION, AND SETUP
A host of design touches, customization options, comprehensive validation lists, and the most diverse ecosystem of components in the industry make building and personalizing a gaming rig with ROG Strix B450-E Gaming wonderfully easy.
TUNE YOUR RIG THE WAY YOU WANT
The ROG Strix B450-E Gaming motherboard features firmware controls and software utilities crafted for all skill levels, making first-time setup, tuning, and system maintenance simple. With options from overclocking and cooling to managing network performance and audio characteristics, you can configure your ROG Strix gaming build to perform the way you want.
THE POWER OF AMD
AMD AM4 Socket for 3rd/2nd/1st Gen AMD Ryzen™ / 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics / Athlon™ with Radeon™ Vega Graphics Processors
The AMD Ryzen™ processor is based on the innovative Zen core architecture and features up to eight cores and Radeon™ Vega integrated graphics. Together with dual-channel DDR4 memory, native 5Gbps USB 3.1 Gen 1 and 16 PCI Express® 3.0/2.0 lanes, these AMD AM4-socket processors deliver superb computing performance.
AMD B450 chipset
The AMD B450 chipset delivers high performance and flexibility with the latest AMD® AM4-socket Ryzen™ processors. It also offers AMD StoreMI storage acceleration technology and provides two 10Gbps USB 3.1 Gen2 ports, two USB 3.1 Gen1 ports, and four 6Gbps SATA ports for faster data retrieval.
Specifications of ASUS ROG Strix B450-E Gaming Wifi DDR4
| CPU | AMD AM4 Socket AMD Ryzen™ 2nd Generation/Ryzen™ with Radeon™ Vega Graphics/Athlon™ with Radeon™ Vega Graphics/Ryzen™ 1st Generation Processors |
| Chipset | AMD B450 |
| Memory | AMD Ryzen™ Processors4 x DIMM, Max. 64GB, DDR4 3533(O.C)/3466(O.C.)/3200(O.C.)/3000(O.C.)/2800(O.C.)/2666/2400/2133 MHz Non-ECC, Un-buffered MemoryDual Channel Memory Architecture |
| Graphic | Integrated Graphics in the AMD Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics ProcessorsMulti-VGA output support : HDMI/DisplayPort ports- Supports HDMI 2.0b with maximum resolution of 4096 x 2160 @ 60 Hz- Supports DisplayPort 1.2 with max. resolution 4096 x 2160 @ 60 Hz |
| Multi-GPU Support | AMD Ryzen™ 2nd Generation/Ryzen™ 1st Generation ProcessorsSupports AMD 3-Way CrossFireX™ Technology |
| Expansion Slots | AMD Ryzen™ 2nd Generation/ Ryzen™ 1st Generation Processors2 x PCIe 3.0/2.0 x16 (x16 or x8/x4)AMD Ryzen™ with Radeon™ Vega Graphics Processor1 x PCIe 3.0/2.0 x16 (x8 mode)AMD Athlon™ with Radeon™ Vega Graphics Processors1 x PCIe 3.0/2.0 x16 (x8 mode) *1AMD B450 chipset1 x PCIe 2.0 x16 (max at x4 mode)3 x PCIe 2.0 x1 |
| Storage | AMD Ryzen™ 2nd Generation/ Ryzen™ 1st Generation Processors : *21 x M.2 Socket 3, , with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)*31 x M.2 Socket 3, , with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode)*42 x SATA 6Gb/s port(s)AMD Ryzen™ with Radeon™ Vega Graphics Processor : *21 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)*32 x SATA 6Gb/s port(s)AMD Athlon™ with Radeon™ Vega Graphics Processors : *21 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA mode)AMD B450 chipset : 4 x SATA 6Gb/s port(s),Support Raid 0, 1, 10 |
| LAN | Intel® I211-AT, 1 x Gigabit LAN Controller(s)Anti-surge LANGuardROG GameFirst Technology |
| Wireless Data Network | Intel® Wireless-AC 9260Supports dual band frequency 2.4/5 GHzSupports MU-MIMO |
| Bluetooth | Bluetooth® 5.0 |
| Audio | ROG SupremeFX 8-Channel High Definition Audio CODEC S1220A- Dual OP Amplifiers- Impedance sense for front and rear headphone outputs- Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input- SupremeFX Shielding Technology- Supports up to 32-Bit/192kHz playback *5Audio Feature :- Optical S/PDIF out port(s) at back panel- Sonic Radar III- Sonic Studio III Sonic Studio Link |
| USB Ports | AMD Ryzen™ 2nd Generation/ Ryzen™ with Radeon™ Vega Graphics/ Ryzen™ 1st Generation :3 x USB 3.1 Gen 1 port(s) (3 at back panel, blue)AMD Ryzen™ 2nd Generation/ Ryzen™ with Radeon™ Vega Graphics/ Ryzen™ 1st Generation :1 x USB 3.1 Gen 1 port(s) (1 at back panel, , Type-C)AMD B450 chipset :2 x USB 3.1 Gen 2 port(s) (2 at back panel, red)AMD B450 chipset :2 x USB 3.1 Gen 1 port(s)AMD B450 chipset :4 x USB 2.0 port(s) (2 at back panel, , 2 at mid-board) |
| ROG Exclusive Features | ROG CPU-ZPre-mounted I/O ShieldOverwolfGameFirst IVROG Exclusive Software- RAMCache III- GameFirst V |
| Special Features | 5-Way Optimization by Dual Intelligent Processors 5- Whole system optimization with a single click! 5-Way Optimization tuning key perfectly consolidates TPU, EPU, DIGI VRM, Fan Xpert 4, and Turbo App together, providing better CPU performance, efficient power saving, precise digital power control, whole system cooling and even tailor your own app usages.TPU- Auto Tuning, TurboV, GPU BoostFan Xpert4- Fan Xpert 4 featuring Fan Auto Tuning function and multiple thermistors selection for optimized system cooling controlGamer's Guardian:- ESD Guards on LAN, Audio, KBMS and USB3.1/3.0/2.0 ports- DRAM Overcurrent Protection- Highly Durable Components- SafeSlotASUS EPU :- EPUAURA :- Aura Lighting Control- Aura RGB Strip Headers- Aura Lighting Effects Synchronization with compatible ASUS ROG devicesASUS Exclusive Features :- AI Suite 3- Ai Charger- Armoury CrateASUS EZ DIY :- ASUS CrashFree BIOS 3- ASUS EZ Flash 3ASUS Q-Design :- ASUS Q-Shield- ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED)- ASUS Q-Slot- ASUS Q-DIMMDigi VRMTurbo APP- featuring system performance tuning for selected applications |
| Back I/O Ports | 1 x PS/2 keyboard/mouse combo port(s)1 x DisplayPort1 x HDMI1 x LAN (RJ45) port(s)2 x USB 3.1 Gen 2 (red)Type-A,4 x USB 3.1 Gen 1 (blue)2 x USB 2.01 x Optical S/PDIF out5 x Audio jack(s) |
| Internal I/O Ports | 1 x Addressable RGB header2 x Aura RGB Strip Headers1 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s)2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode)1 x TPM header1 x COM port(s) connector(s)6 x SATA 6Gb/s connector(s)1 x CPU Fan connector(s)1 x CPU OPT Fan connector(s)3 x Chassis Fan connector(s)1 x AIO_PUMP connector1 x 24-pin EATX Power connector(s)1 x 8-pin EATX 12V Power connectors1 x Front panel audio connector(s) (AAFP)1 x System panel(s)1 x Thermal sensor connector(s)1 x Clear CMOS jumper(s) |
| Operating System | Windows® 10 64-bitWindows® 7 64-bit *6 |
| Form Factor | ATX Form Factor12 inch x 9.6 inch ( 30.5 cm x 24.4 cm ) |
| Warranty | 3 Years |
| Note | ***Features, Price and Specifications are subject to change without notice. |
