Description

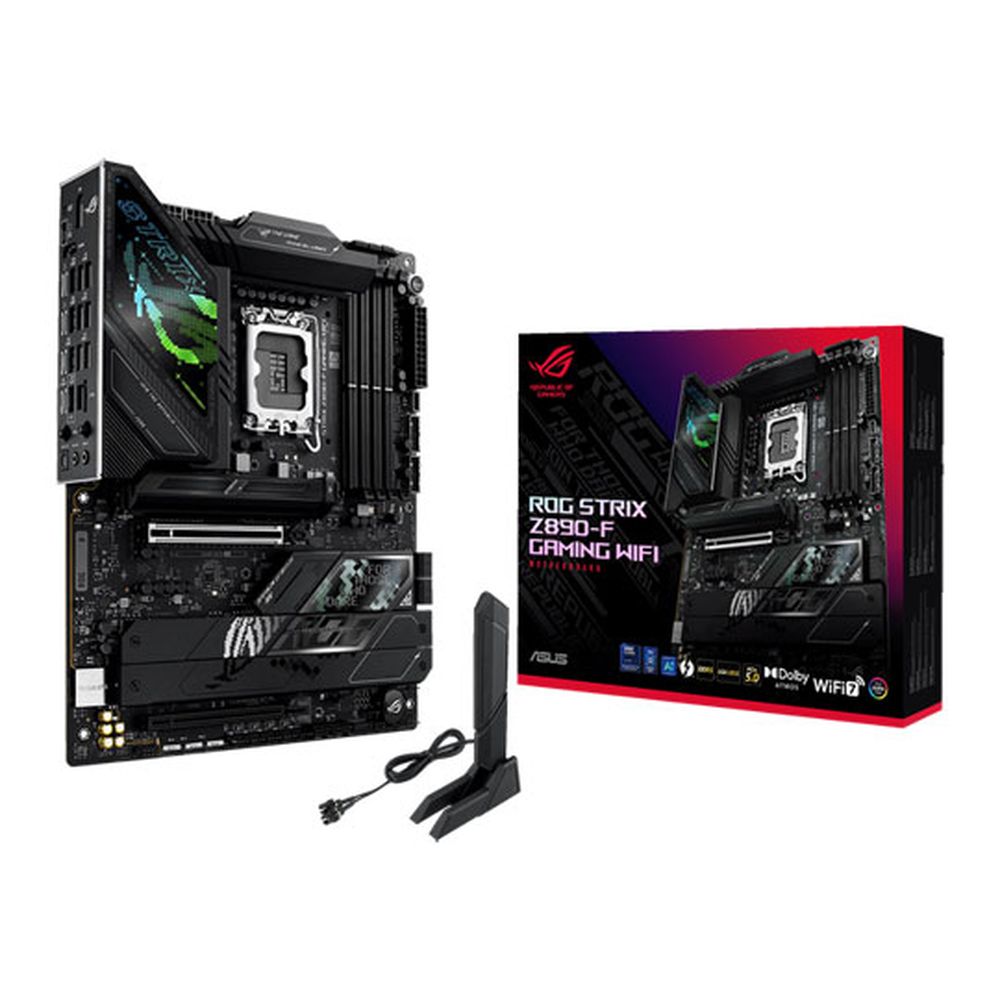

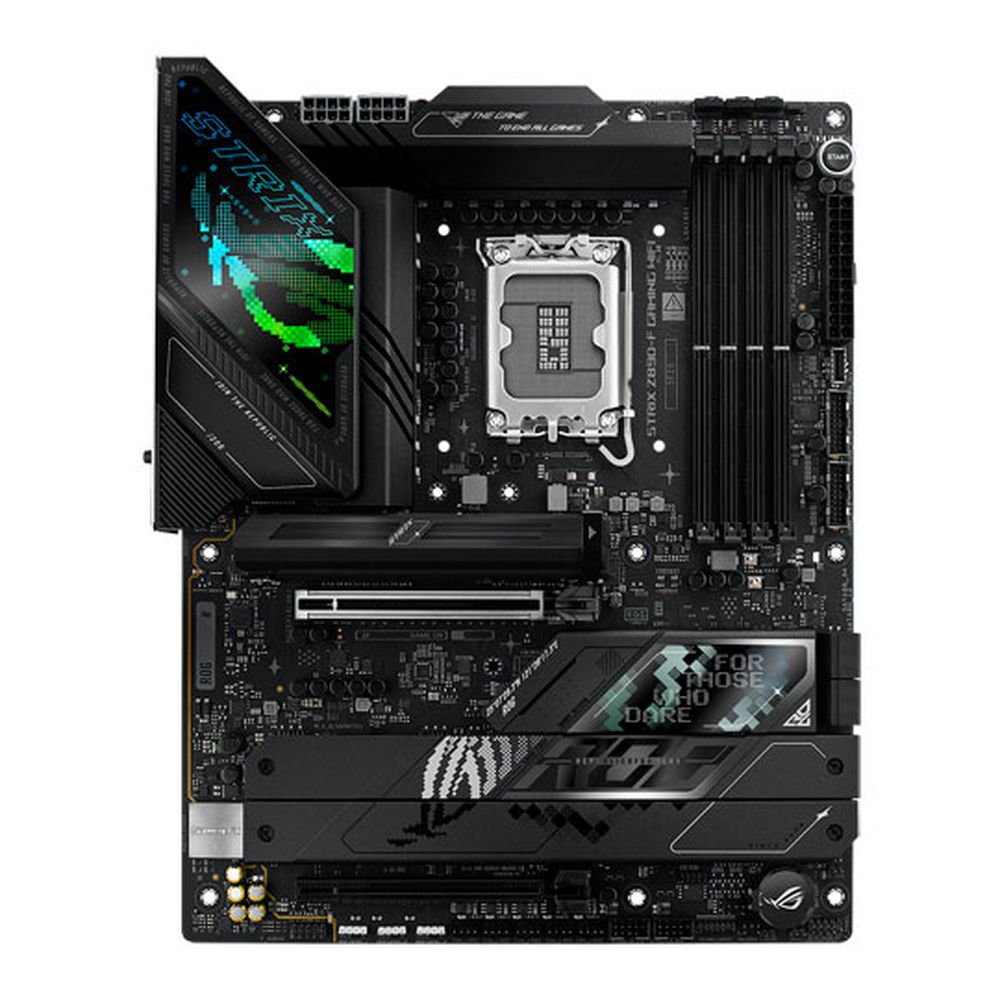

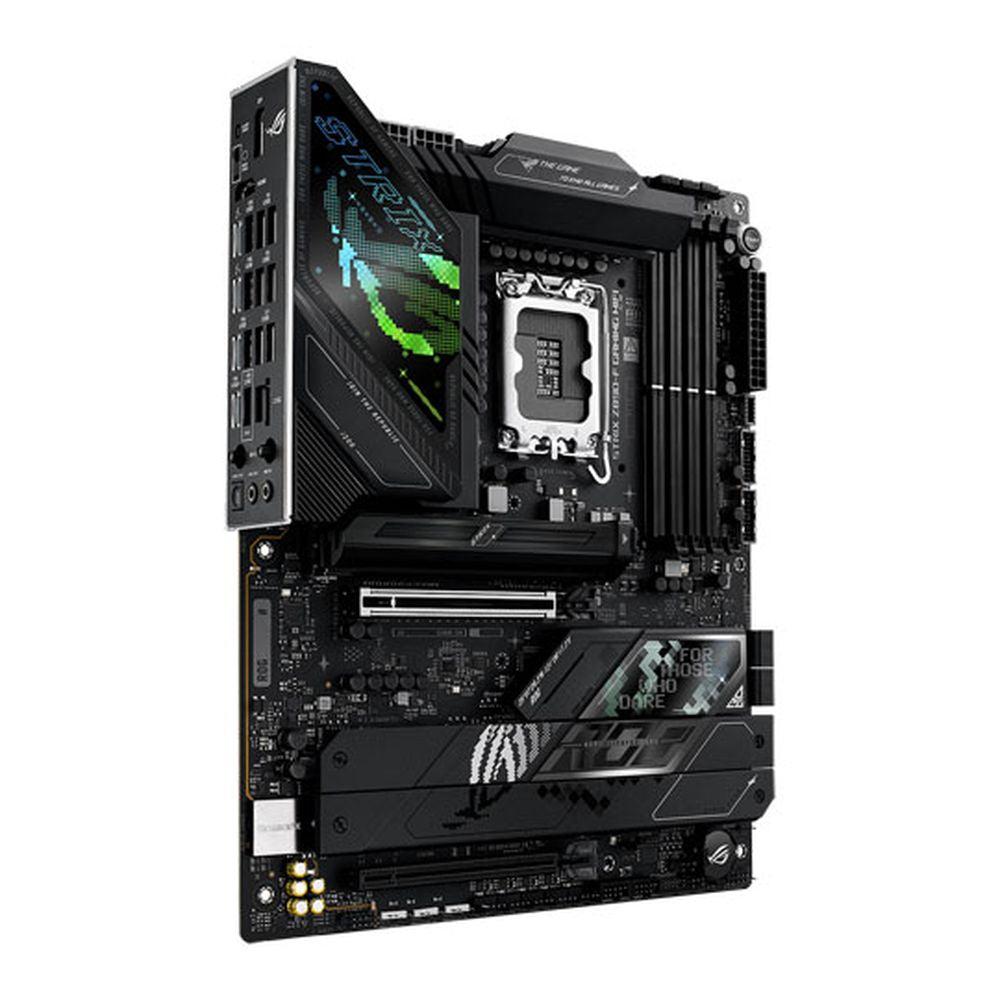

Feature of ASUS ROG STRIX Z890-F Gaming Wifi DDR5 Intel Motherboard
ASUS AI ADVISOR
Using AI technology to understand
Ai OVERCLOCKING
ASUS AI Overclocking profiles the CPU and cooling to predict the optimal configuration and push the system to its limits.
AI NETWORKING II
AI Networking II combines intelligent technologies to continuously optimize network performance, provide trustworthy and seamless connectivity, and unleash the full speed of WiFi 7*.
NPU BOOST
The integrated NPU in Intel® Core™ Ultra Processors (Series 2) efficiently accelerates AI workflows — and NPU Boost lets you do more with it. This BIOS feature overclocks the NPU with just one click, increasing performance by up to 24%.
DDR5 DOMINATION
Enhanced signal routing can push enthusiast-grade kits well beyond the 8 GT/s threshold on the Strix Z890-F.
AEMP III
ASUS Enhanced Memory Profile III (AEMP III) is an advanced firmware feature that empowers users to achieve unparalleled memory performance with cutting-edge
Specifications of ASUS ROG STRIX Z890-F Gaming Wifi DDR5 Intel Motherboard
| Core Specifications | |
| Edition | ROG STRIX Z890-F GAMING WIFI |
| Form Factor | ATX |
| CPU Socket | 1851 |
| Chipset | Intel Z890 |
| RAM Memory Support | |
| Memory Type | DDR5 |
| Memory Channel | Dual (2) |
| Memory Type (ECC) | Non-ECC |
| Memory Type (R/U) | UDIMM (Unbuffered) |
| Memory Speed (Mhz) | DDR5 - 8600(OC) |
| Max. Memory Capacity | 192GB (4x48GB) |
| Audio | |
| Audio | 7.1 Channel HD Audio |
| Graphics Support | |
| Primary GPU Interface | PCIe 5.0 (x16) |
| NVIDIA SLI Support | N/A |
| AMD CrossFire Support | N/A |
| Integrated Graphics | Discrete GPU Required for Graphics Output |
| On-Board Graphics Connectors |
DisplayPort HDMI Thunderbolt 4 |
| Internal Connectivity | |
| Expansion Slots |
1 x M.2, 22-42/60/80, PCIe Gen4x4/SATA 1 x M.2, 22-42/60/80/110, PCIe Gen5x4 2 x M.2, 22-80, PCIe Gen4x4 1 x M.2, 22-80/110, PCIe Gen4x4 1 x PCIe 4.0 x16 (x4 Bandwidth) 1 x PCIe 5.0 x16 4 x SATA 6GB/s |
| SATA Support | SATA3 |
| RAID Support via | SATA3 / M.2 |
| Storage Mode Support |
RAID 0 RAID 1 RAID 10 RAID 5 |
| Internal I/O |
1 x 24-pin (Power) 1 x 4-pin AIO_PUMP Connector 5 x 4-pin CHA_FAN connector 1 x 4-pin CPU Fan Connector 1 x 4-pin CPU OPT Fan Connector 2 x 8-pin (Power) 3 x Addressable Gen 2 Header 1 x Chassis Intrusion connector 1 x CPU_OV 1 x Front Panel Audio Header 1 x Front Panel Connector 5 x M.2 Connector 4 x SATA III - 6Gb/s 1 x T_Sensor Connector 1 x Thunderbolt 4 Header 2 x USB 2.0 Header 2 x USB 3.2 Gen1 Header 1 x USB 3.2 Gen2x2 Connector |
| External Connectivity | |
| Network Interface Type |
802.11be Wi-Fi 7 LAN Wired 2.5 Gigabit LAN |
| Network Chip/Modules |
1 x 2.5 Gigabit LAN 1 x 802.11be WiFi 7 + BT5.4 |

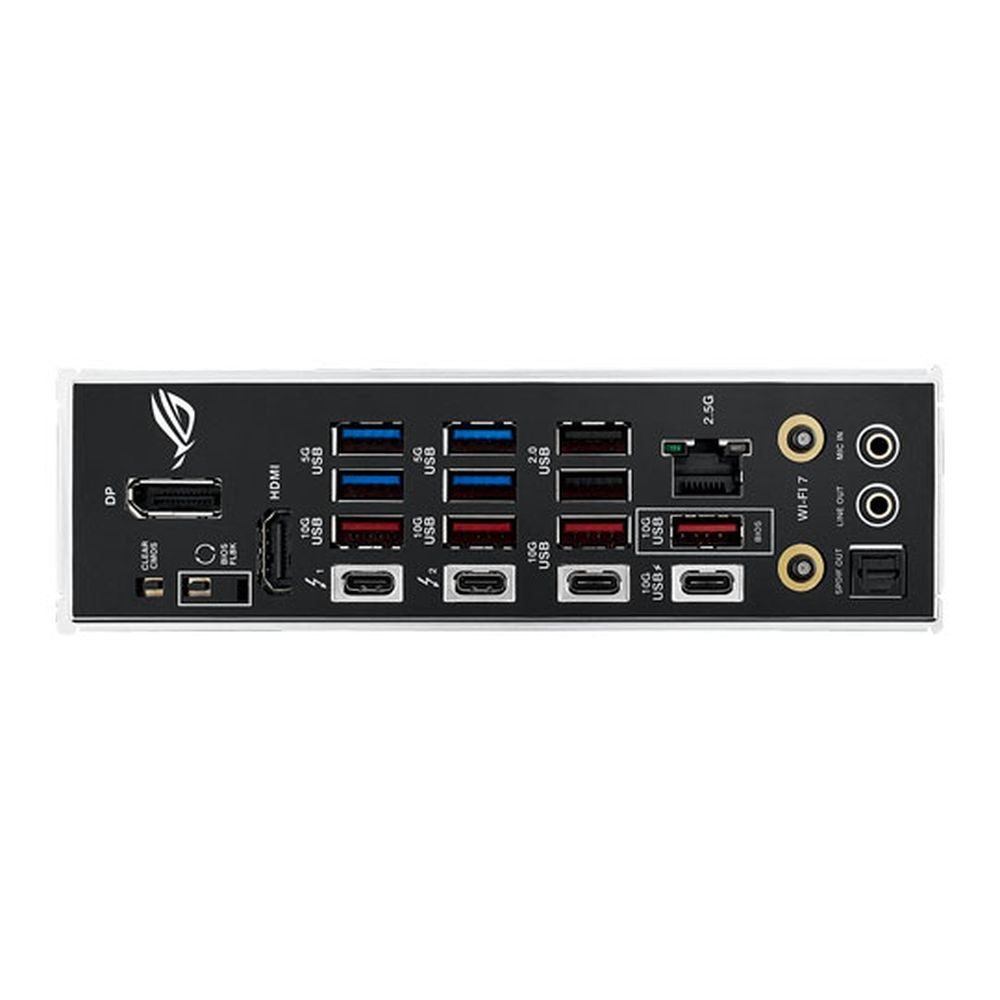

| Rear I/O Connectors |
1 x BIOS Flashback Button 1 x Clear CMOS Button 1 x DisplayPort 1 x HDMI 1 x Line Out 1 x Mic-In 1 x RJ-45 1 x S/PDIF-Out (Optical) 2 x Thunderbolt 4 2 x USB 2.0 4 x USB 3.2 Gen1 Type-A 4 x USB 3.2 Gen2 Type-A 1 x USB 3.2 Gen2 Type-C 1 x USB 3.2 Gen2 Type-C /w PD 1 x WiFi Module |
| Additional Specifications | |
| Water Cooled | No |
| Cooling | Passive Heatsinks |
| QPI Speed | N/A |
| Board Dimensions | 305 x 244 mm |
