Description
Features of ASUS ProArt X670E Creator Wifi DDR5 AMD Motherboard
The ASUS ProArt X670E-Creator WiFi empowers creators of all levels by maximizing the performance of the latest AMD Ryzen 7000 Series processors with 16+2 team power stages, DDR5 and PCIe 5.0 and lightning-fast connectivity including USB4, 10 Gb and 2.5 Gb Ethernet, plus WiFi 6E.
- AM5 socket: X670E Creator Ready for AMD Ryzen 7000 Series CPUs
- X670E Creator Robust performance: 16+2 teamed power stages, ProCool power connectors, high-quality alloy chokes and durable capacitors
- Future-proofed connectivity: X670E Creator Dual USB4 ports, 10 Gb & 2.5 Gb Ethernet, WiFi 6E, two PCIe 5.0 and two PCIe 4.0 M.2 slots and a USB 3.2 Gen 2×2 front panel connector with Quick Charge 4+
- Exclusive overclocking technologies: AI Overclocking, Dynamic OC Switcher, and Ryzen Core Flex

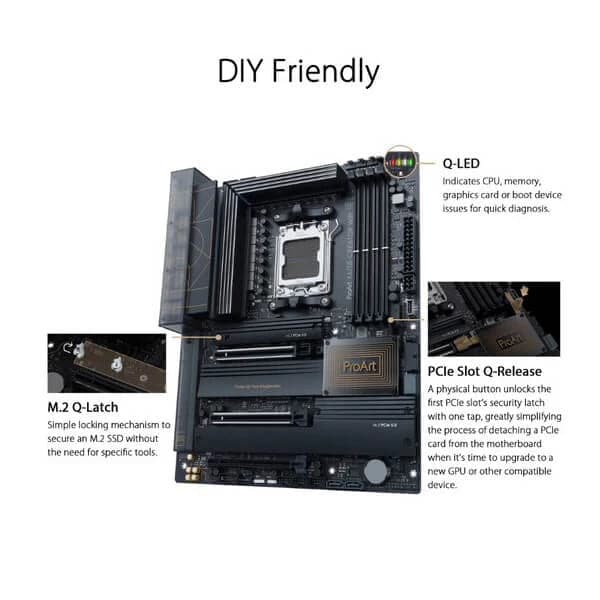

- DIY-Friendly design: PCIe Slot Q-Release, M.2 Q-Latch, SafeSlot, SafeDIMM, pre-mounted I/O shield, BIOS FlashBack, Q-Connector
- ProArt gives you more: Two-Way AI Noise Cancelation for clear online communication, and ProArt Creator Hub with CreationFirst for one-stop system control
- Advanced security: X670E Creator USB port management, software blacklisting and Regedit on/off controls via ASUS Control Center Express

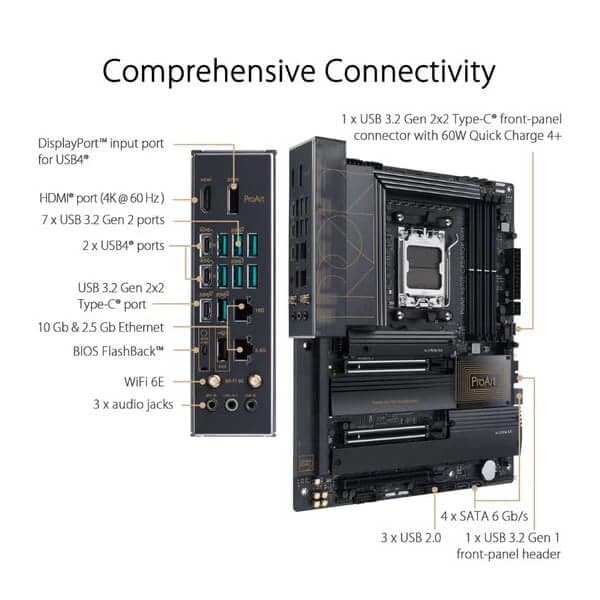

Dual USB4 connectivity
Get immersed in your creations with two USB4 ports which connect to all your content creation gadgets and enable up to 40 Gbps bi-directional data transfers. To further push your creative work with one 8K or two 4K color-accurate monitors, you can connect your discrete graphics card to the onboard DisplayPort-in port at the back I/O and direct the video output via the USB4 port.
Ultrafast networking
WiFi 6E
Onboard WiFi 6E technology takes advantage of the newly available radio spectrum in the 6 GHz band, providing up to three times the bandwidth of the 5 GHz band and up to seven 160 MHz bands to deliver ultrafast wireless networking speeds along with improved capacity and better performance in dense wireless environments.
10 Gb & 2.5 Gb Ethernet
Dual Ethernet ports provide fast data transfers simultaneously for 2.5 Gb internet streaming or uploading and 10 Gb for local network-attached storage (NAS), allowing for improved data organization and security.
PCIe 5.0 support
PCIe 5.0
Fully embracing the new standard, the ProArt X670E-Creator WiFi offers PCIe 5.0 support to give unfettered bandwidth to the fastest SSDs and graphics cards available.
Four onboard M.2 slots
The ProArt X670E-Creator WiFi features four onboard M.2 slots, two of which are PCIe 5.0-ready to offer blistering 16 GB/s speed, while the remaining pair can still deliver massive 8 GB/s transfers through their PCIe 4.0 interfaces.
PCIe 5.0 expansion slots
Both of the x16 expansion slots have the PCIe 5.0 treatment to offer incredible speeds up to 64 GB/s for compatible devices. To bear the brunt of massive graphics cards, they are also protected with SafeSlot retention brackets, and the top slot can be released easily thanks to the Q-Release button.

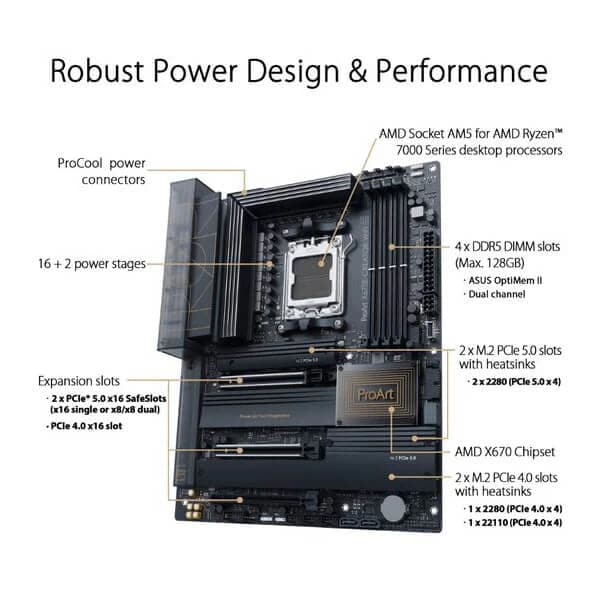

Robust Power Design
1. 16+2 teamed power stages: Rated for 70 amps and combining high-side and low-side MOSFETs and drivers into a single package, these stages deliver power and efficiency tailored for the latest AMD Ryzen 7000 series processors.
2. Digi+ power control: The ASUS Digi+ voltage-regulator module (VRM) is one of the finest in the industry and ensures ultra-smooth power delivery to the CPU.
3. ProCool power connectors: Built to tight specifications to ensure flush contact with PSU power lines. The resulting lower impedance helps to prevent hotspots and connector failure.
4. Chokes & capacitors: Superior alloy chokes and durable capacitors are engineered to resist extreme temperatures, providing a higher level of performance than the industry standard.
AI Overclocking
X670E Creator Tuning is now faster and smarter than ever before. ASUS AI Overclocking profiles the CPU and cooling to predict the optimal configuration and push the system to its limits. Predicted values can be engaged automatically or used as a launching ground for further experimentation.
Dynamic OC Switcher
Lightly-threaded tasks get fantastic uplift using AMD Precision Boost Overdrive (PBO), but all-core frequencies can be pushed higher via traditional overclocking. The Dynamic OC Switcher lets you have the best of both worlds by engaging the better system for each job based on the CPU current or temperature.
DDR5 Memory
DDR5 Strength
X670E Creator For those who want to fly past stock DDR5 speeds, the ProArt X670E-Creator WiFi is ready for enthusiast-grade kits, courtesy of the vast AMD EXtended Profiles for Overclocking (EXPO) support. Seasoned veterans can further tweak performance via an extensive array of settings in the UEFI.
ASUS Enhanced Memory Profile
ASUS Enhanced Memory Profile (AEMP) is an exclusive firmware feature for PMIC-restricted memory modules. AEMP automatically detects the memory chips on your kit and then presents optimized frequency, timing, and voltage profiles that you can effortlessly apply to unleash performance.

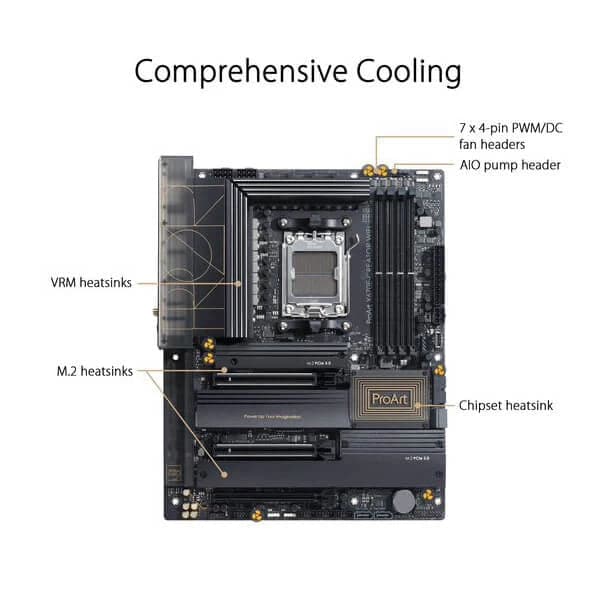

Self-adaptive Fan Tuning
X670E Creator AI Cooling II balances the thermals and acoustics of any build with a single click. A proprietary ASUS algorithm slashes unnecessary noise while running a quick stress test, and then it monitors CPU temperatures to dynamically adjust fans to optimal speeds.
Specifications of ASUS ProArt X670E Creator Wifi DDR5 AMD Motherboard
| CPU | AMD Socket AM5 for AMD Ryzen™ 7000 Series Desktop Processors |
| Chipset | AMD X670 |
| Memory |
4 x DIMM, Max. 128GB, DDR5 6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800 ECC and Non-ECC, Un-buffered Memory* Dual Channel Memory Architecture Supports AMD EXTended Profiles for Overclocking (EXPO™) OptiMem II * Supported memory types, data rate(Speed), and number of DRAM module vary depending on the CPU and memory configuration, for more information refer to www.asus.com for memory support list. * Non-ECC, Un-buffered DDR5 Memory supports On-Die ECC function. |
| Graphics |
1 x HDMI® port** 2 x USB4® ports support USB Type-C® display outputs*** * Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates. ** Supports 4K@60Hz as specified in HDMI 2.1. *** Supports max. 8K@60Hz as specified in DisplayPort 1.4. **** Output at USB4_EC1 and USB4_EC2, each requires a USB-C® to DisplayPort adapter cable. VGA resolution support depends on processors' or graphic cards' resolution. |
| Expansion Slots |
AMD Ryzen™ 7000 Series Desktop Processors* 2 x PCIe 5.0 x16 slots (support x16 or x8/x8 modes) AMD X670 Chipset 1 x PCIe 4.0 x16 slot (supports x2 mode)** * Please check the PCIe bifurcation table in support site (https://www.asus.com/support/FAQ/1037507/). ** PCIEX16_3 shares bandwidth with M.2_3 slot. Please adjust in BIOS setting to enable PCIEX16_3. |
| Storage |
Total supports 4 x M.2 slots and 4 x SATA 6Gb/s ports* AMD Ryzen™ 7000 Series Desktop Processors M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) AMD X670 Chipset M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)** M.2_4 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) 4 x SATA 6Gb/s ports *AMD RAIDXpert2 Technology supports both NVMe RAID 0/1/10 and SATA RAID 0/1/10. ** M.2_3 slot shares bandwidth with PCIEX16_3. When PCIEX16_3 is in operation after adjusting in BIOS settings, M.2_3 slot will only run at PCIe x2 mode. |
| Ethernet |
1 x Marvell® AQtion 10Gb Ethernet 1 x Intel® 2.5Gb Ethernet ASUS LANGuard |
| Wireless & Bluetooth |
Wi-Fi 6E 2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax) Supports 2.4/5/6GHz frequency band* Bluetooth v5.2 * WiFi 6E 6GHz regulatory may vary between countries. |
| USB |
Rear USB (Total 11 ports) 2 x USB4® with Intel® JHL8540 USB4® controller ports (2 x USB Type-C®) 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®) 7 x USB 3.2 Gen 2 ports (7 x Type-A) 1 x USB 2.0 port (1 x Type-A) Front USB (Total 9 ports) 1 x USB 3.2 Gen 2x2 connector (supports USB Type-C® with up to 60W PD/QC4+) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 3 x USB 2.0 headers support additional 6 USB 2.0 ports |
| Audio |
Realtek S1220A 7.1 Surround Sound High Definition Audio CODEC* - Impedance sense for front and rear headphone outputs - Internal audio Amplifier to enhance the highest quality sound for headphone and speakers - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in) - Supports up to 32-Bit/192 kHz playback* Audio Features - Power pre-regulator reduces power input noise to ensure consistent performance - Premium audio capacitors - Dedicated audio PCB layers - Audio cover - Unique de-pop circuit * Due to limitations in HDA bandwidth, 32-Bit/192 kHz is not supported for 7.1 Surround Sound audio. ** A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output. |
| Back Panel I/O Ports |
2 x USB4® with Intel® JHL8540 USB4® controller ports (2 x USB Type-C®) 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®) 7 x USB 3.2 Gen 2 ports (7 x Type-A) 1 x USB 2.0 port (1 x Type-A) 1 x DisplayPort (Input only) 1 x HDMI® port 1 x Wi-Fi Module 1 x Marvell® AQtion 10Gb Ethernet 1 x Intel® 2.5Gb Ethernet 3 x Audio jacks 1 x BIOS FlashBack™ button |
| Internal I/O Connectors |
Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 5 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 2 x 8-pin +12V Power connectors 1 x 6-pin PCIe Power connector Storage related 4 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 2x2 connector (supports USB Type-C®) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 3 x USB 2.0 headers support additional 6 USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 headers 1 x Aura RGB header 1 x Clear CMOS header 1 x COM Port header 1 x CPU Over Voltage jumper 1 x Front Panel Audio header (AAFP) 1 x 20-3 pin System Panel header with Chassis intrude function 1 x Thermal Sensor header |
| Special Features |
ASUS 5X PROTECTION III - DIGI+ VRM (- Digital power design) - Enhanced DRAM Overcurrent Protection - ESD Guards - LANGuard - Overvoltage Protection - Safeslot - Stainless-Steel Back I/O ASUS Q-Design - M.2 Q-Latch - PCIe Slot Q-Release - Q-Connector - Q-DIMM - Q-LED (CPU - Q-Slot ASUS Thermal Solution - M.2 heatsink backplate - M.2 heatsinks - VRM heatsink design ASUS EZ DIY - BIOS FlashBack™ button - BIOS FlashBack™ LED - ProCool - Pre-mounted I/O shield - SafeSlot - SafeDIMM AURA Sync - Aura RGB header - Addressable Gen 2 headers Bespoke Motherboard Design & Business Focused Features - 24/7 Reliability - Overcurrent Protection Front Panel USB 3.2 Gen 2x2 with Quick Charge 4+ Support - Support: up to 60W charging* - Output: 5/9/15/20V max. 3A, PPS:3.3–21V max. 3A - Compatible with QC 4.0/3.0/2.0, PD3.0 and PPS * To support 60W, please install the power cable to 6-pin PCIe Graphics Card connector or can only support 27W |
| Software Features |
ASUS Exclusive Software Armoury Crate - Aura Creator - Aura Sync - Fan Xpert 4 with AI Cooling II - Power Saving - Two-Way AI Noise Cancellation AI Suite 3 TPU DIGI+ VRM Turbo app ASUS CPU-Z IT Management software supported - ASUS Control Center Express(ACCE) CreationFirst MyAsus Norton Anti-virus software (Free Trial version) ProArt Creator Hub WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode FlexKey |
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS |
| Manageability | WOL by PME, PXE |

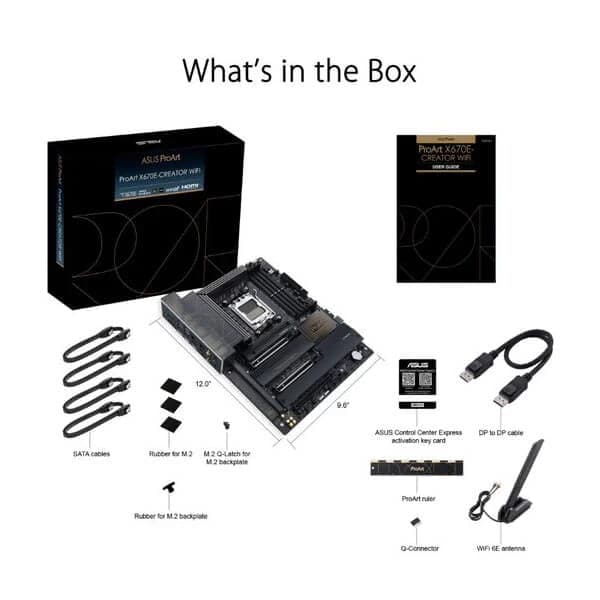

| Accessories |
Cables 1 x DisplayPort cable 4 x SATA 6Gb/s cables Miscellaneous 1 x ASUS Wi-Fi moving antennas 1 x Q-connector 1 x M.2 Q-Latch package for M.2 backplate 2 x Rubber Packages for M.2 1 x Rubber Package for M.2 backplate 1 x Screw packages for M.2 SSD 1 x ProArt ruler Documentation 1 x ACC Express Activation Key Card 1 x User guide |
| Operating System | Windows® 11 64-bit |
| Form Factor |
ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm ) |
| Warranty | 3 Years |
| Note | *** Features, Price, Specifications are subject to change without notice. |
