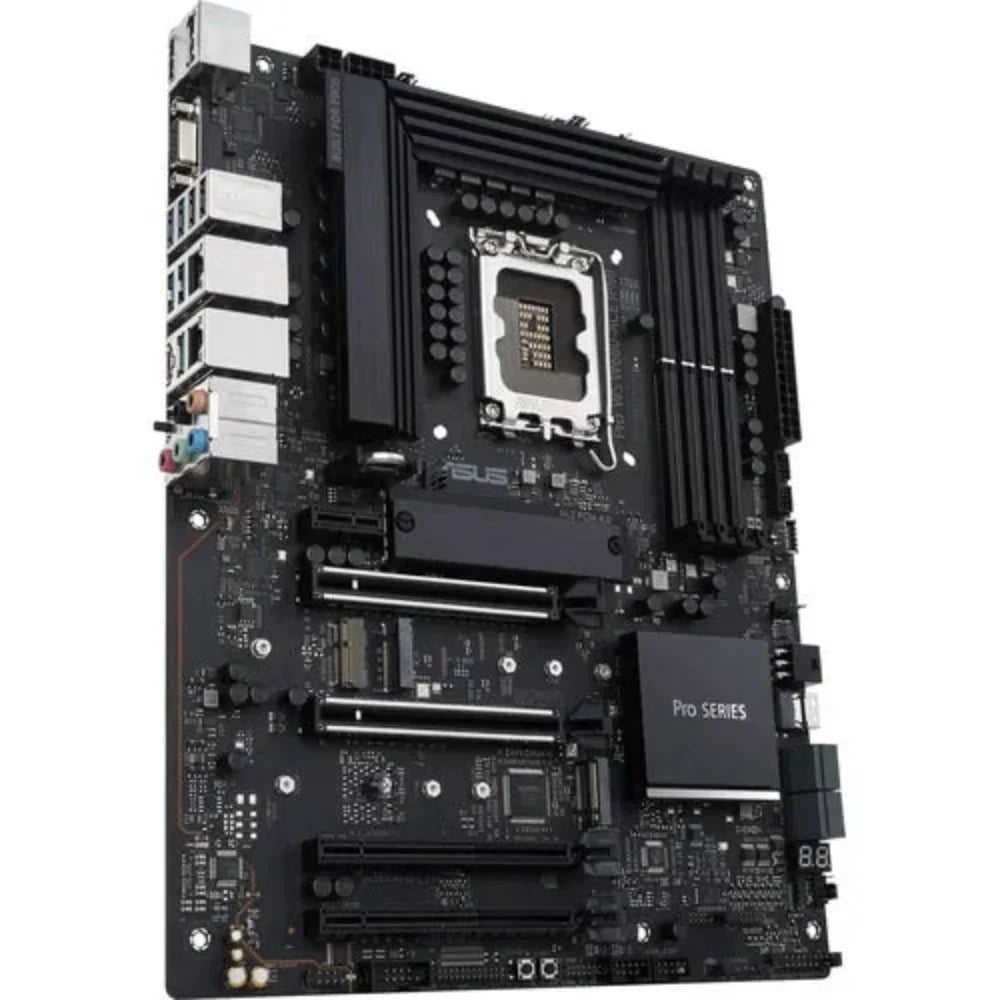

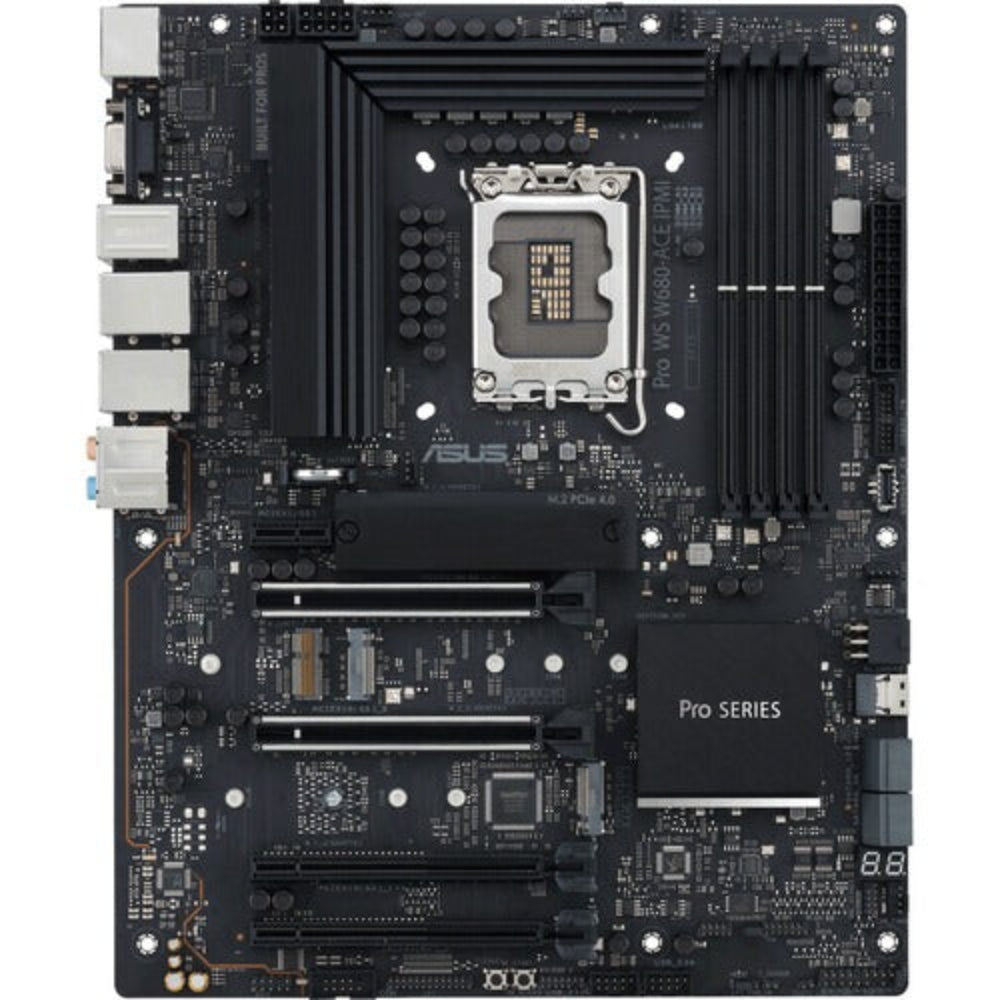

Features of ASUS Pro WS W680 Ace DDR5 Intel Motherboard
- Intel® LGA 1700 socket: Ready for 13th Gen Intel® Core™ processors & 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors
- Enhanced power solution: DrMOS, ProCool connector, alloy chokes and durable capacitors for stable power delivery
- Next-gen connectivity: Dual PCIe 5.0 SafeSlots, dual PCIe 3.0 slots, 3 x M.2 PCIe 4.0, SlimSAS, dual Intel® 2.5Gb Ethernet, front panel USB 3.2 Gen2x2 Type-C®, Thunderbolt™ 4 header support, TPM header, LPT header
- Comprehensive cooling: Large VRM heatsink, M.2 heatsinks, hybrid fan headers and Fan Xpert 4
- Advanced security management: USB port management, software blacklisting and Regedit on/off controls via ASUS Control Center Express
- Trusted stability: Tested for 24/7 operation, validated for extensive compatibility and equipped with SafeSlot and SafeDIMM for enhanced durability
ASUS Pro Workstation motherboards are designed for professionals in AI training, deep learning, animation, 3D rendering or media production. Featuring expandable graphics, extensive storage, impressive connectivity and exceptional overall performance and reliability, Pro Workstation motherboards are the ideal solution for creative professionals. Each motherboard includes centralized management software, so they're also an efficient and cost-effective option for IT administrators.

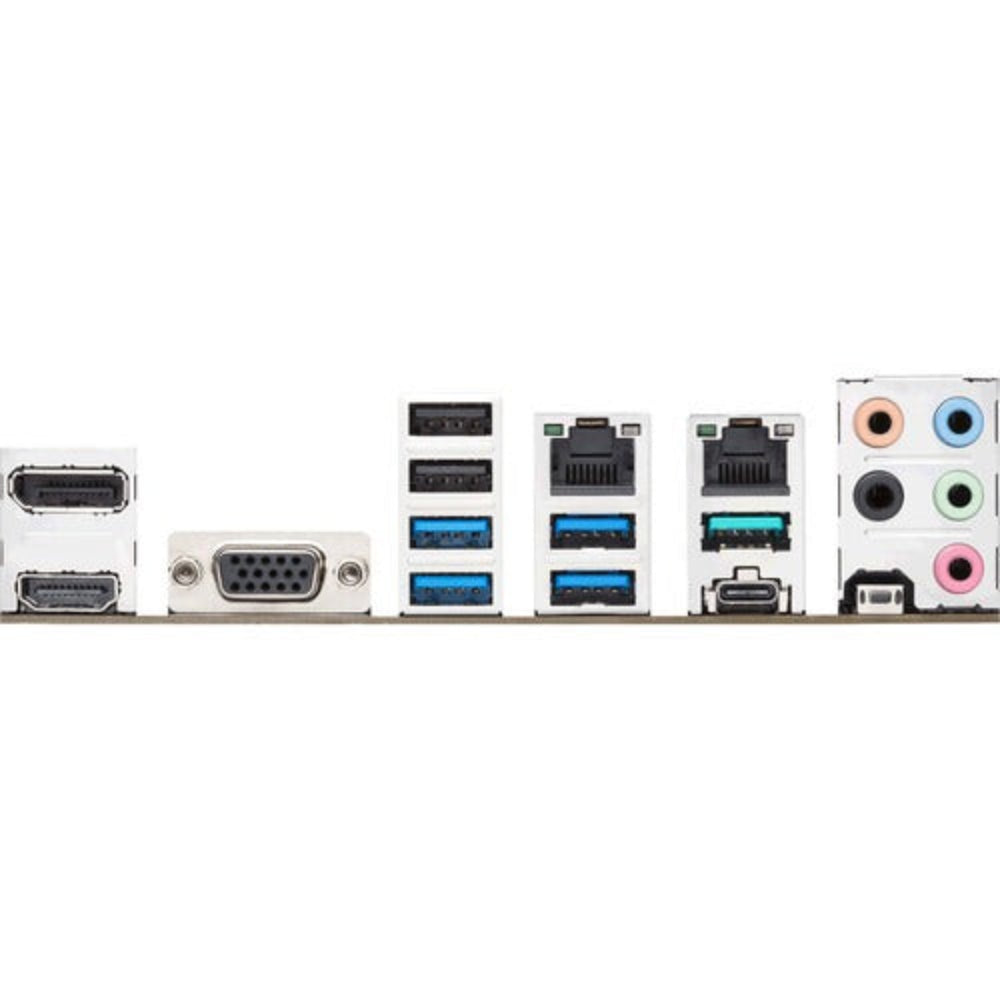

Ultra Powerful Back IO
The motherboard comes with four USB 3.2 Gen 1 type connector, one reversible USB Type-C connector and front-panel connector to support additional USB expansions.
ECC Memory Support
Designed for creative professionals who require outstanding performance, reliability and enhanced security, ASUS Pro WS W680-ACE motherboard is powered by the 14th, 13th and 12th Gen Intel® Core™ processors for always-on usage scenarios and supports ECC memory to automatically detect and correct data corruption, reducing the chance of system crashes to ensure workstation stability.
Dual 2.5G Ethernet
Boosted connectivity with dual onboard Ethernet ports. Intel 2.5G Ethernet upgrades your traditional LAN connection with an up to 2.5X bandwidth improvement. Using your existing Ethernet cable, you can experience faster file transfers and immediately stream high-resolution videos.
Multi-GPU Support
Two PCIe 5.0 x16 slots provide flexible system configurability and expandability — including support for NVIDIA® Quadro® — for enhanced performance in modelling, simulation, and rendering applications.
Specifications of ASUS Pro WS W680 Ace DDR5 Intel Motherboard
| Product Code | PRO-WS-W680-ACE |
| Platform | INTEL |
| Socket | LGA1700 |
| Cpu Type | 14th Gen,13th Gen,12th Gen,Pentium,Celeron |
| Chipset | W680 |
| Max Memory Support | 192 GB |
| Supported Memory Type | DDR5 |
| Channel Supported | Dual Channel |
| Memory Feature |
ECC and Non-ECC Un-buffered Memory* Supports Intel® Extreme Memory Profile (XMP) OptiMem II * Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information on Brand Website/ * Non-ECC, un-buffered DDR5 memory supports On-Die ECC function. |
| Graphics Port | 1 x DisplayPort,1 x HDMI Port,1 x VGA port |
| Expansion Slots |
Intel® Core™ Processors (14th & 13th & 12th Gen)* - 2 x PCIe 5.0 x16 slots (support x16 or x8 / x8 mode) Intel® W680 Chipset - 2 x PCIe 3.0 x16 slots (supports x4 mode) - 1 x PCIe 3.0 x1 slot * Please check the PCIe bifurcation table at the support on Brand Website |
| Back Panel I/O Ports |
-2 x USB 3.2 Gen 2 ports (1 x Type-A, 1 x Type-C®) -4 x USB 3.2 Gen 1 ports (4 x Type-A) -2 x USB 2.0 ports (2 x Type-A) -1 x DisplayPort -1 x HDMI® port -1 x VGA port -2 x Intel® 2.5Gb Ethernet ports -5 x Audio jacks -1 x BIOS FlashbackTM button |
| Internal I/O Connector |
1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin W_PUMP+ header 3 x 4-pin Chassis Fan headers 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector 1 x 4-pin +12V Power connector 1 x 6-pin PCIe Power connector 3 x M.2 slots (Key M) 4 x SATA 6Gb/s ports 1 x SlimSAS port 1 x USB 3.2 Gen 2x2 connector (supports USB Type-C® ) 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports 1 x LPT header 1 x T-sensor 1 x Clear CMOS header 1 x COM Port header 1 x BMC Header 1 x Front Panel Audio header (AAFP) 1 x Start button 1 x Flexkey button 1 x SPI TPM header (14-1pin) 1 x 20-3 pin System Panel header with Chassis intrude function 1 x M.2 slot (Key E) 1 x LPT_P80 Switch 1 x Thunderbolt™ header |
| Form Factor | ATX |
| Warranty | 3 Years |
| Note | ***Features, Price and Specifications are subject to change without notice. Images use for Representation Purpose Only. |
