Description

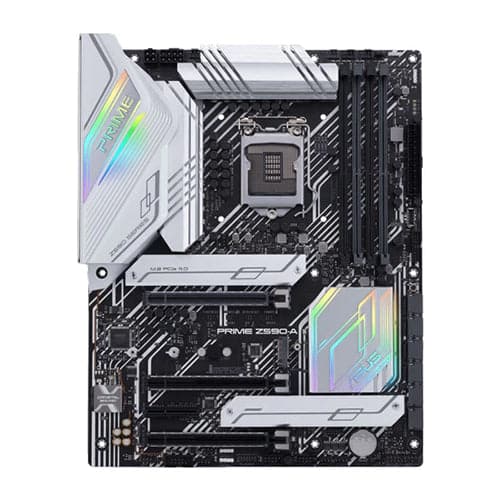

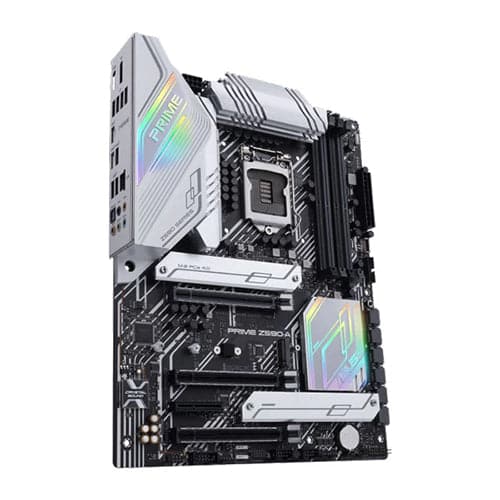

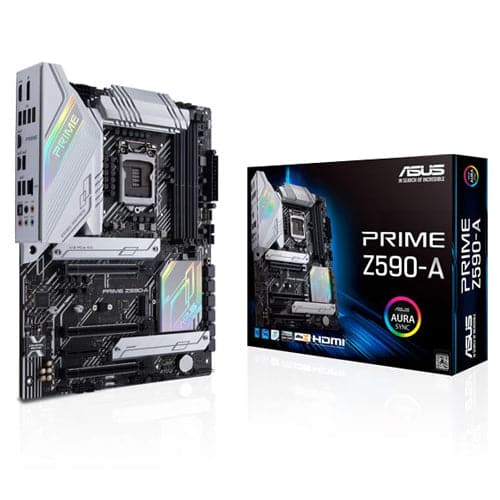

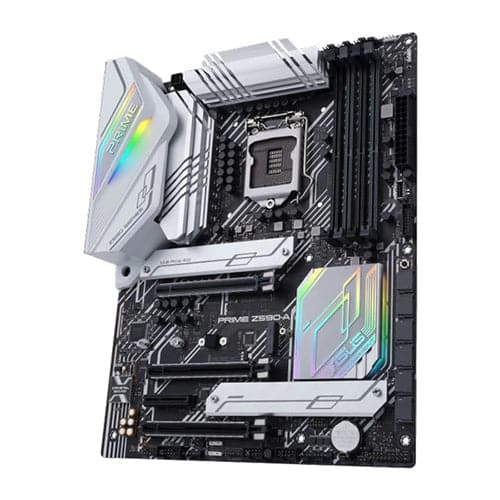

Feature of ASUS Prime Z590-A DDR4
Intel® Z590 (LGA 1200) ATX motherboard with PCIe® 4.0, three M.2 slots, 16 DrMOS power stages, HDMI®, DisplayPort™, SATA 6 Gbps, Intel® 2.5 Gb Ethernet, USB 3.2 Gen 2×2 Type-C®, front panel USB 3.2 Gen 1 Type-C®, Thunderbolt™ 4 support, and Aura Sync RGB lighting
- Intel® LGA 1200 socket: Ready for 10th and 11th gen Intel® Core™ processors
- Enhanced power solution: 14+2 DrMOS power stages, six-layer PCB, ProCool sockets, alloy chokes and durable capacitors for stable power delivery
- AI Overclocking: Optimizes CPU performance based on the CPU and cooler, achieving results that are extremely close to manual tuning by experts
- AI Cooling: Manages and controls all motherboard fans, automatically optimizing settings based on current system load and temperature
- Two-way AI Noise Cancelation: Reduces background noise from the microphone and audio output for crystal-clear communication in games or video conferences
- Comprehensive cooling: Large VRM heatsink, M.2 heatsink, hybrid fan headers and Fan Xpert 4
- Next-gen connectivity: PCIe® 4.0, Intel® 2.5 Gb Ethernet, USB 3.2 Gen 2×2 Type-C®, front panel USB 3.2 Gen 1 Type-C®, Thunderbolt™ 4 header support
ASUS Prime Z590-A DDR4 series motherboards are expertly engineered to unleash the full potential of 10th and 11th Generation Intel® Core™ processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, Prime Z590-A provides daily users and DIY PC builders a range of performance tuning options via intuitive software and firmware features.
ASUS Prime Z590-A is perfect for those seeking to create a sleek, futuristic-looking build, thanks to its black and white finish and iridescent metallic nameplate and PCB cover
5-Way Optimization
ASUS 5-Way Optimization makes your PC smart, taking care of complex tuning with just one click. It dynamically optimizes essential aspects of your system, providing overclocking and cooling profiles that are tailored for your rig.
- 5-Way Optimization is an automated tuning utility that enhances overclocking and cooling profiles for your unique system configuration.
- Fans stay whisper-quiet for everyday computing, and deliver optimal airflow when the system is crunching through CPU- or GPU-intensive tasks.
- A stress test feature allows you to optimize and overclock for CPU- or memory-centric workloads.
ASUS AI Overclocking
ASUS AI Overclocking is an intelligent utility that helps you get the most out of your build by automatically profiling your CPU and cooling system to predict optimal voltage and frequency settings.
Accessible via the AI Suite software in Windows or directly through the UEFI, the intuitive AI Overclocking user interface enables users of all levels. A range of customizable settings are available for seasoned overclockers, and an auto-tuning option is available for beginners.
AI Cooling
ASUS AI Cooling function will automatically manage and control motherboard-connected fans to ensure optimal settings based on current system load and temperature.
UEFI BIOS
The renowned ASUS UEFI BIOS provides everything you need to configure, tweak and tune your system. It offers intelligently simplified options for PC DIY beginners, as well as comprehensive features for seasoned veterans.
M.2 Heatsink
Two M.2 heatsinks take care of the three M.2 slots, warding off throttling that can occur with M.2 storage during sustained transfers. The heatsinks are held in place by captive screws and can be moved to other M.2 slots.
VRM Heatsink and Thermal Pads
Two massive VRM heatsinks and thermal pads improve heat transfer from the MOSFETs and chokes for better cooling performance. A bundled fan holder provides additional cooling options.
Stack Cool 3+
2-ounce copper layers draw heat away from critical components to keep them at their optimal operating temperatures.
Robust Power Design
Stable power is essential to extract every last bit of performance out of 11th Generation Intel® Core™ processors. Prime Z590-A is geared to cater to the demands of these high-core count CPUs.
TWO-WAY AI NOISE CANCELATION
This utility leverages a massive deep-learning database to reduce background noise from the microphone and incoming audio, while preserving vocals at the same time. This removes distracting keyboard clatter, mouse clicks and other ambient noises so you can hear and be heard with crystal clarity while gaming or in calls.
*An audio splitter (3.5 mm audio jack Y-cable) is necessary when using a 3.5 mm headset.
Specifications of ASUS Prime Z590-A DDR4
| CPU |
Intel® Socket LGA1200 for 11th Gen Intel® Core™ processors & 10th Gen Intel® Core™, Pentium® Gold and Celeron® Processors Supports Intel® 14 nm CPU Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types. |
| Chipset | Intel® Z590 Chipset |
| Memory |
4 x DIMM, Max. 128GB, DDR4 DDR4 5333(OC)/5133(OC)/5000(OC)/4800(OC)/4700(OC)
/4600(OC)/4500(OC) /4400(OC)/4266(OC)/4133(OC) /4000(OC)/3866(OC)/3733(OC) /3600(OC)/3466(OC)/3400(OC)/3333(OC)/ 3200/3000/2933 /2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory* |
| Graphics |
1 x DisplayPort 1.4** 1 x HDMITM 2.0*** * Graphics specifications may vary between CPU types. "** Only Intel® 11th Core™ processors support DisplayPort 1.4 with max. resolution of 5120 x 2880 @60Hz, others will only support DisplayPort 1.4 with max. resolution of 4096 x 2304 @60Hz. Please refer to www.intel.com for any updates" *** Only Intel® 11th Core™ processors, support HDMI™ 2.0 with max. resolution of 4K@60Hz, others would only support HDMI™ 1.4 with max. resolution of 4K@30Hz .Please refer to www.intel.com for any update. **** VGA resolution support depends on processors' or graphic cards' resolution. |
| Expansion Slots |
Intel® 11th & 10th Gen Processors 3 x PCIe 4.0/3.0 x16 slots* - Intel® 11th Core™ processors support PCIe 4.0 x16 - Intel®10th processors support PCIe 3.0 x16 Intel® Z590 Chipset 1 x PCIe 3.0 x4 slot * Supports PCIe bandwidth bifurcation for RAID on CPU function. |
| Storage |
Total supports 3 x M.2 slots and 6 x SATA 6Gb/s ports Intel®11th Gen Processors M.2_1 slot (Key M), type 2242/2260/2280/22110 - Only Intel® 11th Core™ processors support PCIe 4.0 x4 mode, this slot will be disabled for other CPUs Intel® Z590 Chipset M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 3.0 x4 & SATA modes)*** M.2_3 slot (Key M), type 2242/2260/22110 (supports PCIe 3.0 x4 & SATA modes)**** 6 x SATA 6Gb/s ports *Raid function for PCIe mode SSD in Intel® Rapid Storage Technology is available with either 1. Intel® SSDs installed in both CPU-attached and PCH-attached slots, or 2. any other 3rd party SSDs installed in PCH-attached slots. ** To enable Intel® Optane™ Memory (Hybrid Storage device), it must be installed in PCH-attached slots with Intel® Rapid Storage Technology. *** M.2_2 shares bandwidth with SATA6G_2. When M.2_2 runs SATA mode, SATA6G_2 will be disabled. **** M.2_3 shares bandwidth with SATA6G_6. When M.2_6 runs SATA mode, SATA6G_6 will be disabled. |
| Ethernet | 1 x Intel® I225-V 2.5Gb Ethernet |
| USB |
Rear USB (Total 9 ports) 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®) 4 x USB 3.2 Gen 2 ports (3 x Type-A, 1 x Type-C®) 4 x USB 2.0 ports (4 x Type-A) Front USB (Total 7 ports) 1 x USB 3.2 Gen 1 connector (suppports USB Type-C®) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports |
| Audio |
"Realtek S1220A 7.1 Surround Sound High Definition Audio CODEC* - Impedance sense for front and rear headphone outputs - Internal audio Amplifier to enhance the highest quality sound for headphone and speakers - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in) - Supports up to 32-Bit/192 kHz playback*" Audio Features: - Power pre-regulator reduces power input noise to ensure consistent performance - Rear optical S/PDIF out port - Premium Japanese audio capacitors - Audio Shielding - Dedicated audio PCB layers - Audio cover - Unique de-pop circuit * Due to limitations in HDA bandwidth, 32-Bit/192kHz is not supported for 8-Channel audio. |

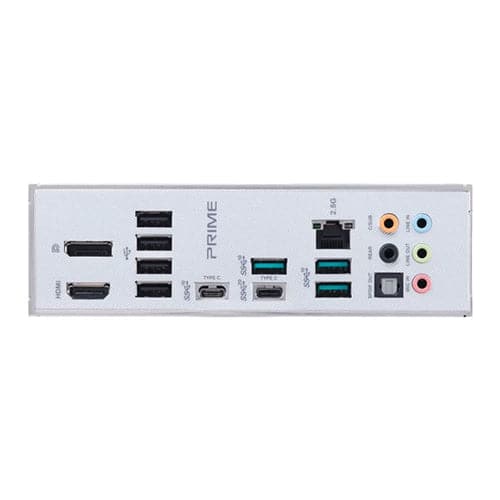

| Back Panel I/O Ports |
1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®) 4 x USB 3.2 Gen 2 ports (3 x Type-A, 1 x Type-C®) 4 x USB 2.0 ports (4 x Type-A) 1 x DisplayPort 1 x HDMI™ port 1 x Intel® I225-V 2.5Gb Ethernet port 5 x Audio jacks 1 x Optical S/PDIF out port |
| Internal I/O Connectors |
Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 3 x 4-pin Chassis Fan headers 1 x 4-pin VRM_HS Fan header 1 x W_PUMP+ header Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector 1 x 4-pin +12V Power connector Storage related 3 x M.2 slots (Key M) 6 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 1 connector (supports USB Type-C®) 1 x USB 3.2 Gen 1 headers supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports Miscellaneous 3 x AURA Addressable Gen 2 headers 1 x AURA RGB headers 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x CPU Over Voltage jumper 1 x Power button 1 x SPI TPM header (14-1pin) 1 x 20-3 pin System Panel header with Chassis intrude function 1 x Thermal Sensor header 1 x Thunderbolt™ header |
| Special Features |
ASUS 5X PROTECTION III - ASUS DIGI+ VRM (- Digital power design with Dr. MOS) - ASUS Enhanced DRAM Overcurrent Protection - ASUS ESD Guards - ASUS LANGuard - ASUS Overvoltage Protection - ASUS Stainless-Steel Back I/O ASUS Q-Design : - M.2 Q-Latch - ASUS Q-Connector - ASUS Q-DIMM - ASUS Q-LED (CPU - ASUS Q-Slot ASUS Thermal Solution: - Aluminum M.2 Heatsink - Flexible M.2 heatsink ASUS EZ DIY: - Procool - Pre-mounted I/O shield - ASUS SafeSlot |
| Software Features |
ASUS Exclusive Software: Armoury Crate: - Aura Creator - Aura Sync - Two-Way AI Noise Cancelation AI Suite 3 - 5-way Optimization with AI Overclocking TPU EPU Digi+ VRM Fan Xpert 4 Turbo app - EZ update AI Charger ASUS CPU-Z ASUS Turbo LAN MyAsus DTS:X® Ultra UEFI BIOS: AI Overclocking Guide ASUS EZ DIY : - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode - EZ Tuning Wizard FlexKey |
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS |
| Manageability | WOL by PME, PXE |
| Accessories |
Cables 3 x SATA 6Gb/s cables Miscellaneous 2 x M.2 Rubber Packages 1 x Q-connector Installation Media 1 x Support DVD Documentation 1 x User manual |
| Operating System | Windows® 10 64-bit |
| Form Factor |
ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm ) |
| Warranty | 3 Years |
| Note | ***Features, Price and Specifications are subject to change without notice. |
