Description

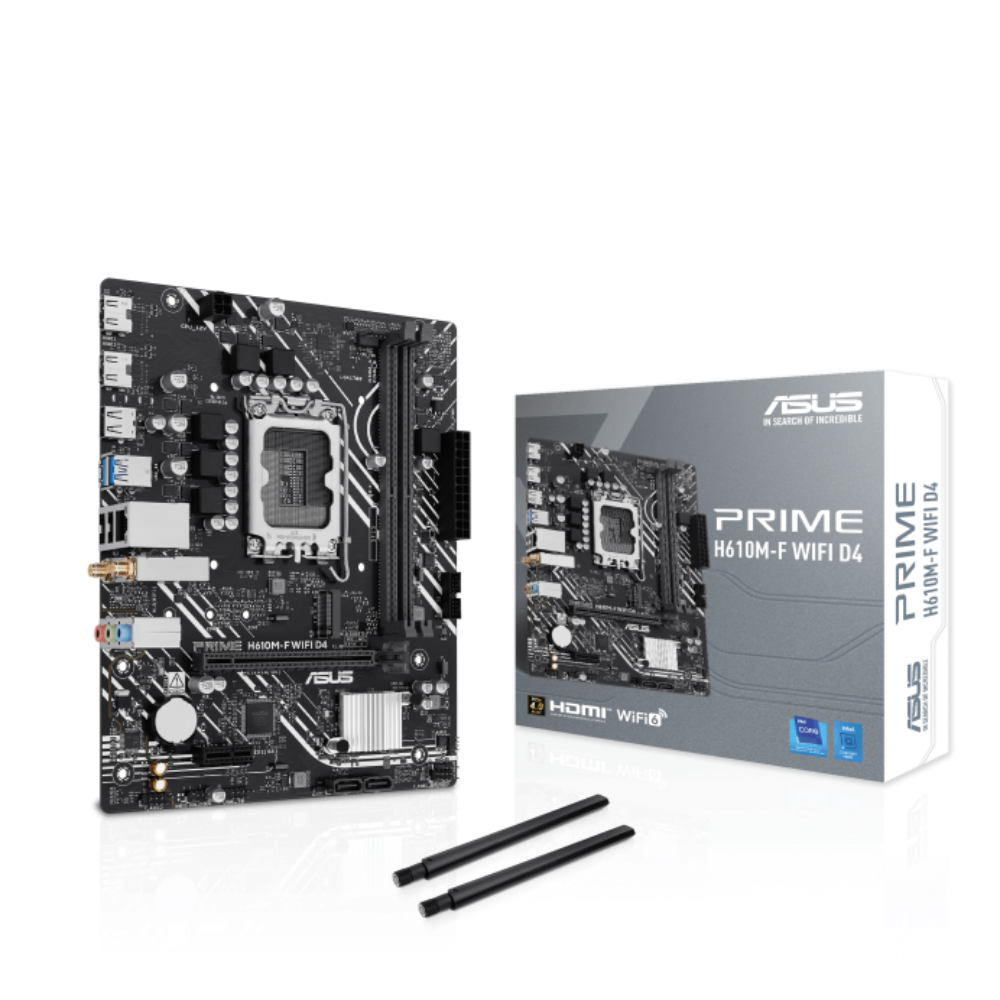

Features of ASUS Prime H610M-F Wifi DDR4 Intel Motherboard
- Intel LGA 1700 Socket: Ready for 14th, 13th and 12th Gen Intel® processors
- Ultrafast Connectivity: 32Gbps M.2 slot, Realtek 1Gb Ethernet and USB 5Gbps support

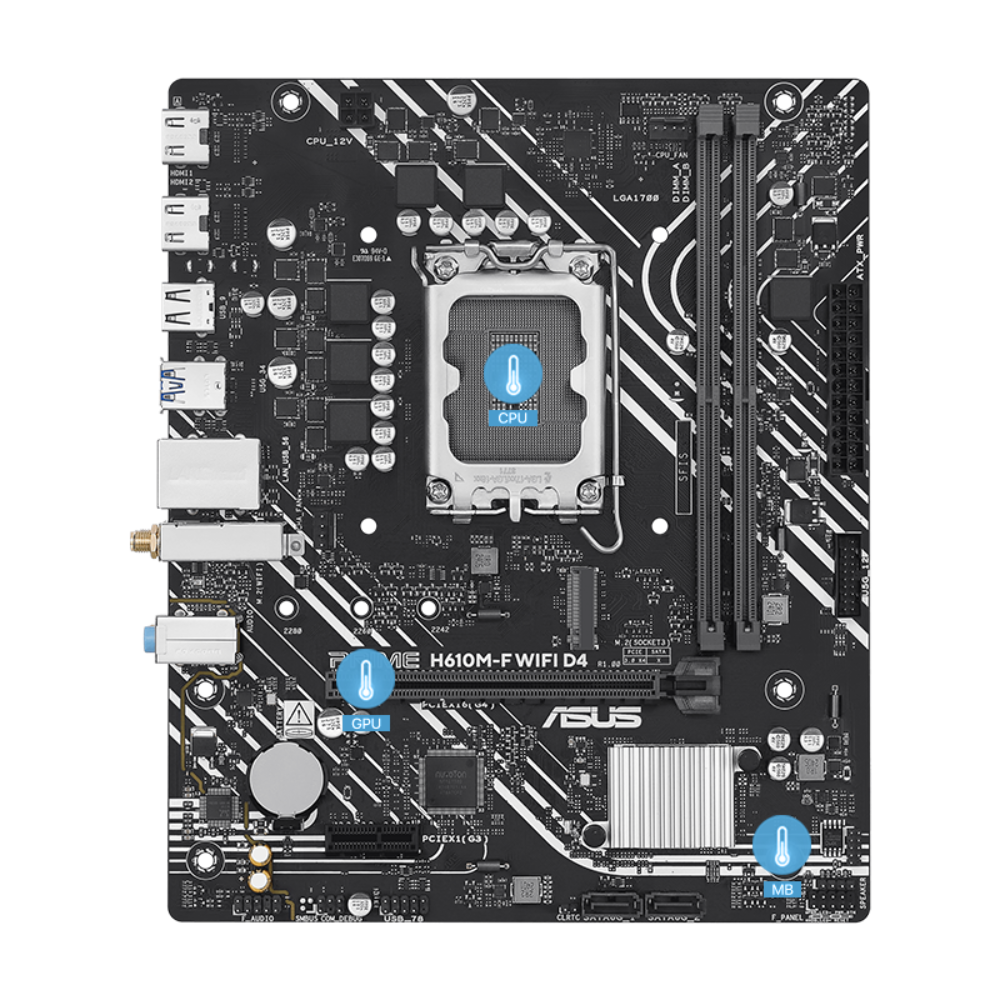

- Comprehensive Cooling: PCH heatsink
- 5X Protection III: Multiple hardware safeguards for all-round protection
ASUS Prime series motherboards are expertly engineered to unleash the full potential of 14th, 13th & 12th Generation Intel processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, Prime H610 provides users and PC DIY builders a range of performance tuning options via intuitive software and firmware features.
FLEXIBILITY
Comprehensive controls form the foundation of the ASUS Prime series. The Prime H610 motherboard packs flexible tools to tune every aspect of your system, enabling performance tweaks to perfectly match the way you work to maximize productivity.
All-Around Energy Efficiency
The Energy Processing Unit (EPU) automatically optimizes power consumption and maximizes energy savings with Away mode — a smart setting that creates an extreme energy-saving scenario by shutting down unused I/O controllers.
Precise Digital Power Control
The Digi+ voltage-regulator module (VRM) delivers real-time control over voltage droop, automatically switching frequency and power-efficiency settings. It also allows you to fine-tune your CPU for ultimate stability and performance.
UEFI BIOS
The renowned ASUS UEFI BIOS provides everything you need to configure, tweak and tune your system. It offers intelligently simplified options for PC DIY beginners, as well as comprehensive features for seasoned veterans.
Advanced Tuning for Serious Tweakers
An intuitive Advanced mode offered via the UEFI lets you take complete control. A built-in search feature makes it easy to find options, and various advanced functions let you intelligently make nuanced adjustments so you can dial in performance just the way you want.
Quick and Simple Setup
EZ mode displays vital settings and stats and also offers guided wizards, drag-and-drop functionality, and one-click application of important settings — all to help you get your rig up and running in no time.
storage
PRIME H610M-F WIFI D4 offers one M.2 slot that supports data-transfer speeds of up to 32 Gbps via PCIe 3.0, enabling quicker boot-up and app load times with OS or application drives.
PCIe 4.0
Prime H610 motherboards are designed specifically for 14th, 13th and 12th Generation Intel Core CPUs and offer PCIe 4.0 connectivity for the latest GPUs. The wide bandwidth and superfast transmission speeds allow you to create feature-rich builds that can handle high loads effortlessly.
Specifications of ASUS Prime H610M-F Wifi DDR4 Intel Motherboard
| Model | PRIME H610M-F WIFI D4 |
| CPU | Intel® Socket LGA1700 for Intel® Core™ 14th & 13th GenProcessors, Intel® Core™ 12th Gen, Pentium® Gold and Celeron® Processors* Supports up to Intel® 65W CPU Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0** |
| Chipset | Intel® H610 Chipset |
| Memory | 2 x DIMM slots, Max. 64GB, DDR4 3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory* Dual channel memory architectureSupports Intel® Extreme Memory Profile (XMP) memory module * Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/download-center/. Adjustments will be made based on the specifications of mass-produced memory products available on the market. |
| Graphics | 2 x HDMITM port** * Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates. ** Supports 4K@30Hz as specified in HDMI 1.4. |
| Expansion Slots | Intel® Core™ Processors (14th & 13th & 12th Gen) 1 x PCIe 4.0 x16 slot Intel® H610 Chipset 1 x PCIe 3.0 x1 slot - To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals. |
| Storage | Supports 1 x M.2 slot and 2 x SATA 6Gb/s ports Intel® H610 Chipset M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 mode) 2 x SATA 6Gb/s ports |
| Ethernet | 1 x Realtek 1Gb Ethernet |
| Wireless & Bluetooth | Wi-Fi 6 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) Supports 2.4/5GHz frequency band Bluetooth® v5.3* *The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications. |
| USB | Rear USB (Total 5 ports) 2 x USB 5Gbps ports (2 x Type-A) 3 x USB 2.0 ports (3 x Type-A) Front USB (Total 4 ports) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 1 x USB 2.0 header supports 2 additional USB 2.0 ports |
| Audio | Realtek 7.1 Surround Sound High Definition Audio CODEC* - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback" Audio Features - Audio Shielding - Premium audio capacitors - Dedicated audio PCB layers * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output. |
| Back Panel I/O Ports | 2 x USB 5Gbps ports (2 x Type-A) 3 x USB 2.0 ports (3 x Type-A) 2 x HDMITM port 1 x Wi-Fi module 1 x Realtek 1Gb Ethernet port 3 x Audio jacks |
| Internal I/O Connectors | Fan and Cooling Related 1 x 4-pin CPU Fan header 1 x 4-pin Chassis Fan header Power Related 1 x 24-pin Main Power connector 1 x 4-pin +12V Power connector Storage Related 1 x M.2 slot (Key M) 2 x SATA 6Gb/s ports USB 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 1 x USB 2.0 header supports 2 additional USB 2.0 ports Miscellaneous 1 x Clear CMOS header 1 x Front Panel Audio header (F_AUDIO) 1 x Speaker header 1 x 10-1 pin Front Panel System header |
| Special Features | ASUS 5X PROTECTION III - DIGI+ VRM - LANGuard - Overvoltage protection - SafeSlot Core - Stainless-steel back I/O ASUS Q-Design - Q-DIMM - Q-Slot - Q-LED Core ASUS Thermal Solution - Aluminum heatsink design |
| Software Features | ASUS Exclusive Software Armoury Crate - Power Saving ASUS DriverHub ASUS CPU-Z Norton 360 Deluxe (60 Days Free Trial) WinRAR (40 Days Free Trial) UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash - ASUS UEFI BIOS EZ Mode |
| BIOS | 128 Mb Flash ROM, UEFI AMI BIOS |
| Manageability | WOL by PME, PXE |
| Accessories | Cables 2 x SATA 6Gb/s cables Miscellaneous 1 x ASUS Wi-Fi moving antennas 1 x I/O shield 1 x M.2 anchor Documentation 1 x Quick start guide |
| Operating System | Windows® 11 , Windows® 10 64-bit |
| Form Factor | micro-ATX Form Factor 8.9 inch x 7.4 inch (22.6 cm x 18.8 cm ) |
| Warranty | 3 Years |
| Note | Features, Price and Specifications are subject to change without notice. Images use for Representation Purpose Only. |
