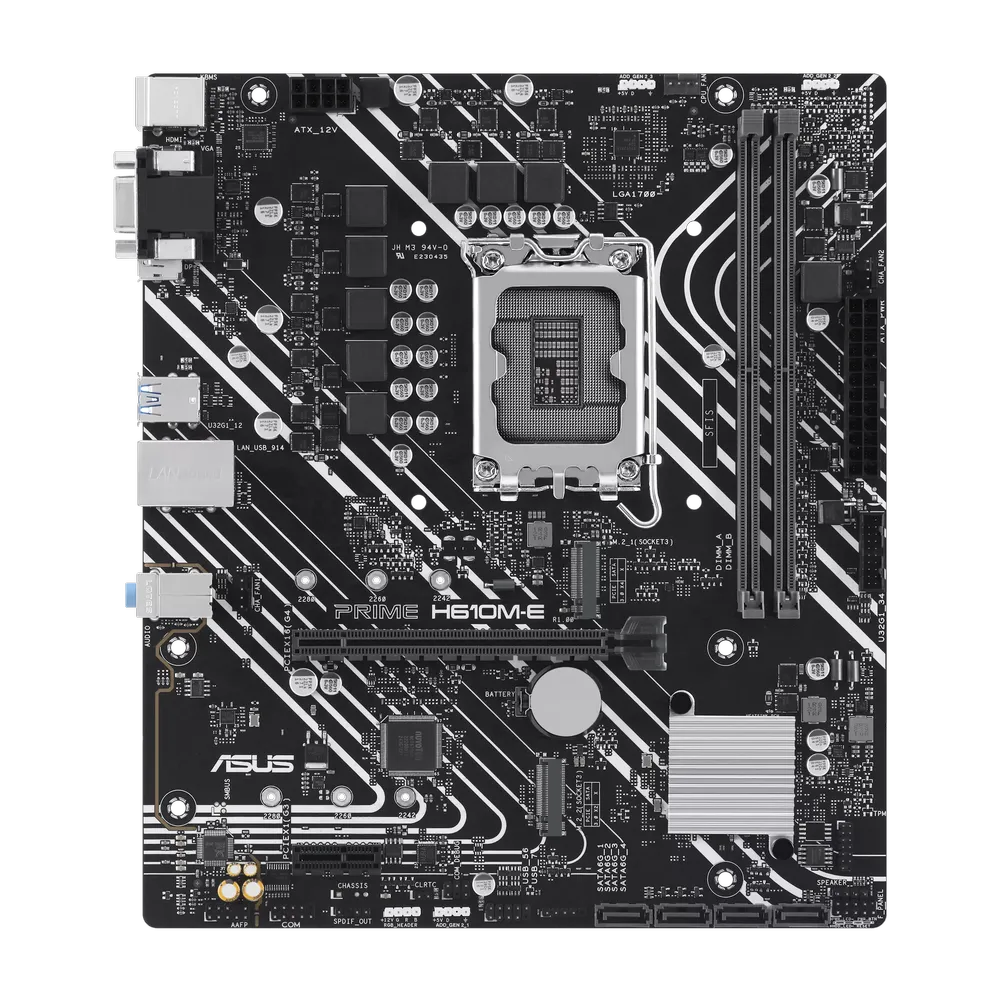

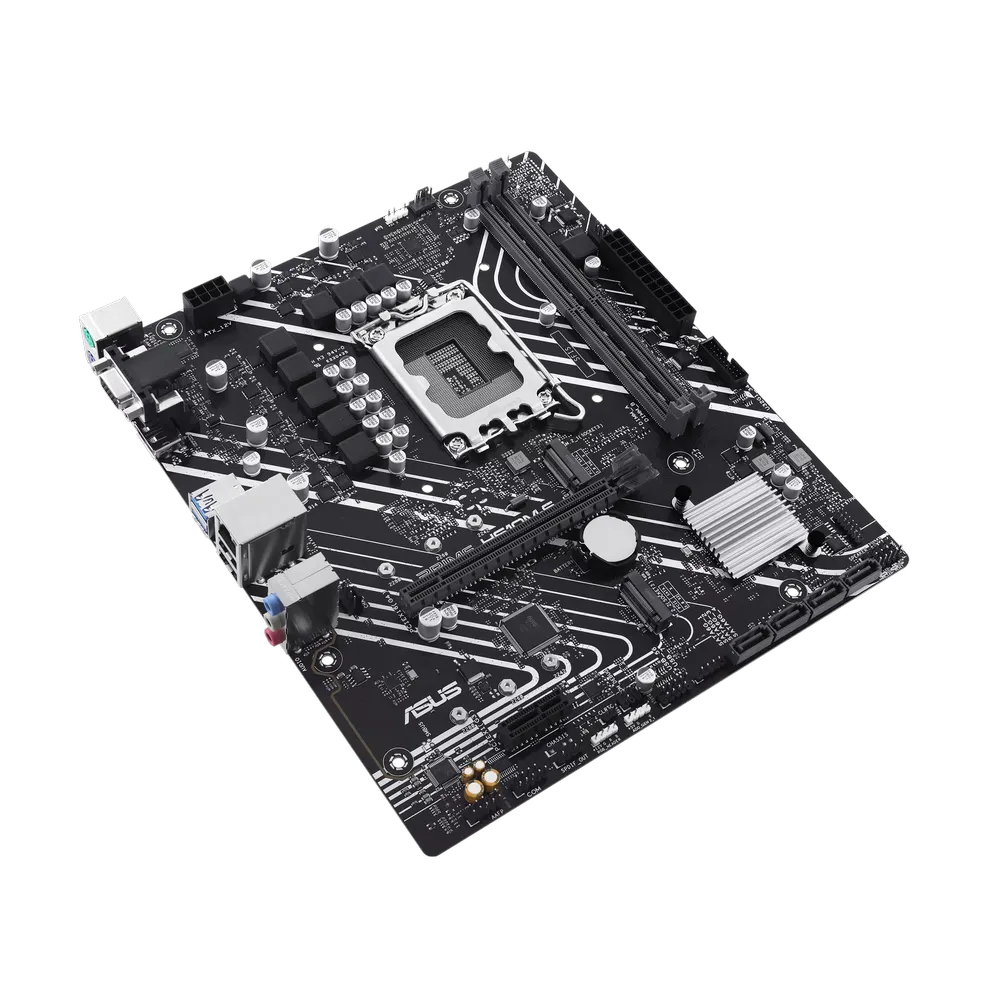

ASUS Prime H610M-E DDR5, an Intel H610 (LGA 1700) mATX motherboard with DDR5, PCIe 4.0, dual M.2 slots, Realtek 1 Gb Ethernet, DisplayPort, HDMI, VGA , USB 3.2 Gen 1 ports, SATA 6 Gbps, COM header, Aura Sync.
Comprehensive controls form the foundation of the ASUS Prime series. The Prime H610 motherboard packs flexible tools to tune every aspect of your system, enabling performance tweaks that perfectly match your work style to maximize productivity.
The Energy Processing Unit (EPU) automatically optimizes power consumption. It maximizes energy savings with Away mode — a smart setting that creates an extreme energy-saving scenario by shutting down unused I/O controllers.
Prime 600 Series motherboards offer comprehensive control over system fans via the included Fan Xpert 2+ software. Auto-tuning mode intelligently configures all parameters with a single click.
The Digi+ voltage-regulator module (VRM) delivers real-time control over voltage droop, automatically switching frequency and power-efficiency settings. It also allows you to fine-tune your CPU for ultimate stability and performance.
The renowned ASUS UEFI BIOS provides everything you need to configure, tweak, and tune your system. It offers intelligently simplified options for PC DIY beginners and comprehensive features for seasoned veterans.
An intuitive Advanced mode offered via the UEFI lets you take complete control. A built-in search feature makes it easy to find options, and various advanced functions let you intelligently make nuanced adjustments so you can dial in performance just the way you want.
Quickly and easily find the option or setting you need.
Port configuration settings between different BIOS versions or share them with friends.
EZ mode displays vital settings and stats and also offers guided wizards, drag-and-drop functionality, and a one-click application of important settings—all to help you get your rig up and running quickly.
Fine-tune individual fan settings simply by dragging a curve with the mouse.
Improve DRAM performance with one click.
Easily enable or disable Aura RGB lighting or every onboard LED for a subdued aesthetic touch.
| Model | PRIME H610M-E |
| CPU | Intel Socket LGA1700 for Intel Core 14th & 13th Gen Processors, Intel Core 12th Gen, Pentium Gold and Celeron Processors Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0 Intel Turbo Boost Max Technology 3.0 support depends on the CPU types. |
| Chipset | Intel H610 Chipset |
| Memory | 2 x DIMM slots, Max. 96GB, DDR5 5600/5400/5200/5000/4800 Non-ECC, Un-buffered Memory Dual Channel Memory Architecture Supports Intel Extreme Memory Profile (XMP) Actual memory data rate depends on the CPU types and DRAM modules, for more information refer to www.asus.com for the Memory QVL (Qualified Vendors Lists). |
| Graphics | 1 x DisplayPort 1 x VGA port 1 x HDMI port Graphics specifications may vary between CPU types. Supports max. 4K@60Hz as specified in DisplayPort 1.4. Supports 4K@60Hz as specified in HDMI2.1 |
| Expansion Slots | Intel Core Processors (14th & 13th & 12th Gen) 1 x PCIe 4.0 x16 slot Intel H610 Chipset 1 x PCIe 3.0 x1 slot |
| Storage | Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports Intel Core Processors (14th & 13th & 12th Gen) Intel H610 Chipset M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x2 mode) 4 x SATA 6Gb/s ports |
| Ethernet | 1 x Realtek 1Gb Ethernet |
| USB | Rear USB (Total 4 ports) 2 x USB 3.2 Gen 1 ports (2 x Type-A) 2 x USB 2.0 ports (2 x Type-A) Front USB (Total 5 ports) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 3 USB 2.0 ports |
| Audio | Realtek 7.1 Surround Sound High Definition Audio CODEC Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking Supports up to 24-Bit/192 kHz playback Audio Features Audio Shielding Premium audio capacitors Dedicated audio PCB layers |
| Back Panel I/O Ports | 2 x USB 3.2 Gen 1(5G) ports (2 x Type-A) 2 x USB 2.0 ports (2 x Type-A) 1 x DisplayPort 1 x VGA port 1 x HDMITM port 1 x Realtek 1Gb Ethernet port 3 x Audio jacks 1 x PS/2 Keyboard (purple) port 1 x PS/2 Mouse (green) port |
| Internal I/O Connectors | Fan and Cooling related 1 x 4-pin CPU Fan header 2 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector Storage related 2 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 1(5G) header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 3 USB 2.0 ports Miscellaneous 1 x Aura RGB header 3 x Addressable Gen 2 headers 1 x Clear CMOS header 1 x Front Panel Audio header (AAFP) 1 x COM Port header 1 x S/PDIF Out header 1 x Speaker header 1 x SPI TPM header (14-1pin) 1 x 10-1 pin System Panel header |
| Special Features | ASUS 5X PROTECTION III DIGI+ VRM LANGuard Overvoltage Protection SafeSlot Core Stainless-Steel Back I/O ASUS Q-Design Q-DIMM Q-Slot Q-LED Core ASUS Thermal Solution Aluminum heatsink design Aura Sync Aura RGB header Addressable Gen 2 RGB headers |
| Software Features | ASUS Exclusive Software Armoury Crate Aura Creator Aura Sync Fan Xpert 2+ Two-Way AI Noise Cancellation AI Suite 3 Performance And Power Saving Utility EPU DIGI+ VRM ASUS CPU-Z Norton 360 Deluxe (60 Days Free Trial) WinRAR UEFI BIOS ASUS EZ DIY ASUS CrashFree BIOS 3 ASUS EZ Flash 3 ASUS UEFI BIOS EZ Mode |
| BIOS | 128 Mb Flash ROM, UEFI AMI BIOS |
| Manageability | WOL by PME, PXE |
| Accessories | Cables 2 x SATA 6Gb/s cables Miscellaneous 1 x I/O Shield 1 x M.2 SSD screw package Documentation 1 x User guide |
| Operating System | Windows 11 64-bit, Windows 10 64-bit |
| Form Factor | mATX Form Factor 9.6 inch x 8.3 inch (24.4 cm x 21.1 cm) |
| Warranty | 3 years |
| Note | *** Features, Price, Specifications are subject to change without notice. |
