Description

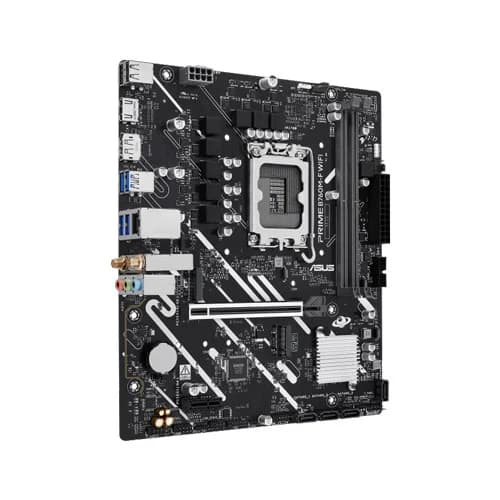

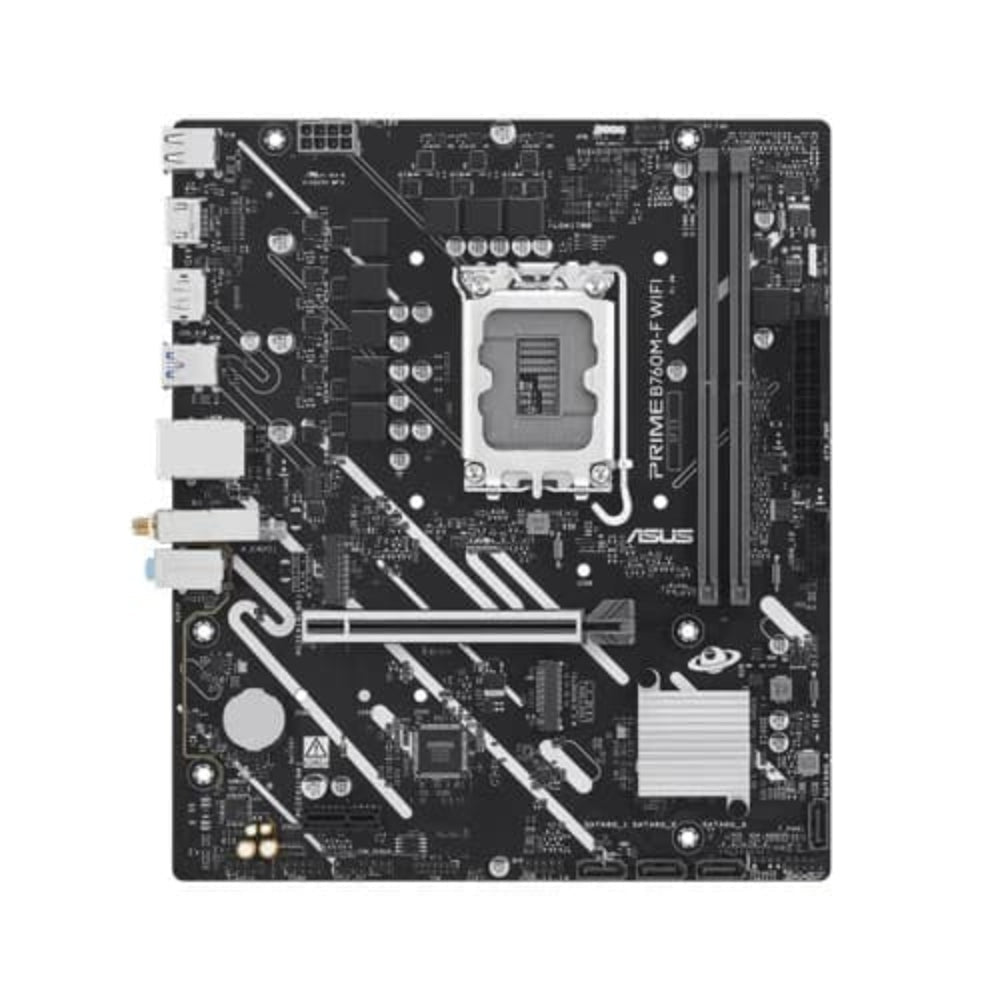

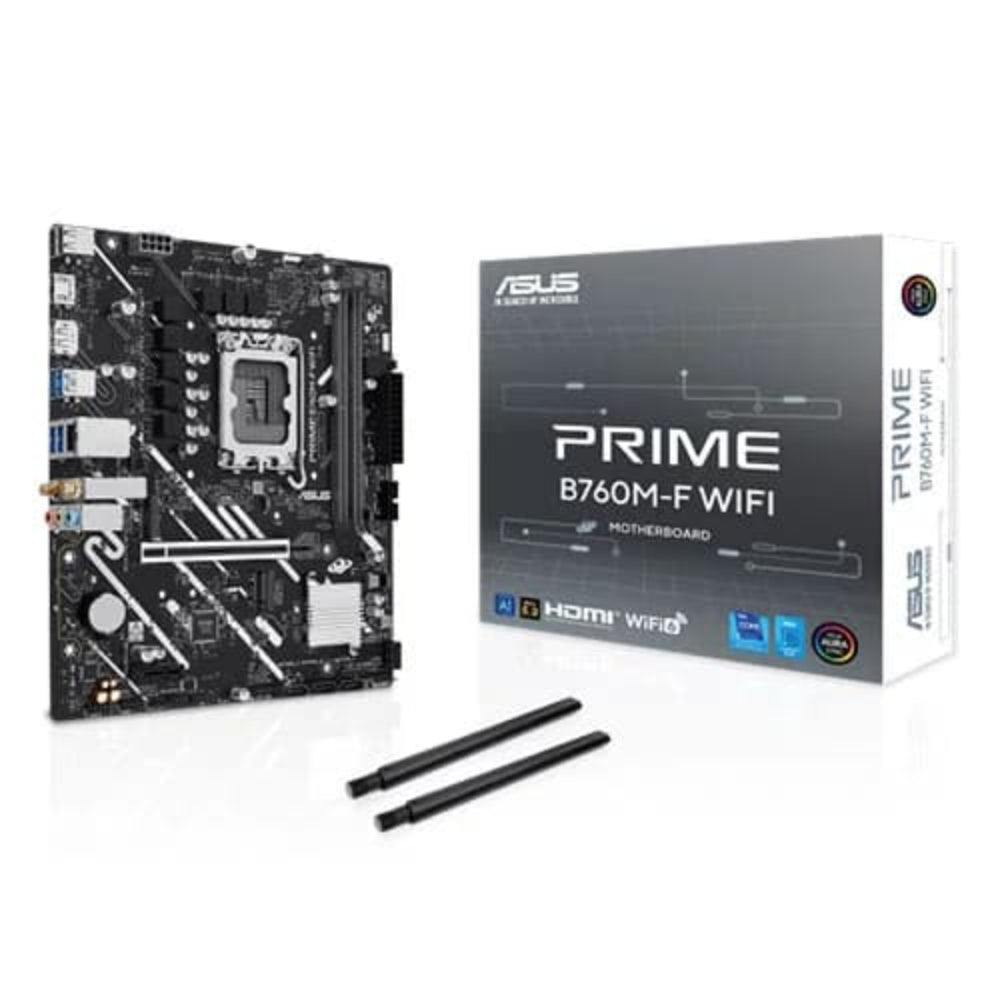

Features of ASUS Prime B760M-F Wifi DDR5 Intel Motherboard
- Ready for Advanced AI PC: Designed for the future of AI computing, with the power and connectivity needed for demanding AI applications
- Intel LGA 1700 Socket: Ready for 14th, 13th and 12th Gen Intel® processors
- Ultrafast Connectivity: PCIe 5.0, two PCIe 4.0 M.2 slots, Realtek 1Gb Ethernet and front USB 5Gbps support
- Comprehensive Cooling: PCH heatsink, hybrid fan headers and Fan Xpert 2+
- Aura Sync RGB Lighting: Onboard Addressable RGB Gen 2 headers for RGB LED strips, easily synced with Aura Sync-capable hardwares
- Two-Way AI Noise Cancelation: Reduces background noise from the microphone and audio output for crystal-clear communication in games or video conferences
ASUS Prime series motherboards are expertly engineered to unleash the full potential of 14th & 13th Gen Intel Core Processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, PRIME B760M-F WIFI provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features. This platform delivers the power and connectivity that advanced AI PC applications demand.
Intelligent Control
ASUS Intelligent Control makes your PC smart. Along with taking care of complex tuning and dynamically optimizing essential aspects of your system, it offers intelligently simplified options for newcomers to PC DIY, as well as more comprehensive features for seasoned veterans.
Flexible Air-Cooling Controls
ASUS Fan Xpert 2+ software provides comprehensive control over fan. There’s an Extreme Quiet mode that reduces fan speeds to below the default minimum to keep your system whisper-quiet when performing light tasks. Fan can also be controlled via the UEFI BIOS.
Precise Digital Power Control
The Digi+ voltage-regulator module (VRM) delivers real-time control over voltage droop, automatically switching frequency and power-efficiency settings. It also allows you to fine-tune your CPU for ultimate stability and performance.
Multiple Temperature Sources
Each header can dynamically reference three thermal sensors. FAN Xpert 2+ allows you to map the temperature of supported ASUS graphics cards to optimize cooling for GPU- and CPU-intensive tasks.
PCIe 5.0 Slot
The latest processors introduce PCIe 5.0 support, doubling data transfer speeds compared to PCIe 4.0, enhancing signal integrity, and providing backward-compatible CEM connectors and support for previous PCIe versions.
WiFi 6
The WiFi 6 module is compatible with the 802.11ax standard and pushes theoretical peak bandwidth up to 600Mbps. Perhaps more importantly for power users, it's optimized for more efficient operation on crowded networks with a lot of competing traffic. Pair your motherboard with ASUS WiFi 6 routers to experience the networking potential of WiFi 6.
Realtek 1Gb Ethernet
Realtek 1Gb Ethernet reduces CPU overhead and offers exceptionally high TCP and UDP throughput for faster, smoother data transfers.
Specifications of ASUS Prime B760M-F Wifi DDR5 Intel Motherboard
| Product Code | PRIME-B760M-F-WIFI |
| Platform | INTEL |
| Socket | LGA1700 |
| Cpu Type | 14th Gen,13th Gen,12th Gen |
| Chipset | B760 |
| Memory Speed | up to 8000 |
| Max Memory Support | 96 GB |
| Supported Memory Type | DDR5 |
| Channel Supported | Dual Channel |
| Memory Feature |
Supports Intel Extreme Memory Profile (XMP) memory module * Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit brand website. Adjustments will be made based on the specifications of mass-produced memory products available on the market. |
| Graphics Port | 1 x HDMI port, 1 x DisplayPort |
| Expansion Slots |
Intel CoreTM Processors (14th & 13th & 12th Gen) 1 x PCIe 5.0 x16 slot Intel B760 Chipset 1 x PCIe 4.0 x1 slot - To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals. |
| Wireless Networking | WiFi 6, Bluetooth 5.3 |

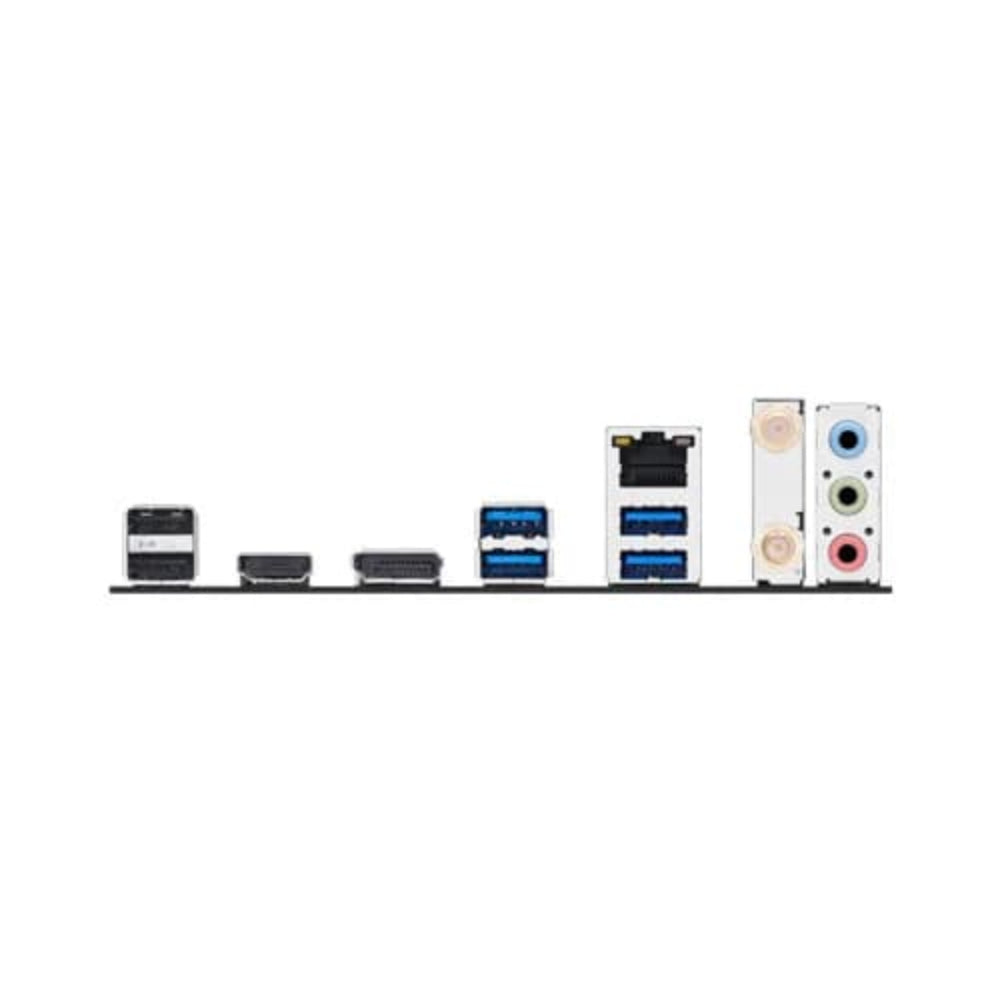

| Back Panel I/O Ports |
4 x USB 5Gbps ports (4 x Type-A) 2 x USB 2.0 ports (2 x Type-A) 1 x HDMI port 1 x DisplayPort 1 x Wi-Fi module 1 x Realtek 1Gb Ethernet port 3 x Audio jacks |
| Internal I/O Connector |
Fan and Cooling Related 1 x 4-pin CPU Fan header 2 x 4-pin Chassis Fan headers Power Related 1 x 24-pin Main Power connector 1 x 8-pin +12V CPU Power connector Storage Related 2 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 1 x USB 2.0 header supports 2 additional USB 2.0 ports Miscellaneous 2 x Addressable RGB Gen 2 headers 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (F_AUDIO) 1 x S/PDIF Out header 1 x Speaker header 1 x SPI TPM header (14-1pin) 1 x 10-1 pin Front Panel System header |
| Form Factor | Micro-ATX |
| Warranty | 3 Years |
| Note | Features, Price and Specifications are subject to change without notice. Images use for Representation Purpose Only. |
