Description

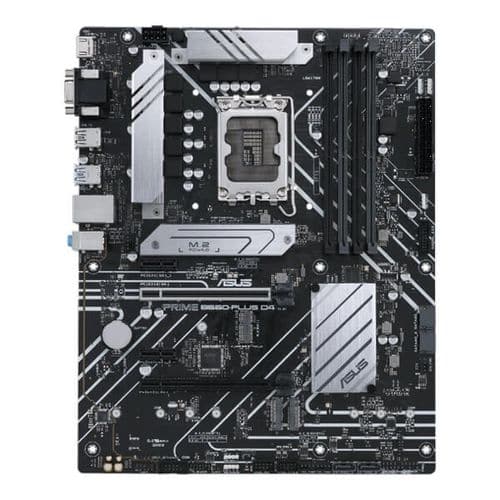

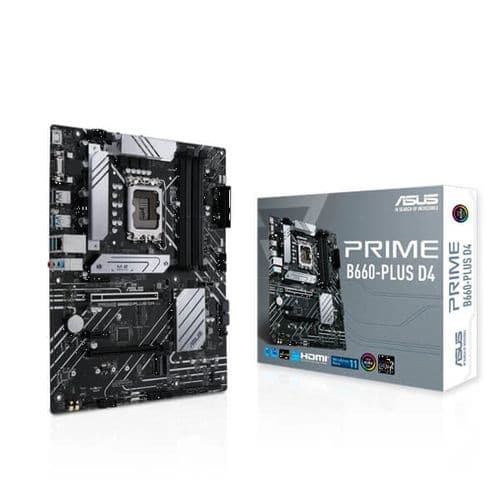

Feature of ASUS Prime B660 Plus DDR4 Intel Motherboard
- ASUS PRIME B660-PLUS D4 ATX motherboard is designed to support latest 12th Gen Intel CPU’s with LGA 1700 socket, Pentium Gold and Celeron Processors with B660 Intel Chipset.
- B660-PLUS D4 board is built with PCIe 3.0 Ready supporting 4 x DIMM, up to 128GB DDR4 5000MHz(OC) of memory and Intel Turbo Boost Technology to push your experience to its peak.
- Equipped with the next-gen Turbo boost max technology of PCIe 3.0, Three M.2 slots(PCIe 4.0), Realtek 2.5Gb Ethernet, USB 3.2 Gen 2×2 Type-C, Two USB 3.2 Gen 2 Type-A, USB 3.2 Gen1 Type-A, Two USB 2.0 Type-A, front panel USB 3.2 Gen 1, Two USB 2.0, Four SATA 6Gb/s, HDMI, DP, D-Sub and Thunderbolt 4 support.
- Comes with most comprehensive cooling options ever that are configurable via Fan Xpert 4 or the UEFI BIOS. It employs VRM heatsink, PCH heatsink and hybrid fan headers. We adapted our SMT manufacturing process for the faster SafeSlot, to ensure the highest data speeds. SafeSlot is a reinforced metal sheath added to a PCIe slot to keep a card firmly installed.
ASUS Prime B660 Plus DDR4 programmed with Q-LED Core display, that produces light patterns by power LED during the Power-On Self-Test (POST) that can help users troubleshoot potential issues.
It is also have a handful features like Overvoltage Protection, DRAM Overcurrent Protection, Stainless-Steel Back I/O and LANGuard.
FLEXIBILITY
Comprehensive controls form the foundation of the ASUS Prime series. The Prime B660 motherboard packs flexible tools to tune every aspect of your system, enabling performance tweaks to perfectly match the way you work to maximize productivity.
All-Around Energy Efficiency
The Energy Processing Unit (EPU) automatically optimizes power consumption and maximizes energy savings with Away mode — a smart setting that creates an extreme energy-saving scenario by shutting down unused I/O controllers.
All-Around Energy Efficiency
The Energy Processing Unit (EPU) automatically optimizes power consumption and maximizes energy savings with Away mode — a smart setting that creates an extreme energy-saving scenario by shutting down unused I/O controllers.
M.2 Heatsink
M.2 heatsink wards off throttling that can occur with M.2 storage during sustained transfers. The heatsink is held in place by captive screws.
Specifications of ASUS Prime B660 Plus DDR4 Intel Motherboard
| Model | ASUS PRIME B660-PLUS DDR4 ATX Motherboard |
| Part Number | 90MB18X0-M0IAY0 |
| CPU Socket | Intel Socket LGA 1700 |
| Chipset | Intel B660 |
| CPU Support |
Intel Socket LGA1700 for 12th Gen Intel Core, Pentium Gold and Celeron Processors Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0 |
| Memory |
4 x DIMM, Max. 128GB, DDR4 5066(OC)/5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)
/4000(OC)/3866(OC)/3733(OC)/3600(OC)/3466(OC)/ |
| On-Board Graphics support |
1 x DisplayPort Port 1 x D-Sub port 1 x HDMI Port |
| Expansion Slot |
Intel 12th Gen Processors: 1 x PCIe 4.0 x16 slot Intel B660 Chipset: 1 x PCIe 3.0 x16 slot (supports x4 mode) 2 x PCIe 3.0 x1 slots (supports x1 mode) |
| Ethernet |
1 x Intel 2.5Gb Ethernet ASUS LANGuard |
| Wireless & Bluetooth | M.2 slot only (Key E, CNVi & PCIe) |
| Storage |
Intel 12th Gen Processors: M.2_1 slot (Key M), type 2242/2260/2280 - Intel 12th Gen processors support PCIe 4.0 x4 mode Intel B660 Chipset: M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x2 mode) 4 x SATA 6Gb/s ports |
| Audio |
Realtek 7.1 Surround Sound High Definition Audio CODEC - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback |
| USB |
Rear USB (Total 6 ports) 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C) 2 x USB 3.2 Gen 2 ports (2 x Type-A) 1 x USB 3.2 Gen 1 port (1 x Type-A) 2 x USB 2.0 ports (2 x Type-A) Front USB (Total 7 ports) 1 x USB 3.2 Gen 1 connector (supports USB Type-C) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports |
| Back Panel I/O Ports |
1 x USB 3.2 Gen 2x2 port (1 x USB Type-C) 2 x USB 3.2 Gen 2 ports (2 x Type-A) 1 x USB 3.2 Gen 1 port (1 x Type-A) 2 x USB 2.0 ports (2 x Type-A) 1 x DisplayPort 1 x D-Sub port 1 x HDMI port 1 x Realtek 2.5Gb Ethernet port 3 x Audio jacks |
| I/O Ports |
Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin AIO Pump header 3 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector Storage related 3 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 1 connector (supports USB Type-C) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 headers 2 x AURA RGB headers 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x M.2 slot (Key E) 1 x S/PDIF Out header 1 x SPI TPM header (14-1pin) 1 x 20-3 pin System Panel header with Chassis intrude function 1 x Thunderbolt header |
| Accessories |
Cables 2x SATA 6Gb/s cables Miscellaneous 1 x I/O Shield 1 x M.2 Rubber Package 2 x M.2 SSD screw package 1 x M.2 Key E screw package Installation Media 1 x Support DVD Documentation 1 x User manual |
| Dimensions |
30.5cm x 24.4cm ATX Form Factor |
| Warranty | 3 Years of Brand Warranty |
| Country of Origin | China |
