Feature of Asus Prime B550M-K ARGB DDR4 AMD Motherboard

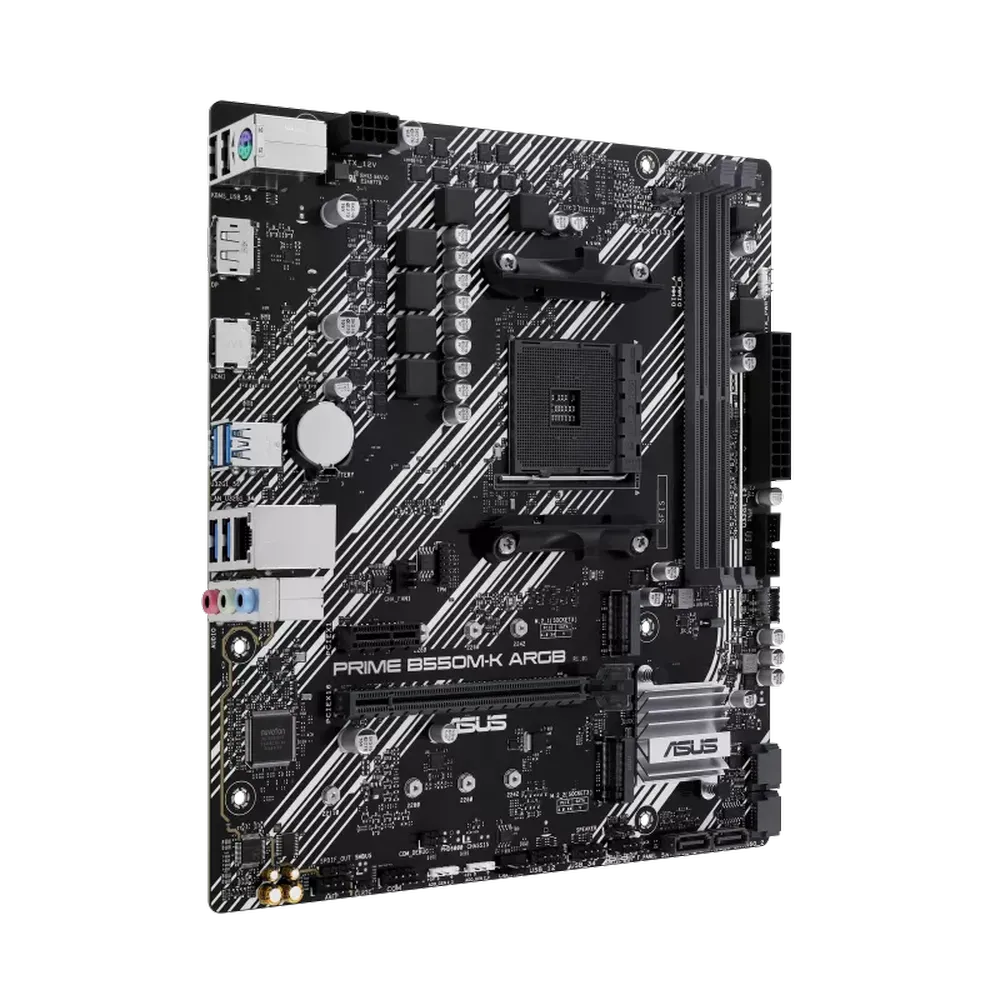

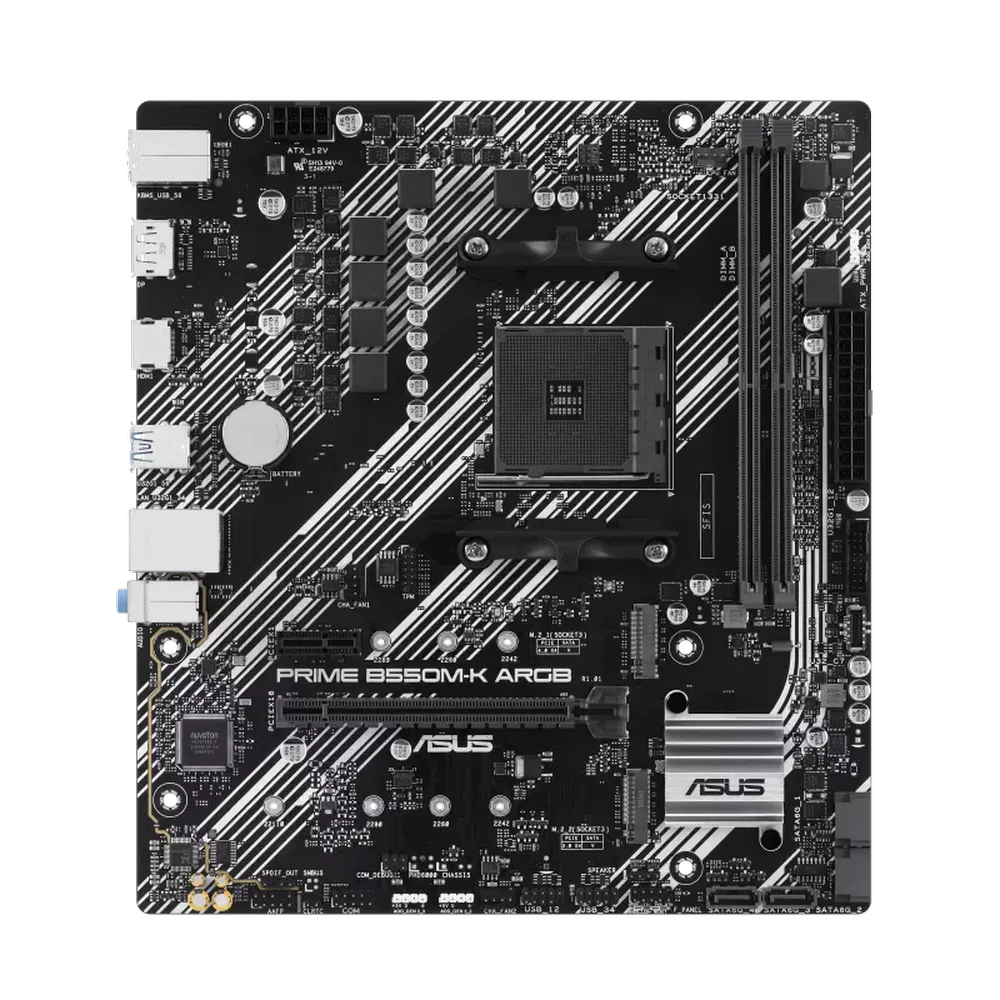

PRIME B550M-K ARGB
ASUS PRIME series is expertly engineered to unleash the full potential of 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series AMD Ryzen platform. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, PRIME B550 series motherboards provide daily users and DIY PC builders a range of performance tuning options via intuitive software and firmware features. This platform delivers the power and connectivity that advanced AI PC applications demand.
Ready for Advanced AI PC
Designed for the future of AI computing, with the power and connectivity needed for demanding AI applications
AMD AM4 Socket
Ready for AMD Ryzen 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series Desktop Processors
Ultrafast Connectivity
PCIe 4.0, dual M.2 slots, Realtek 1Gb Ethernet, rear USB 3.2 Gen 1 ports and front USB 3.2 Gen 1 Type-C
Comprehensive Cooling
PCH heatsink, hybrid fan headers and Fan Xpert 2+
Aura Sync RGB Lighting
Onboard Addressable Gen 2 headers for RGB LED strips, easily synced with Aura Sync-capable hardware.
Flexibility:
Comprehensive controls form the foundation of the ASUS PRIME series. The PRIME B550 motherboard packs flexible tools to tune every aspect of your system, enabling performance tweaks to perfectly match the way you work to maximize productivity.
All-Around Energy Efficiency:
With the Energy Processing Unit (EPU), you‘ll enjoy system-wide power savings.The EPU automatically optimizes power consumption and maximizes savings with Away mode.
Cooling:
PRIME B550 series are engineered with an array of hybrid fan headers to ensure your rig stays cool and stable under intense workloads.
Multiple Temperature Sources:
Each header can dynamically reference three thermal sensors. Fan Xpert 2+ allows you to map the temperature of supported ASUS graphics cards to optimize cooling for GPU- and CPU-intensive tasks.
Dual M.2 Slots (up to 64 Gbps):
PRIME B550M-K ARGB offers a total of two M.2 slots, one of which supports data-transfer speeds of up to 64Gbps* via PCIe 4.0, enabling quicker boot-up and app load times with OS or application drives.
* Actual transmission speeds will be lower than the theoretical maximum speed.
* Only AMD Ryzen 5000 Series/ 3000 Series Desktop Processors support PCIe 4.0 mode.
Aura Sync:
A well-tuned enthusiast system deserves a matching aesthetic. ASUS Aura offers full RGB lighting control with a variety of functional presets for the built-in RGB LEDs as well as strips and devices connected to the onboard RGB headers — and it can all be synced with an ever-growing portfolio of Aura-capable hardware.
Specifications of Asus Prime B550M-K ARGB DDR4 AMD Motherboard
| Model: | ASUS PRIME B550M-K ARGB |
| CPU: |
AMD Socket AM4 for AMD Ryzen 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series Desktop Processors* *Refer to Asus official website for CPU Support List |
| Chipset: | AMD B550 Chipset |
| Memory: |
2 x DIMM slots, Max. 64GB, DDR4 5100(OC)/4866(OC)/4600(OC)/4466(OC)/4400(OC)/ 4333(OC)/4266(OC)/4200(OC)/4133(OC)/4000(OC)/ 3866(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/ 3333(OC)/3200/3000/2933/2800/2666/2400/2133, Un-buffered Memory Dual Channel Memory Architecture |
| Graphics: |
1 x DisplayPort** 1 x HDMI port*** **Supports max. 4K@60Hz as specified in DisplayPort 1.4 ***Supports 4K@60Hz as specified in HDMI 2.1 |
| Expansion Slots: |
AMD Ryzen 5000 Series/ 3000 Series Desktop Processors 1 x PCIe 4.0 x16 slot (supports x16 mode) AMD Ryzen 5000 G-Series/ 4000 G-Series Desktop Processors 1 x PCIe 3.0 x16 slot (supports x16 mode) AMD B550 Chipset 1 x PCIe 3.0 x1 slot |
| Storage: |
Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports* AMD Ryzen 5000 Series/ 3000 Series Desktop Processors M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes) AMD Ryzen 5000 G-Series/ 4000 G-Series Desktop Processors M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes) AMD B550 Chipset M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 3.0 x4 & SATA modes) 4 x SATA 6Gb/s ports *AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/10 and SATA RAID 0/1/10 |
| Ethernet: | 1 x Realtek 1Gb Ethernet |
| USB: |
Rear USB (Total 6 ports) 4 x USB 3.2 Gen 1 (5G) ports (4 x Type-A) 2 x USB 2.0 ports (2 x Type-A) Front USB (Total 7 ports) 1 x USB 3.2 Gen 1 (5G) connector (supports USB Type-C) 1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports |
| Audio: |
Realtek 7.1 Surround Sound High Definition Audio CODEC* Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking Supports up to 24-Bit/192 kHz playback Audio Features Audio Shielding Premium audio capacitors Dedicated audio PCB layers *A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output. |

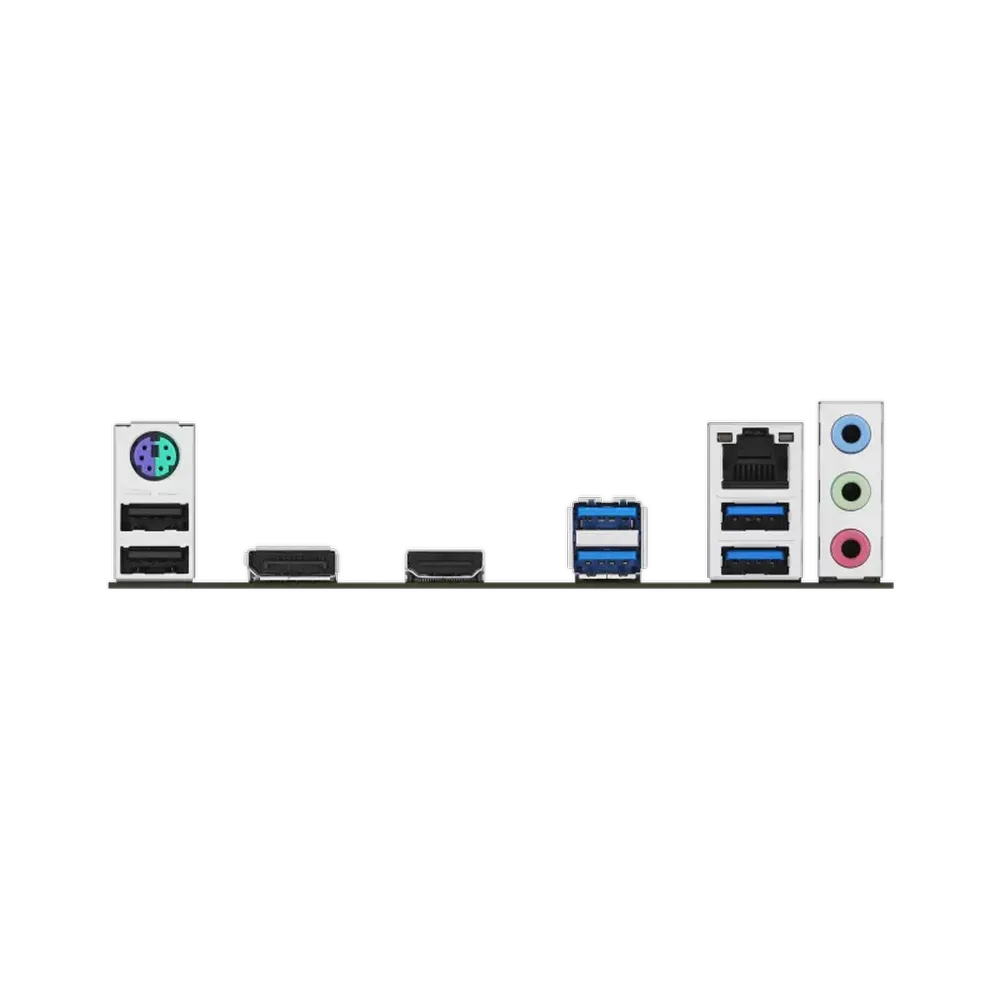

| Back Panel I/O Ports: |
4 x USB 3.2 Gen 1 (5G) ports (4 x Type-A) 2 x USB 2.0 ports (2 x Type-A) 1 x DisplayPort 1 x HDMI port 1 x Realtek 1Gb Ethernet port 3 x Audio jacks 1 x PS/2 Keyboard/Mouse combo port |
| Internal I/O Connectors: |
Fan and Cooling related 1 x 4-pin CPU Fan header 2 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector Storage related 2 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 1 (5G) connector (supports USB Type-C ) 1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 headers 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x S/PDIF Out header 1 x Speaker header 1 x SPI TPM header (14-1 pin) 1 x 10-1 pin System Panel header 3 x Addressable Gen 2 headers 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x S/PDIF Out header 1 x Speaker header 1 x SPI TPM header (14-1 pin) 1 x 10-1 pin System Panel header |
| Special Features: |
ASUS 5X PROTECTION III DIGI+ VRM LANGuard Overvoltage Protection SafeSlot Core Stainless-Steel Back I/O ASUS Q-Design Q-DIMM Q-LED Core Q-Slot ASUS Thermal Solution Aluminum heatsink design Aura Sync Addressable Gen 2 headers |
| Software Features: |
ASUS Exclusive Software Armoury Crate - Aura Creator - Aura Sync AI Suite 3 - Performance And Power Saving Utility TurboV EVO EPU DIGI+ VRM Fan Xpert 2+ - EZ update ASUS CPU-Z Norton 360 Deluxe (60 Days Free Trial) WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode |
| BIOS: | 128 Mb Flash ROM, UEFI AMI BIOS |
| Manageability: | WOL by PME, PXE |
| Accessories: |
Cables 2 x SATA 6Gb/s cables Miscellaneous 1 x I/O Shield 1 x Screw package for M.2 SSD Documentation 1 x User guide |
| Operating System: | Windows® 11, Windows® 10 64-bit |
| Form Factor: |
micro-ATX Form Factor 9.6 inch x 8.7 inch ( 24.4 cm x 22.1 cm ) |
| Warranty: | 3 Years |
| Note: |
*** Features, Price, Specifications are subject to change without notice. ***Images are for representation purpose only |
