Description
Feature of ASUS Prime B550M-A DDR4
- AMD AM4 Socket: Compatible with 3rd generation AMD Ryzen processors
- Advanced cooling system: VRM heatsink, PCH heatsink and Fan Xpert 2+
- Ultra-fast connections: dual M.2, PCIe 4.0, 1GbE, USB 3.2 Gen 2 Type-A
- Aura Sync RGB: Integrated Gen 2 addressable header for RGB LED strips, easy sync with Aura Sync enabled devices
ASUS Prime B550M-A DDR4 Series motherboards are expertly engineered to unleash the full potential of 3rd Gen AMD Ryzen processors. With a solid power design, extensive cooling options, and smart tuning options, the Prime B550 Series motherboards provide daily PC users and builders with a host of customization options through intuitive software and firmware features.
Customize your system
A rich set of control options is the foundation of all ASUS Prime series motherboards. Prime B550 offers comprehensive tools to fine-tune every aspect of your system, allowing you to fine-tune the performance settings to perfectly suit the way you work - maximizing your productivity.
UEFI BIOS
The enhanced ASUS UEFI BIOS gives you everything you need to set up, customize and tune your system. It offers intelligently simplified options for people building a computer system for the first time, as well as advanced features for seasoned veterans.
Cooling to the core
Prime B550 series motherboards feature multiple integrated heatsinks and a set of hybrid fan headers to ensure your system stays cool and stable under heavy loads.
VRM heatsink and thermal pads
The VRM heatsink with the thermal pad underneath it increases the heat dissipation efficiency of the MOSFETs and chokes for better cooling performance.
Build the system on a solid foundation
Prime B550 offers all the essential features to accelerate your everyday productivity, keeping your system ready for action with consistent power, intuitive cooling controls, and flexible data transfer options.
PCIe 4.0 M.2 (Max 64Gbps)
Speed up with the built-in M.2 slot
The M.2 PCIe 4.0 slot is compatible with drives up to 22110 format and supports RAID configured with NVMe SSDs - for an amazing performance boost. RAID drives with up to PCIe 4.0 bandwidth to enjoy the fastest data transfer speeds on the 3rd Gen AMD Ryzen platform.
USB 3.2 Gen 2 Type-A
The availability of multiple USB sockets allows you to create a high-end system packed to the brim with various peripherals. These also include 2 USB Type-A ports on the rear panel along with fast connectivity via USB 3.2 Gen 2 when used with a compatible case.
Small details make a big difference
The Prime B550 series adds refined details that enhance the user experience in every aspect, from the exclusive codec that guarantees crystal-clear sound of the highest quality, to the intuitive RGB lighting control with which you can personalize your system and give it a unique character.
All the integrated features together guarantee a great sound
Smart design and premium hardware components combine to deliver sound quality you've never experienced before.
Audio zone shielding
It separates the analog and digital signal zones, significantly reducing multilateral interference.
Separate zones for the left and right channels
They guarantee that crosstalk between audio paths will be minimal.
Premium grade capacitors made in Japan
The high-quality components used ensure intense timbre and exceptional sound fidelity.
Aura Sync Outshine the Competition
A perfectly tuned enthusiast system deserves an aesthetic to match. ASUS Aura gives you complete RGB lighting control with a range of practical presets to control the motherboard's integrated RGB LED lights, as well as strips and devices connected to the onboard RGB headers. All of this can be easily synchronized with Aura-enabled equipment, the range of which is constantly growing.
Gen 2 addressable RGB header
The Gen 2 Addressable RGB header can now detect the number of LEDs on Gen 2 addressable RGB devices, allowing the software to automatically match the lighting effects to the device's lighting. New the socket also offers backward compatibility with already available Aura RGB devices.
Armory Crate
Armory Crate is a new software utility designed to give you centralized control of your supported products through a single, intuitive interface. Armory Crate also allows you to control ASUS product settings, including keyboard and mouse settings. The software even offers a special product registration function and an overview of the latest developments and events, so you'll always be in touch with the ASUS community.
Specifications of ASUS Prime B550M-A DDR4
| CPU | Build in AMD AM4 Socket 3rd Gen AMD Ryzen™ Processors |
| Chipset | AMD B550 |
| Memory |
3rd Gen AMD Ryzen™ Processors 4 x DIMM, Max. 128GB, DDR4 4600(O.C)/4400(O.C)/4000(O.C.)/3866(O.C.)/3600(O.C.)/3466(O.C.)/3200/3000/2800/2666/2400/2133 MHz Un-buffered Memory * ECC Memory (ECC mode) support varies by CPU. |
| Graphic |
1 x D-Sub 1 x DVI-D 1 x HDMI 2.1(4K@60HZ) |
| Expansion Slots |
3rd Gen AMD Ryzen™ Processors 1 x PCIe 4.0 x16 (x16 mode) AMD B550 Chipset 2 x PCIe 3.0 x1 |
| Storage |
Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports 3rd Gen AMD Ryzen™ Processors : 1 x M.2 Socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 4.0 x4 and SATA modes) storage devices support AMD B550 Chipset : 1 x M.2 Socket 3, with M Key, Type 2242/2260/2280 (PCIE 3.0 x4 and SATA modes) storage devices support 4 x SATA 6Gb/s port(s), Support Raid 0, 1, 10 |
| LAN | Realtek RTL8111H 1Gb Ethernet |
| Audio |
Realtek ALC887 7.1 Surround Sound High Definition Audio CODEC - Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking, up to 24-Bit/192kHz playback Audio Feature : - LED-illuminated design - Audio Shielding - Dedicated audio PCB layers - Premium Japanese audio capacitors |
| USB Ports |
Rear USB Port ( Total 6 ) 2 x USB 3.2 Gen 2 port(s)(2 x Type-A) 4 x USB 3.2 Gen 1 port(s)(4 x Type-A) Front USB Port ( Total 6 ) 2 x USB 3.2 Gen 1 port(s)(2 x Type-A) 4 x USB 2.0 port(s)(4 x Type-A) |
| Software Features |
ASUS Exclusive Software Armoury Crate - Aura Creator - Aura Sync AI Suite 3 - Performance And Power Saving Utility TurboV EVO EPU Digi VRM Fan Xpert 2 - EZ update ASUS CPU-Z AI Charger DAEMON Tools Norton Anti-virus software (Free Trial for 60 days) WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode |
| ASUS Special Features |
ASUS 5X PROTECTION III - ASUS DIGI VRM - ASUS LANGuard - ASUS Overvoltage Protection - ASUS SafeSlot Core - ASUS Stainless-Steel Back I/O ASUS Q-Design - ASUS Q-DIMM - ASUS Q-Slot ASUS Thermal Solution - Aluminum heatsink design AURA Sync - Standard RGB headers - Addressable Gen 2 RGB header ASUS Lighting Control |

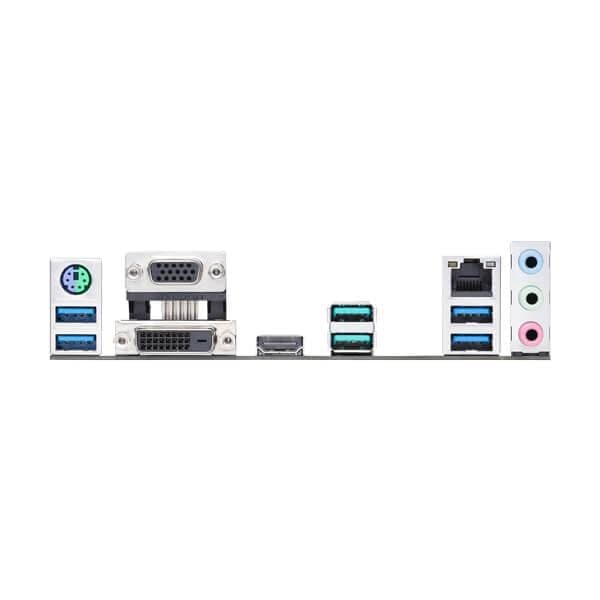

| Back I/O Ports |
1 x PS/2 keyboard/mouse combo port(s) 1 x DVI-D 1 x D-Sub 1 x HDMI 1 x LAN (RJ45) port(s) 2 x USB 3.2 Gen 2 (teal blue) (2 x Type-A) 4 x USB 3.2 Gen 1 (blue) Type-A 3 x Audio jack(s) |
| Internal I/O Ports |
1 x CPU Fan connector(s) 1 x CPU OPT Fan connector(s) 2 x Chassis Fan connector(s) 2 x Aura RGB Strip Headers 1 x Addressable Gen 2 header(s) 1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) 1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support(SATA & PCIe 4.0 x4 mode) 1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode) 1 x SPI TPM header 4 x SATA 6Gb/s connector(s) 1 x S/PDIF out header(s) 1 x 24-pin EATX Power connector(s) 1 x 8-pin EATX 12V Power connectors 1 x Front panel audio connector(s) (AAFP) 1 x Clear CMOS jumper(s) 1 x System panel connector 1 x COM port header 1 x Speaker connector |
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS |
| Manageability | WOL by PXE |
| Operating System | Windows® 10 64-bit |
| Form Factor |
mATX Form Factor 9.6 inch x 9.6 inch ( 24.4 cm x 24.4 cm ) |
| Warranty | 3 Years |
| Note | ***Features, Price and Specifications are subject to change without notice. |
