Description

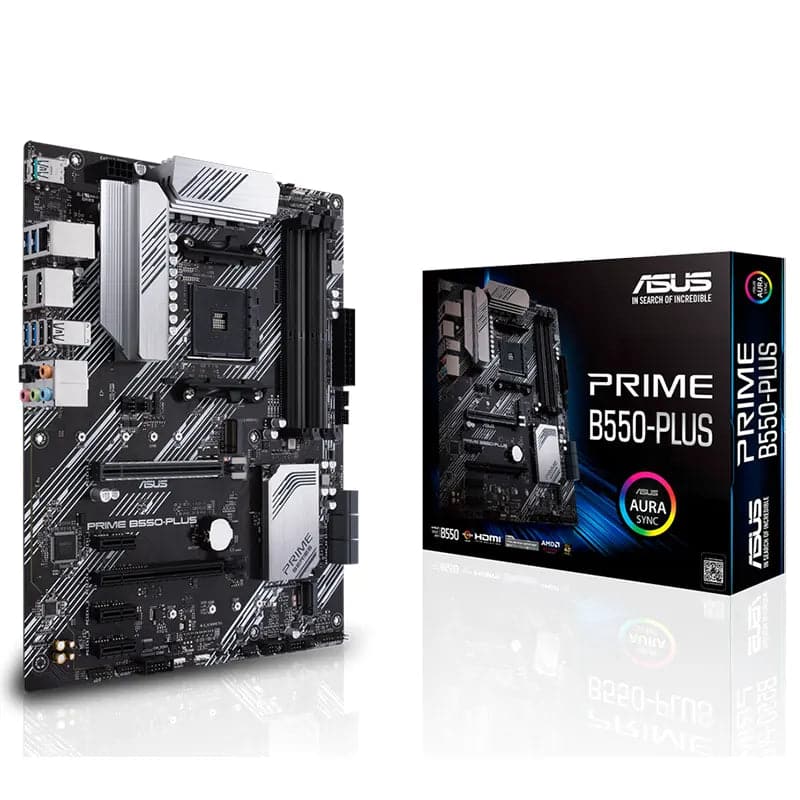

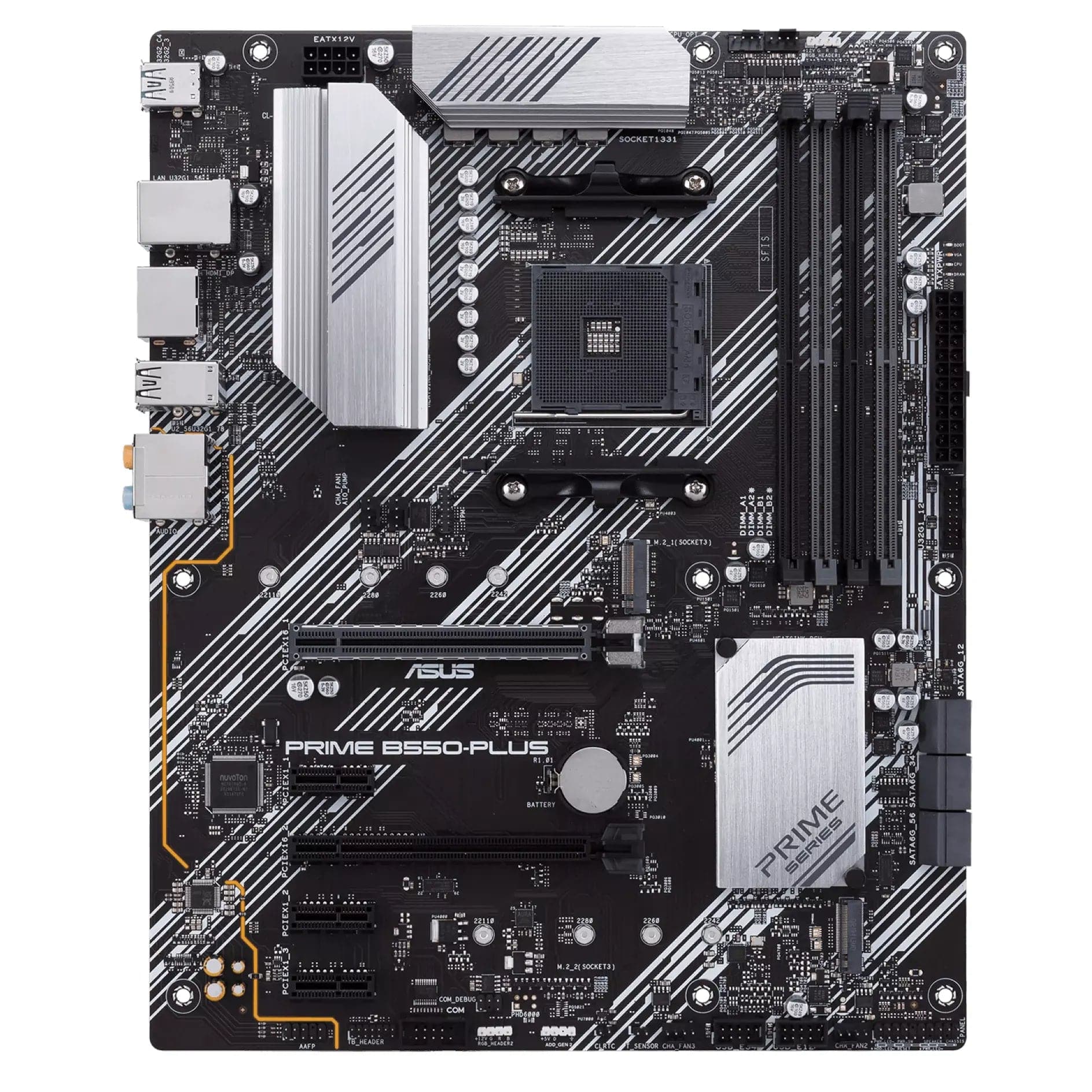

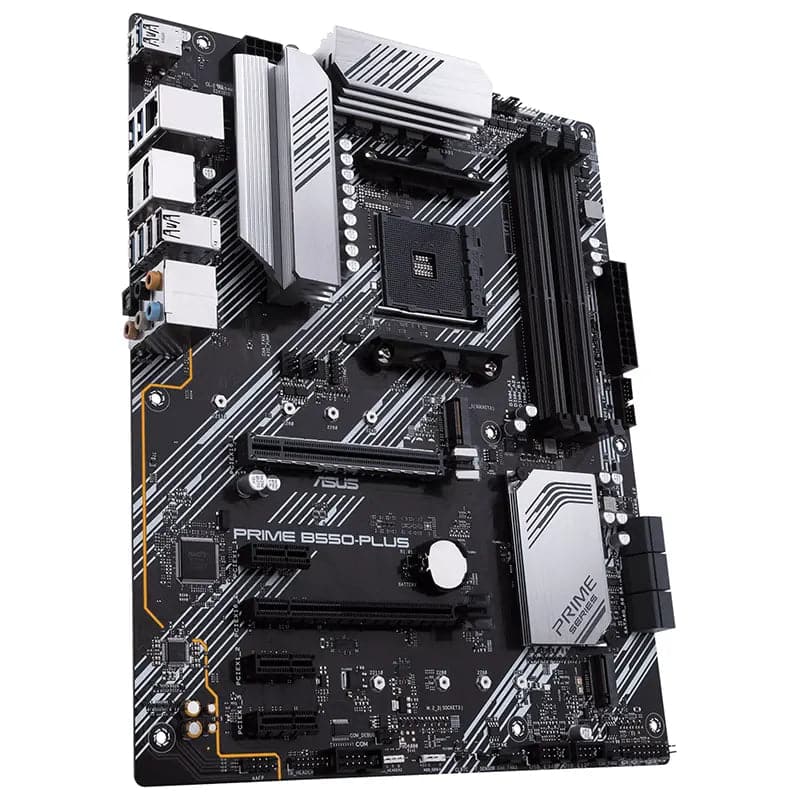

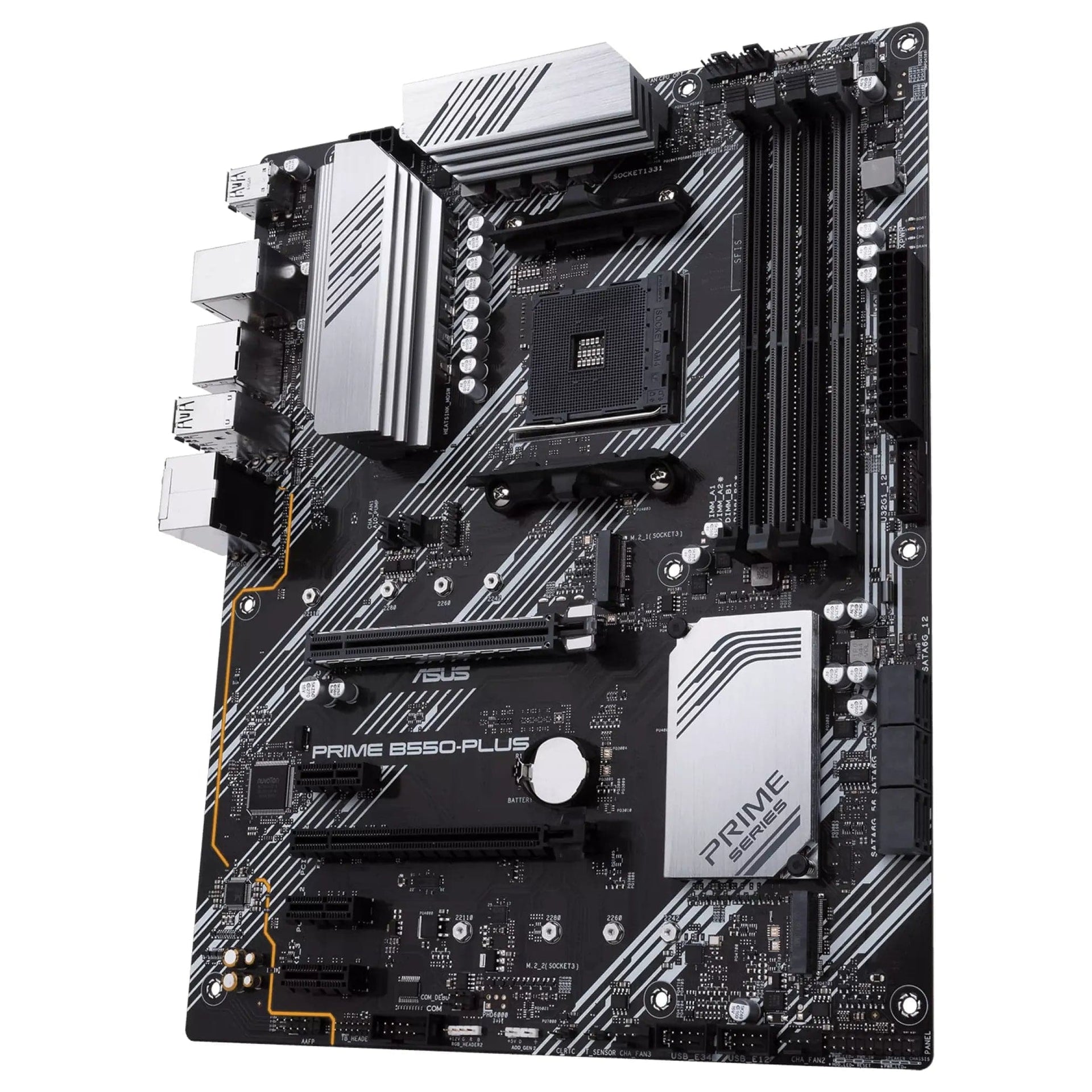

Feature of ASUS Prime B550-Plus DDR4 AMD Motherboard
- AMD AM4 socket: Ready for Ryzen™ 5000 Series/ 4000 G-Series/ 3000 Series Desktop Processors
- Ultrafast connectivity: Dual M.2, PCIe 4.0, 1 Gb Ethernet, USB 3.2 Gen 2 Type-A and Type-C
- Comprehensive cooling: VRM heatsinks, PCH heatsink, and Fan Xpert 4
- Aura Sync RGB: Onboard addressable Gen 2 header for RGB LED strips, easily synced with Aura Sync-capable hardware
ASUS Prime B550-Plus DDR4 series is expertly engineered to unleash the full potential of 3rd Generation AMD Ryzen platform. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, Prime B550 series motherboards provide daily users and DIY PC builders a range of perform
Tune It Your Way
Comprehensive controls form the foundation of the ASUS Prime series. The Prime B550 motherboard packs flexible tools to tune every aspect of your system, enabling you to tweak performance settings to perfectly match the way you work – maximizing your productivity.
UEFI BIOS
The renowned ASUS UEFI BIOS provides everything you need to configure, tweak and tune your system. It offers intelligently simplified options for PC DIY beginners, as well as comprehensive features for seasoned veterans.
Cool to the Core
Prime B550 series is engineered with multiple onboard heatsinks and an array of hybrid fan headers to ensure your rig stays cool and stable under intense workloads.
Build on a Solid Foundation
Prime B550 motherboard provides all the fundamentals to boost daily productivity, so your system will be ready for action with stable power, intuitive cooling and flexible transfer options.
Thunderbolt™ 3 Support
Prime B550-Plus supports ThunderboltEX 3-TR, an Intel certified Thunderbolt™ 3 add-on card that enables bi-directional speeds of up to 40 Gbps via a single cable. Additionally, an integrated Thunderbolt 3 header can support up to six devices in a daisy-chain and provide up to 100 watts of power to fast-charge devices.
Little Things Make a Big Difference
Prime B550 series adds the nuanced details that improve every experience, from exclusive codecs that provide pristine audio quality to intuitive RGB lighting controls that let you customize your system to create a uniquely personal look.
Outshine the Competition
A well-tuned enthusiast system deserves a matching aesthetic. ASUS Aura offers full RGB lighting control with a variety of functional presets for RGB LED strips connected to the onboard RGB headers. And it can all be synced with an ever-growing portfolio of Aura-capable hardware.
Addressable Gen 2 RGB Header
The addressable Gen 2 RGB header is now capable of detecting the number of LEDs on second-gen addressable RGB devices, allowing the software to automatically tailor lighting effects to specific devices. The new header also offers backward-compatibility with existing Aura RGB gear.
Armoury Crate
Armoury Crate is a new software utility designed to give you centralized control of supported products. From a single intuitive interface, Armoury Crate allows you to easily customize RGB lighting and effects for every compatible device in your arsenal. The software also provides control of settings for ASUS products, including keyboard and mouse preferences. Armoury Crate even features dedicated product registration and highlight to help you stay in touch with the ASUS community.
Specifications of ASUS Prime B550-Plus DDR4 AMD Motherboard
| Brand | ASUS |
| Model | B550-PLUS |
| Supported CPU | |
| CPU Socket Type | AM4 |
| CPU Type | AMD AM4 Socket for AMD Ryzenâ„¢ 5000 Series/ 4000 G-Series/ 3000 Series Desktop Processors |
| Chipsets | |
| Chipset | AMD B550 |
| Memory | |
| Number of Memory Slots | 4 x DDR4 DIMM |
| Memory Standard | DDR4 4800(O.C.) /4600(O.C)/ 4400(O.C)/ 4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3200/3000/2933/2800/2666/2400/2133 MHz Memory |
| Maximum Memory Supported | 128GB |
| Channel Supported | Dual Channel DDR4 Memory Technology |
| Expansion Slots | |
| PCI Express x16 | 1.x PCIe 4.0 x16 (x16 mode), 1 x PCIe 3.0 x16 (x16 mode), 1 x PCIe 3.0 x16 (x4 mode), 3 x PCIe 3.0 x1 |
| Storage Devices | |
| SATA 3Gb/s | 6 x SATA 6Gb/s connectors |
| SATA RAID | 36535 |
| Onboard Video | |
| Onboard Video Chipset | N/A |
| Onboard Audio | |
| Audio Chipset | Audio Shielding |
| Audio Channels | Realtek ALC887 7.1-Channel High Definition Audio CODEC |
| Onboard LAN | |
| Max LAN Speed | ASUS LANGuard |
| LAN Chipset | Realtek RTL8111H |
| Rear Panel Ports | |
| Video Ports | 1 x DisplayPort, 1 x HDMI® port |
| HDMI | 1 x HDMI |
| USB | 2.x USB 3.2 Gen 2 (teal blue) (1 x Type-A+1 x USB Type-C®) 4 x USB 3.2 Gen 1 (blue) Type-A 2 x USB 2.0 3 x PCIe 3.0 x1 |
| S/PDIF Out | 1 x Optical S/PDIF out |
| Audio Ports | 5 x Audio jack(s) |
| Onboard USB | |
| Onboard USB | Rear USB Port ( Total 8 ), Front USB Port ( Total 6 ) |
| Onboard 1394 | |
| Onboard 1394 | N/A |
| Physical Spec | |
| Form Factor | ATX Form Factor |
| Dimensions | 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm ) |
| Power Pin | 1 x 24-pin EATX Power connector(s) |
