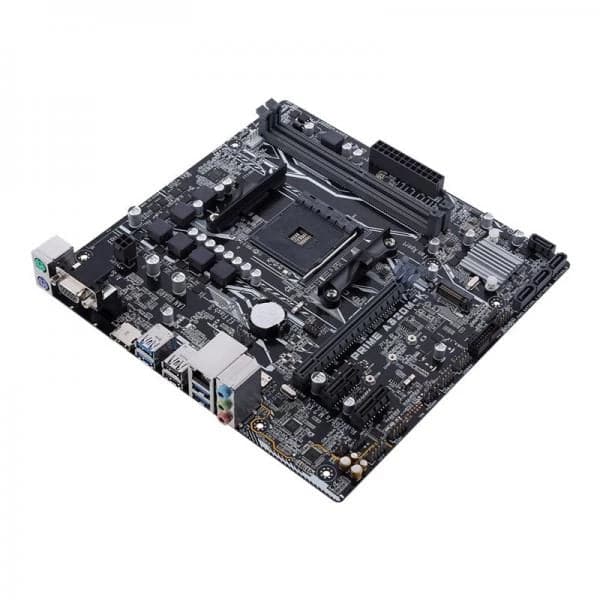

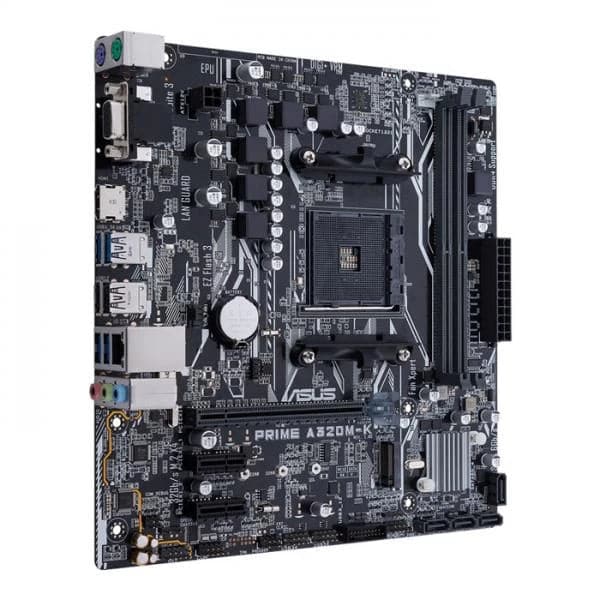

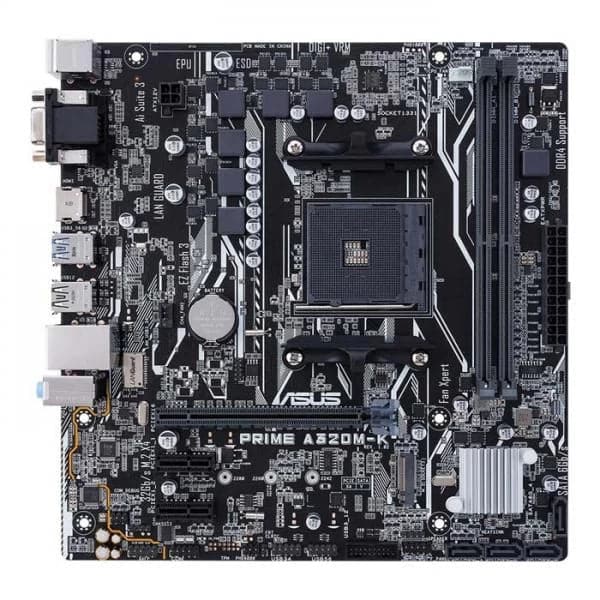

Features of ASUS Prime A320M-K DDR4 AMD Motherboard
- This ASUS Prime A320M-K Powered by AMD® Ryzen™ AM4 and 7th generation Athlon™ processors to maximize connectivity and speed with NVMe M.2, support for 32GB of DDR4, USB 3.1 and Gigabit LAN
- 5X Protection III Hardware-level safeguards provide component longevity and reliability
- Patent-pending SafeSlot Core fortified PCIe slot prevents damage from heavyweight GPUs
- FanXpert delivers advanced fan controls for optimized cooling
- Industry-leading 8-channel HD audio driven by Japanese capacitors features an onboard LED-illuminated design
- 2 x DIMM, Max. 32GB, DDR4 2400/2133 MHz Un-buffered, Non-ECC Memory.
- Fan Xpert Dedicated CPU and case fan controls Exclusive Fan Xpert ensures every fan achieves the best balance of cooling performance and low noise - and with Prime A320 series boards and their hardware-level 4-pin/3-pin PWM/DC mode for case fans, a simple BIOS adjustment lets you run your case fan in PWM/DC.
- Lightning-fast storage speeds with acclaimed UEFI BIOS with EZ Flash 3.
- Onboard resettable fuses prevent overcurrent and short-circuit damage. This extends beyond I/O ports to DRAM to safeguard the lifespan of your system and connected devices.
- ASUS-exclusive DIGI+ VRM intelligently delivers power to the processor based on real-time demands, reducing energy waste and improving system stability.
Specifications of ASUS Prime A320M-K DDR4 AMD Motherboard
| CPU |
AMD AM4 Socket for AMD Ryzen™/7th Generation A-series/Athlon™ Processors Supports CPU up to 8 cores |
| Chipset | AMD A320 |
| Memory |
AMD Ryzen™ Processors 2 x DIMM, Max. 32GB, DDR4 3200(O.C.)/2933(O.C.)/2666/2400/2133 MHz ECC and non-ECC, Un-buffered Memory AMD 7th Generation A-series/Athlon™ Processors 2 x DIMM, Max. 32GB, DDR4 2400/2133 MHz Non-ECC, Un-buffered Memory Dual Channel Memory Architecture * Hyper DIMM support is subject to the physical characteristics of individual CPUs. |
| Graphic |
Integrated AMD Radeon™ R Series Graphics in the 7th Generation A-Series APU *1 Multi-VGA output support : HDMI/RGB ports - Supports HDMI 1.4b with max. resolution 4096 x 2160 @ 24 Hz / 2560 x 1600 @ 60 Hz - Supports RGB with max. resolution 1920 x 1200 @ 60 Hz Maximum shared memory of 2048 MB |
| Expansion Slots |
AMD Ryzen™ Processors 1 x PCIe 3.0/2.0 x16 (x16 mode) AMD 7th Generation A-series/Athlon™ Processors 1 x PCIe 3.0/2.0 x16 (x8 mode) AMD A320 chipset 2 x PCIe 2.0 x1 |
| Storage |
AMD A320 chipset : 4 x SATA 6Gb/s port(s), gray, Support Raid 0, 1, 10 AMD Ryzen™ Processors : 1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode) AMD 7th Generation A-series/Athlon™ Processors : 1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA mode) |
| LAN | Realtek® RTL8111H, 1 x Gigabit LAN Controller(s) |
| Audio | Realtek® ALC887 8-Channel High Definition Audio CODEC |
| USB Ports |
AMD Ryzen™/7th Generation A-series/Athlon™ Processors : 4 x USB 3.0 port(s) (4 at back panel, blue) AMD A320 chipset : 2 x USB 3.0 port(s) (2 at mid-board) AMD A320 chipset : 6 x USB 2.0 port(s) (2 at back panel, , 4 at mid-board) |
| Special Features |
ASUS 5X Protection III : - ASUS SafeSlot Core: Fortified PCIe Slot prevents damage - ASUS LANGuard: Protects against LAN surges, lightning strikes and static-electricity discharges! - ASUS Overvoltage Protection: World-class circuit-protecting power design - ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability! - ASUS DIGI+ VRM: 6 Phase digital power design ASUS Exclusive Features : - AI Suite 3 - Ai Charger ASUS Quiet Thermal Solution : - Stylish Fanless Design Heat-sink solution - ASUS Fan Xpert ASUS EZ DIY : - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode - Multi-language BIOS ASUS Q-Design : - ASUS Q-Slot - ASUS Q-DIMM |
| Operating System Support | Windows® 10 , 64bit |

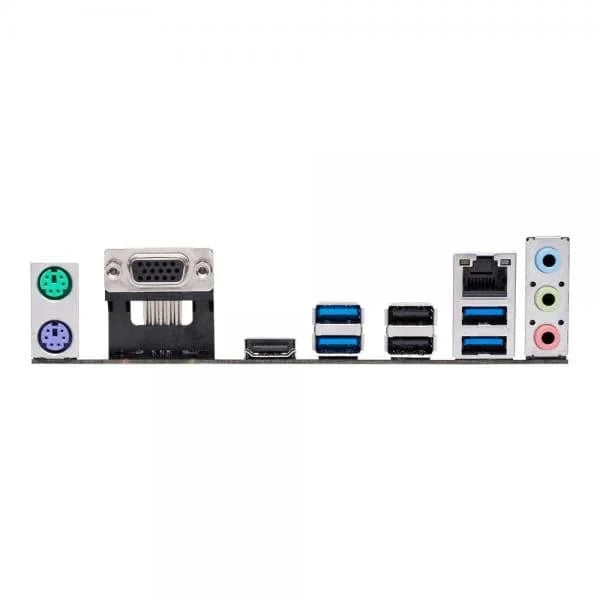

| Back I/O Ports |
1 x PS/2 keyboard (purple) 1 x PS/2 mouse (green) 1 x D-Sub 1 x HDMI 1 x LAN (RJ45) port(s) 4 x USB 3.0 (blue) 2 x USB 2.0 3 x Audio jack(s) |
| Internal I/O Ports |
1 x USB 3.0 connector(s) support(s) additional 2 USB 3.0 port(s) (19-pin) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) 1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode) 1 x COM port(s) connector(s) 4 x SATA 6Gb/s connector(s) 1 x CPU Fan connector(s) (1 x 4 -pin) 1 x Chassis Fan connector(s) (1 x 4 -pin) 1 x S/PDIF out header(s) 1 x 24-pin EATX Power connector(s) 1 x 4-pin ATX 12V Power connector(s) 1 x Front panel audio connector(s) (AAFP) 1 x System panel(s) 1 x Clear CMOS jumper(s) 1 x Speaker connector |
| Accessories |
User's manual I/O Shield 2 x SATA 6Gb/s cable(s) 1 x M.2 Screw Package 1 x Supporting DVD |
| BIOS | 128 Mb Flash ROM, UEFI AMI BIOS, PnP,WfM2.0, SM BIOS 3.0, ACPI 6.1, Multi-language BIOS, ASUS EZ Flash 3, ASUS CrashFree BIOS 3, My Favorites, Last Modified log, F12 PrintScreen, ASUS DRAM SPD (Serial Presence Detect) memory information, F6 Qfan Control |
| Operating System | Windows® 10 64-bit |
| Form Factor |
mATX Form Factor 8.9 inch x 8.7 inch ( 22.6 cm x 22.1 cm ) |
| Warranty | 3 Years |
| Note | ***Features,Price and specifications are subject to change without notice. |
| Additional Note | *Note: To support Renoir & Vermeer processors (AMD 4000 G series APU & 5000 series CPU), BIOS needs to be updated to BIOS version 5862. But due to hardware/firmware limitation, this new BIOS doesn’t support Bristol Ridge processors. |
