Features of ASUS P11C-X/AUDIO Server M.2 DDR5 Intel Motherboard
Intel® Xeon® E ATX server motherboard with dual M.2 and audio support
- Powered by the Intel® Xeon® E platform
- 95W CPU and up to 128GB memory support (4 DIMMs)
- Rack-optimized design maximizes cooling for excellent thermal efficiency
- Flexible expandability with 6 native SATA, two PCIe Gen3 slots and two PCI legacy slots
- Dual Intel® Gigabit Ethernet with teaming support
- Dual M.2 for independent OS drives with RAID 0/1
- Onboard audio for workstation applications
- Supports the latest 10Gb/s USB 3.1 onboard for high transfer speed
- TPM-M 2.0 support for enhanced platform integrity
- Complete server management with ASUS Control Center
Industry-standard ATX server board with multiple expandability options

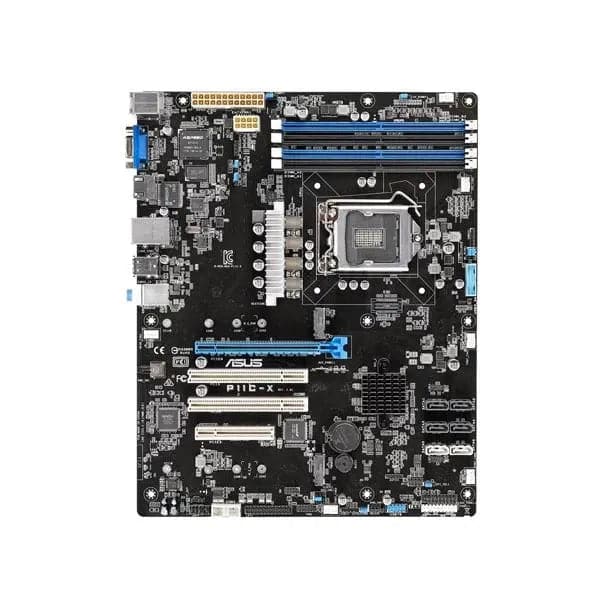

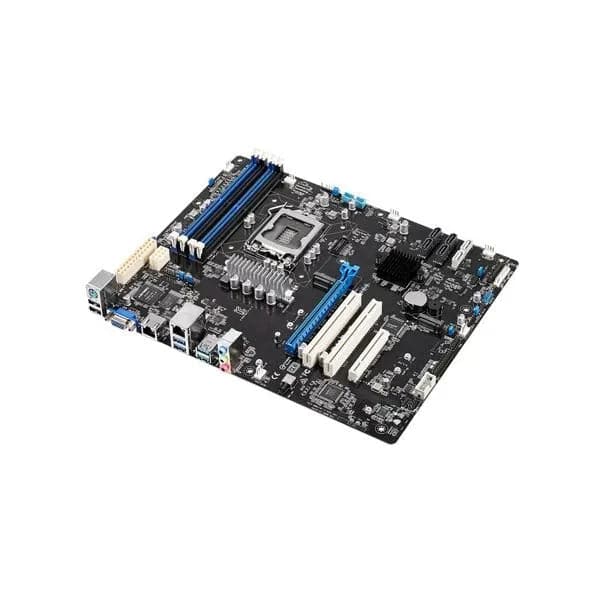

ASUS P11C-X/AUDIO Server M.2 is a server motherboard based on the Intel® Xeon® E platform and Intel® C242 chipset offering dual Intel® Ethernet and flexible expandability with dual M.2, six native SATA 6G, two PCIe, and two PCI slots for legacy devices.
The layout is rack-optimized placement where the CPU and memory are placed in a parallel arrangement directly behind the fan inlet to promote maximum cooling for excellent thermal efficiency.
Dual M.2 for internal and independent OS drives with RAID 0/1 (by SATA mode)
P11C-X/AUDIO comes with dual M.2 support up to 22110-length M.2 drives via PCIe or SATA with auto-switch signal function. In performance-maximizing RAID 0 configurations with dual M.2 SSDs, write speeds are up to 40% faster than a single M.2 SSD drive setup and read operations are an astonishing 84% faster. Or, for total reassurance, pair your M.2 devices into a RAID 1 configuration for instant data redundancy.
High-speed SAS storage solutions
P11C-X/AUDIO supports ASUS PIKE II 3000 series, the latest enterprise storage solution, featuring support for 12Gb/s SAS storage and integrated RAID data protection. With ASUS PIKE cards, you can immediately improve the storage capacity and performance of P11C-X/AUDIO, making it a great upgrade option.
Dual Intel® Gigabit Ethernet
With dual Intel Gigabit Ethernet connectors, P11C-X/AUDIO keeps your data moving swiftly and efficiently. With both LAN ports teamed you'll benefit from increased bandwidth for more speed, automated load balancing for smoother data flows, and instant failover if anything goes wrong — so access to your files is always fast, efficient and uninterrupted.
TPM-M 2.0 ready
P11C-X/AUDIO supports TPM-M 2.0 with a 14-1 TPM header to securely store keys, digital certificates, passwords and data. It helps to enhance network security, protect digital identities, and ensure platform integrity.
ASUS Control Center
ASUS Control Center (ACC) is a centralized and integrated IT Management platform for monitoring and controlling ASUS commercial products, including servers, workstations and digital signage. ACC enables Remote BIOS updates, monitoring of multiple Systems via mobile devices, and one-click software updates and dispatching, allowing easier server Management for any IT infrastructure.
Enhanced serviceability
With its power button located on the front I/O panel, P11C-X/AUDIO is designed to provide easier maintenance and deployment for diverse applications.
Quick initialization guidance
P11C-X/AUDIO provides instant system information during initialization as well as any unusual diagnostic results for more efficient IT operation and easy troubleshooting.
ASUS ProCool connector
ASUS ProCool is designed without hollow area, this enables lower impedance, facilitates faster heat dissipation, resulting in cooler operating temperature. Reduces power loss and increases cost savings.
Specifications of ASUS P11C-X/AUDIO Server M.2 DDR5 Intel Motherboard
| Processor / System Bus |
1 x Socket LGA1151 Intel® Xeon® processor E-2100 family(95W) Intel® Xeon® processor E-2200 family(95W) The 8th/9th generation Intel® Core™ i3/Pentium®/Celeron® Processor *Refer to support page for more information |
| Core Logic | Intel® C242 Chipset |
| Memory |
Total Slots : 4 (2-channel) Capacity : Maximum up to 128GB UDIMM Memory Type : DDR4 2666/2400 UDIMM non ECC and with ECC Memory Size : 32GB, 16GB, 8GB, 4GB * Refer to support page for more information |
| Expansion Slots |
Total Slot : 4 Slot Location 3 : PCI-E x8 (Gen3 X4 Link) Slot Location 4 : PCI 32bit/33MHz Slot Location 5 : PCI 32bit/33MHz Slot Location 6 : PCI-E x16 (Gen3 X16 Link) Follow SSI Location# |
| Storage |
SATA Controller : Intel® C242 Chipset 6 x SATA3 6Gb/s ports + 2 x M.2 connector *1 Intel® Rapid Storage Technology Enterprise(RSTe) (For Linux/Windows) (Support Software RAID 0, 1, 5, 10 ) SAS Controller : ASUS PIKE II 3008-8i 8-port SAS 12G RAID card ASUS PIKE II 3108-8i 8-port SAS 12G HW RAID card |
| Networking |
1 x Intel® I210AT 1 x i219-LM |
| Graphic | Aspeed AST2510 with 64MB VRAM |
| On Board I/O |
1 x TPM header 1 x PSU Power Connector (24-pin ATX power connector + 8-pin ATX 12V power connector) 1 x USB 3.0 pin header , Up to 2 Devices 2 x USB 2.0 pin header , Up to 3 Devices 6 x Fan Header , 4pin 1 x Chassis Intruder 2 x Front LAN LED 1 x LPT 2 x M.2 Connector , NGFF Type : 22110/2280/2260/2242 |

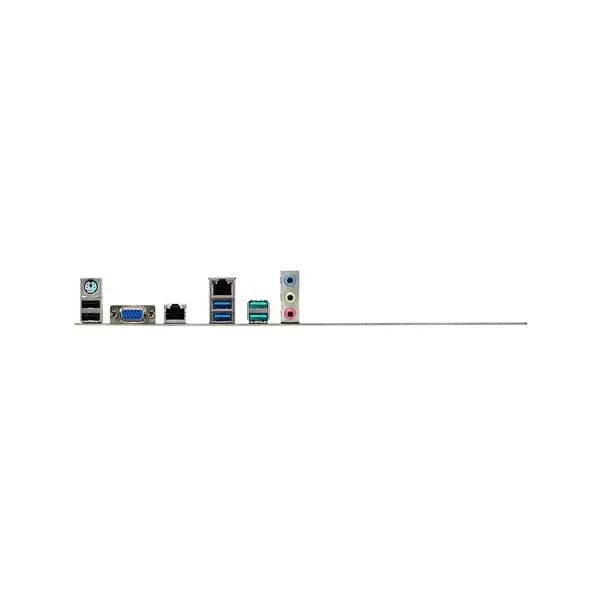

| Back I/O Ports |
1 x PS/2 Keyboard/ Mouse Port 2 x USB 3.1 2 x USB 3.0 2 x USB 2.0 1 x VGA Port (onboard Aspeed AST2510) 2 x LAN Ports 3 x Audio Jacks (onboard Realtek® ALC887-VD2 8-Channel High Definition Audio CODEC) |
| Management Solution | ASUS Control Center Enterprise (Optional) |
| Accessories |
Gift Box (1-in-1) 1 x Support DVD 1 x I/O shield 6 x SATA 6G cables 1 x ASUS Control Center Quick Guide Bulk Pack (10-in-1) 1 x Support DVD 1 x I/O shield 1 x ASUS Control Center Quick Guide |
| Form Factor | ATX (12"x9.6", 305mm x 244mm) |
| Warranty | 3 Years |
| Note | ***Features, Price and Specifications are subject to change without notice. |
