Description

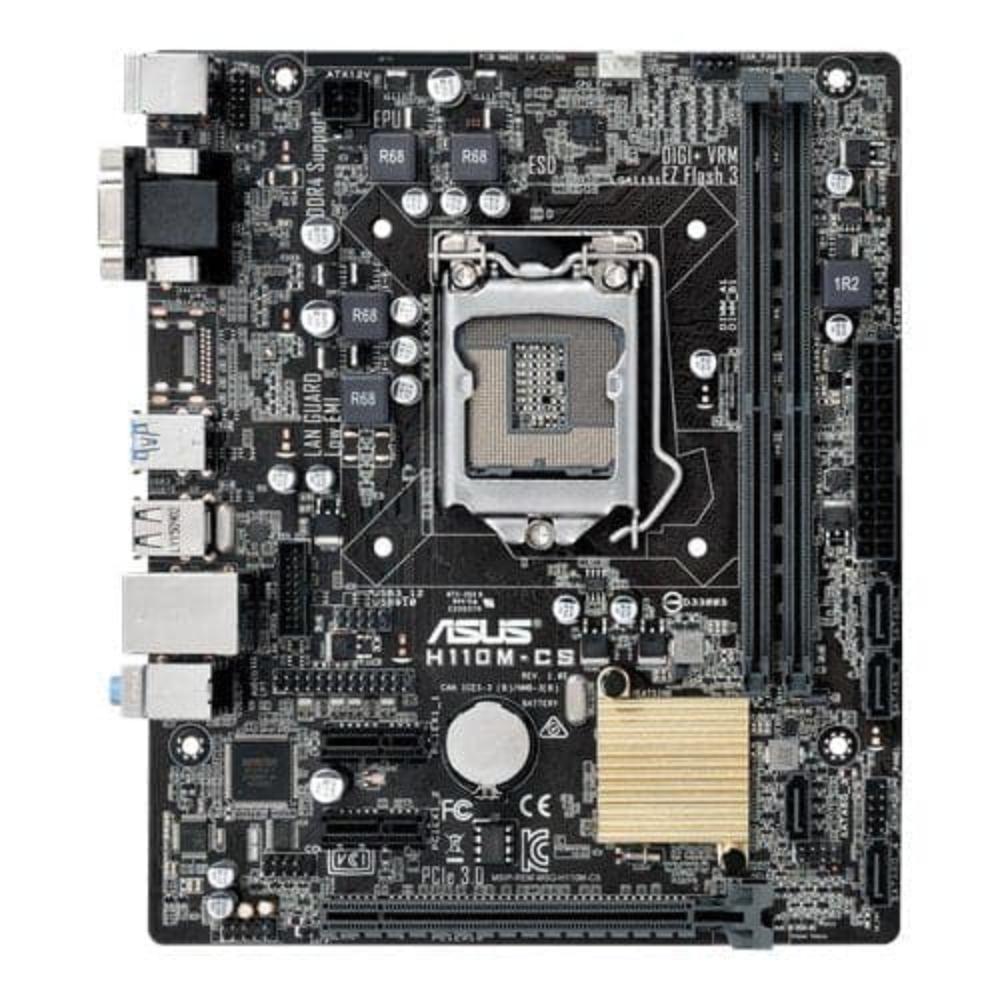

Feature of ASUS H110M-CS DDR4
- ASUS H110M-CS DDR4 motherboard is designed to support 7th,6th Generation Core i7,Core i5,Core i3,Pentium, Celeron Processors for Intel 1151 Socket. Combining with Industry-leading 5X Protection II employs the finest components, excellent circuit design, and exacting standards to guarantee quality and long-term durability of your motherboard .
- The board is PCIe 3.0 Ready supporting up to 32GB DDR4 2400(O.C.) of memory and Intel Extreme Memory to push your gaming experience to its peak.
- ASUS LANGuard is hardware-level networking protection that employs signal-coupling technology and premium anti-EMI surface-mounted capacitors ensuring a more reliable connection and better throughput with pumped-up throughput, 2.5X higher surge tolerance.
- Enjoy extended connectivity with the next-gen technology, USB 3.0 Ports. Enjoy fan xpert advanced fan controls for ultimate cooling and silent performance.
- The large winged clip is easy to reach and easy to operate. Just press the Q-Slot clip lightly, and graphics card just pop out. Installing or removing even the biggest graphics cards is no sweat.
Advanced Hardware Safeguards
Industry-leading 5X Protection II employs the finest components, excellent circuit design, and exacting standards to guarantee quality and long-term durability of your motherboard with all-round protection. For you, that means exceptional protection and stability for your build — the result of decades of engineering experience from the world's leading motherboard brand.
Pumped-up throughput. 2.5X higher surge tolerance.
ASUS LANGuard is hardware-level networking protection that employs signal-coupling technology and premium anti-EMI surface-mounted capacitors ensuring a more reliable connection and better throughput, plus electrostatically-guarded and surge-protected components for greater tolerance to static electricity and improved protection against surges.
Overvoltage Protection
An exclusive circuit design with built-in voltage regulators to protect your chipset, connectivity ports, and audio codecs from damage caused by unexpected high-level voltages from unstable or inferior power supplies.
ESD Guards
Electrostatic discharge (ESD) can happen suddenly, and its damaging effects are easily underestimated. ASUS ESD Guards are tested to very high standards, capable of up to +/- 10kV for air discharge and +/-6kV for contact discharge. We employ an active protective circuit design to guard your system against electrostatic interference and damage, providing greater component longevity.
DDR4 Support
With DDR4, you'll accelerate memory frequencies up to an incredible to 2133MHz! And ASUS works with almost every DDR4 memory vendor, so you're assured the best compatibility.
Instant front-panel USB 3.0 Experience
We've put USB 3.0 right where you need it four super-speed ports on the front panel. Experience data-transfer speeds up to 10X faster than USB 2.0 with instant plug-and-play connectivity, so no more back-breaking contortions in the hunt for hard-to-reach rear ports!
Q-Slot
The large winged clip is easy to reach and easy to operate. Just press the Q-Slot clip lightly, and graphics card just pop out. Installing or removing even the biggest graphics cards is no sweat!
Safe motherboard mounting
Fitting your ASUS motherboard is now safer than ever. The comprehensive component-free ‘safe zones' around every case-mounting hole minimizes the risk of damage and short circuits caused by contact so you'll assemble your PC with total confidence.
Fan Xpert
Exclusive Fan Xpert ensures every fan achieves the best balance of cooling performance and low noise and with our 100 series boards and their hardware-level 4-pin/3-pin PWM/DC mode for case fans, a simple BIOS adjustment lets you run your case fan in PWM/DC. Fan Xpert even includes Auto-Tuning mode to scan and detect all fan characteristics for single-click customization.
Specifications of ASUS H110M-CS DDR4
| CPU |
Intel® Socket 1151 for 6th Generation Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processors Supports Intel® 14 nm CPU Supports Intel® Turbo Boost Technology 2.0 |
| Chipset | Intel® H110 |
| Memory |
2 x DIMM, Max. 32GB, DDR4 2133 MHz Non-ECC, Un-buffered Memory *1 Supports Intel® Extreme Memory Profile (XMP) |
| Graphic |
Integrated Graphics Processor- Intel® HD Graphics support VGA output support : RGB port - Supports RGB with max. resolution 1920 x 1200 @ 60 Hz Maximum shared memory of 1024 MB Supports Intel® InTru™ 3D, Quick Sync Video, Clear Video HD Technology, Insider™ |
| Expansion Slots |
1 x PCIe 3.0/2.0 x16 (x16 mode) 2 x PCIe 2.0 x1 |
| Storage |
Intel® H110 Chipset : 4 x SATA 6Gb/s port(s), gray, Intel® Rapid Storage Technology supports*2 |
| LAN | Realtek® RTL8111H |
| Audio |
Realtek® ALC887-VD2 8-Channel High Definition Audio CODEC *3 - Supports : Jack-detection, Front Panel Jack-retasking Audio Feature : - Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference - Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals - Premium Japanese-made audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity |
| USB Ports |
Intel® H110 chipset : 4 x USB 3.0/2.0 port(s) (2 at back panel, blue, 2 at mid-board) Intel® H110 chipset : 6 x USB 2.0/1.1 port(s) (4 at back panel, black, 2 at mid-board) |
| Special Features |
ASUS 5X Protection II : - ASUS LANGuard - 2.5X higher surge tolerance - ASUS Overvoltage Protection - World-class circuit-protecting power design - ASUS DIGI VRM - 4 Phase digital power design - ASUS DRAM Overcurrent Protection - Prevents damage from short circuits - ASUS Stainless-Steel Back I/O - 3X corrosion-resistance for greater durability - ASUS ESD Guards - Electrostatic discharge protection ASUS EPU : - EPU ASUS Exclusive Features : - AI Suite 3 - Ai Charger - Anti-Surge - Low EMI Solution - USB 3.0 Boost - Mobo Connect - PC Cleaner Remote Entertainment - Media Streamer ASUS Quiet Thermal Solution : - Stylish Fanless Design Heat-sink solution - ASUS Fan Xpert ASUS EZ DIY : - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode - Push Notice ASUS Q-Design : - ASUS Q-Slot - ASUS Q-DIMM |
| Operating System Support |
Windows® 10 , 64bit Windows® 8.1 , 64bit Windows® 7 , 32bit/64bit *4 |

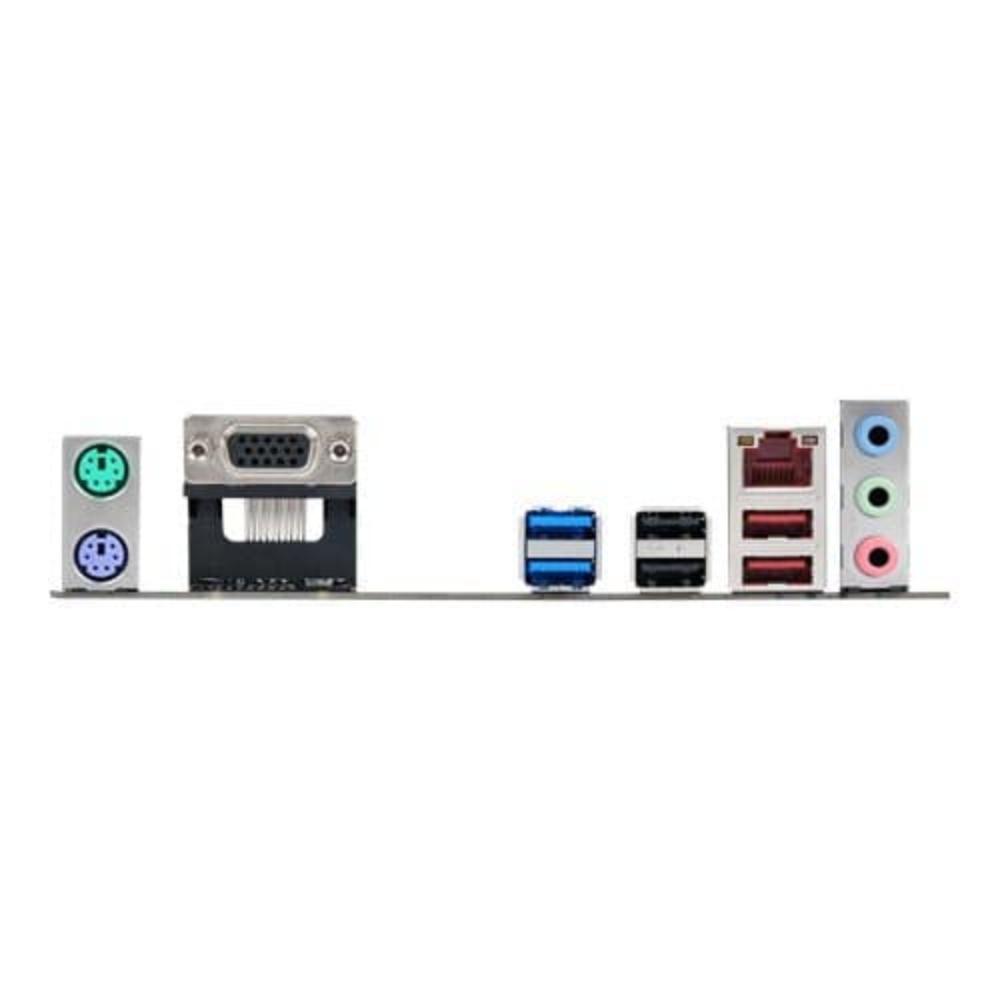

| Back I/O Ports |
1 x PS/2 keyboard (purple) 1 x PS/2 mouse (green) 1 x D-Sub 1 x LAN (RJ45) port(s) 2 x USB 3.0 (blue) 4 x USB 2.0 3 x Audio jack(s) |
| Internal I/O Ports |
1 x USB 3.0 connector(s) support(s) additional 2 USB 3.0 port(s) (19-pin) 1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s) 1 x LPT header 1 x COM port(s) connector(s) 4 x SATA 6Gb/s connector(s) 1 x CPU Fan connector(s) (1 x 4 -pin) 1 x Chassis Fan connector(s) (1 x 4 -pin) 1 x 24-pin EATX Power connector(s) 1 x 4-pin ATX 12V Power connector(s) 1 x Front panel audio connector(s) (AAFP) 1 x Internal speaker connector(s) 1 x System panel(s) 1 x 14-1 pin TPM connector 1 x Chassis intrusion header |
| Accessories |
User's manual I/O Shield 2 x SATA 6Gb/s cable(s) 1 x Supporting DVD |
| BIOS | 128 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI 2.0, WfM2.0, SM BIOS 3.0, ACPI 5.0, Multi-language BIOS, ASUS EZ Flash 3, ASUS CrashFree BIOS 3, My Favorites, Quick Note, Last Modified Log, F12 PrintScreen function, and ASUS DRAM SPD (Serial Presence Detect) memory information |
| Manageability | WfM 2.0, DMI 2.0, WOL by PME, PXE |
| Support Disc |
Drivers ASUS Utilities ASUS EZ Update Anti-virus software (OEM version) |
| Form Factor |
mATX Form Factor 8.3 inch x 7.1 inch ( 21.08 cm x 18.03 cm ) |
| Warranty | 3 Years |
| Note | ***Features, Price and Specifications are subject to change without notice. |
