Description
Features of ASUS EX-B760M-V5 DDR4 Intel Motherboard
Non-stop action:
The best choice for iCafé, configure-to-order gaming systems and quality-driven businesses
Non-stop durability:
Unbeatable features including luminous anti-moisture coating, LANGuard, SafeSlot Core+, USBGuard, Stainless-steel back I/O and 5X Protection III
Non-stop gaming:
DDR4 5333 (OC), two M.2 slots, PCIe® 4.0, Realtek 2.5 Gb Ethernet, ASUS Beyond VR ready and Epic audio
Non-stop challenger:
ASUS iCafé LAB-certified reboot and compatibility tested for diskless-system use, plus use with top games, 100+ peripherals, 1000+ CPUs, memory modules, graphics cards and more
Specifications of ASUS EX-B760M-V5 DDR4 Intel Motherboard
| Model | ASUS EX-B760M-V5 D4 |
| CPU |
Intel Socket LGA1700 for 13th Gen Intel Core & 12th Gen Intel Core, Pentium Gold and Celeron Processors Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0 |
| Chipset | Intel® B760 Chipset |
| Memory |
2 x DIMM, Max. 64GB, DDR4 5333(OC)/5066(OC)/5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4000(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory Dual Channel Memory Architecture Supports Intel Extreme Memory Profile (XMP) |
| Graphics |
1 x VGA port 1 x HDMI port |
| Expansion Slots |
Intel 13th & 12th Gen Processors 1 x PCIe 4.0 x16 slot Intel B760 Chipset 2 x PCIe 4.0 x1 slots |
| Storage |
Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports Intel 13th & 12th Gen Processors M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) Intel B760 Chipset M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) 4 x SATA 6Gb/s ports Intel Rapid Storage Technology supports SATA RAID 0/1/5/10. |
| Ethernet | 1 x Realtek 2.5Gb Ethernet |
| USB |
Rear USB (Total 6 ports) 4 x USB 3.2 Gen 1 ports (4 x Type-A) 2 x USB 2.0 ports (2 x Type-A) Front USB (Total 6 ports) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports |
| Audio |
Realtek 7.1 Surround Sound High Definition Audio CODEC* - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback Audio Features - Premium audio capacitors - Audio Shielding - Dedicated audio PCB layers A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output. |
| Back Panel I/O Ports |

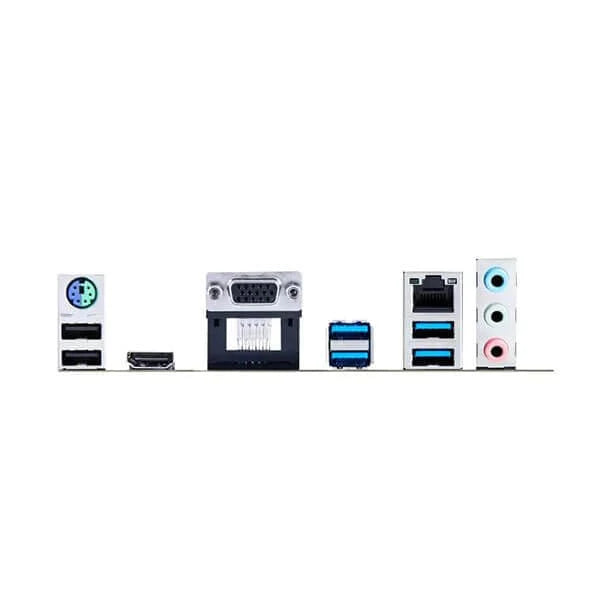

4 x USB 3.2 Gen 1 ports (4 x Type-A) 2 x USB 2.0 ports (2 x Type-A) 1 x VGA port 1 x HDMI® port 3 x Audio jacks 1 x Realtek 2.5Gb Ethernet port 1 x PS/2 Keyboard/Mouse combo port |
| Internal I/O Connectors |
Fan and cooling related 1 x 4-pin CPU Fan header 1 x 4-pin Chassis Fan header Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector Storage related 2x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports Miscellaneous 1 x Clear CMOS header 1 x Front Panel Audio header (AAFP) 1 x Speaker header 1 x 10-1 pin System Panel header |
| Special Features |
ASUS 5X PROTECTION III - DIGI+ VRM - LANGuard - Overvoltage Protection - SafeSlot Core+ - Stainless-Steel Back I/O ASUS Q-Design - Q-DIMM - Q-Slot - Q-LED Core ASUS EZ DIY - ProCool Non-stop Action - Lightning Boot Non-stop Challenger - ASUS iCafe labs certified Non-stop Durability - Luminous anti-moisture coating - USBGuard |
| BIOS | 128 Mb Flash ROM, UEFI AMI BIOS |
| Manageability | WOL by PME, PXE |
| Accessories |

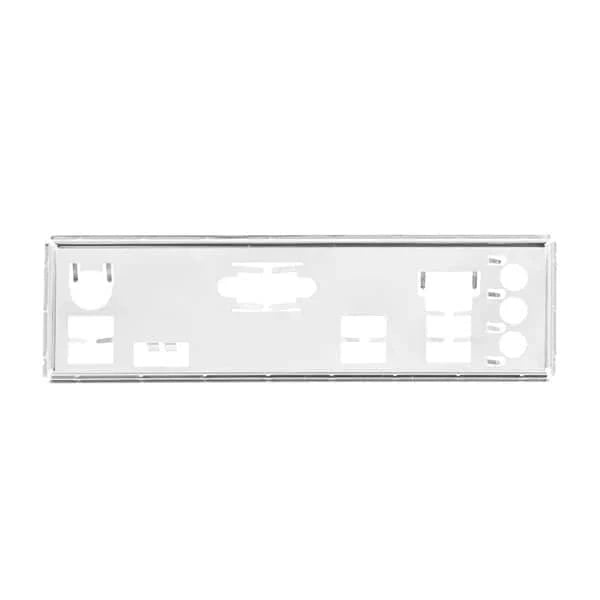

Cables 2 x SATA 6Gb/s cables Miscellaneous 1 x I/O Shield 2 x M.2 Anchors Documentation 1 x User guide |
| Operating System | Windows® 11, Windows® 10 64-bit |
| Form Factor |
mATX Form Factor 9.6 inch x 8.3 inch(24.4cm x 21.1cm) |
| Warranty | 3 Years |
| Note | *** Features, Price, Specifications are subject to change without notice. |
