Description

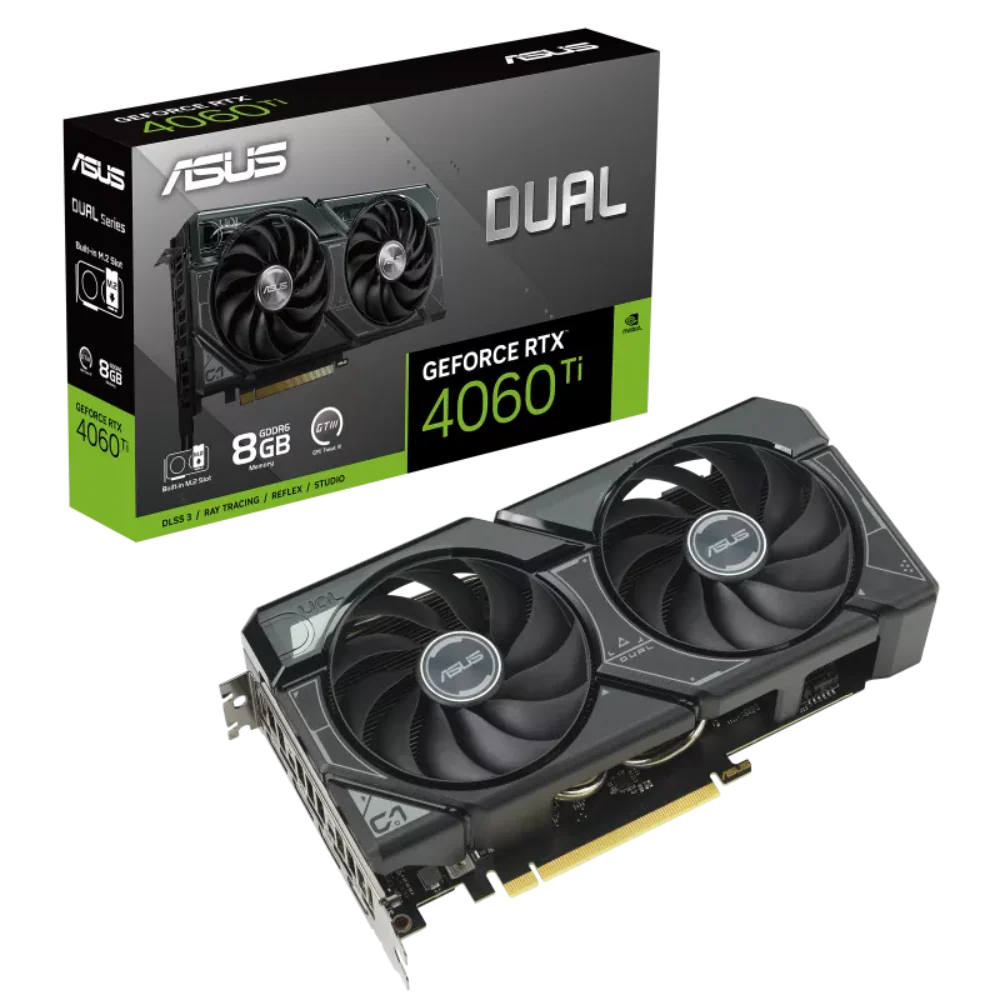

Features of ASUS Dual GeForce RTX 4060 Ti SSD 8GB NVIDIA Graphic Card
- Powered by NVIDIA DLSS3, ultra-efficient Ada Lovelace arch, and full ray tracing
- 4th Generation Tensor Cores: Up to 4x performance with DLSS 3 vs. brute-force rendering
- 3rd Generation RT Cores: Up to 2x ray tracing performance
- The built-in M.2 slot boasts PCIe Gen 5 speeds and effectively dissipates heat to the card's heatsink for cooler temperatures.
- M.2 Q-latch design enables tool-free installation and removal of M.2 SSDs.
- Axial-tech fan design features a smaller fan hub to increase airflow through the cooling array
- A 2.5-slot design maximizes compatibility and cooling efficiency for superior performance in small chassis.
- Dual ball fan bearings can last up to twice as long as sleeve bearing designs
- 0dB technology lets you enjoy light gaming in relative silence
- Protective backplate adds structural rigidity and vents to increase heat reliability
Compact, cooler, faster
Powerful Graphics and Storage, All in One
The ASUS Dual GeForce RTX™ 4060 Ti SSD graphics card takes compact gaming power and combines it with an all-new feature: a PCIe 4.0 M.2 slot integrated into the backside of the card, offering massive bandwidth for high-performance NVMe storage.
Built-in M.2 Slot

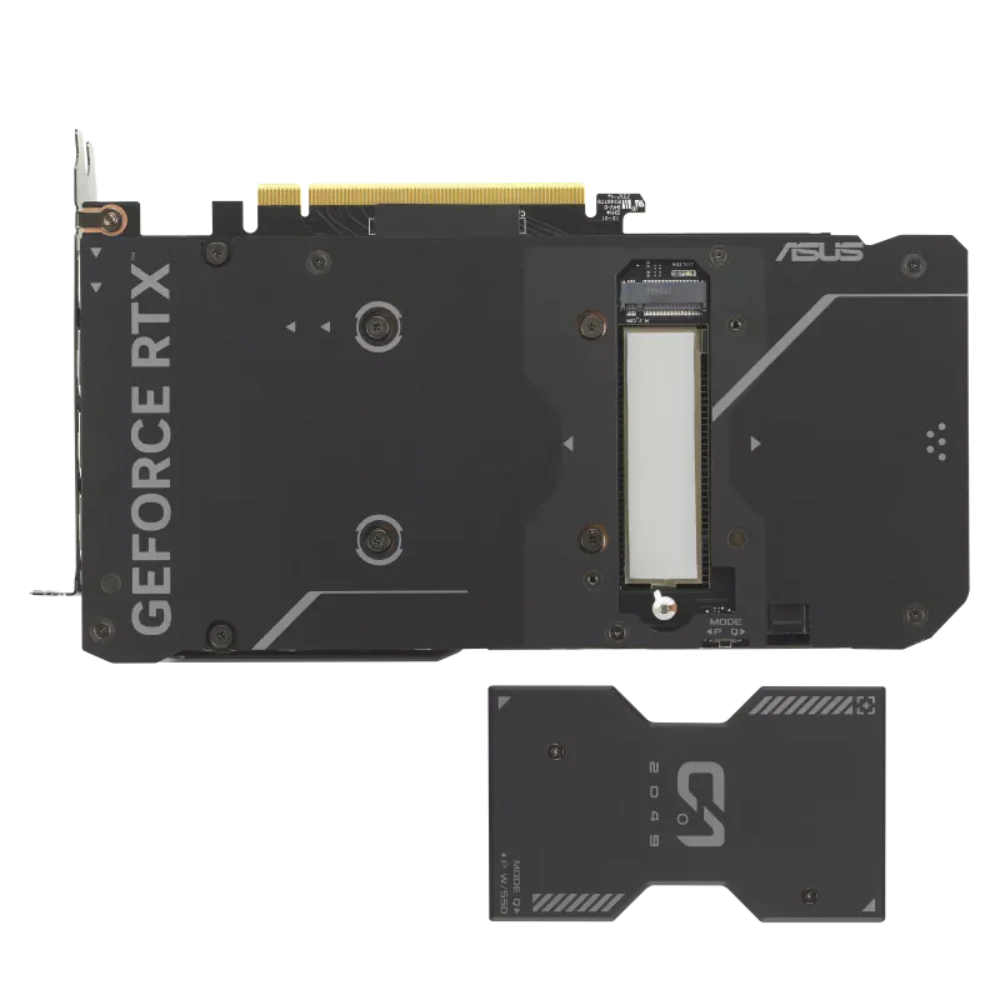

The backside of this graphics card integrates an M.2 slot capable of PCIe 5.0 speeds, for high-performance NVMe storage devices up to 80 mm long—and the SSD transfers heat directly to the card’s own heatsink using a thermal pad, resulting in a highly compact and tidy solution.
Axial-tech Fan Design
Better, faster, stronger
Two tried-and-true Axial-tech fans feature a smaller hub that facilitates longer blades and a barrier ring to increase downward air pressure, while the right fan operates at higher speeds to guarantee SSD heat dissipation.
Auto-Extreme Technology
Precision automated manufacturing
Auto-Extreme Technology is an automated manufacturing process that sets new standards in the industry by allowing all soldering to be completed in a single pass. This reduces thermal strain on components and avoids the use of harsh cleaning chemicals, resulting in less environmental impact, lower manufacturing power consumption, and a more reliable product overall.
GPU TWEAK III
Monitor, tweak, and tune
The ASUS GPU Tweak III utility takes graphics card tuning to the next level. It allows you to tweak critical parameters including GPU core clocks, memory frequency, and voltage settings, with the option to monitor everything in real-time through a customizable on-screen display. Advanced fan control is also included along with many more features to help you get the most out of your graphics card.
144-hour Validation Program
"Extensive" may be an understatement
A 144-hour validation program puts cards through a series of stringent tests to ensure compatibility with the latest games.
Specification of ASUS Dual GeForce RTX 4060 Ti SSD 8GB NVIDIA Graphic Card
| Part No | 90YV0JS1-M0AA00 |
| Model | DUAL-RTX4060TI-8G-SSD |
| Graphic Engine | NVIDIA® GeForce RTX™ 4060 Ti |
| AI Performance | 353 |
| Bus Standard | PCI Express 4.0 |
| OpenGL | OpenGL®4.6 |
| Video Memory | 8GB GDDR6 |
| Engine Clock | OC mode : 2565 MHz Default mode : 2535 MHz (Boost) |
| CUDA Core | 4352 |
| Memory Speed | 18 Gbps |
| Memory Interface | 128-bit |
| Resolution | Digital Max Resolution 7680 x 4320 |

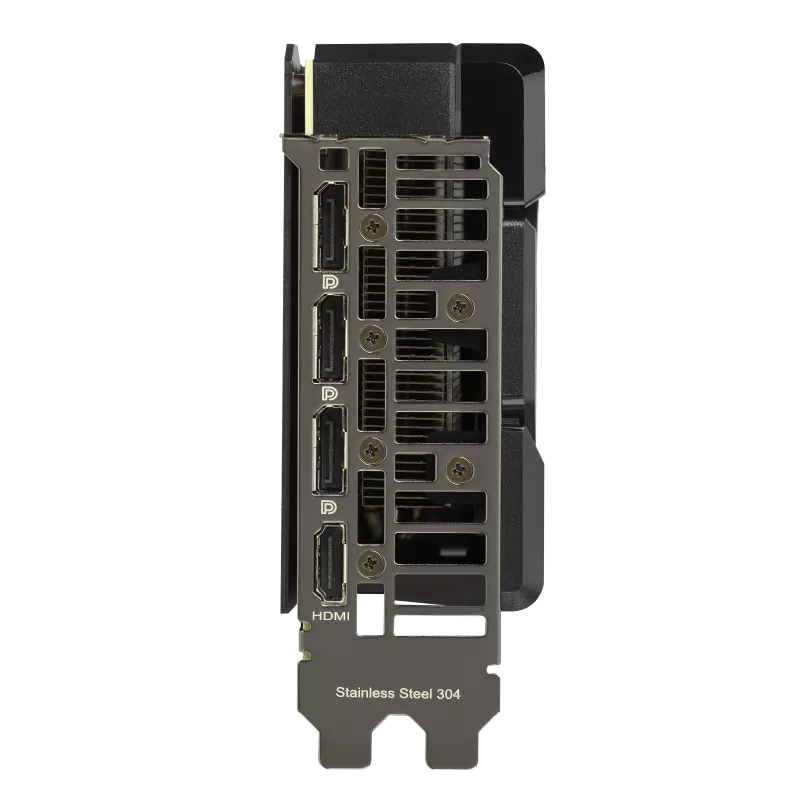

| Interface | Yes x 1 (Native HDMI 2.1a) Yes x 3 (Native DisplayPort 1.4a) HDCP Support Yes (2.3) |
| Maximum Display Support | 4 |
| NVlink/ Crossfire Support | No |
| Accessories |
1 x Collection Card 1 x Speedsetup Manual 1 x Install Manual 1 x Thank you card 1 x SSD Metal Cover 1 x Parts Package |
| Software | ASUS GPU Tweak III & GeForce Game Ready Driver & Studio Driver: please download all software from the support site. |
| Dimensions | 22.72 x 12.324 x 4.96 cm |
| Recommended PSU | 650W |
| Power Connectors | 1 x 8-pin |
| Slot | 2.5 Slot |
