Description

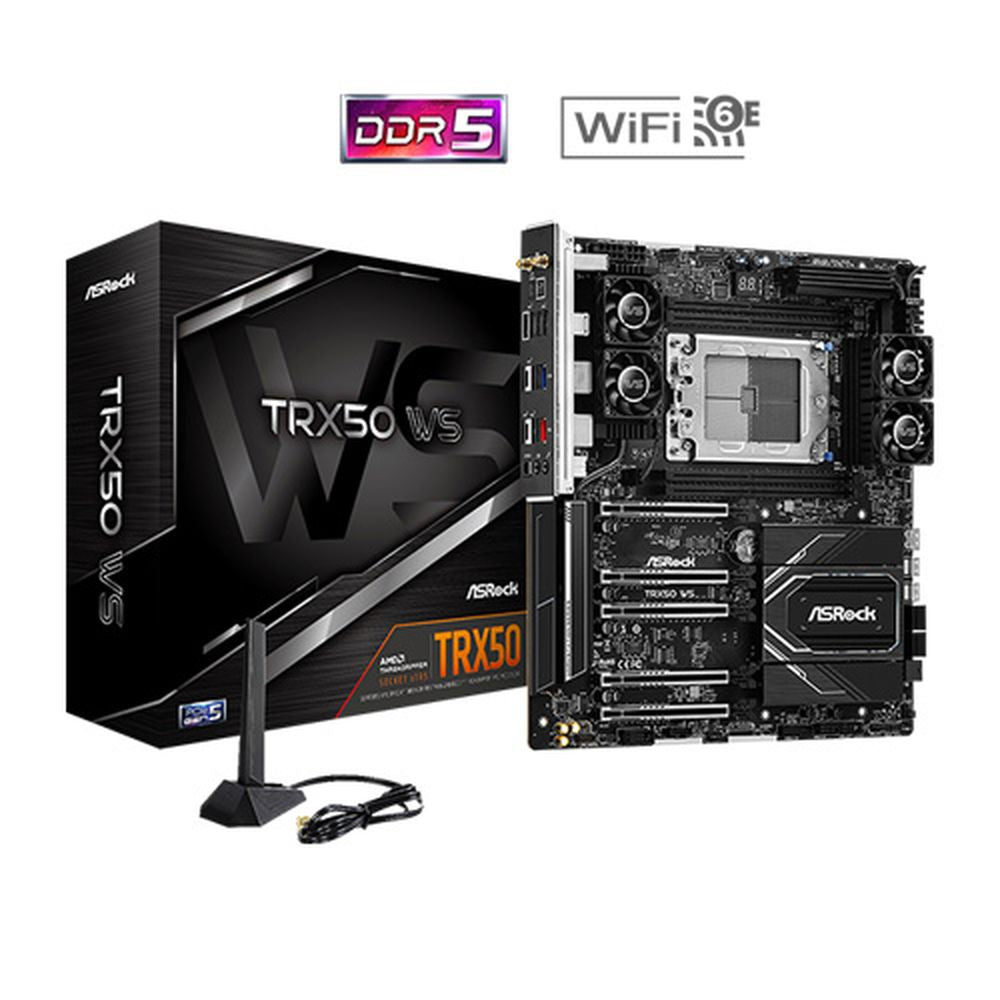

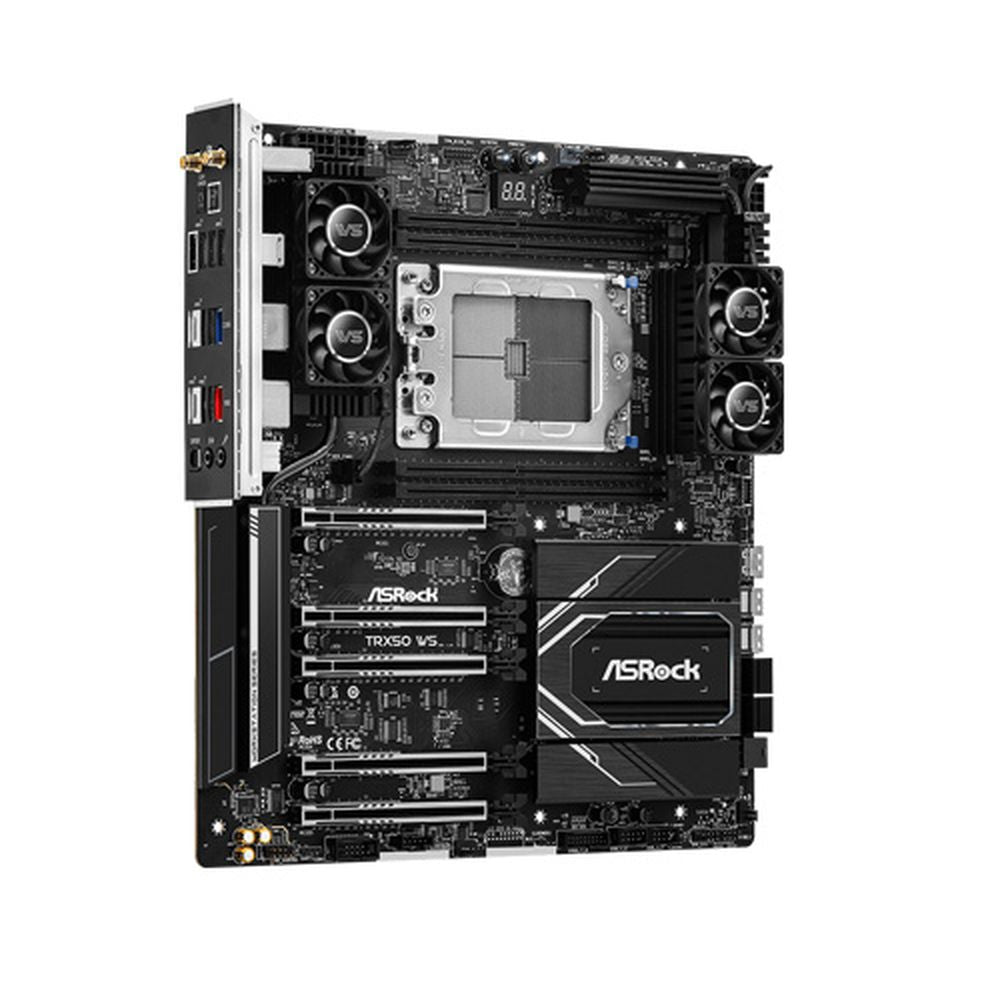

Features of ASROCK TRX50 WS Amd Ryzen 7000 EATX DDR5 STR5 Threadripper Motherboard
- Supports AMD Ryzen™ Threadripper™ PRO 7000 and AMD Ryzen™ Threadripper™ 7000 Series Processors
- 18+3+3 Power Phase Design, 110A SPS for VCore
- Supports 4 DIMMs DDR5 ECC Registered memory
- 3 PCIe 5.0 x16, 2 PCIe 4.0 x16
- Realtek ALC1220 7.1 CH HD Audio, Nahimic Audio
- 4 SATA3,
-1 Blazing M.2 (PCIe Gen5 x4),1 Hyper M.2 (PCIe Gen4 x4),1 MCIO (PCIe Gen5 x4),2 SlimSAS (PCIe Gen4 x4 / 4 SATA3) - 1 USB 3.2 Gen2x2 Type-C (Rear), 2 USB 3.2 Gen2 Type-C (1 Rear, 1 Front), 4 USB 3.2 Gen2 Type-A (Rear), 4 USB 3.2 Gen1 (2 Rear, 2 Front), 4 USB 2.0 (Front)
- Marvell 10 GbE LAN, Realtek 2.5 Gigabit LAN
- 802.11ax WiFi 6E + Bluetooth
Server Grade Ultra Low Loss PCB
The server grade low loss PCB improves signal integrity, allowing motherboard to support PCIe 5.0 for both graphics card and M.2 SSD, it also improves memory OC potential to deliver the most extreme memory performance.
2oz Copper PCB
2 ounce copper inner layers that provide stable signal traces and power shapes! Delivering lower temperature and higher energy efficiency for overclocking.
12 Layer PCB
The 12 Layer PCB provides stable signal traces and power shapes delivering lower temperature and higher energy efficiency, ensures a reliable and long-lasting system while delivering ultimate performance without any compromise.
Composite VRM Heatsink
It is equipped with a composite VRM heatsink active cooling fans, XXL aluminum heatsinks and heat pipe for maximum heat dissipation.
DDR5 ECC Memory Support
ASROCK TRX50 WS DIMMs DDR5 RDIMM ECC Memory overclocking with max capacity of 1TB. It can automatically detect and correct data corruption, reducing the chance of system crashes to ensure workstation stability with multiple memory modules.
Specifications of ASROCK TRX50 WS Amd Ryzen 7000 EATX DDR5 STR5 Threadripper Motherboard
| Unique Feature | Superb Productivity – PCIe Gen5 (Graphics, M.2) – Quad Channel DDR5 Rock-Solid Durability – Ultra Low-Loss PCB – 18+3+3 Power Phase, 110A SPS for VCore – Pre-Installed I/O Shield – 20K Long-lasting Black Caps (high quality and conductive polymer capacitors) Ultrafast Connectivity – 10G LAN, 2.5G LAN, 802.11ax Wi-Fi 6E Module EZ Update – BIOS Flashback Button – ASRock Auto Driver Installer |
| CPU | – Supports AMD Ryzen™ Threadripper™ PRO 7000 and AMD Ryzen™ Threadripper™ 7000 Series Processors – Supports AMD Socket sTR5 – Supports ASRock Hyper BCLK Engine |
| Chipset | AMD TRX50 |
| Memory | – Quad Channel DDR5 Memory Technology – 4 x DDR5 DIMM Slots – Supports DDR5 ECC, buffered memory (RDIMM/ RDIMM-3DS) up to 7600+(OC) – Max. capacity of system memory: 1TB |
| BIOS | 256Mb AMI UEFI Legal BIOS with GUI support |
| Graphics | N/a |
| Audio | – 7.1 CH HD Audio with Content Protection (Realtek ALC1220 Audio Codec) – Impedance Sensing on Rear Out port – Individual PCB Layers for R/L Audio Channel – Nahimic Audio |
| LAN | 1 x 10 Gigabit LAN 100/1000/2500/5000/10000 Mb/s (Marvell AQC113) – Support Wake-On-LAN – Support PXE 1 x 2.5 Gigabit LAN 10/100/1000/2500 Mb/s (Dragon RTL8125BG) – Supports Dragon 2.5G LAN Software – Smart Auto Adjust Bandwidth Control – Visual User Friendly UI – Visual Network Usage Statistics – Optimized Default Setting for Game, Browser, and Streaming Modes – User Customized Priority Control |
| Wireless LAN | – 802.11ax Wi-Fi 6E Module – Supports IEEE 802.11a/b/g/n/ac/ax – Supports Dual-Band 2×2 with extended 6GHz band support* – 2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology – Supports Bluetooth 5.2 + High speed class II – Supports MU-MIMO |
| Slots | CPU: – 3 x PCIe 5.0 x16 Slots (PCIE1/PCIE3 at x16; PCIE4 at x8)* – 1 x PCIe 4.0 x16 Slot (PCIE2), supports x4 mode* – 1 x PCIe 4.0 x16 Slot (PCIE5), supports x8 mode* Chipset: – 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module – 15μ Gold Contact in VGA PCIe Slots |
| Storage | CPU: – 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2260/2280 PCIe Gen5x4 mode* – 1 x MCIO PCIe Gen5x4 Connector – 2 x SlimSAS SFF-8654 Connectors (PCIe Gen4x4 or 4 x SATA3 6.0 Gb/s) Chipset: – 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2260/2280 PCIe Gen4x4 mode* – 4 x SATA3 6.0 Gb/s Connectors |
| RAID | – Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices – Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices* |
| USB | CPU: – 1 x USB 3.2 Gen2x2 Type-C (Rear) – 4 x USB 3.2 Gen2 Type-A (Rear) Chipset: – 2 x USB 3.2 Gen2 Type-C (1 Rear, 1 Front) – 4 x USB 3.2 Gen1 Type-A (2 Rear, 2 Front) – 4 x USB 2.0 (Front) |
| Connector | – 2 x Thermistor Cable Headers – 1 x SPI TPM Header – 1 x COM Port Header – 1 x Chassis Intrusion and Speaker Header – 2 x Addressable LED Headers* – 1 x CPU Fan Connector (4-pin)** – 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)*** – 3 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)**** – 1 x 24 pin ATX Power Connector (Hi-Density Power Connector) – 1 x 3 pin ATX Power Connector***** – 2 x 8 pin ATX 12V Power Connectors (Hi-Density Power Connector) (for Motherboard)****** – 2 x 6 pin PCIe 12V Power Connectors (Hi-Density Power Connector) (for Motherboard)****** – 1 x 6 pin Graphics 12V Power Connector (Hi-Density Power Connector) (for PCIe card)******* – 1 x Front Panel Audio Connector (15μ Gold Audio Connector) – 1 x Thunderbolt™ AIC Connector (5-pin) (Supports ASRock Thunderbolt™ 4 AIC Card) – 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) – 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) – 1 x Front Panel Type C USB 3.2 Gen2 Header (10 Gb/s) – 1 x Dr. Debug with LED – 1 x Power Button with LED – 1 x Reset Button with LED |
| Rear Panel I/O | – 2 x Antenna Ports – 1 x Optical SPDIF Out Port – 1 x USB 3.2 Gen2x2 Type-C Port (20 Gb/s) – 4 x USB 3.2 Gen2 Type-A Ports (10 Gb/s) – 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s) – 2 x USB 3.2 Gen1 Type-A Ports – 2 x RJ-45 LAN Ports – 1 x Clear CMOS Button – 1 x BIOS Flashback Button – 1 x Line Out Jack (Gold Audio Jack) – 1 x Microphone Input Jack (Gold Audio Jack) |
| Software & UEFI | Software – ASRock Motherboard Utility (A-Tuning) – ASRock Dragon 2.5G LAN Software – ASRock Polychrome SYNC* UEFI – ASRock Full HD UEFI – ASRock Auto Driver Installer – ASRock Instant Flash |
| Accessories | – 1 x User Manual – 4 x SATA Data Cables – 1 x ASRock WiFi 2.4/5/6 GHz Antenna – 2 x Thermistor Cables – 1 x Multi PSU Adaptor Cable – 2 x Screws for M.2 Sockets – 2 x Standoffs for M.2 Sockets |
| Form Factor | – EATX Form Factor: 12.0-in x 10.9-in, 30.5 cm x 27.7cm – 12 Layer PCB – 2oz Copper PCB |
| OS | Microsoft® Windows® 11 64-bit |
| Certifications | – FCC, CE – ErP/EuP ready (ErP/EuP ready power supply is required) |
| Warranty | 3 Years |
| Note** | **Prices, Specifications & Features are subject to change without notice |
