Description
Features of ASROCK Radeon RX 7700 XT Steel Legend OC 12GB AMD Graphic Card
Polychrome SYNC
Create your own unique colorful light effects.
With the integrated ARGB LEDs, you can create your own unique colorful light effects which can also be switched on and off. It can also be synchronized with your ASRock motherboards that support Polychrome SYNC.
LED On/Off Switch
You can switch not only the built-in ARGB LEDs but also the ARGB LEDs equipping with the connected strips/devices at once.

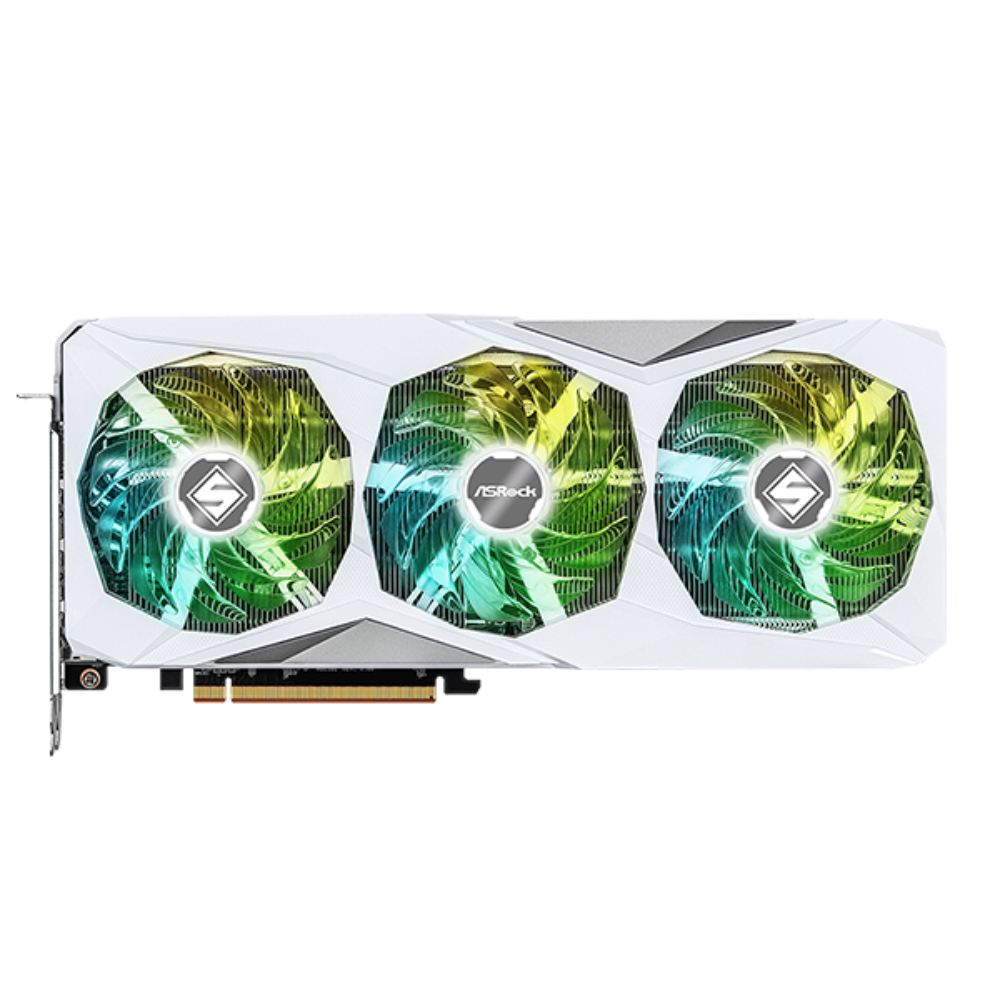

Triple Fan Design
Triple fan design helps to optimize system cooling to reduce the operating temperature.

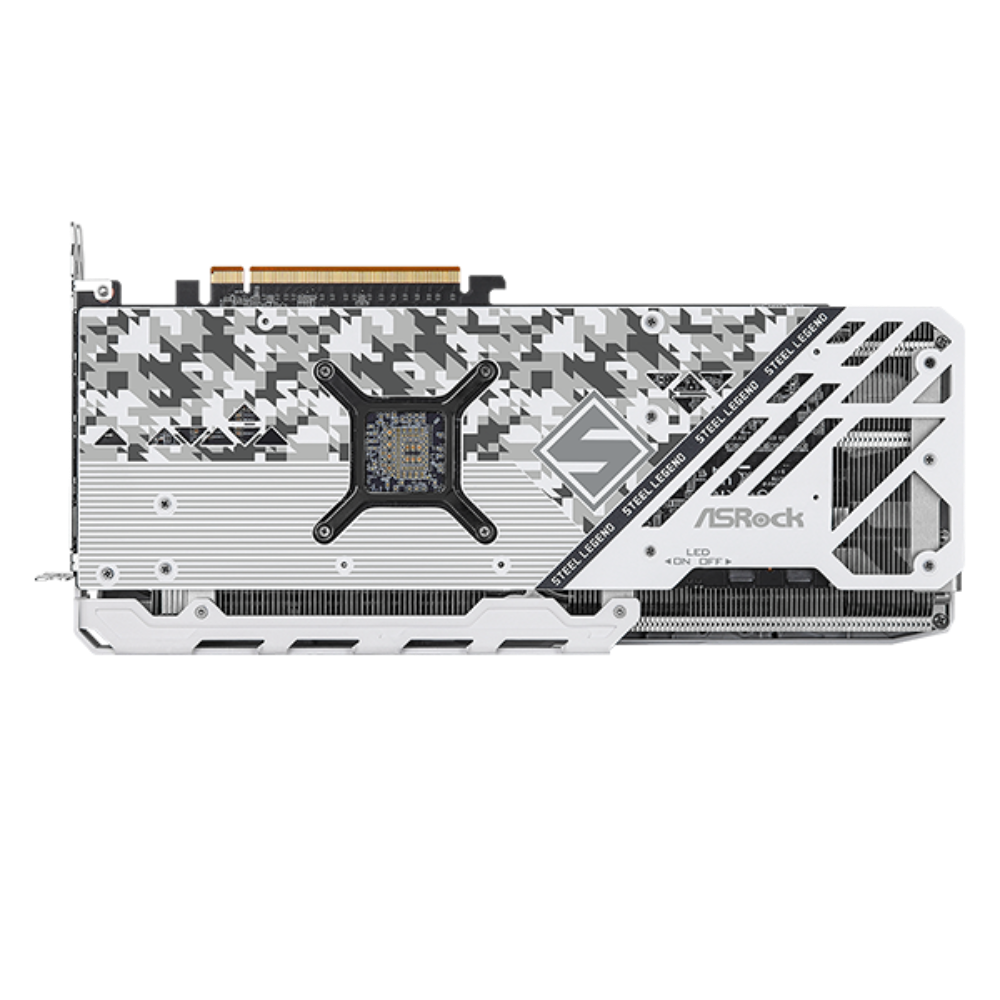

Stylish Metal Backplate
Solid, Fancy, Cool.
Designed to avoid PCB bending. The fancy outlook makes the graphic card more legendary in visual. It also helps to enhance cooling with the premium thermal pads equipped backside.
Reinforced Metal Frame
Be solid. No sag.
Enhances the structure to prevent the PCB from being bent.
Striped Axial Fan
Designed For Enhanced Airflow.
ASRock’s custom Striped Axial Fan delivers enhanced airflow to optimize cooling from not only the stripe structure on each fan blade but also the polishing surface on the bottom side.
0dB Silent Cooling
The fan spins when the temperature goes high for the optimal cooling, and stops when the temperature goes low for the complete silence.
Air Deflecting Fin
Guide the airflow to go more regularly and quickly to enhance the cooling efficiency by the V-shaped cutting fins and the V-shaped air vents.
Ultra-fit Heatpipe
The heatpipes are consolidated to maximize the contact among each others and also the GPU baseplate for the optimized heat dissipation.
Nicked Plated Total Copper Base
The large nickel-plated total copper base helps to optimize the thermal transfer for both GPU and VRAM effectively.
High-density Metal Welding
Effectively isolate all coverage of the gap between pipe and stacked fins, hence improve heat dissipation effectively.
Nano Thermal Paste
Eliminate the gaps in the contact area to maximize heat transfer and thermal efficiency.
Premium Thermal Pad
The premium thermal pad helps to transfer the heat of the components to the heatsink, improving heat dissipation.
Precise Screw Torque
ASRock adopts precise screw torque when assembling its graphics cards to optimize the cooler mounting pressure to improve thermal efficiency while avoiding damage to GPU die.
ASRock Tweak 2.0
Provides the smart fan speed control and instant performance tweaking.
8K Resolution Support
Not only can it handles 4K graphics but also supports the next generation 8K video output for the ultimate visual experience.
PCI® Express 4.0 Support
This graphics card features PCI® Express 4.0 support, with a throughput of 16 GT/s and enables two times the bandwidth compared to PCI® Express 3.0. Get ready for the next generation of PC gaming.
AMD Eyefinity Technology
AMD Eyefinity technology expands the traditional limits of desktop computing by multiplying your screen area. With multiple monitors, games become more immersive, workstations become more useful and you become more productive.
Experience incredible performance, visuals, and efficiency when gaming and streaming with the AMD Radeon™ RX 7700 XT and 7800 XT graphics cards, powered by the AMD RDNA™ 3 architecture. Immerse yourself in next-generation desktop experiences on some of the most advanced high refresh rate displays with up to 16GB of GDDR6 memory, new frame generation technologies, advanced raytracing, AI accelerators, AV1 encoding4, and support for the latest DisplayPort™ 2.1 technology. The Radeon™ RX 7700 XT and 7800 XT delivers an incredible high refresh 1440p gaming & streaming experience, with additional video memory to step into 4K.
Specifications of ASROCK Radeon RX 7700 XT Steel Legend OC 12GB AMD Graphic Card
| Product Code | RX7700XT-SL-12GO |
| Bus Standard | PCI® Express 4.0 x16 |
| DirectX | 12 Ultimate |
| OpenGL | 4.6 |
| Memory | 12GB GDDR6 |
| Engine Clock | Boost Clock*: Up to 2599 MHz Game Clock**: 2276 MHz *Boost Clock is the maximum frequency achievable on the GPU running a bursty workload. Boost clock achievability, frequency, and sustainability will vary based on several factors, including but not limited to: thermal conditions and variation in applications and workloads. **Game Clock is the expected GPU clock when running typical gaming applications, set to typical TGP (Total Graphics Power). Actual individual game clock results may vary. |
| Stream Processors | 3456 |
| Memory Clock | 18 Gbps |
| Memory Interface | 192-bit |
| Resolution | Digital Max Resolution: 7680 x 4320 |
| Interface | 3 x DisplayPort™ 2.1* 1 x HDMI™ 2.1 *DisplayPort (DP) 2.1 on any one or two ports. DisplayPort (DP) 1.4a on any and up to 3 ports simultaneously. |
| HDCP | Yes |
| Multi-view | 4 |
| Recommended PSU | 750W |
| Power Connector | 2 x 8-pin |
| Accessories | 1 x Quick Installation Guide |
| Dimensions | 304 x 131 x 56 mm, 2.8-slot |
| Net Weight | 1242 g |
