Description

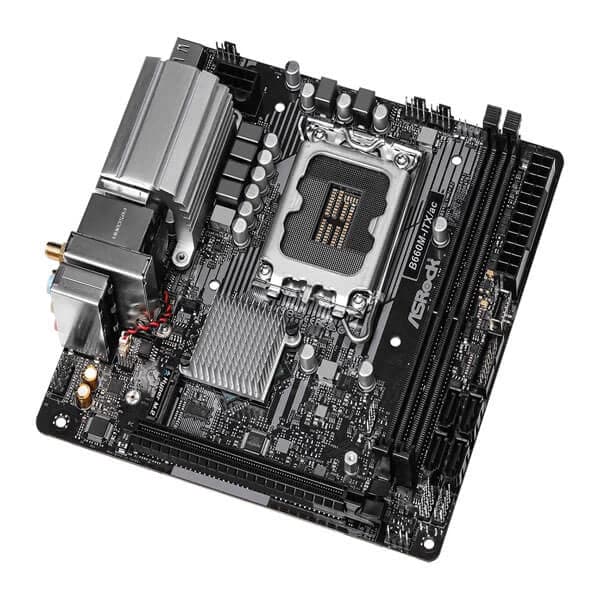

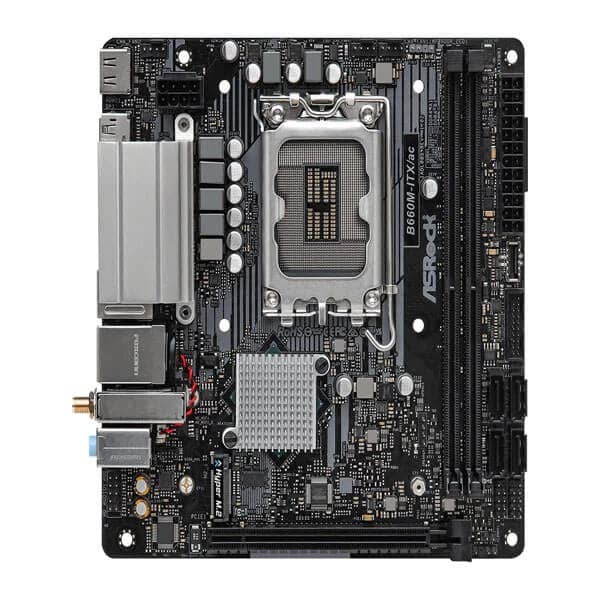

Features of ASROCK B660M ITX/AC Wifi DDR4 Intel Motherboard
- This ASROCK B660M ITX/AC Wifi DDR4 Intel Motherboard Supports 13th Gen & 12th Gen Intel® Core™ Processors (LGA1700)
- 6 Phase Dr.MOS Power Design
- Supports DDR4 5000MHz (OC)
- 1 PCIe 4.0 x16
- Graphics Output Options: HDMI, DisplayPort
- Realtek ALC897 7.1 CH HD Audio Codec
- 4 SATA3 1 Hyper M.2 (PCIe Gen4 x4 & SATA3)
- 5 USB 3.2 Gen1 (2 Front, 2 Rear, 1 Front Type-C) 4 Rear USB 2.0 (2 Front, 2 Rear)
- Intel® Gigabit LAN
- Intel® 802.11ac WiFi + Bluetooth
Specifications of ASROCK B660M ITX/AC Wifi DDR4 Intel Motherboard
| Unique Feature |
ASRock Super Alloy - Premium Power Choke - 50A Dr.MOS - Sapphire Black PCB - High Density Glass Fabric PCB 802.11ac WiFi ASRock Hyper M.2 (PCIe Gen4x4) ASRock Full Spike Protection (for all USB, Audio, LAN Ports) ASRock Live Update & APP Shop |
| CPU |
- Supports 13th Gen & 12th Gen Intel® Core™ Processors (LGA1700) - Digi Power design - 6 Power Phase design - Supports Intel® Hybrid Technology - Supports Intel® Turbo Boost Max 3.0 Technology |
| Chipset | - Intel® B660 |
| Memory |
- Dual Channel DDR4 Memory Technology - 2 x DDR4 DIMM Slots - Supports DDR4 non-ECC, un-buffered memory up to 5000+(OC)* - Supports ECC UDIMM memory modules (operate in non-ECC mode) - Max. capacity of system memory: 64GB - Supports Intel® Extreme Memory Profile (XMP) 2.0 |
| BIOS |
- 128Mb AMI UEFI Legal BIOS with multilingual GUI support - ACPI 6.0 Compliant wake up events - SMBIOS 2.7 Support - CPU Core/Cache, CPU GT, DRAM, VCCIN AUX, +1.05V PROC, +1.8V PROC, +0.82V PCH, +1.05V PCH Voltage Multi-adjustment |
| Graphics |
- Intel® Xe Graphics Architecture (Gen 12) - Dual graphics output: support HDMI and DisplayPort 1.4 ports by independent display controllers - Supports HDMI 2.1 TMDS Compatible with max. resolution up to 4K x 2K (4096x2160) @ 60Hz - Supports DisplayPort 1.4 with DSC (compressed) max. resolution up to 8K (7680x4320) @ 60Hz / 5K (5120x3200) @ 120Hz - Supports HDCP 2.3 with HDMI 2.1 TMDS Compatible and DisplayPort 1.4 Ports |
| Audio |
- 7.1 CH HD Audio (Realtek ALC897 Audio Codec) - Supports Surge Protection |
| LAN |
- Gigabit LAN 10/100/1000 Mb/s - Giga PHY Intel® I219V - Supports Wake-On-LAN - Supports Lightning/ESD Protection - Supports Energy Efficient Ethernet 802.3az - Supports UEFI PXE |
| Wireless LAN |
- 802.11ac WiFi Module - Supports IEEE 802.11a/b/g/n/ac - Supports Dual-Band (2.4/5 GHz) - Supports high speed wireless connections up to 433Mbps - Supports Bluetooth + High speed class II |
| Slots |
CPU: - 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode* Chipset: - 1 x Vertical M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel® CNVi (Integrated WiFi/BT) |
| Storage |
CPU: - 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2280 SATA3 6.0 Gb/s & PCIe Gen4x4 (64 Gb/s) modes* Chipset: - 4 x SATA3 6.0 Gb/s Connectors |
| RAID | - Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices |
| Connector |
- 1 x Addressable LED Header* - 1 x CPU Fan Connector (4-pin)** - 1 x Chassis Fan Connector (4-pin)*** - 1 x Chassis/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)**** - 1 x 24 pin ATX Power Connector - 1 x 8 pin 12V Power Connector - 1 x Front Panel Audio Connector - 1 x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports ESD Protection) - 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection) - 1 x Front Panel Type C USB 3.2 Gen1 Header (Supports ESD Protection) |

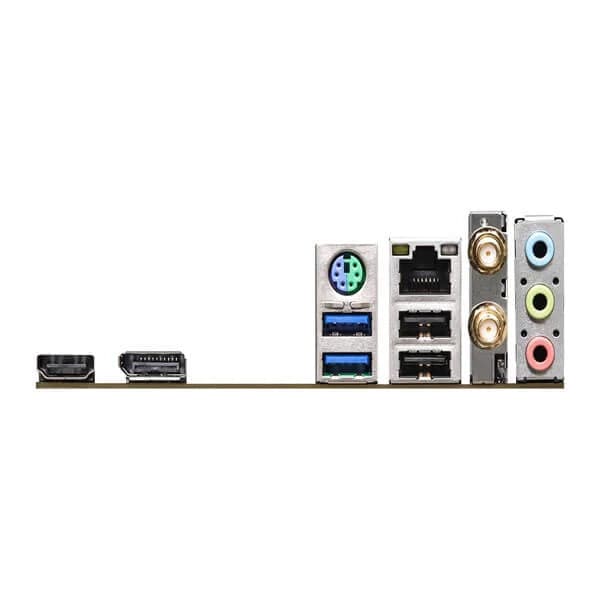

| Rear Panel I/O |
- 2 x Antenna Ports - 1 x PS/2 Mouse/Keyboard Port - 1 x HDMI Port - 1 x DisplayPort 1.4 - 2 x USB 3.2 Gen1 Ports (Supports ESD Protection) - 2 x USB 2.0 Ports (Supports ESD Protection) - 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED) - HD Audio Jacks: Line in / Front Speaker / Microphone |
| Software and UEFI |
Software - ASRock Motherboard Utility (A-Tuning) - ASRock Polychrome SYNC - ASRock XFast LAN UEFI - ASRock EZ Mode - ASRock Full HD UEFI - ASRock My Favorites in UEFI - ASRock Instant Flash - ASRock Internet Flash - ASRock Easy RAID Installe |
| Support CD | - Drivers, Utilities, AntiVirus Software (Trial Version) |

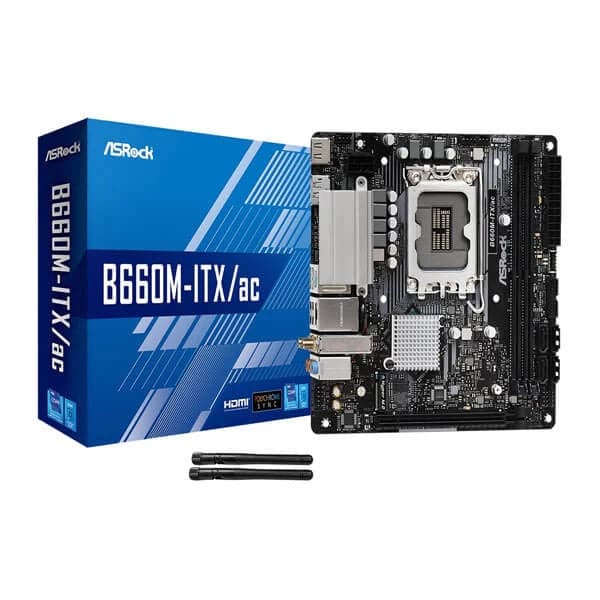

| Accessories |
- Quick Installation Guide, Support CD, I/O Shield - 2 x SATA Data Cables - 2 x ASRock WiFi 2.4/5 GHz Antennas - 1 x Screw for M.2 Socket |
| Hardware Monitor |
- Fan Tachometer: CPU, Chassis, Chassis/Water Pump Fans - Quiet Fan (Auto adjust chassis fan speed by CPU temperature): CPU, Chassis, Chassis/Water Pump Fans - Fan Multi-Speed Control: CPU, Chassis, Chassis/Water Pump Fans - Voltage monitoring: CPU Vcore, +12V, +5V, +3.3V, +1.05V PCH |
| Form Factor |
- Mini-ITX Form Factor: 6.7-in x 6.7-in, 17.0 cm x 17.0 cm - Solid Capacitor design |
| OS | - Microsoft® Windows® 10 64-bit / 11 64-bit |
| Certifications |
- FCC, CE - ErP/EuP ready (ErP/EuP ready power supply is required) |
| Warranty | 3 Years |
| Note | *** Features, Price, Specifications are subject to change without notice. |
