Description

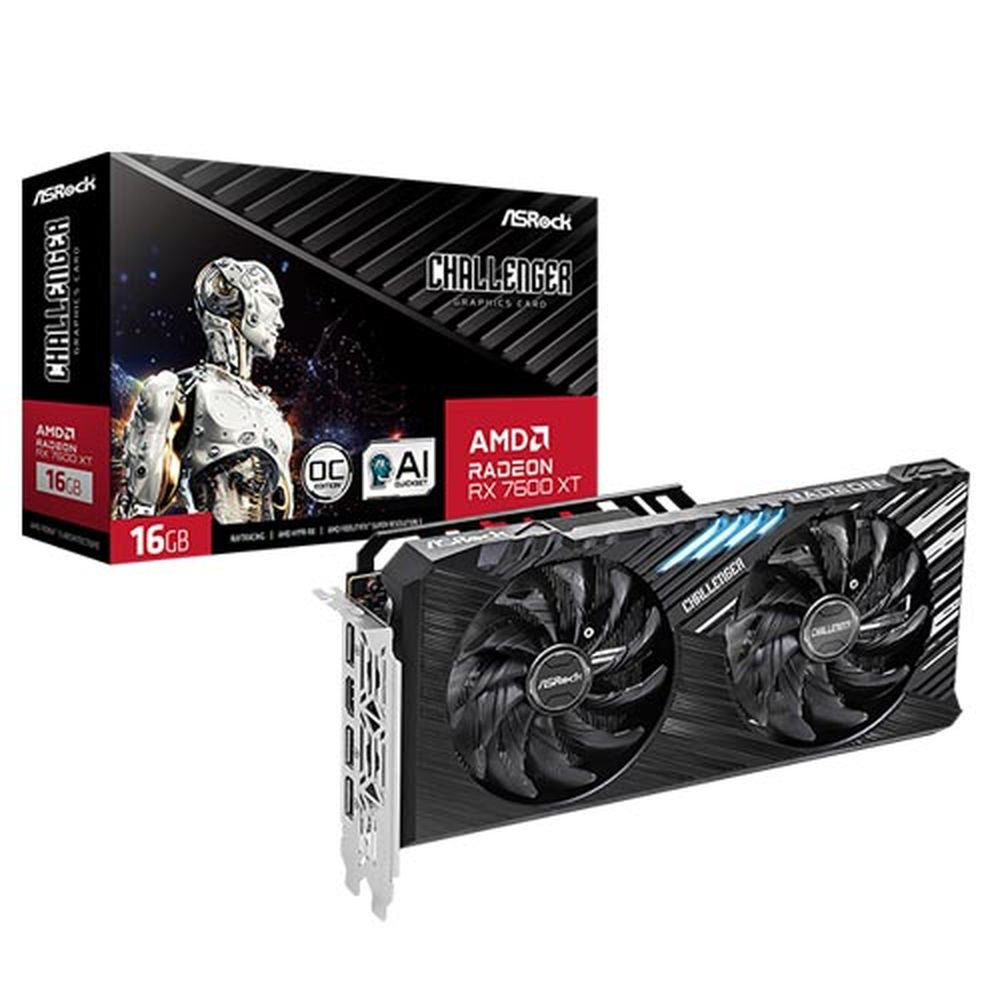

Features Of ASROCK Radeon RX 7600 XT Challenger OC 16GB AMD Graphic Card
- Boost Clock: Up to 2799 MHz/ 18 Gbps
- Game Clock: 2516 MHz/ 18 Gbps
Key Specifications:
- ASROCK Radeon RX 7600 XT Challenger OC
- 16GB GDDR6 on 128-Bit Memory Bus
- 32 AMD RDNA™ 3 Compute Units (with RT+AI Accelerators)
- Microsoft® DirectX® 12 Ultimate
- PCI® Express 4.0 Support
- 2 x 8-pin Power Connectors
- 3 x DisplayPort™ 2.1, 1 x HDMI™ 2.1
Key Features:
- Dual Fan Design
- Stylish Metal Backplate
- Axial Ring Fan
- Ultra-fit Heatpipe
- LED Indicator
- LED Indicator
- xSuper Alloy Graphics Card
Dual Fan Design
Two fans that provide strong cooling performance and make your gaming rig stay cool. It’s optimized for delivering excellent gaming experience with stylish and streamlined design.
Stylish Metal Backplate Solid, Fancy, Cool.
Designed to avoid PCB bending. The fancy outlook makes the graphics card more legendary in visual. It also helps to enhance cooling with the premium thermal pads equipped backside.
Striped Axial Fan Designed For Enhanced Airflow
ASRock’s custom Striped Axial Fan delivers enhanced airflow to optimize cooling from not only the stripe structure on each fan blade but also the polishing surface on the bottom side.
0dB Silent Cooling Spin For Cooling, Stop For Silence
The fan spins when the temperature goes high for the optimal cooling, and stops when the temperature goes low for the complete silence.
Ultra-fit Heatpipe Consolidated to Maximize the Contact
The heatpipes are consolidated to maximize the contact among each others and also the GPU baseplate for the optimized heat dissipation.
Copper Base Maximize GPU Contact Area
With premium copper base heatsink design, the direct contact area to the GPU would be maximized to improve thermal transfer effectively.
Nano Thermal Paste Perfect Thermal Teamwork
Eliminate the gaps in the contact area to maximize heat transfer and thermal efficiency.
Premium Thermal Pad Better Heat Transfer
The premium thermal pad helps to transfer the heat of the components to the heatsink, improving heat dissipation.
Precise Screw Torque Optimized Mounting Pressure
ASRock adopts precise screw torque when assembling its graphics cards to optimize the cooler mounting pressure to improve thermal efficiency while avoiding damage to GPU die.
Specifications Of ASROCK Radeon RX 7600 XT Challenger OC 16GB
| Model | ASROCK AMD Radeon™ RX 7600 XT Graphics |
| Bus Standard | PCI® Express4.0 x8 |
| DirectX | 12 Ultimate |
| OpenGL | 4.6 |
| Memory | GDDR6 16GB |
| Engine Clock | Boost Clock up to: 2799MHz |
| Game Clock: 2516MHz | |
| Stream Processors | 2048 |
| Compute Units | 32 |
| Memory Clock | 18Gbps |
| Memory Interface | 128-bit |
| Resolution | Digital Max Resolution: 7680×4320 |
| Interface | s1 x HDMI™ 2.1 (up to FRL 10Gbps) |
| 3 x DisplayPort™ 2.1 with DSC (up to UHBR10 10Gbps) | |
| HDCP | Yes |
| Multi-view | 4 |
| Recommended PSU | 650W |
| Power Connector | 2 x 8-pin |
| Accessories | 1 x Quick Installation Guide |
| Dimensions | 267 x 130 x 51mm |
| Net Weight | 432g |
