Description

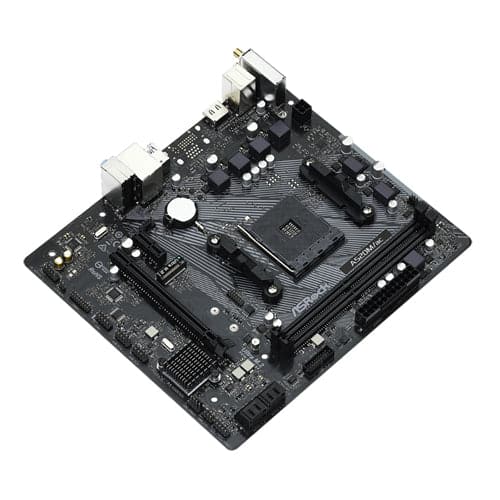

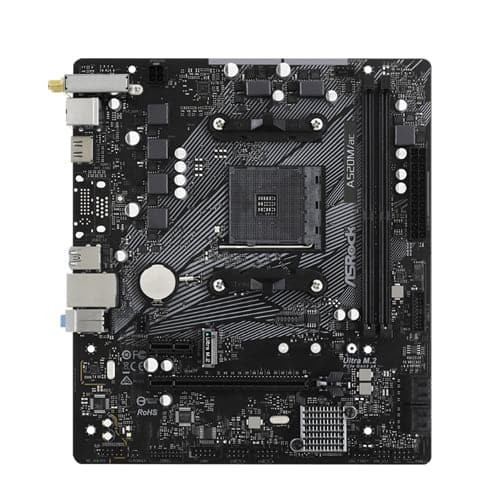

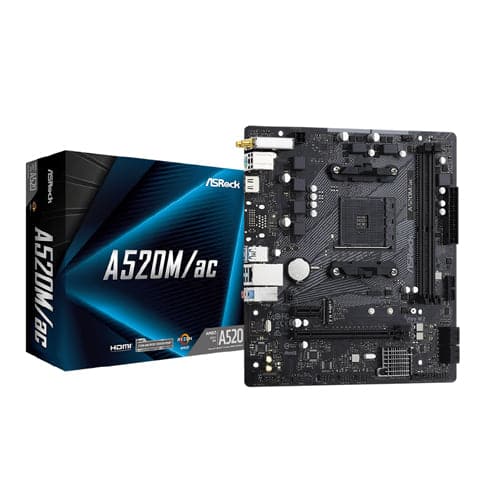

Features of ASROCK A520M/Ac DDR4 AMD Motherboard
- Dual Band 802.11ac WiFi
- Ultra M.2 32Gb/s (PCIe Gen3 x4 & SATA3)
- HDMI 4k @60Hz
- Premium 50A Power Choke
- High Density Glass Fabric PCB
- Sapphire Black PCB
- Full Spike Protection
- Live Update & APP Shop
Dual Band 802.11ac WiFi
No one has time for weak WiFi signals and sluggish internet! That’s why this motherboard comes with a 802.11ac WiFi (2.4G / 5G WiFi) module which supports wireless networks and Bluetooth v4.2.
Ultra M.2 32Gb/s (PCIe Gen3 x4 & SATA3)
The PCIe Gen3 x4 Ultra M.2 interface pushes data transfer speeds up to 32Gb/s. In addition, it also supports SATA3 6Gb/s M.2 modules.
AMD SMART ACCESS MEMORY
Conventional PC systems processor can only access a fraction of graphics memory and limits system performance. With AMD Smart Access Memory, the data channel gets expanded to harness the full potential of GPU memory, removes the bottleneck and increase performance.
HDMI 4k @60Hz
The ASROCK A520M/Ac DDR4 AMD Motherboard Supports the most recent HDMI 4K 60Hz graphics output specification. With the larger bandwidth and increased frame rate, the motion on your screen becomes more fluid and less blurry.
Full Spike Protection
Some sensitive digital components on the motherboard are vulnerable to power surges, the excessive current may cause your system to malfunction immediately. ASRock Full Spike Protection includes various technologies to prevent your motherboard’s components from being damaged by these unexpected voltage spikes.
Live Update & APP Shop
ASRock Live Update & APP Shop is designed for your convenience. We provide various apps and support software for users to download. You can also easily optimize your system and keep your motherboard up to date with ASRock Live Update & APP Shop
Specifications of ASROCK A520M/Ac DDR4 AMD Motherboard
| Brand | ASRock |
| Model | A520M-AC |
| CPU Socket Type | AM4 |
| CPU Type | 3rd Gen AMD AM4 Ryzen™ / future AMD Ryzen™ Processors (3000 and 4000 Series Processors |
| North Bridge | AMD A520 |
| Number of Memory Slots | 2 x DDR4 |
| Maximum Memory Supported | 64GB |
| Channel Supported | Dual Channel |
| PCI Slots | 1 x PCI Express 3.0 x16 Slot (PCIE2: x16 mode),1 x PCI Express 3.0 x1 Slot,1 x Vertical M.2 Socket (Key E) with the bundled WiFi-802.11ac module (on the rear I/O) |
| SATA 3Gb/s | 4 x SATA3 6.0 Gb/s Connectors |
| SATA RAID | 0,1,10 |
| Onboard Video Chipset | N/A |
| Audio Chipset | Realtek ALC887 |
| Audio Channels | 7.1 |
| Max LAN Speed | 10/100/1000Mbps |
| LAN Chipset | Realtek RTL8111H |

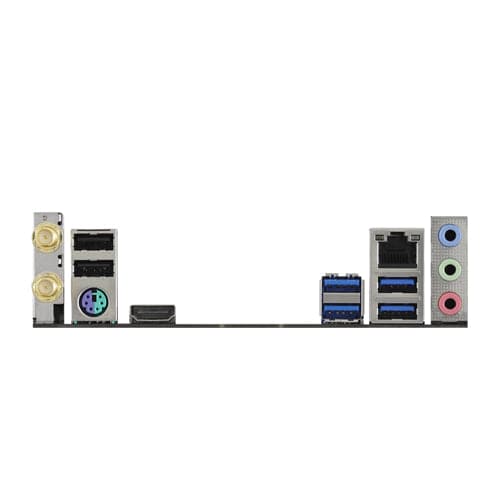

| PS/2 | 1 x PS/2 keyboard/mouse port |
| HDMI | 1 x HDMI |
| Audio Ports | HD Audio Jacks: Line in / Front Speaker / Microphone |
| Onboard USB | Available |
| Onboard 1394 | N/A |
| Form Factor | Micro ATX |
| Dimensions | 9.0-in x 7.9-in, 23.0 cm x 20.1 cm |
| Power Pin | 24 Pin |
