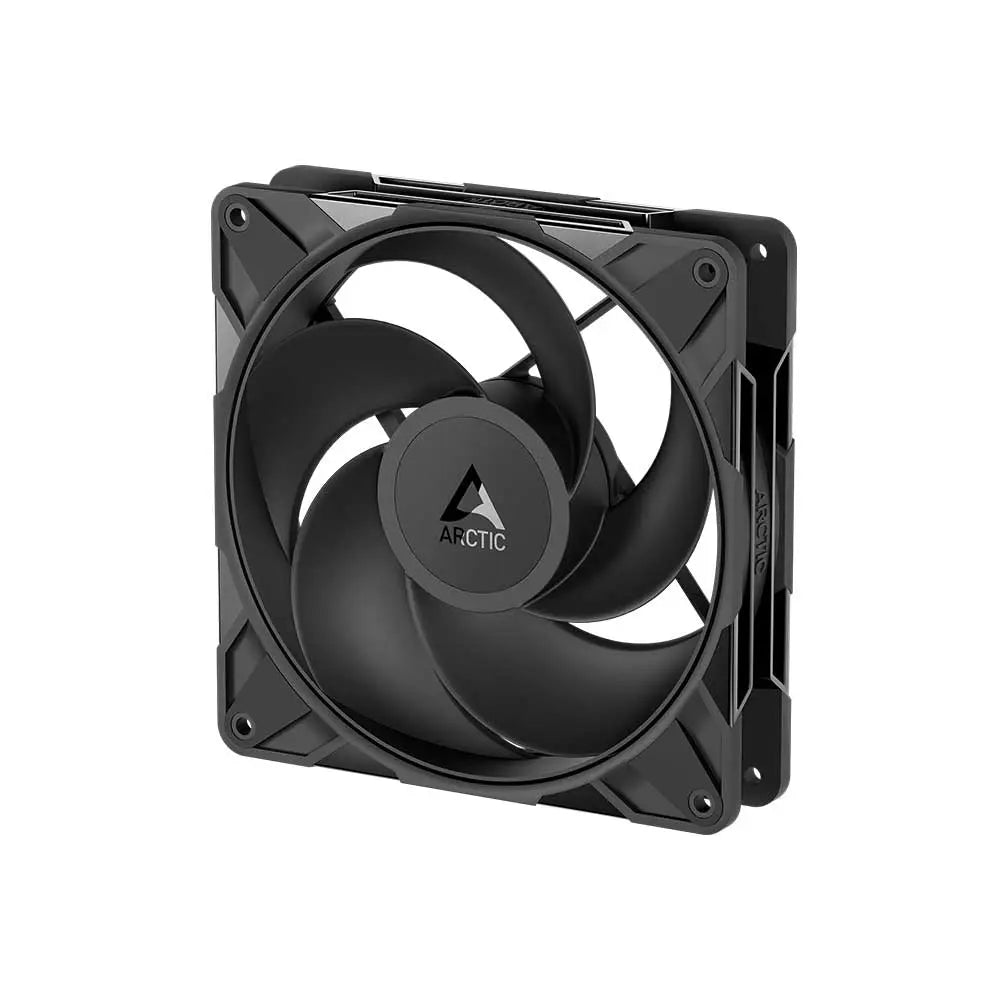

Features of ARCTIC P14 Pro Reverse 140mm PWM Non-RGB Cabinet Fans (Black) (Single Pack)
- REVERSED AIRFLOW: Special design that draws in air from the back side. Ideal for glass fronted designs and PC builds where conventional fans would spoil the appearance
- HIGH STATIC PRESSURE: Efficient even with resistance the generated airflow easily penetrates dense radiators, narrow perforated panels and mesh structures and ensures reliable cooling
- PWM CONTROL WITH WIDE SPEED RANGE: The speed can be progressively adjusted up to 2650 rpm via the 4-pin PWM connection the fan stops completely at less than 5% PWM
- PRECISE MANUFACTURING FOR MAXIMUM SMOOTH RUNNING: Minimal gaps, automatic balancing and high-precision measurement noticeably reduce vibrations for quiet, efficient and long-lasting performance
- SMOOTH-RUNNING FLUID DYNAMIC BEARING (FDB): The self-lubricating bearing minimizes noise during operation ideal for quiet, efficient cooling and a long, reliable service life
Specifications of ARCTIC P14 Pro Reverse 140mm PWM Non-RGB Cabinet Fans (Black) (Single Pack)
| Model Number | ACFAN00329A |
| Operating Ambient Temperature | 0–40 °C |
| Dimensions | 140 (L) x 140 (W) x 30 (H) mm |
| Net Weight | 248 g |
| Fan Specifications | |
| Fan Speed |
400–2650 rpm, PWM controlled 0 rpm below 5 % PWM |
| Airflow | 98 cfm | 166.5 m³/h |
| Static Pressure | 5.1 mmH2O |
| Fan Bearing | Fluid Dynamic Bearing |
| Typical Voltage | 12 V DC |
| Start Up Voltage | 4 V DC |
| Current | 0.4 A |
| Cable Length | 400 mm + 80 mm Daisy-Chain Cable |
| Connector | 4-Pin Fan Plug + 4-Pin Socket |
| Packaging | |
| Width | 145 mm |
| Height | 35 mm |
| Length | 145 mm |
| Weight | 0.285 Kg |
| Warranty | 6 Years |
| Note** | **Prices, Specifications & Features are subject to change without notice |
