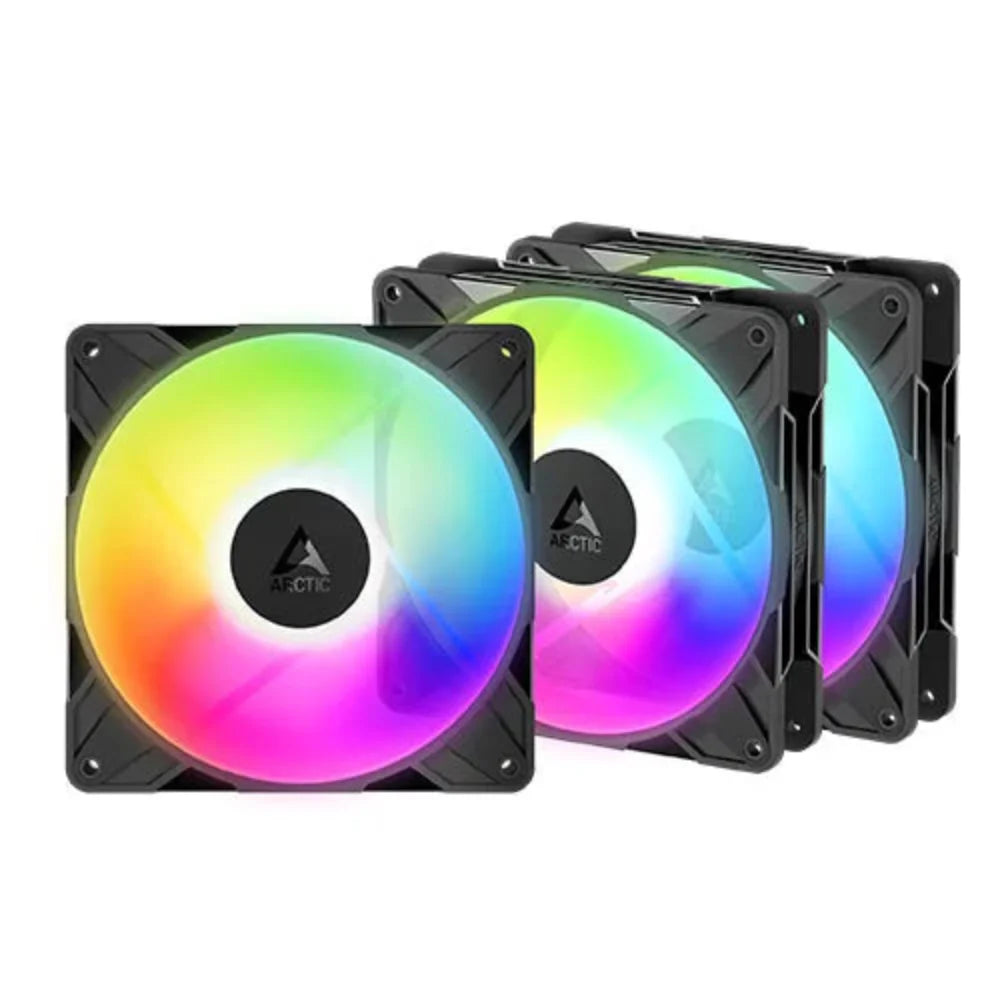

ARCTIC P14 Pro Reverse 140mm ARGB Cabinet Fans (Black) (Triple Pack)

Features of ARCTIC P14 Pro Reverse 140mm ARGB Cabinet Fans (Black) (Triple Pack)

The P14 Pro Reverse is specifically designed for air intake from the back side. It's particularly suitable when conventional fans would compromise the aesthetics.

• Fan Speed: 400–2650 rpm
• Bearing: Fluid Dynamic Bearing
• Static Pressure: 5.1 mm H₂O
• Airflow: 98 cfm | 166.5 m³/h

Optimized Airflow Design

The trumpet-shaped intake and teardrop-shaped spokes direct the airflow with reduced flow losses. This reduces air resistance, minimising turbulence and aerodynamic noise.

SOTA Microcontroller

Reduces motor noise, compensates for load fluctuations, and protects against inrush currents and reverse polarity.

More Power – Less Noise

An automated measuring and balancing process ensures smooth performance by applying the balancing compound with pinpoint accuracy.

Minimum Gap Dimensions for Maximum Efficiency

Enables higher static pressure and maximum airflow efficiency.

PST – Easy Cable Management and Synchronized PWM Control

Thanks to the additional PWM connector, multiple fans can be daisy-chained and controlled simultaneously through a single header.

Optimized FDB Bearing-Shaft Design

A hydrodynamic bearing combined with an extended shaft ensures quieter operation by improving pressure distribution and minimizing vibrations.

Fan Specifications:

• Fan Speed: 400 -2650 rpm PWM Controlled 0 rpm below 5% PWM
• Airflow: 98 cfm | 166.5 m³/h
• Static Pressure: 5.1 mm H₂O
• Fan Bearing: Fluid Dynamic Bearing
• Typical Voltage: 12 V DC
• Start Up Voltage: 4 V DC
• Current: 0.4 A
• Cable Length: 400 mm + 80 mm Daisy-Chain Cable
• Connector: 4-Pin Fan Plug + 4-Pin Socket

RGB Specifications:

• LEDs: 12x A-RGB Gen2 LEDs
• Current | Voltage: 0.40 A | 5 V DC
• Connector: 3-Pin A-RGB Plug + 3-Pin Socket

General Specifications

• Operating Ambient Temperature: 0–40 °C
• Dimensions: 140 (L) x 140 (W) 30 (H) mm
• Net Weight: 253 g
