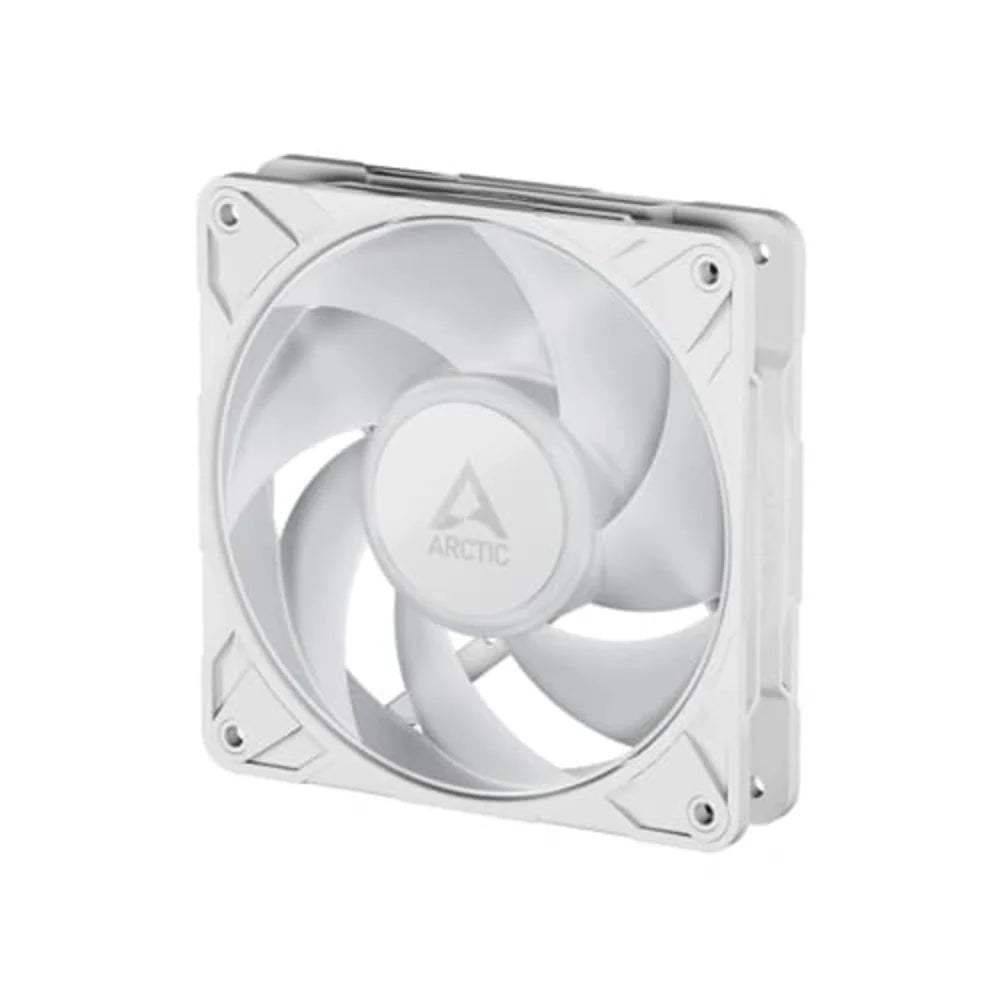

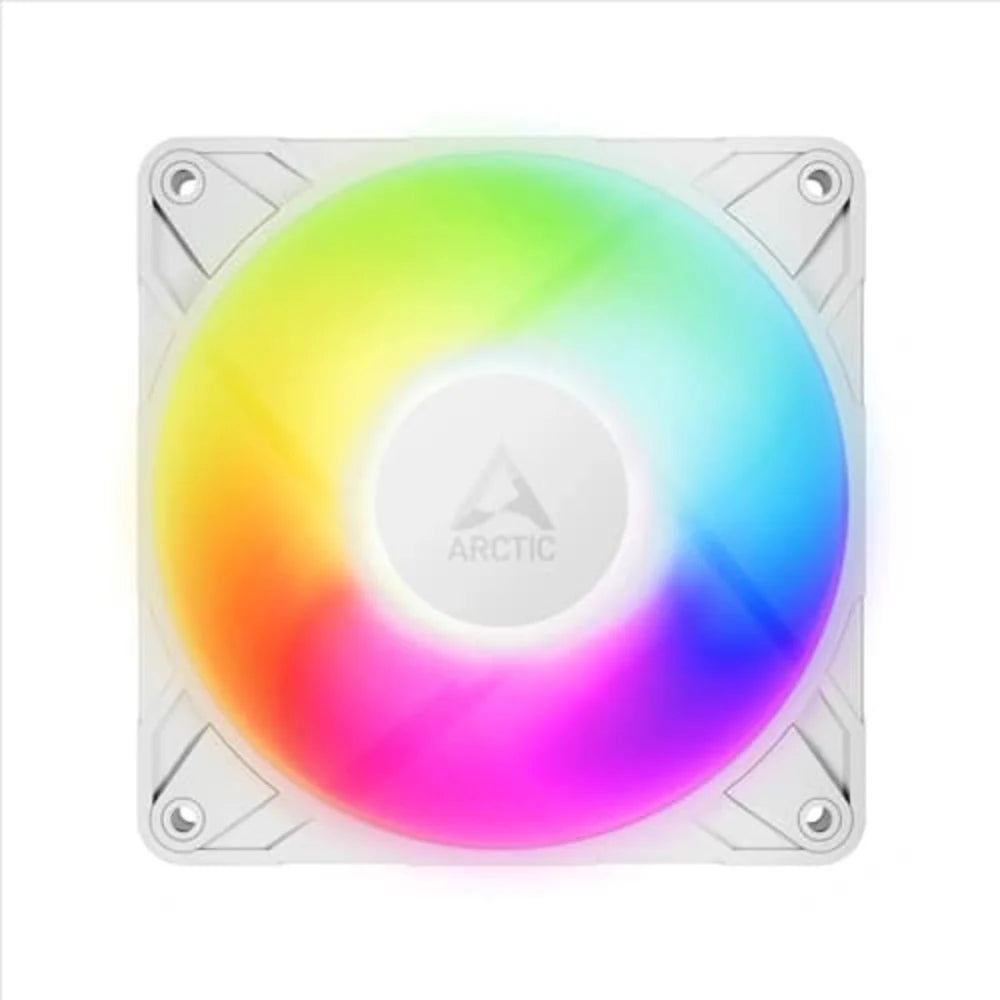

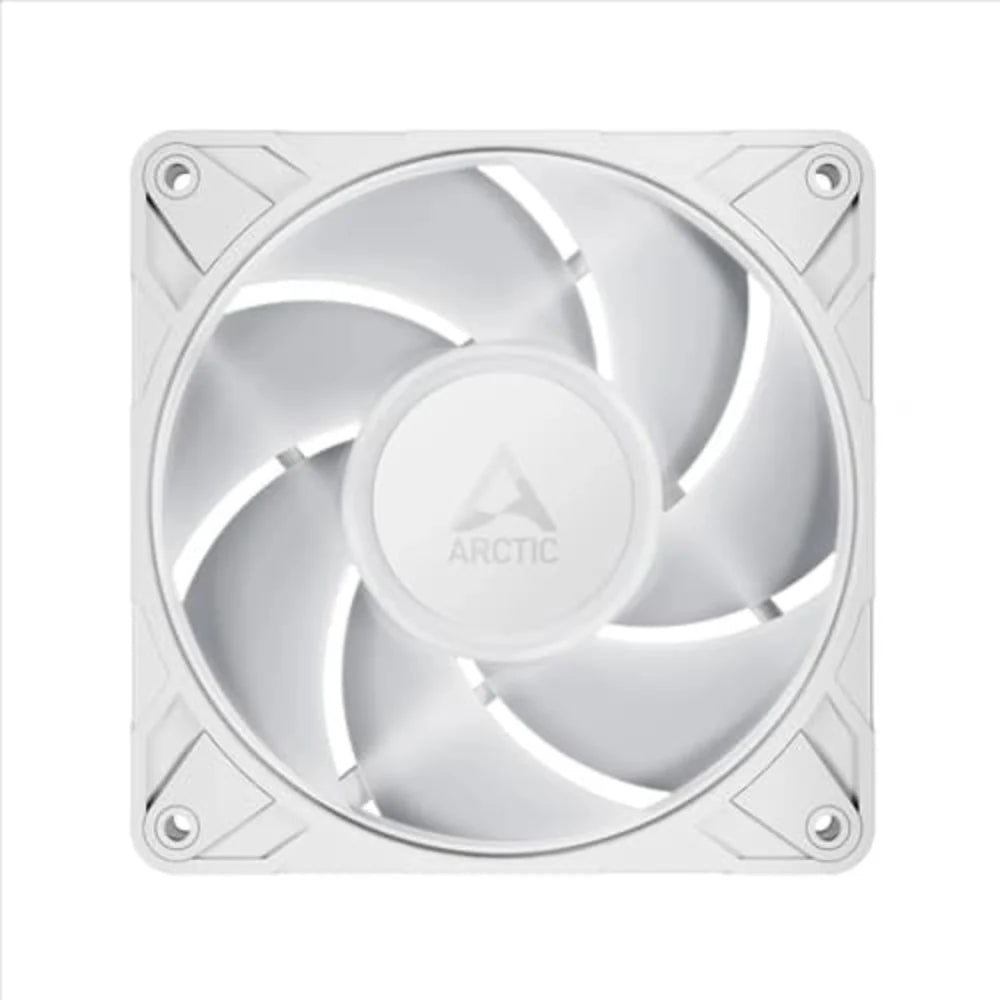

Features of ARCTIC P12 Pro PWM PST 120mm ARGB Cabinet Fan ( white ) ( Triple Pack )

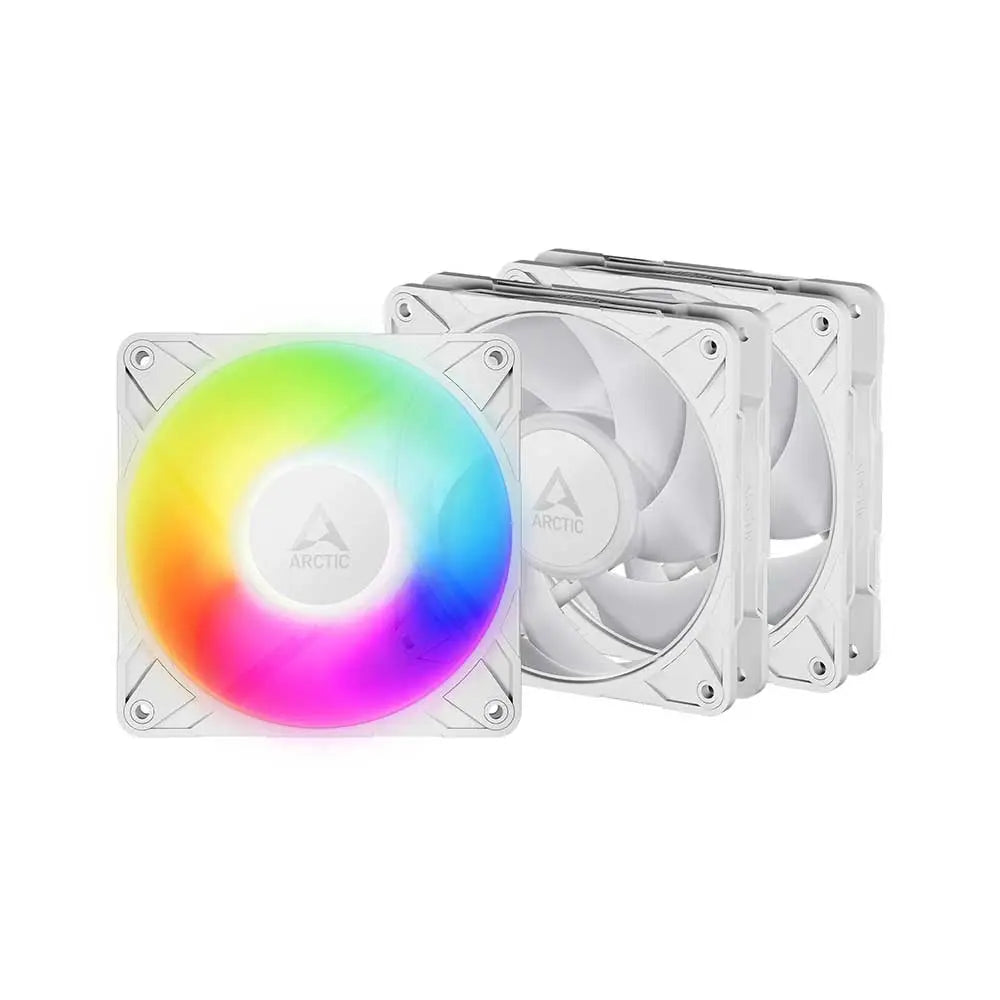

P12 Pro A-RGB (White) - 3 Pack
120 mm A-RGB PWM Fan with Cable Splitter
Efficient Performance at High Air Resistance
Thanks to high static pressure, the Pro fans move air effectively through tight spaces. This makes them ideal for radiators, perforated panels, and mesh filters.
Maximum Performance, Redefined
Revised fan blade design for an optimal balance of performance and smooth operation.
Optimized Bearing-Shaft Design (FDB)
A hydrodynamic bearing combined with an extended shaft ensures quieter operation by improving pressure distribution and minimizing vibrations.
Automated Balancing
An automated measuring and balancing process ensures exceptional precision and smooth performance by applying the balancing compound with pinpoint accuracy.
SOTA Microcontroller
Reduces motor noise, compensates for load fluctuations, and protects against inrush currents and reverse polarity.
Minimum Gap Dimensions for Maximum Efficiency
Enables higher static pressure and maximum airflow efficiency.
6-Year Warranty – Because Satisfaction Matters
Our products are tested under extreme conditions. The 6-year warranty isn’t just a promise – it’s a testament to our confidence in their durability.
Specifications of ARCTIC P12 Pro PWM PST 120mm ARGB Cabinet Fan ( white ) ( Triple Pack )
| Brand | ARCTIC |
| Model | ACFAN00326A |
| Color | White |
| Fan Specifications | |
| Fan Speed | 600–3000 rpm, PWM controlled |
| 0 rpm below 5% PWM | |
| Airflow | 77 cfm | 131 m³/h |
| Static Pressure | 6.9 mmH₂O |
| Fan Bearing | Fluid Dynamic Bearing |
| Typical Voltage | 12 V DC |
| Start Up Voltage | 3.3 V DC |
| Current | 0.33 A |
| Cable Length | 400 mm + 80 mm Daisy-Chain Cable |
| Connector | 4-Pin Fan Plug + 4-Pin Socket |
| General Specifications | |
| Operating Ambient Temperature | 0–40 ºC |
| Dimensions | 120 (L) x 120 (W) x 25 (H) mm |
| Net Weight | 185 g |
| RGB Specifications | |
| LEDs | 12x A-RGB Gen2 LEDs |
| Current | Voltage | 0.40 A | 5 V DC |
| Connector | 3-Pin A-RGB Plug + 3-Pin Socket |
| Packaging | |
| Width | 124 mm |
| Height | 86 mm |
| Length | 127 mm |
| Weight | 0.633 kg |
| Warranty | 6 years |
| Note | * Features, Price, Specifications are subject to change without notice. |
