Description

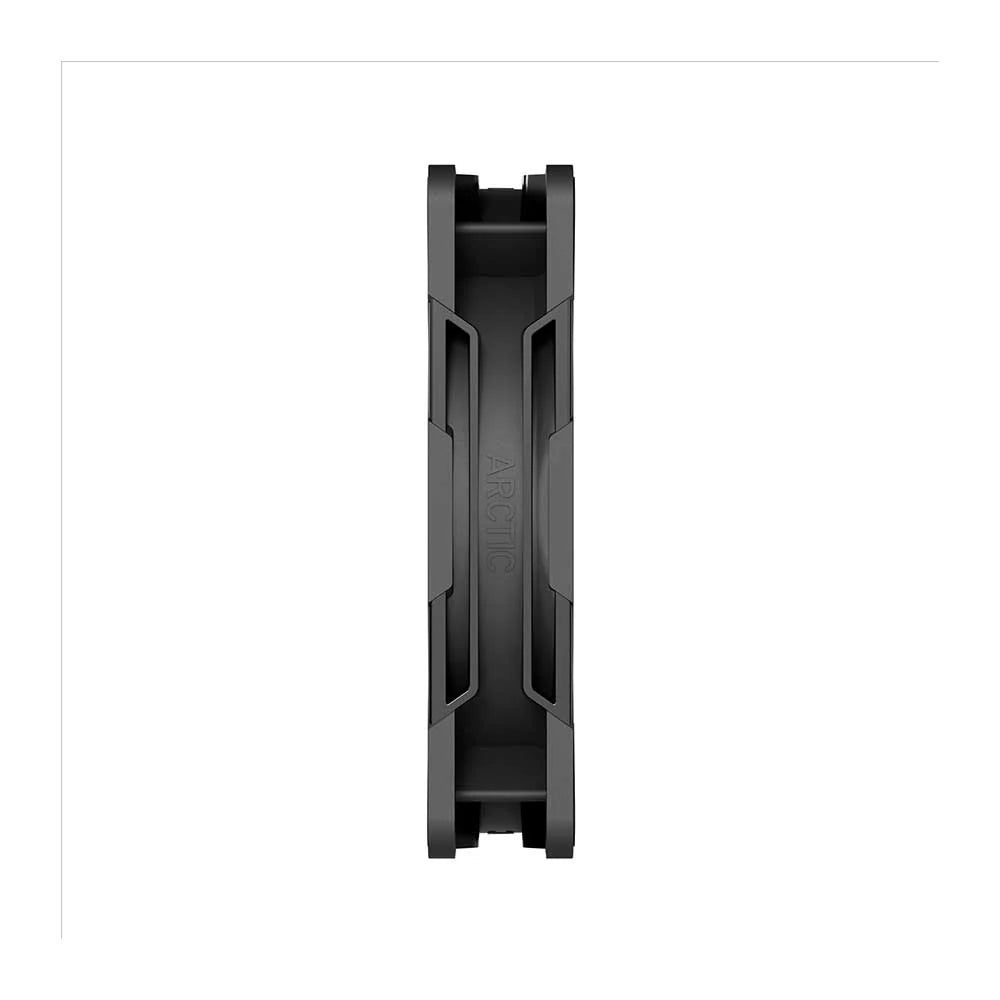

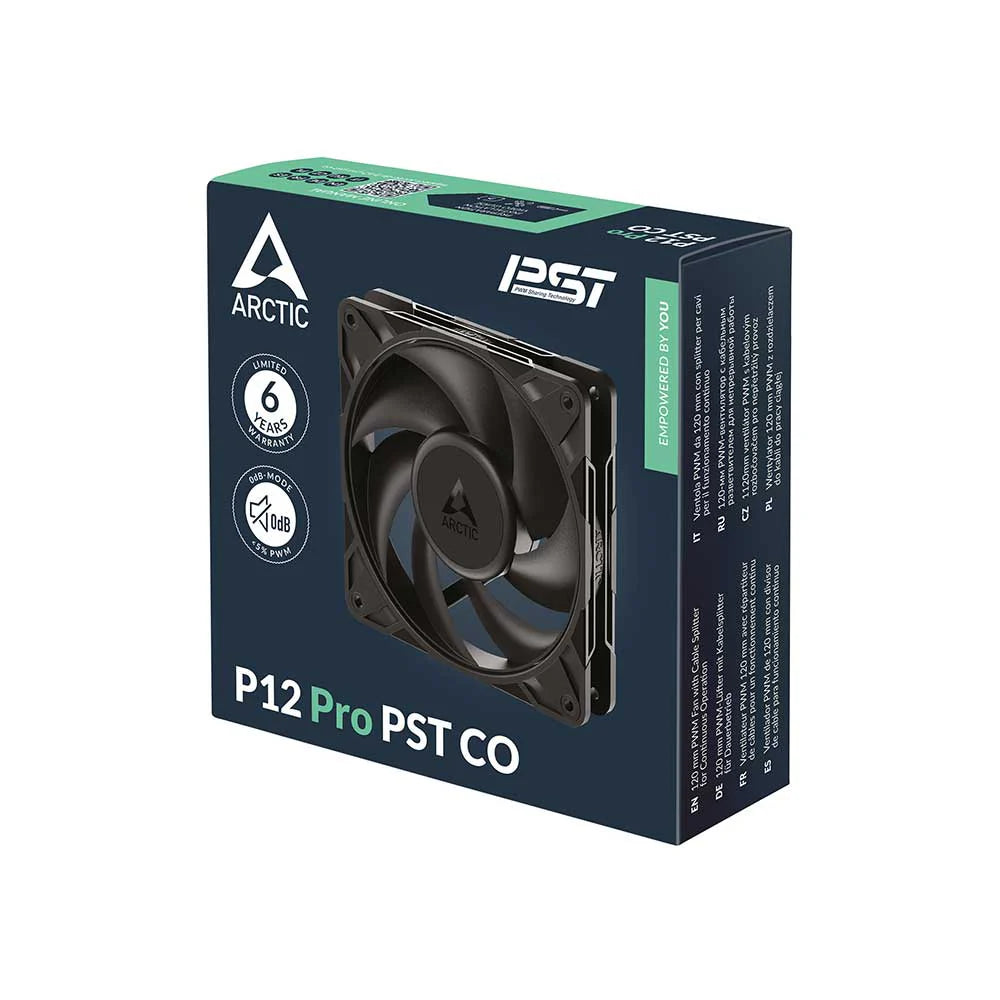

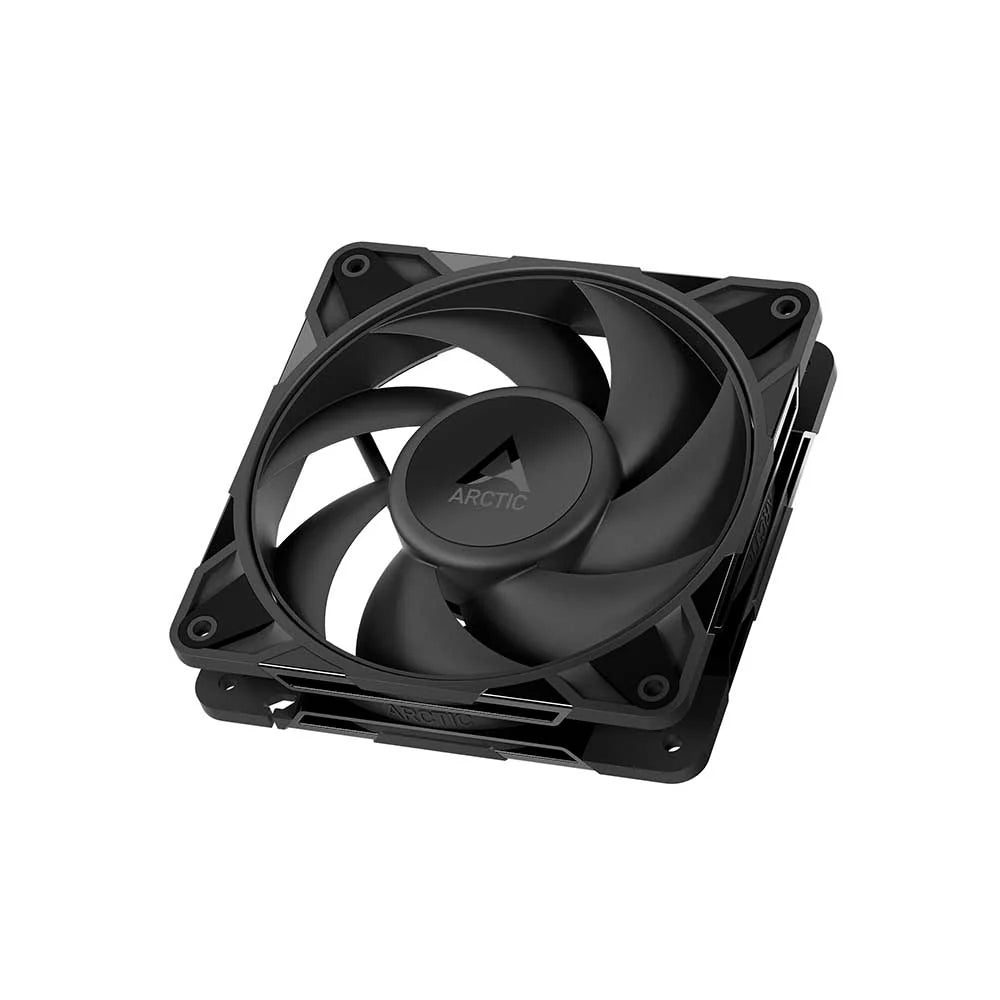

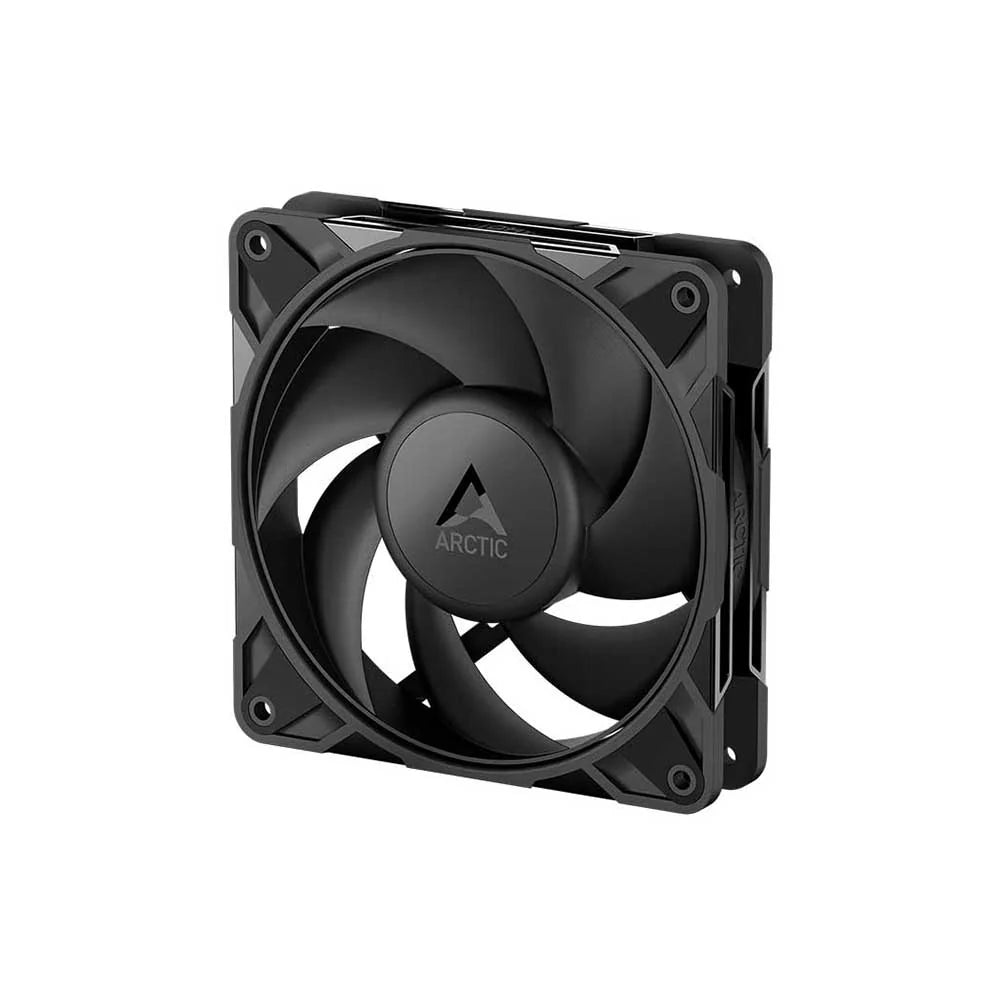

Features of ARCTIC P12 Pro PST Co Non-RGB 120mm Cabinet Fan ( Black ) ( Singel Pack )
Efficient Performance at High Air Resistance
Thanks to high static pressure, the Pro fans move air effectively through tight spaces. This makes them ideal for radiators, perforated panels, and mesh filters.
Maximum Performance, Redefined
Revised fan blade design for an optimal balance of performance and smooth operation.
Optimized Bearing-Shaft Design (DBB)
A dual ball bearing with an extended rotor shaft ensures high durability and maximum lifespan at high rotational speeds.
Automated Balancing
An automated measuring and balancing process ensures exceptional precision and smooth performance by applying the balancing compound with pinpoint accuracy.
SOTA Microcontroller
Reduces motor noise, compensates for load fluctuations, and protects against inrush currents and reverse polarity.
More Power – Less Noise
The fan delivers more performance at low speeds with higher airflow and static pressure at just 25 dB(A) – ideal for quiet, powerful cooling.
Minimum Gap Dimensions for Maximum Efficiency
Enables higher static pressure and maximum airflow efficiency.
PST – PWM-Based Synchronized Fan Control
An additional PWM connector allows multiple fans to be synchronized in series using a single header.
6-Year Warranty – Because Satisfaction Matters
Our products are tested under extreme conditions. The 6-year warranty isn’t just a promise – it’s a testament to our confidence in their durability.
Specifications of ARCTIC P12 Pro PST Co Non-RGB 120mm Cabinet Fan ( Black ) ( Single Pack )
| Brand | ARCTIC |
| Model | ACFAN00312A |
| Operating Ambient Temperature | 0–40 °C |
| Dimensions | 120 (L) x 120 (W) x 15 (H) mm |
| Net Weight | 185g |
| Fan Specifications | |
| Fan Speed | 600–3000 rpm, PWM controlled 0 rpm below 5 % PWM |
| Airflow | 77 cfm | 131 m³/h |
| Static Pressure | 6.9 mmH2O |
| Fan Bearing | Dual Ball Bearing |
| Typical Voltage | 12 V DC |
| Start Up Voltage | 3.3 V DC |
| Current | 0.33 A |
| Cable Length | 400 mm + 80 mm Daisy-Chain Cable |
| Connector | 4-Pin Fan Plug + 4-Pin Socket |
| Packaging | |
| Width | 125mm |
| Height | 30mm |
| Length | 127mm |
| Weight | 0.226Kg |
| Warranty | 2 Years |
| Note** | **Prices, Specifications & Features are subject to change without notice |
