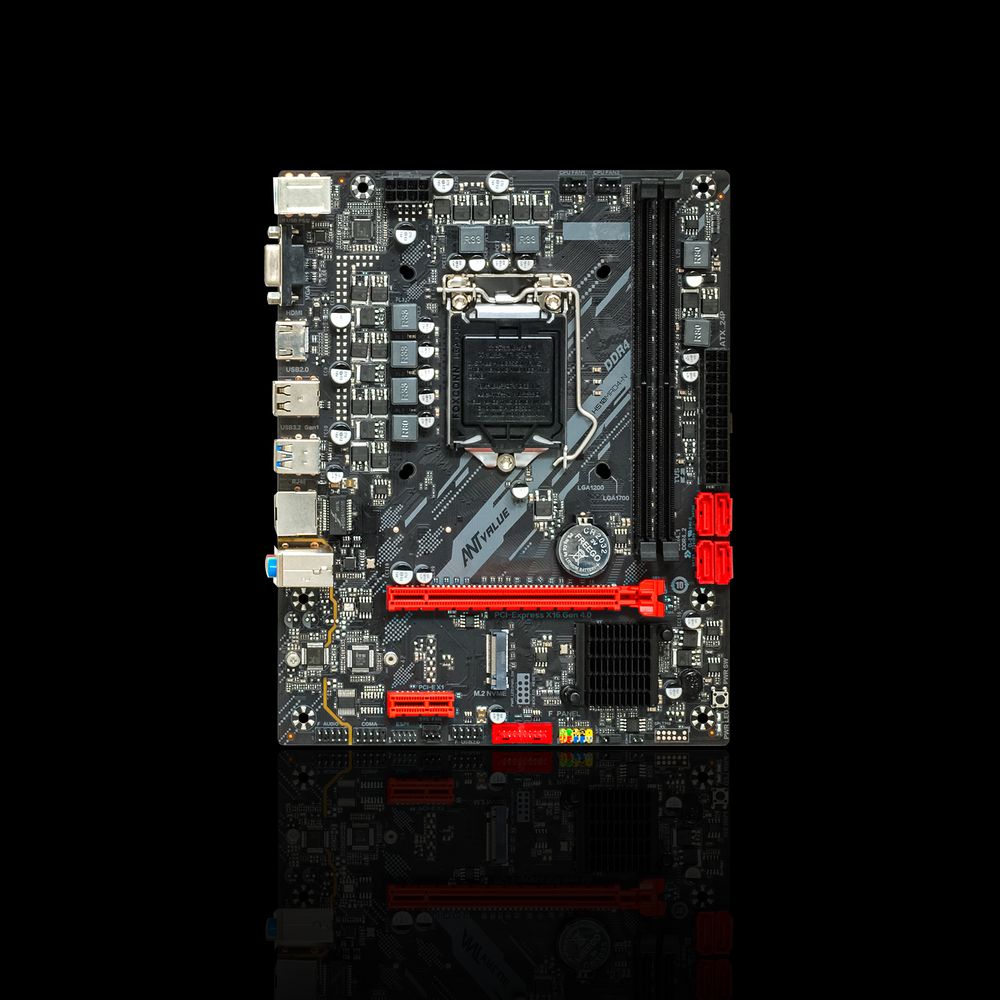

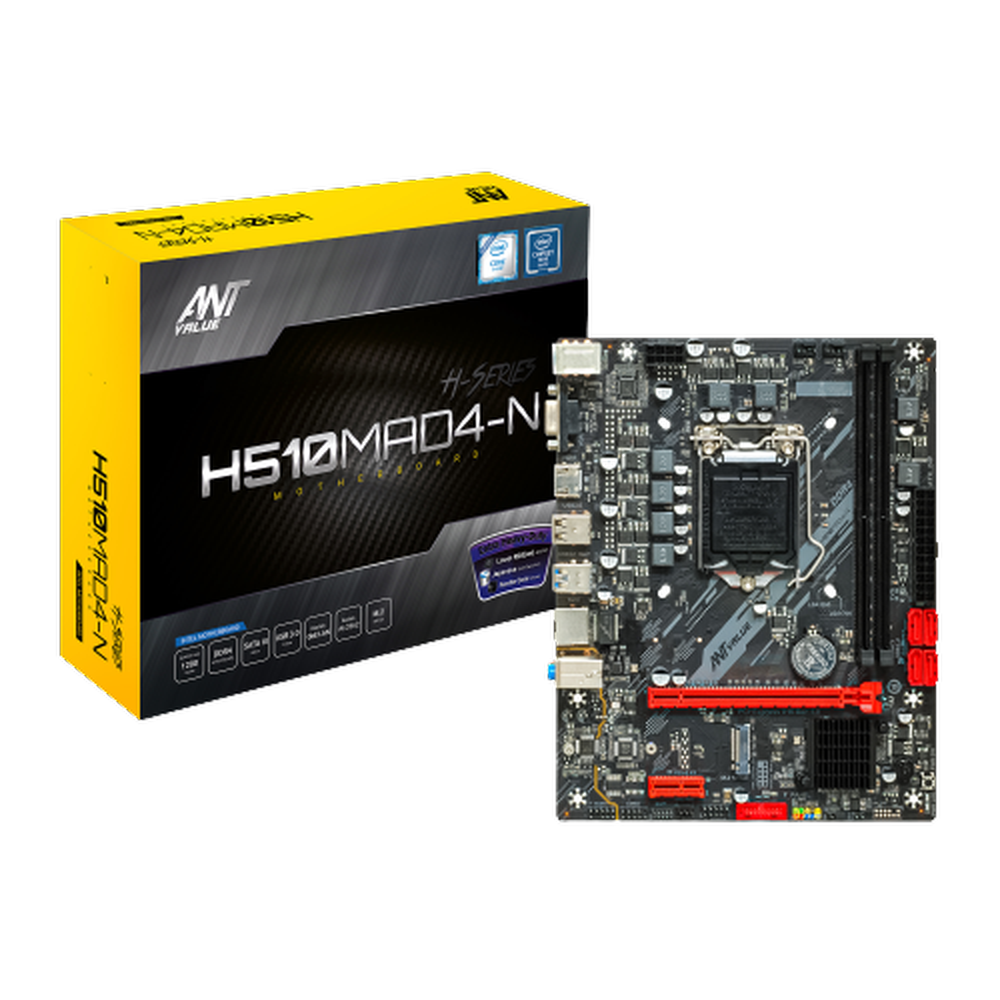

Features of ANT VALUE H510MAD4-N DDR4 Intel Motherboard
- Intel H510 Chipset, Intel socket 1200
- Support Intel 10/11th Core i3/i5/i7/i9, Pentium, Celeron processor
- 2 x DDR4 2133/2400/2666/2933/3200 DIMM MAX 64GB
- 4 x SATA 3.0 port
- 1 x M.2 SSD (2242/2280) Support PCIe signal
- 4 x USB3.0 port
- 6 x USB2.0 port
- 1 x Audio port (Line-in/Line-out/Mic-in)
- Support Realtek RTL8111E 1000M
The Ant Value H510MAD4-N is your gateway to a streamlined and cost-effective computing experience. Designed to cater to the demands of modern PC builders, this motherboard is the perfect choice for those seeking a balance between performance and affordability. Supporting LGA 1200 socket-based Intel CPUs, it ensures compatibility with the latest processor technology. With support for DDR4 memory modules rated at speeds of up to 3200MHz and a maximum capacity of 64GB, this motherboard offers swift and efficient multitasking and a fluid gaming experience. Additionally, the M.2 PCIe Gen3.0x4 slot supports both NVMe and SATA SSDs, enabling lightning-fast data transfers and rapid system responsiveness.
The Ant Value H510MAD4-N is your dependable and budget-friendly solution for building a powerful and reliable PC system, making it the ideal choice for both casual users and dedicated enthusiasts. Upgrade your computing journey with this motherboard's essential features and reliable performance.
LGA 1200 CPU Compatibility:
The Ant Value H510MAD4-N motherboard is designed to accommodate LGA 1200 socket-based Intel CPUs. This compatibility ensures you can harness the processing power of a wide range of Intel processors, making it suitable for a variety of computing needs.
DDR4 Memory Support:
This motherboard offers support for DDR4 memory modules rated at speeds of up to 3200MHz, providing efficient multitasking and excellent performance in a variety of applications. With a maximum capacity of 64GB, you have ample room for memory-intensive tasks.
High-Speed Storage Options:
The M.2 PCIe Gen3.0x4 slot on this motherboard supports both NVMe and SATA SSDs. This enables you to take advantage of high-speed data transfer rates, reducing load times, and ensuring snappy system responsiveness. Whether you need fast boot times or quick data access, this motherboard has you covered.
Compact Form Factor:
The "M" in H510MAD4-N typically indicates a micro ATX form factor. This means the motherboard is well-suited for compact PC builds, such as those for home theater PCs (HTPCs) or small form factor gaming setups. It allows you to build a powerful system in a smaller space.
Cost-Effective Solution:
As part of the "Value" series, this motherboard provides a cost-effective solution for those who want a reliable foundation for their system without overspending. It strikes a balance between performance and affordability, making it a practical choice for budget-conscious builders.
Specifications of ANT VALUE H510MAD4-N DDR4 Intel Motherboard
| Model | H510MAD4 |
| Processor Support | Intel Socket 1200 Support intel 10/11th core i3/i5/i7/i9 Pentium/ Celeron Processors |
| Chipset | Intel H510 |
| Memory Support | 2xDDR4 2133/2400/2666/2900/3200Mhz, DIMM Max 64GB |
| LAN | Support Realtek RTL8111E 1000M Support Realtek RTL8106E 1000M |
| Audio | Support Realtek ALC662 High Definiton Audio Optional Realtek ALC897 High Definiton Audio |
| Storage | 4 x SATA 3.0 Port 1 X M.2 SSD (2242/2280) Support PCIe signal |
| USB | 3*USB 3.0 Ports 3*USB 2.0 Ports |
| Back Panel | 1x VGA Port 1x HDMI Port 2x USB 3.0 Ports 2x USB 2.0 Ports 1x LAN Jack 3x Flexible Audio Jacks 1x PS/2 Keyboard (Purple) Port 1x PS/2 Keyboard (Green) Port |
| On Board Connectors | 1x Pinheader(for 2 USB 3.0) 1x Pinheader(for 2 USB 2.0) |
| Slots | 1x PCI Express x16 3.0 Slot |
| Form Factor | Micro-ATX (220mm x 175mm) |
| Mounting | 6 Mounting Holes |
| In the Box | 1x Motherboard 1x SATA Cable (optional) 1x I/O Plate 1x User Manual 1x Driver CD |
| Warranty | 2 Years |
| Note | *** Features, Price, Specifications are subject to change without notice. |
