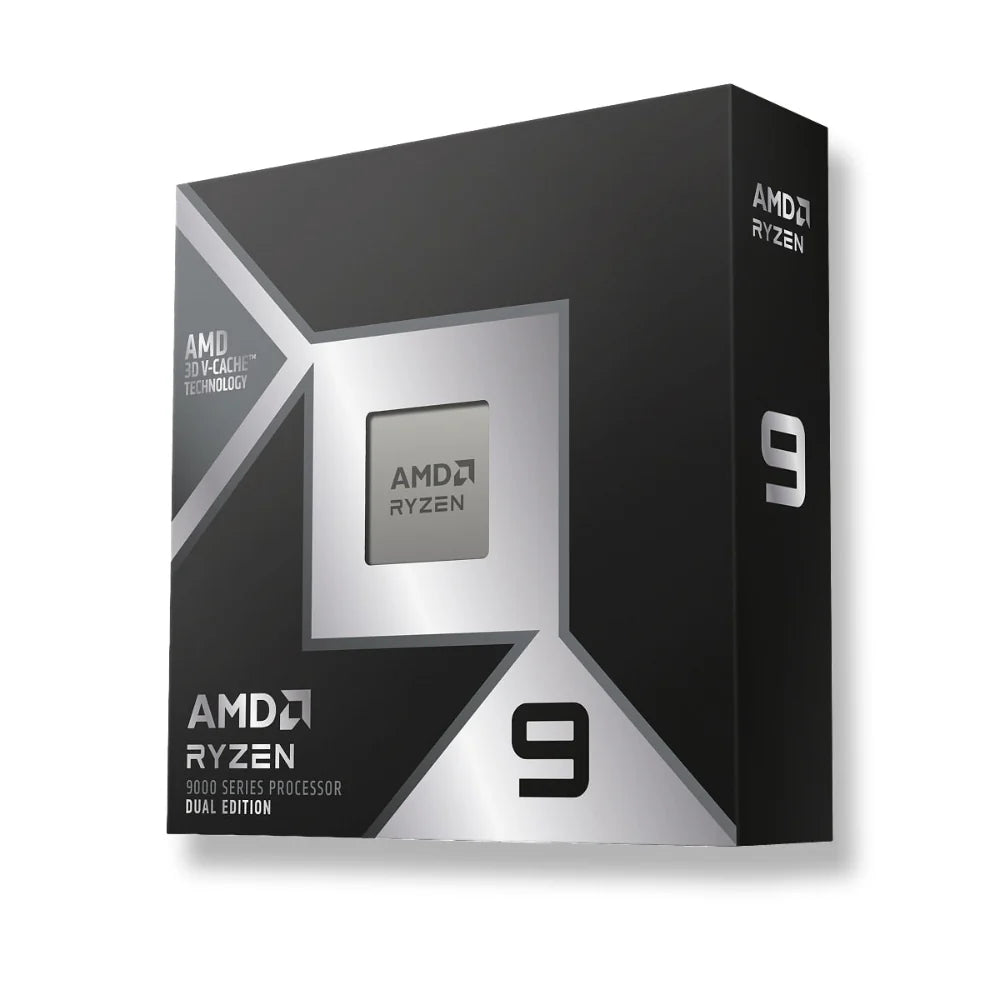

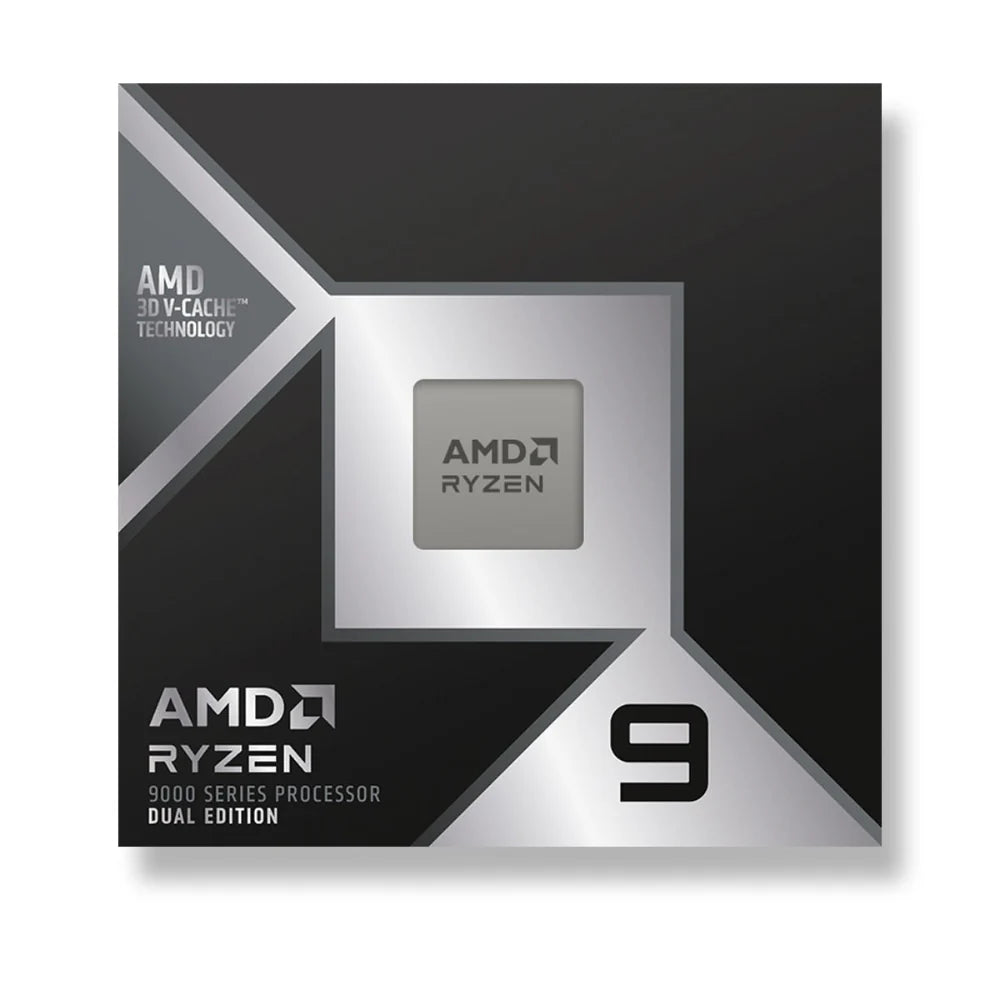

Features of AMD Ryzen 9 9950X3D2 Dual Edition 9th Generation Processors ( 5.6GHz / 16Core / 32 Threads )
The World’s First Dual AMD 3D V-Cache™ Technology-Based Processor to Unlock a New Future of Computing for Developers and Creators
The AMD Ryzen 9 9950X3D2 Processor features 16 cores and 32 threads, with 3D V-Cache on both chiplets, hence the name X3D2, totaling around 192 MB of L3 cache. It operates at a base frequency of 4.30 GHz, with boost clocks reaching up to 5.6 GHz. Compared to its predecessor, it sacrifices a modest 100 MHz in peak speed for significantly greater cache capacity.
This configuration is expected to benefit cache-sensitive workloads and gaming, while also appealing to workstation users and content creators handling memory-intensive tasks. However, this enhanced capability comes with a thermal cost, as the rumored TDP increases to 200 W from the 9950X3D's 170 W, potentially pushing PPT values close to 250 W. With 3D V-Cache on both CCDs, the overall performance appears to be boosted by about 7%, so its appearance is justified in some workloads that enthusiasts would appreciate.
Specifications of AMD Ryzen 9 9950X3D2 Dual Edition 9th Generation Processors ( 5.6GHz / 16Core / 32 Threads )
| Model Number | 100-100001978WOF |
| Name | AMD Ryzen™ 9 9950X3D2 Dual Edition |
| Family | Ryzen |
| Series | Ryzen 9000 Series |
| Form Factor | Desktops, Boxed Processor |
| Market Segment | Enthusiast Desktop / workstation |
| AMD PRO Technologies | No |
| Regional Availability | Global |
| Former Codename | Granite Ridge AM5 (Dual V-Cache) |
| Architecture | Zen 5 |
| Number of CPU Cores | 16 |
| Multithreading (SMT) | Yes |
| Number of Threads | 32 |
| Max. Boost Clock | Up to 5.6 GHz Max boost for AMD processors is the maximum frequency achievable by a single core on the processor running a bursty single-threaded workload. Max boost will vary based on several factors, including, but not limited to: thermal paste; system cooling; motherboard design and BIOS; the latest AMD chipset driver; and the latest OS updates. GD-150. |
| Base Clock | 4.3 GHz Represents the average effective base frequency of all cores. |
| L1 Cache | 1280 KB |
| L2 Cache | 16 MB |
| L3 Cache | 192 MB (2x 96MB 3D V-Cache) |
| Default TDP | 200W |
| Processor Technology for CPU Cores | TSMC 4nm FinFET |
| Processor Technology for I/O Die | TSMC 6nm FinFET |
| Package Die Count | 3 |
| Unlocked for Overclocking | Yes (PBO and Curve Optimiser) AMD's product warranty does not cover damages caused by overclocking, even when overclocking is enabled via AMD hardware and/or software. GD-26. |
| AMD EXPO™ Memory Overclocking Technology | Yes |
| Precision Boost Overdrive | Yes |
| Curve Optimiser Voltage Offsets | Yes |
| AMD Ryzen™ Master Support | Yes |
| CPU Socket | AM5 |
| Supporting Chipsets | X870E , X870 , B850 , X670E , X670 , B650E , B650 |
| CPU Boost Technology | Precision Boost 2 |
| Instruction Set | x86-64 |
| Supported Extensions | AES , AVX512 , AVX2 , AVX , FMA3 , MMX-plus , SSE2 , SSE4.2 , SSE4A , SSE4.1 , SSE3 , SSSE3 , SSE , x86-64 |
| Thermal Solution (PIB) | Not Included |
| Recommended Cooler | 360mm+ Liquid cooler recommended for optimal performance |
| Max. Operating Temperature (Tjmax) | 95°C |
| OS Support | Windows 11 - 64-Bit Edition , Windows 10 - 64-Bit Edition , RHEL x86 64-Bit , Ubuntu x86 64-Bit |
| Connectivity | |
| Native USB 3.2 Gen 2 (10Gbps) | 4 |
| Native USB 2.0 (480Mbps) | 1 |
| PCI Express® Version | PCIe® 5.0 |
| Native PCIe® Lanes (Total/Usable) | 28, 24 |
| NVMe Support | Boot , RAID0 , RAID1 , RAID5 , RAID10 |
| System Memory Type | DDR5 |
| Memory Channels | 2 |
| Max. Memory | 256 GB |
| System Memory Subtype | UDIMM |
| Max Memory Speed | 2 x 1R - DDR5-5600 2 x 2R - DDR5-5600 4 x 1R - DDR5-3600 4 x 2R - DDR5-3600 |
| ECC Support | Yes (Requires mobo support) |
| Graphics Capabilities | |
| Graphics Model | AMD Radeon™ Graphics |
| Graphics Core Count | 2 |
| Graphics Frequency | 2200 MHz |
| USB Type-C® DisplayPort™ Alternate Mode | Yes |
| Key Features | |
| Supported Technologies | AMD EXPO™ Technology , AMD Ryzen™ Technologies, Dual 3D V-Cache™ Technology |
| Warranty | 3 Years |
