Description

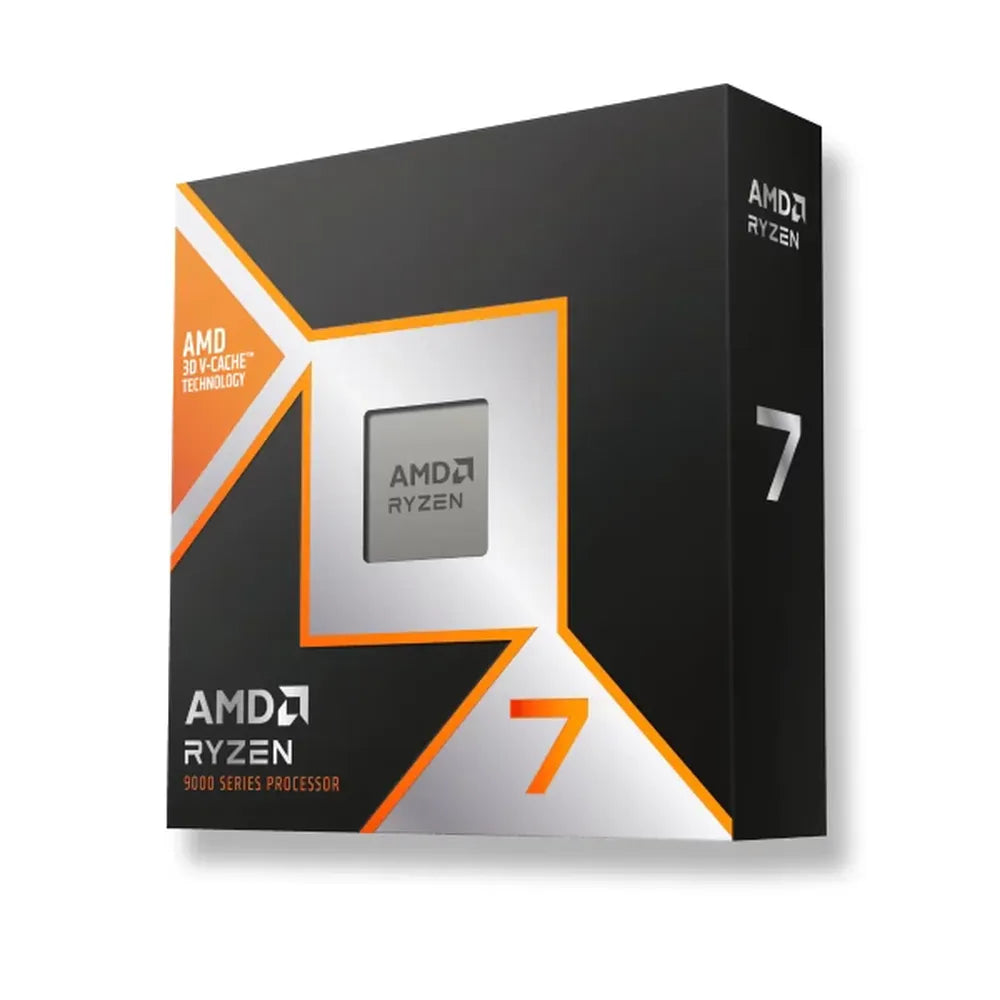

Features of AMD Ryzen 7 9800X3D 9th Generation Processor ( 4.2GHz / 8 Cores / 16 Threads )
amd ryzen 7 9800X3D processor comes with AMD 3D V-Cache technology, for up to 104 MB of on-chip memory. You’ll feel insane performance on any game with AMD EXPO technology designed for increased frequencies to unlock higher and smoother frame rates. AMD 3000 Series processor deliver unrivaled technologies for exceptional performance
For gamers looking to upgrade their socket AM5 motherboards, the Ryzen 7 9800X3D 4.7 GHz Eight-Core AM5 Processor is ready to let you boost frame rates and graphics settings in the latest triple-A titles. Like other X3D CPUs, the 9800X3D features AMD 3D V-Cache technology designed to boost gaming performance by positioning its 96MB of ultra-fast stacked L3 cache close to the cores. Built upon Zen 5 architecture and providing eight-core, sixteen-thread processing, the 9800X3D can achieve a 4.7 GHz base clock speed, with a max boosted clock of 5.2 GHz. Other advanced technologies that are supported include PCIe 5.0 for high-end graphics cards and SSDs, and up to 192GB of speedy DDR5-5600 memory.
AMD EXPO
Ryzen-optimized AMD EXPO (Extended Profiles for Overclocking) profiles provide a user-friendly method to overlocking your DDR5 memory when using the ryzen Processor 7 9800X3D with your socket AM5, increasing software load speeds and boosting overall gaming performance.
Additional Features
Unlocked to support CPU overclocking
120W TDP (Thermal Design Power) with no active cooling provided
Integrated Radeon graphics
Increase CPU speed with Precision Boost 2
Specification of AMD Ryzen 7 9800X3D 9th Generation Processor ( 4.7GHz / 8 Cores / 16 Threads )
| Model | AMD Ryzen 7 9800X3D |
| Family | Ryzen |
| Series | Ryzen 9000 Series |
| Product Code | 100-100001084WOF |
| Architecture | Zen 5 |
| of CPU Cores | 8 |
| Multithreading (SMT) | Yes |
| of Threads | 16 |
| Max. Boost Clock | Up to 5.2 GHz |
| Base Clock | 4.7 GHz |
| L1 Cache | 640 KB |
| L2 Cache | 8 MB |
| L3 Cache | 96 MB |
| Default TDP | 120W |
| Processor Technology for CPU Cores | TSMC 4nm FinFET |
| Processor Technology for I/O Die | TSMC 6nm FinFET |
| Package Die Count | 2 |
| Unlocked for Overclocking | Yes |
| AMD EXPO Memory Overclocking Technology | Yes |
| Precision Boost Overdrive | Yes |
| Curve Optimizer Voltage Offsets | Yes |
| AMD Ryzen Master Support | Yes |
| CPU Socket | AM5 |
| Supporting Chipsets | A620 , X670E , X670 , B650E , B650 , X870E , X870 , B840 , B850 |
| CPU Boost Technology | Precision Boost 2 |
| Instruction Set | x86-64 |
| Supported Extensions | AES , AMD-V , AVX , AVX2 , AVX512 , FMA3 , MMX-plus , SHA , SSE , SSE2 , SSE3 , SSE4.1 , SSE4.2 , SSE4A , SSSE3 , x86-64 |
| Thermal Solution (PIB) | Not Included |
| Recommended Cooler | Liquid cooler recommended for optimal performance |
| Max. Operating Temperature (Tjmax) | 95°C |
| OS Support | Windows 11 - 64-Bit Edition , Windows 10 - 64-Bit Edition , RHEL x86 64-Bit , Ubuntu x86 64-Bit |
| Connectivity | |
| Native USB 3.2 Gen 2 (10Gbps) Ports | 4 |
| Native USB 2.0 (480Mbps) Ports | 1 |
| PCI Express Version | PCIe 5.0 |
| Native PCIe Lanes (Total/Usable) | 28 , 24 |
| NVMe Support | Boot , RAID0 , RAID1 , RAID5 , RAID10 |
| System Memory Type | DDR5 |
| Memory Channels | 2 |
| Max. Memory | 192 GB |
| System Memory Subtype | UDIMM |
| Max Memory Speed | 2x1R DDR5-5600 2x2R DDR5-5600 4x1R DDR5-3600 4x2R DDR5-3600 |
| ECC Support | Yes (Requires mobo support) |
| Graphics Capabilities | |
| Graphics Model | AMD Radeon Graphics |
| Graphics Core Count | 2 |
| Graphics Frequency | 2200 MHz |
| USB Type-C DisplayPort Alternate Mode | Yes |
| Key Features | |
| Supported Technologies | AMD EXPO Technology , AMD Ryzen Technologies |
| Warranty | 3 Years |
| Note | *** Images are for Representation purposes only *** Features, Price, Specifications are subject to change without notice. |
