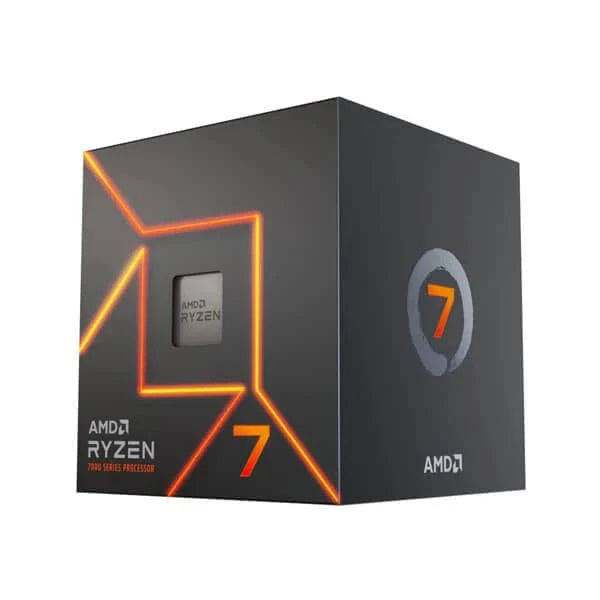

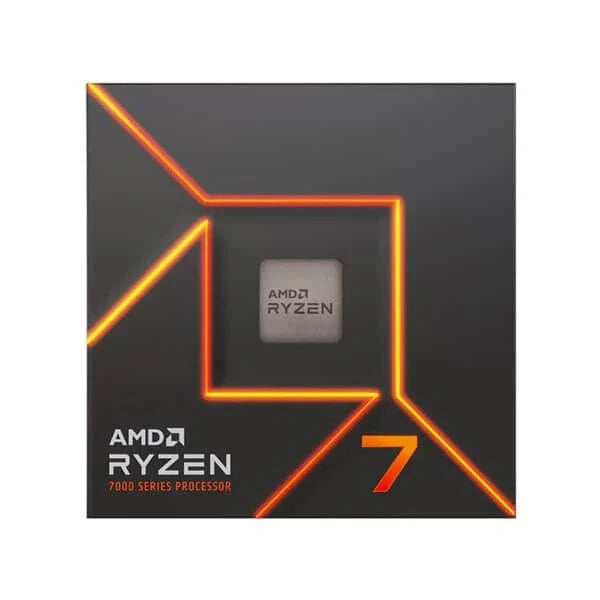

Features of AMD Ryzen 7 7700 7th Generation Processor ( 5.3 GHz / 8 Cores / 16 Threads )
AMD Ryzen 7 7700 Series with Radeon Graphics Desktop Processor
This Processor Belongs to Raphael Former
It has 8 Cores and 16 Threads, Max boost clock 5.3GHz
It supports AM5 Socket
- 8 Cores & 16 Threads, 40 MB Cache
- Base Clock: 3.8 GHz, Max Boost Clock: up to 5.3 GHz
- Memory Support: DDR5 5200MHz, Memory Channels: 2, TDP: 65W, PCI Express Generation : PCIe Gen 4
- Compatible with Motherboards based on 600 Series Chipset, Socket AM5
- On Chip Graphic Card , Included Heatsink Fan: Wraith Prism(W/LED)
When your PC has the world’s most advanced desktop Ryzen Processor for gamers, you can focus on what really matters: being victorious on the digital battlefield. Whether you’re playing the latest titles or revisiting a classic, the AMD 7000 Series Processor are a gaming powerhouse with high-performance “Zen 4” cores. With up to 16 cores, 32 threads, boost clocks of up to 5.7GHz2 and up to 80MB of cache, AMD Ryzen 7000 Series processors deliver game changing performance.
Specifications of AMD Ryzen 7 7700 7th Generation Processor ( 5.3 GHz / 8 Cores / 16 Threads )
| Model | RYZEN-7-7700 |
| General Specifications | |
| Platform | Desktop |
| Product Code | 100-100000592BOX |
| Market Segment | Enthusiast Desktop |
| Product Line | AMD Ryzen™ 7 Processors |
| AMD PRO Technologies | No |
| Consumer Use | Yes |
| Regional Availability | Global |
| Former Codename | "Raphael AM5" |
| Architecture | "Zen 4" |
| Multithreading (SMT) | Yes |
| # of CPU Cores | 8 |
| # of Threads | 16 |
| Max. Boost Clock | Up to 5.3GHz |
| Base Clock | 3.8GHz |
| L1 Cache | 512KB |
| L2 Cache | 8MB |
| L3 Cache | 32MB |
| Default TDP | 65W |
| Processor Technology for CPU Cores | TSMC 5nm FinFET |
| Processor Technology for I/O Die | TSMC 6nm FinFET |
| CPU Compute Die (CCD) Size | 71mm² |
| I/O Die (IOD) Size | 122mm² |
| Package Die Count | 2 |
| Unlocked for Overclocking | Yes |
| AMD EXPO™ Memory Overclocking Technology | Yes |
| Precision Boost Overdrive | Yes |
| Curve Optimizer Voltage Offsets | Yes |
| AMD Ryzen™ Master Support | Yes |
| CPU Socket | AM5 |
| Supporting Chipsets |
X670E X670 B650E B650 |
| CPU Boost Technology | Precision Boost 2 |
| Instruction Set | x86-64 |
| Supported Extensions | AES, AMD-V, AVX, AVX2, AVX512, FMA3, MMX(+), SHA, SSE, SSE2, SSE3, SSE4.1, SSE4.2, SSE4A, SSSE3, x86-64 |
| Thermal Solution (PIB) | AMD Wraith Prism |
| Max. Operating Temperature (Tjmax) | 95°C |
| *OS Support |
Windows 11 - 64-Bit Edition Windows 10 - 64-Bit Edition RHEL x86 64-Bit Ubuntu x86 64-Bit *Operating System (OS) support will vary by manufacturer. |
| Connectivity | |
| USB Type-C® Support | Yes |
| Native USB 3.2 Gen 2 (10Gbps) Ports | 4 |
| Native USB 3.2 Gen 1 (5Gbps) Ports | 0 |
| Native USB 2.0 (480Mbps) Ports | 1 |
| Native SATA Ports | 0 |
| PCI Express® Version | PCIe® 5.0 |
| Native PCIe® Lanes (Total/Usable) | 28/24 |
| Additional Usable PCIe Lanes from Motherboard |
AMD X670E 12x Gen4 AMD X670 12x Gen4 AMD B650E 8x Gen4 AMD B650 8x Gen4 |
| NVMe Support | Boot, RAID0, RAID1, RAID10 |
| System Memory Type | DDR5 |
| Memory Channels | 2 |
| Max. Memory | 128GB |
| System Memory Subtype | UDIMM |
| Max Memory Speed |
2x1R DDR5-5200 2x2R DDR5-5200 4x1R DDR5-3600 4x2R DDR5-3600 |
| ECC Support | Yes (Requires mobo support) |
| Graphics Capabilities | |
| Integrated Graphics | Yes |
| Graphics Model | AMD Radeon™ Graphics |
| Graphics Core Count | 2 |
| Graphics Frequency | 2200 MHz |
| GPU Base | 400 MHz |
| USB Type-C® DisplayPort™ Alternate Mode | Yes |
| Key Features | |
| Supported Technologies |
AMD EXPO™ Technology AMD Ryzen™ Technologies |
| Warranty | 3 Years |
| Note | *** Features, Price, Specifications are subject to change without notice. |
