NZXT H7 Flow ATX Mid Tower Cabinet 2024 Edition ( White )

Name: NZXT H7 Flow ATX Mid Tower Cabinet 2024 Edition ( White )
Brand: NZXT
SKU: nzxt-h7-flow-2024-edition-white
Price: 11703.28 INR
Availability: InStock

Rs. 11,703.28 Rs. 19,999.00

Discount: Rs. 8,295.72 (41%)

Out of stock >

Add wishlist Delete wishlist Add compare Delete compare

Estimated Delivery: Jun 10 - Jun 14

Description
Additional Information
Shipping & Return
Reviews

Features of NZXT H7 Flow ATX Mid Tower Cabinet 2024 Edition ( White )

The NZXT H7 Flow revolutionizes GPU cooling in a classic mid-tower form factor. Its vertical PSU layout allows space for 3 x 120mm bottom fans, offering efficient cooling without expanding the case footprint.

Supports three bottom-mounted 120mm fans for direct GPU cooling while retaining a narrow mid-tower footprint.
Comes equipped with three front-mounted 120mm fans for exceptional out-of-the-box cooling.
High-performance mesh panels maximize airflow for both intake and exhaust, as well as filter dust.
Supports up to 420mm radiators in the front and 360mm radiators in the top for powerful cooling potential.
Intuitive cable management system with wide channels, built-in hooks, and included straps for easy routing.
Capacity for up to 10 fans in total: 3 up top, 3 in front, 3 on bottom, and 1 in the rear.
Conveniently access 2 x USB-A and 1 x USB-C ports located on the top panel.
Tool-less access to the front, top, and side panels makes building and upgrading a breeze.

Enhance the cooling capabilities of your system while looking sleek and stylish with the white H7 Flow Mid-Tower Case from NZXT. Designed to fit a wide range of systems, the 2024 edition of the H7 Flow incorporates a unique interior meant to promote airflow while also keeping your cables tucked away for a clean and unique look.

Constructed from SGCC steel, the H7 Flow offers rigidity while a ultra-clear tempered glass side panel allows you to see your build. Tool-less panel access reveals a dedicated 1.3″ cable management space, revealing the multiple storage drive installation points consisting of two 2.5″ bays and two 2.5/3.5″ combo bays. The roomy interior supports large format graphics cards up to 16.1″ long as well as CPU coolers up to 7.8″ tall. Multiple mounting points allow you to install a variety of fans and AiO radiators at the front, top, bottom, and rear of the case with three NZXT F120Q fans preinstalled at the front panel. Additionally, the top panel of the H7 Flow provides you with two USB-A 3.2 Gen 1 and one USB-C 3.2 Gen 2 ports for your peripherals alongside a single 3.5mm combo audio jack.

Interior Design

Sporting a unique look, the 2024 edition H7 Flow uses a multi-chamber design that gives builders access to a fully accessible bottom panel for additional airflow while keeping the ATX power supply hidden behind a shroud which also optimizes cable management. The motherboard tray supports a wide range of ATX, M-ATX, M-ITX, and E-ATX form factors with ample room for the rest of your key components.

Fan Installation

The interior of the H7 Flow allows you to install a wide range of fans with three 120 or 140mm fans at the front, a 120 or 140mm fan at the rear, three 120 or two 140mm fans at the top, and three 120mm fans on the bottom plate.

Radiator Support

With support for liquid AiO coolers, you can install a variety of radiators all around the H7 Flow. Install radiators up to 420mm at the front and 360mm at the top or bottom of the case. You also have the option to install a 120mm radiator on the rear panel.

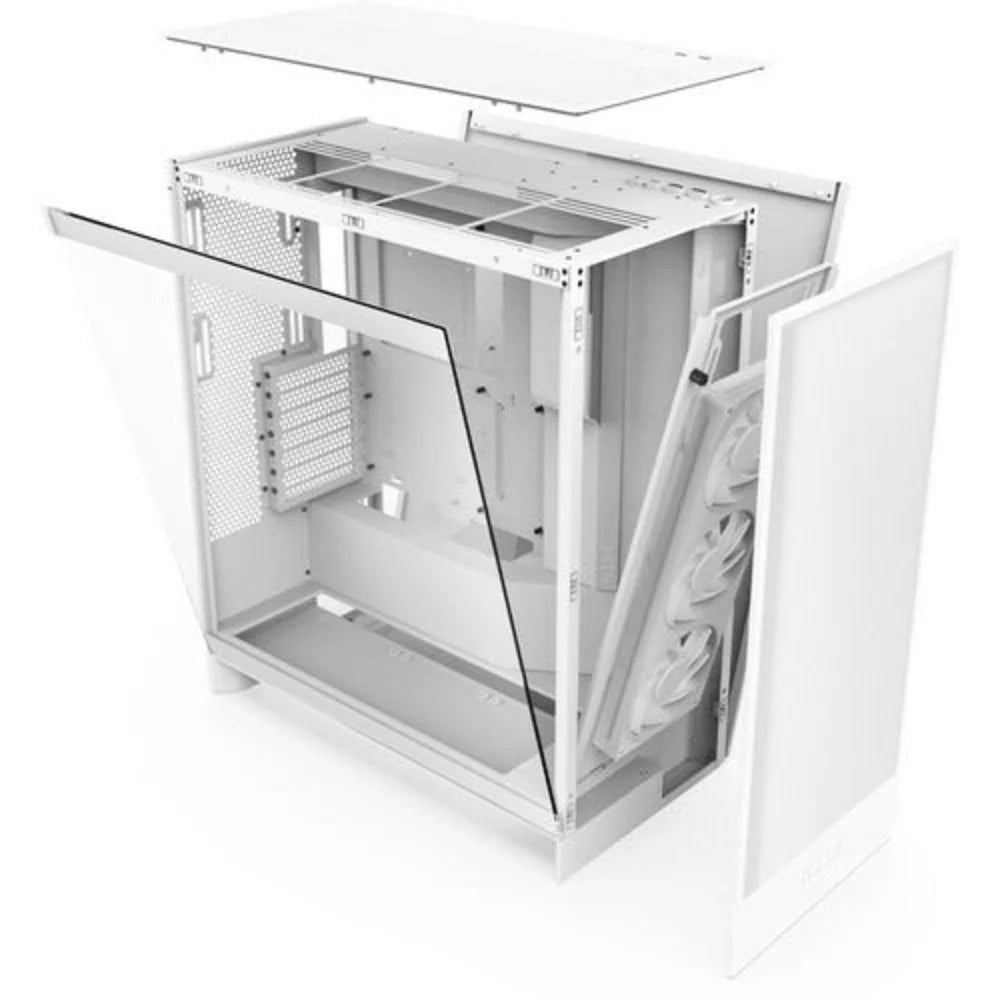

Tool-less Design

With easy dismantling of the top, front, and side panels, you can upgrade your system and access your wire management spaces. This also gives you access to the various dust filters found in the top, front, and bottom panels.

*Above images are only for advertisement, this product is White NZXT H7 Flow non rgb Model

Specifications of NZXT H7 Flow ATX Mid Tower Cabinet 2024 Edition ( White )

Product Name	CM-H72FW-01
Motherboard Support	ATX, E-ATX, Micro-ATX, Mini-ATX
External Drive Bays	No
Internal Drive Bays	2x 2.5" and 2x 2.5/3.5"
Expansion Slots	7x Full Height
Maximum GPU Length	16.1" / 410 mm
CPU Cooler Height	7.3" / 185 mm
Supported PSU Size	ATX
Maximum PSU Length	7.9" / 200 mm
PSU Mounting Location	Bottom
Cooling
Fan Mounting	Front 3x 120/140 mm Top 3x 120 mm or 2x 140 mm Rear 1x 120/140 mm
Fans Included	Front: 3x 120 mm Non-LED (1350 rpm)
Maximum Radiator Size	Front: 240 mm
Noise Level	24.1 dBA
Fan Controller Included	No
Filter Locations	Bottom, Front, Top
Inputs / Outputs
I/O	1x USB-C (USB 3.1/3.2 Gen 2) 2x USB-A (USB 3.0 / 3.1/3.2 Gen 1)
Media/Memory Card Slot	No
Audio I/O	1x 3.5 mm Input/Output
Display Outputs	No
Physical
Windowed Panel	Yes
Color	White
Material	Steel, Tempered Glass
Built-In Lighting	No
Tool-Less Design	Thumbscrews
Security	No
Cable Management Space	Yes
Packaging Info
Package Weight	30.64 lb
Box Dimensions (LxWxH)	24.75 x 22.25 x 13"
