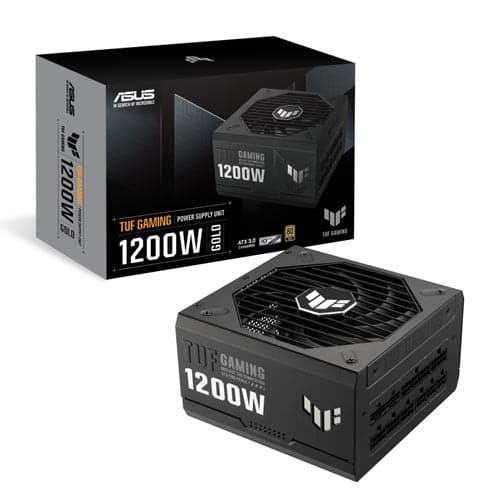

Features of ASUS TUF Gaming 1200W 80 + Gold Fully Modular ATX 3.0 Power Supply ( 1200W )
The Asus Power Supply is an efficient, resilient and dependable PSU that’s engineered for the long haul.
- Capacitors and chokes pass demanding tests to achieve Military-grade Certification.
-
Dual ball fan bearings can last up to twice as long as sleeve bearing designs.
- A protective PCB coating protects against moisture, dust, and extreme temperatures.
- An 80 Plus Gold Certification is the result of Japanese capacitors and other premium components.
-
Axial-tech fan design features a smaller fan hub that facilitates longer blades and a barrier ring that increases downward air pressure.
-
Fully modular etched cables keep your rig neat and tidy.
-
10-year warranty included.
Built For The Long Haul
The ASUS TUF Gaming 1200W Power Supply Gold packs military-grade strength, a flagship fan design, and PCB protection for efficient, durable power delivery. The result is a PSU that will reliably fuel your rig for years to come.
TUF Components - Top marks
With military-grade components, including capacitors rated for 105°C operation and up to 170,000 hours’ lifespan, the ASUS TUF Gaming 1200W Gold empowers you to build in confidence.
Dual Ball Fan Bearings - 2x longer lifespan
Dual ball bearings boast a remarkable lifespan of 80,000 hours, lasting twice as long as sleeve bearings and exceeding even fluid dynamic bearings. Ensuring long-lasting, reliable cooling with minimal noise for ASUS TUF Gaming Gold series.
Protective PCB Coating - All wrapped up
A protective conformal coating envelops the PCB to protect against short-circuits caused by moisture, dust, and debris.
High-Performance Copper Pins
Upgraded PCIe® connectors featuring superior thermal conductivity ensure cooler operation and improved power delivery efficiency.
This translates to a significant 29% reduction in connector temperatures (up to -12.28°C), promoting optimal performance and stability for even the most demanding graphics cards.
80 Plus Gold Certification - Heart of gold
The TUF Gaming 1200W Gold features efficient, low-ESR Japanese capacitors to ensure efficient operation — affording it 80 PLUS® Gold status. This means it delivers up to 92% efficiency, resulting in less heat, reduced fan noise, and increased reliability.
ATX 3.0 Compatible - Step into the future
The latest power specification updates have landed. ATX 3.0 ushers in tighter voltage and current regulation guidelines for next-gen hardware - and TUF Gaming 1200W Gold steps ahead of the curve by being fully compliant. A 16-pin PCIe cable ripe for piping up to 600W of power to PCIe Gen 5.0 graphics cards is bundled with the PSU, bringing large-scale capabilities.
Axial-tech Fan Design - Better, faster, stronger
Axial-tech fan design features a smaller fan hub that facilitates longer blades and a barrier ring that increases downward air pressure. For TUF Gaming series PSUs, we've scaled that design to 135mm so it keeps things cool at low RPMs while producing less noise.
10-year Warranty - A decade of power
We're so confident about the reliability of the TUF Gaming 1200W Gold that we back it with a 10-year warranty.
Etched Cables
Made from a soft premium material, these etched cables can be bent easily during installation, and they operate at temperatures 50°C lower than the safety limit when bent for cable management. These cables also meet the rigorous standards of the UL1581 flame test and UL758 certification, helping to ensure a smooth PC DIY experience and exceptional safety.
Get the best 80 Plus Gold psu power supply price from us today!
Features of ASUS TUF Gaming 1200W 80 + Gold Fully Modular ATX 3.0 Power Supply ( 1200W )
| Product Code |
TUF-GAMING-1200G-ATX-3-0 |
| Model |
TUF Gaming 1200W Gold |
| Intel Form Factor |
ATX12V |
| ATX 3.0 |
Yes |
| Dimensions |
150 x 150 x 86 mm |
| Efficiency |
80Plus Gold |
| Protection Features |
OPP/OVP/UVP/SCP/OCP/OTP |
| Hazardous Materials |
ROHS |
| AC Input Range |
100-240Vac |
| DC Output Voltage |
#ERROR! |
| Maximum Load |
25A25A99A 0.8A 3A |
| Combined Load |
130W 130W 1188W 9.6W 15W |
| Total Output |
1200W |
| Connectors |
MB 24/20-pin x 1 |
|
CPU 4+4-pin x 2 |
|
PCI-E 16-pin x 2 |
|
PCI-E 8-pin x 3 |
|
SATA x 5 |
|
PERIPHERAL x 4 |
| Package Contents |
Power Cord x 1 |
|
Motherboard Power Cable x 1 (610mm) |
|
CPU Cable x 2 (650mm) |
|
PCI-E Gen 5 16-pin Cable x 2 (675mm) |
|
PCI-E 1-to-1 Cable x 1 (675mm) |
|
PCI-E 1-to-2 Cable x 1 (675mm) |
|
SATA 1-to-2 Cable x 1 (400+120 mm) |
|
SATA 1-to-3 Cable x 1 (400+120+120 mm) |
|
Peripheral 1-to-4 x 1 (400+150+150+150 mm) |
|
TUF Gaming Cable tie x 3 |
|
User Manual x 1 |
| Weight |
2.66kg (single PSU) |
| 0dB Fan Button |
No |
| Warranty |
10 Years |
| Note*** |
***Features, Price and Specifications are subject to change without notice. Images use for Representation Purpose Only. |
