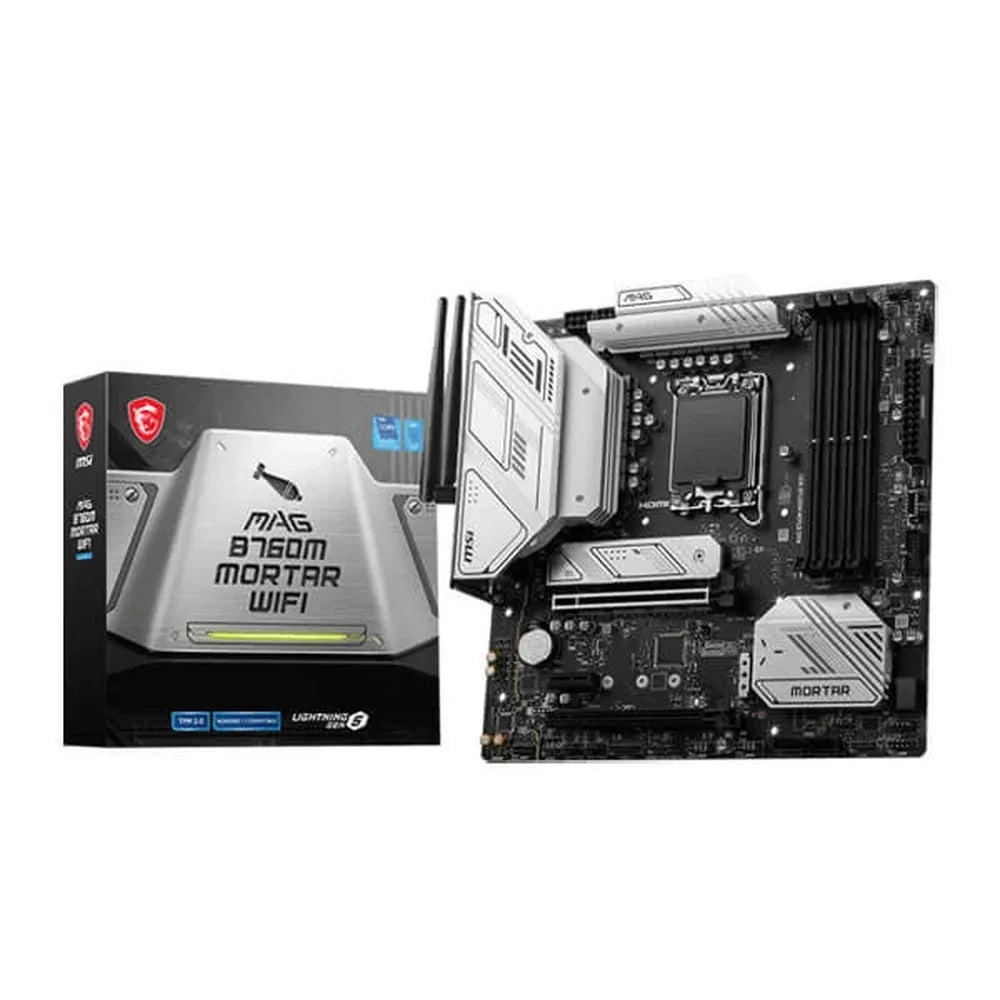

MSI MAG B760 Mortar Wifi DDR5 Intel Motherboard

MSI MAG B760 Mortar Wifi DDR5 Intel Motherboard

Name: MSI MAG B760 Mortar Wifi DDR5 Intel Motherboard
Brand: MSI
SKU: B760-Tomahawk-Wi-Fi
Price: 22667.31 INR
Availability: InStock

Rs. 22,667.31 Rs. 27,299.00

Discount: Rs. 4,631.69 (17%)

Out of stock >

Add wishlist Delete wishlist Add compare Delete compare

Estimated Delivery: Feb 09 - Feb 13

Availability: In Stock Unavailable

Description
Additional Information
Shipping & Return
Reviews

Features Of MSI MAG B760 Mortar Wifi DDR5 Intel Motherboard

Unite as One

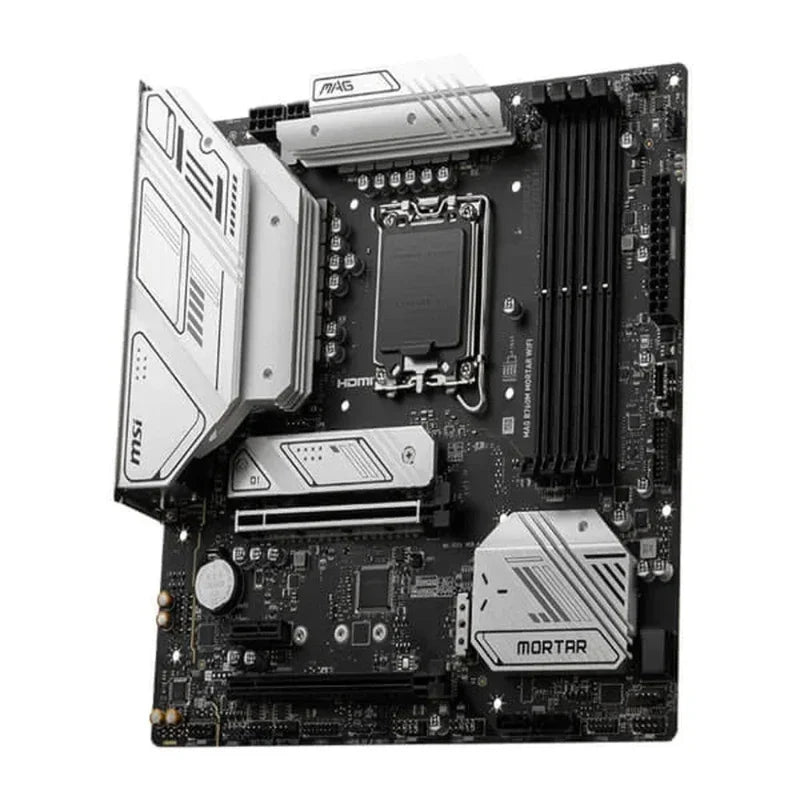

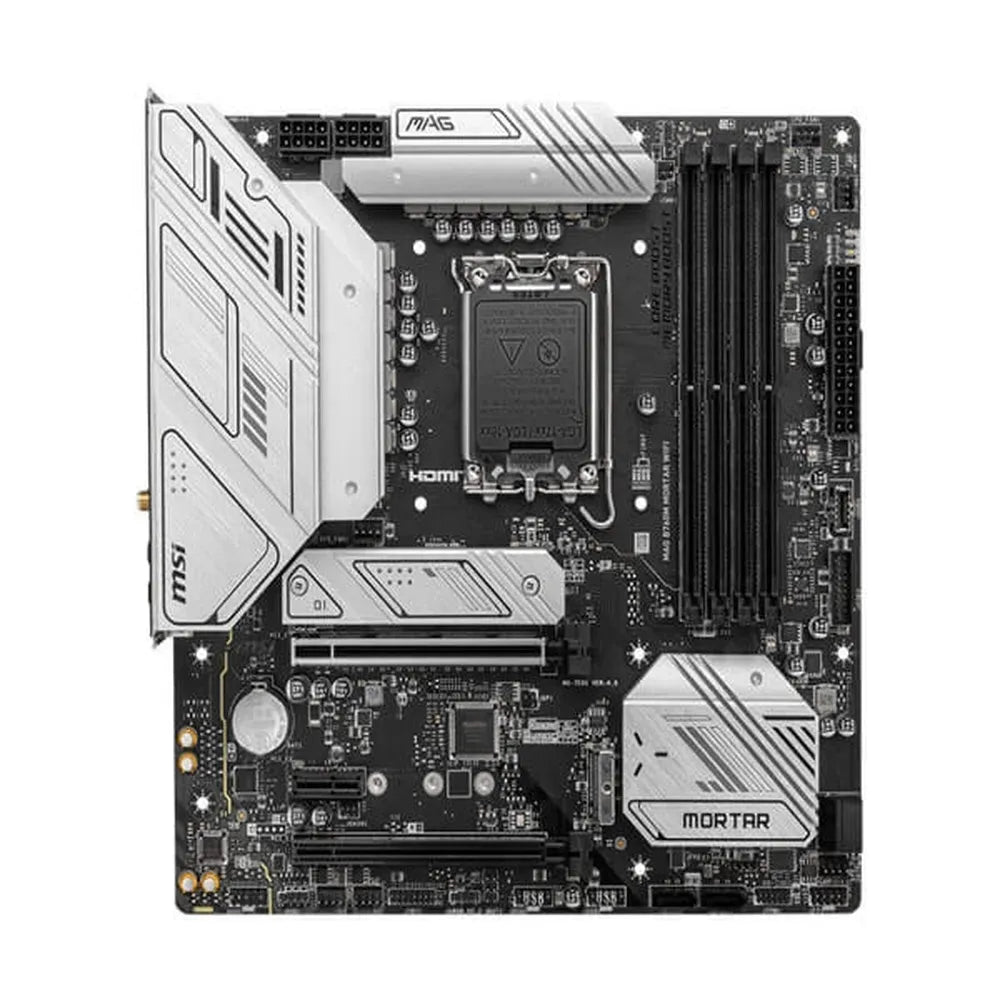

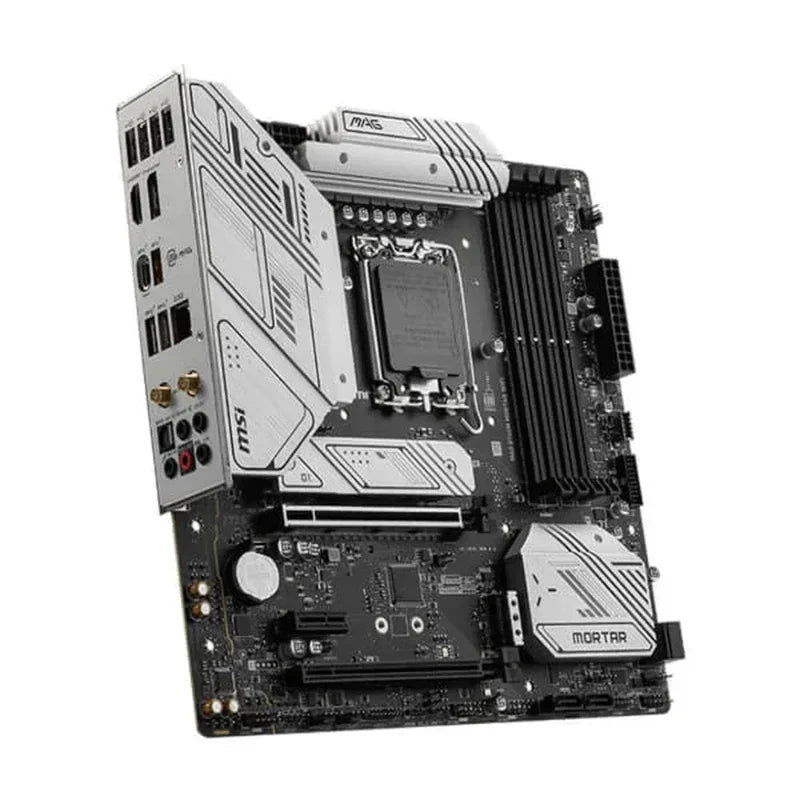

MSI MAG B760M MORTAR WIFI is a gaming oriented Micro-ATX motherboard constructed around the latest Intel B760 chipset that balances value with premium hardware.

Supports Intel Core 12th & 13th Gen Processors

The MAG B760M MORTAR WIFI motherboard supports 12th & 13th Gen Intel Core, Pentium Gold, and Celeron processors.

Form Factor: Micro-ATX

Socket Type: LGA 1700

Chipset: Intel B760

12+1 Duet Rail Power System with 75A DrMOS

With its dual 8 pin power connectors and exclusive Core Boost technology, the MAG B760M MORTAR WIFI is able to sustain heavy CPU power loads to support system-demanding game settings:

Digital PWM IC
12-Phase Duet Rail CPU Power (DrMOS / 75A)
1-Phase GT Power
1-Phase AUX Power

Integrated Cooling Features

VRM Cooling:

Features an extended heatsink, 7W/mK thermal pads and additional choke thermal pads for improved thermal dissipation.

PCB Cooling:

Premium 6-layer server-grade printed circuit design with 2 oz. thickened copper improves heat dissipation & reliability.

SSD Cooling:

M.2 Shield Frozr prevents thermal throttling.

System Cooling:

Connect and synchronize cooling with strategically placed pin-headers – including a dedicated pump-fan header.

4 x DDR5 Dual Channel (7000 MHz OC)*

Memory Boost:

A fully-isolated DDR circuit delivers pure data signals for optimal gaming and overclocking performance.

XMP profiles

MSI BIOS are MSI OC LAB optimized and can be easily enabled with auto power settings for optimized memory speed and stability.

Fortified PCIe 5.0 x16

MSI PCI Express Steel Armor slots are secured to the motherboard with extra solder points to support the weight of heavy graphics cards. When every advantage in games counts, Steel Armor also shields the point of contact from electromagnetic interference:

1 x PCIe 5.0/4.0/3.0 x16 slot* (with Steel Armor**)1 x PCIe 4.0/3.0 x16 slot*

Gen4 M.2 Connectors

The MAG B760M MORTAR WIFI motherboard features MSI’s Gen4 M.2 slots:

2 x Gen4 x4 64Gbps slots*

M.2 Shield Frozr

Even the world’s fastest SSDs will automatically slow if thermal throttling firmware detects excessively high temperatures.

M.2 Shield Frozr

MSI’s most advanced thermal solution, offering the best possible protection to ensure maximum SSD transfer speed performance.

Wi-Fi 6E & Bluetooth 5.3

2.5G LAN:

A Realtek 2.5Gbps LAN controller delivers a premium network gaming experience.

Wi-Fi 6E:

Features the latest Intel Wi-Fi 6E module (ultra-low latency, high-bandwidth) & Bluetooth 5.3 technology.

USB 3.2 Gen 2×2 Type-C:

Connect to devices and transfer files at high bandwidth rates: 20Gbps.

HD Audio:

7.1-Channel High Definition Audio with Audio Boost & S/PDIF output.

Specifications Of MSI MAG B760 Mortar Wifi DDR5 Intel Motherboard

Model	MAG B760 TOMAHAWK WIFI
Chipset	INTEL B760
CPU SUPPORT	Supports 12th/13th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® Processors LGA1700
Memory	4x DDR5, Maximum Memory Capacity 128GB Memory Support 7000+(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz Max. overclocking frequency: • 1DPC 1R Max speed up to 7000+ MHz • 1DPC 2R Max speed up to 6600+ MHz • 2DPC 1R Max speed up to 6400+ MHz • 2DPC 2R Max speed up to 5600+ MHz
Onboard Graphics	1x HDMI™ 1x DisplayPort Support HDMITM 2.1 with HDR, maximum resolution of 4K 60Hz* Support DP 1.4, maximum resolution of 8K 60Hz* *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
EXPANSION SLOT	2x PCI-E x16 slot Supports x16/x4 1x PCI-E x1 slot PCI_E1 PCIe 5.0 supports up to x16 (From CPU) PCI_E2 PCIe 3.0 supports up to x4 (From Chipset) PCI_E3 PCIe 4.0 supports up to x1 (From Chipset)
Storage	3x M.2 slot M.2_1 (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260/2242 devices M.2_2 (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices M.2_3 (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices 4x SATA 6G port
RAID	Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
USB	4x USB 2.0 (Rear) 4x USB 2.0 (Front) 2x USB 3.2 Gen1 Type A (Front) 4x USB 3.2 Gen2 Type A (Rear) 1x USB 3.2 Gen2 Type C (Front) 1x USB 3.2 Gen2x2 Type C (Rear)
LAN	Realtek® 2.5Gbps LAN
WIRELESS / BLUETOOTH	Intel® Wi-Fi 6E The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth® 5.3, FIPS, FISMA * Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 10 build 21H1 and Windows 11.
Audio	Realtek® ALC897 Codec 7.1-Channel USB High Performance Audio Supports S/PDIF output
Internal I/O	1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x CPU Fan 1x Pump Fan 5x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x TBT connector (JTBT, supports RTD3) 1x Tuning Controller connector(JDASH) 2x Addressable V2 RGB LED connector (JARGB_V2) 2x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 2x USB 3.2 Gen1 Type A 1x USB 3.2 Gen2 Type C
LED FEATURE	4x EZ Debug LED

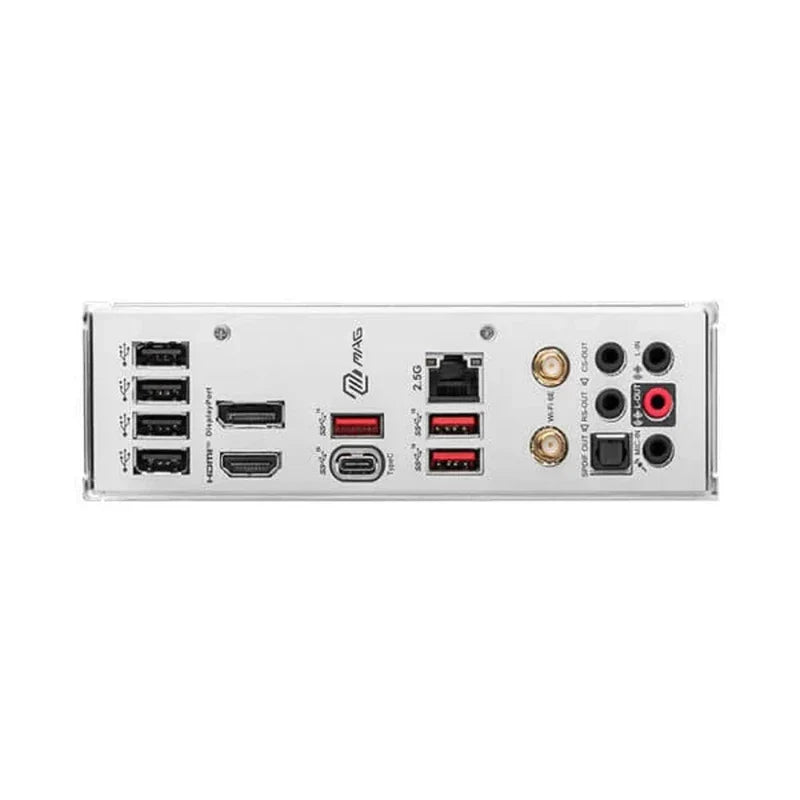

BACK PANEL PORTS	USB 2.0 DisplayPort 1.4 USB 3.2 Gen 2 10Gbps Type-A 2.5G LAN Port Wi-Fi / Bluetooth Antenna HD Audio Connectors HDMI™ 2.1 Port USB 3.2 Gen 2x2 20Gbps Type-C Optical S/PDIF OUT
OPERATING SYSTEM	Support for Windows® 11 64-bit, Windows® 10 64-bit
PCB Dimension	ATX 243.84mmx304.8mm
Warranty	3 Years
Note	*** Features, Price, Specifications are subject to change without notice.
