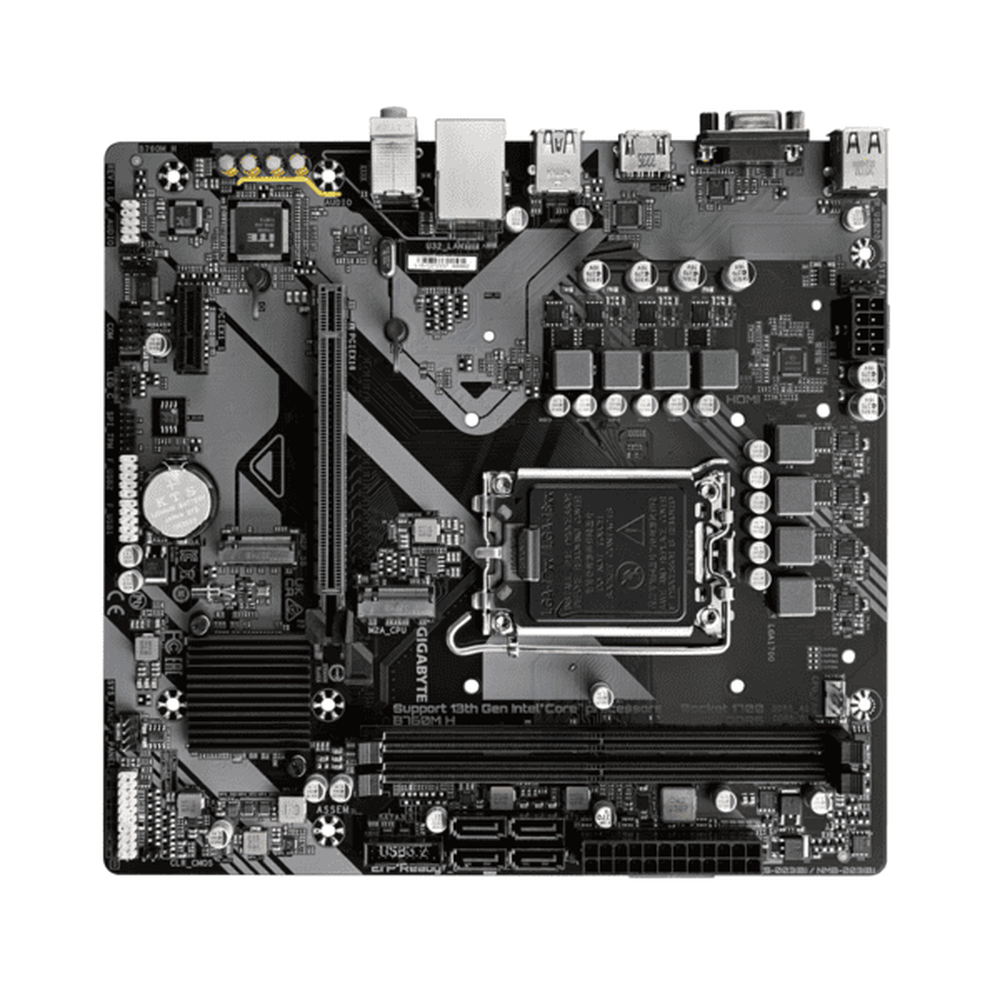

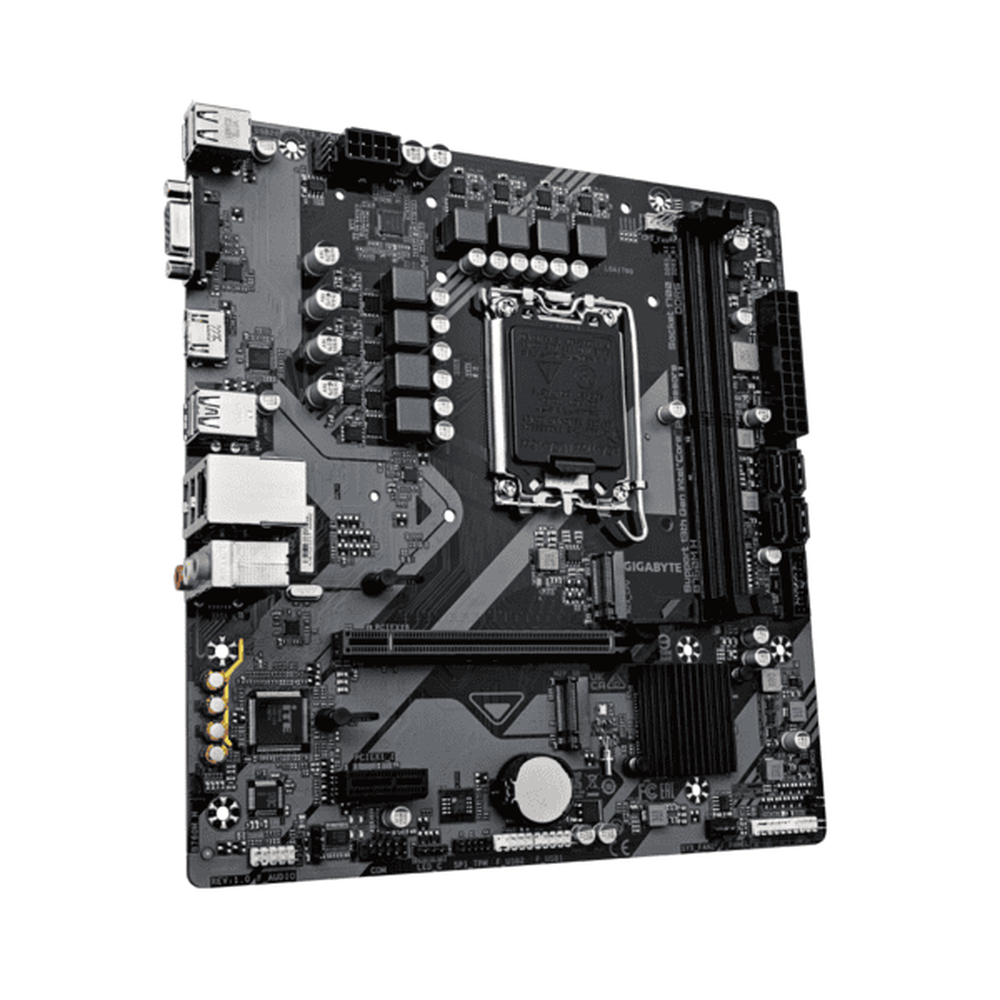

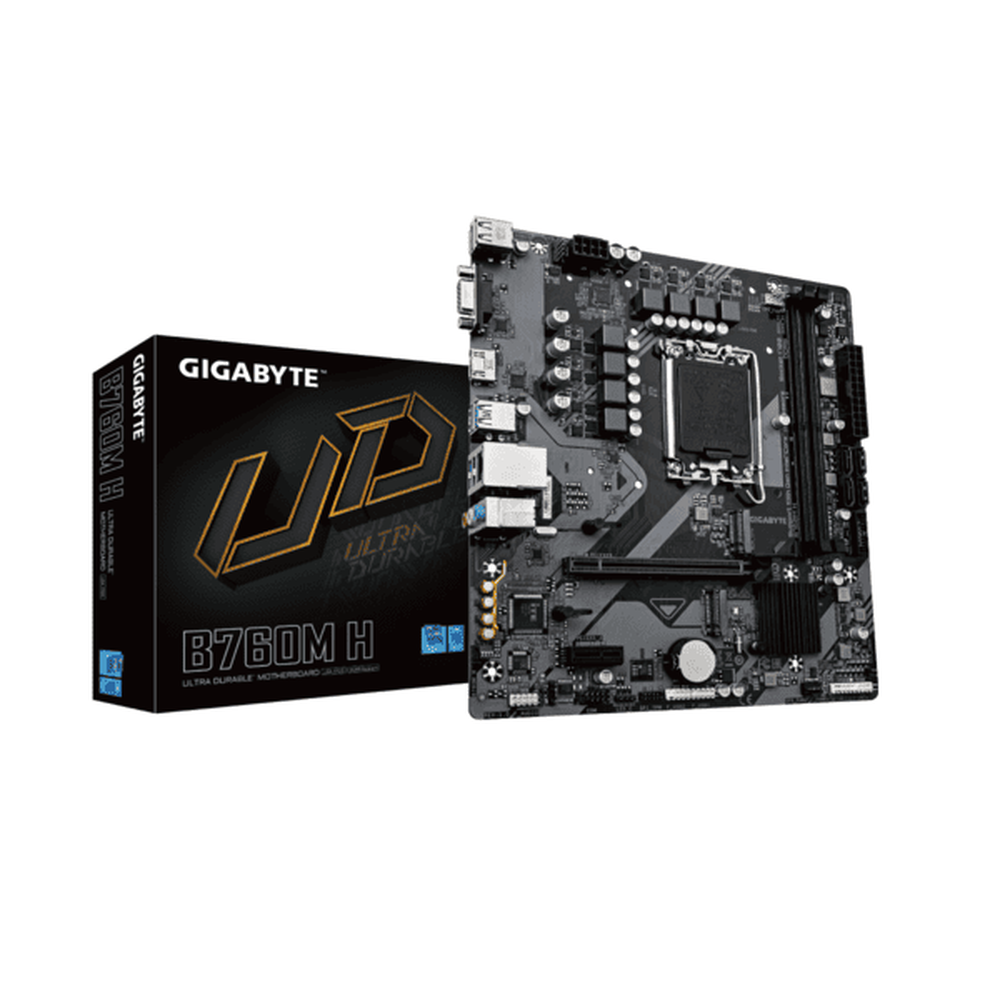

GIGABYTE B760M-H DDR5 MATX Intel Motherboard

GIGABYTE B760M-H DDR5 MATX Intel Motherboard

Name: GIGABYTE B760M-H DDR5 MATX Intel Motherboard
Brand: Gigabyte
SKU: Gigabyte-B760M-H-DDR5-M-ATX
Price: 9452.1 INR
Availability: InStock

Rs. 9,452.10 Rs. 18,499.00

Discount: Rs. 9,046.90 (49%)

23 people are viewing this right now

Hurry Up! Only 5 Left in Stock!

Out of stock >

Add wishlist Delete wishlist Add compare Delete compare

Estimated Delivery: Dec 26 - Dec 30

Return within 30 days of purchase. Taxes are non-refundable.

Availability: In Stock Unavailable

Description
Additional Information
Shipping & Return
Reviews

Features of GIGABYTE B760M-H DDR5 MATX Intel Motherboard

6+1+1 Phases Low RDS(on) MOSFETs
Premium Choke and Capacitors to improve transient response and minimize oscillation

GBE LAN with Bandwidth Management

GIGABYTE B760M-H DDR5 motherboard GbE LAN features a network bandwidth management application which helps to improve network latency and maintain low ping times to deliver better responsiveness in crowded LAN environments.

UEFI Bios

The EASY MODE shows important hardware information in one page including CPU clock, Memory, Storage, Fan.

Specifications of GIGABYTE B760M-H DDR5 MATX Intel Motherboard

MOTHERBOARD CHIPSET	INTEL B760
MOTHERBOARD FORM FACTOR	MICRO ATX
MOTHERBOARD SOCKET	LGA 1700
CPU	LGA1700 socket: Support for the 13th and 12thGeneration Intel® Core™, Pentium® Gold and Celeron® Processors
	L3 cache varies with CPU
	(Please refer to “CPU Support List” for more information.)
Chipset	Intel ® B760 Express Chipset
Memory	1. Support for DDR5 8000(O.C.) /7800(O.C.) /7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MT/s memory modules
	2. 2 x DDR5 DIMM sockets supporting up to 96 GB (48 GB single DIMM capacity) of system memory
	3. Dual channel memory architecture
	4. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
	5. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
	6. Support for Extreme Memory Profile (XMP) memory modules
	(The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to “Memory Support List” for more information.)
Onboard Graphics	Integrated Graphics Processor-Intel® HD Graphics support:
	– 1 x D-Sub port, supporting a maximum resolution of 1920×1200@60 Hz
	– 1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz
	* Support for HDMI 2.0 version and HDCP 2.3.
	(Graphics specifications may vary depending on CPU support.)
Audio	Realtek® Audio CODEC
	High Definition Audio
	2/4/5.1/7.1-channel
	* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
	Support for S/PDIF Out
LAN	Realtek® GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)
Expansion Slots	CPU:
	– 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16
	Chipset:
	– 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1
Storage Interface	CPU:
	– 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
	Chipset:
	– 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)
	– 4 x SATA 6Gb/s connectors
	RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
USB	Chipset:
	– 6 x USB 3.2 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header)
	– 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)
Internal I/O Connectors	1 x 24-pin ATX main power connector
	1 x 8-pin ATX 12V power connector
	1 x CPU fan header
	2 x system fan headers
	1 x RGB LED strip header
	2 x M.2 Socket 3 connectors
	4 x SATA 6Gb/s connectors
	1 x front panel header
	1 x front panel audio header
	1 x S/PDIF Out header
	1 x USB 3.2 Gen 1 header
	2 x USB 2.0/1.1 headers
	1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
	1 x serial port header
	1 x Clear CMOS jumper

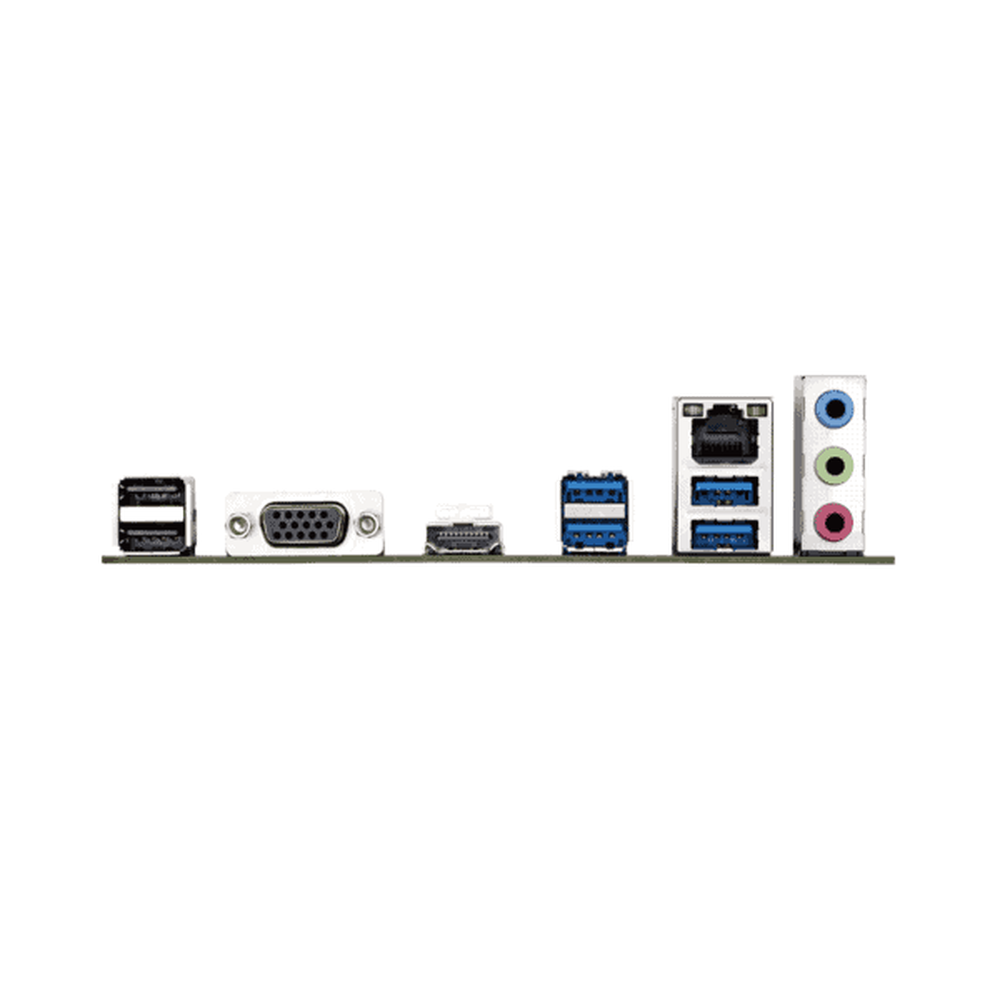

Back Panel Connectors	2 x USB 2.0/1.1 ports
	1 x D-Sub port
	1 x HDMI port
	4 x USB 3.2 Gen 1 ports
	1 x RJ-45 port
	3 x audio jacks
I/O Controller	iTE® I/O Controller Chip
H/W Monitoring	Voltage detection
	Temperature detection
	Fan speed detection
	Water cooling flow rate detection
	Fan fail warning
	Fan speed control
	* Whether the fan speed control function is supported will depend on the fan you install.
BIOS	1 x 128 Mbit flash
	Use of licensed AMI UEFI BIOS
	PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features	Support for GIGABYTE Control Center (GCC)
	* Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
	Support for Q-Flash
Bundled Software	Norton® Internet Security (OEM version)
	LAN bandwidth management software
Operating System	Support for Windows 11 64-bit
	Support for Windows 10 64-bit
Form Factor	Micro ATX Form Factor; 23.0cm x 21.5cm
