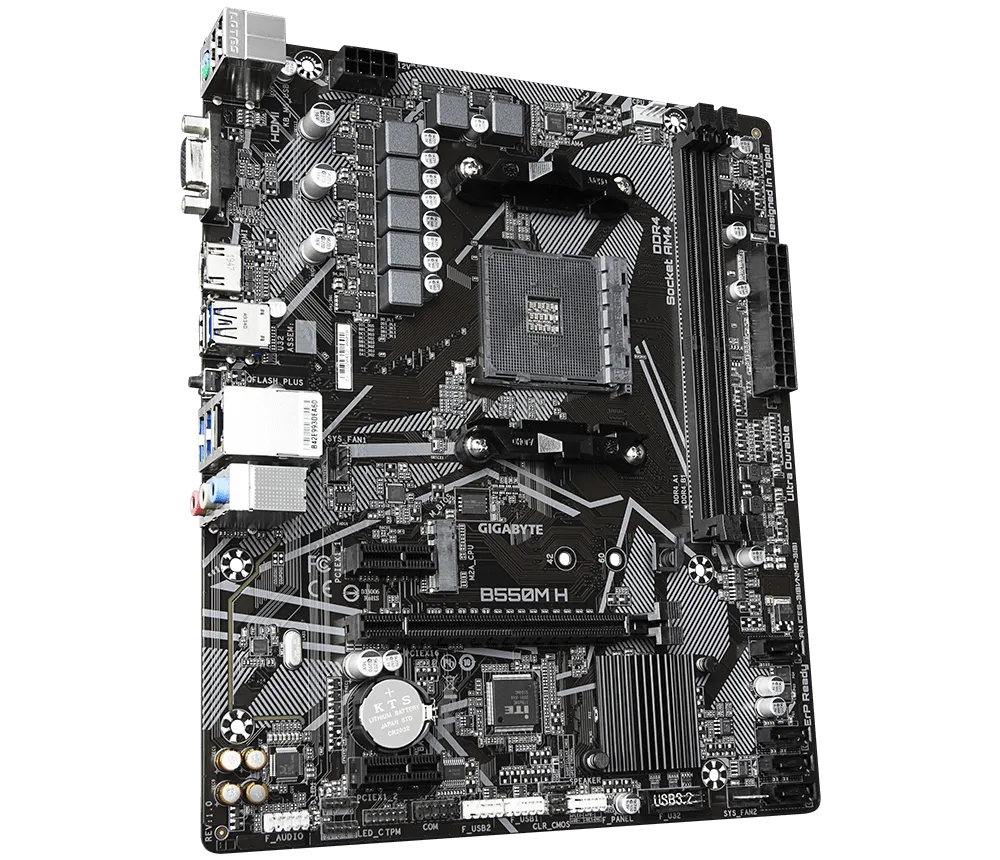

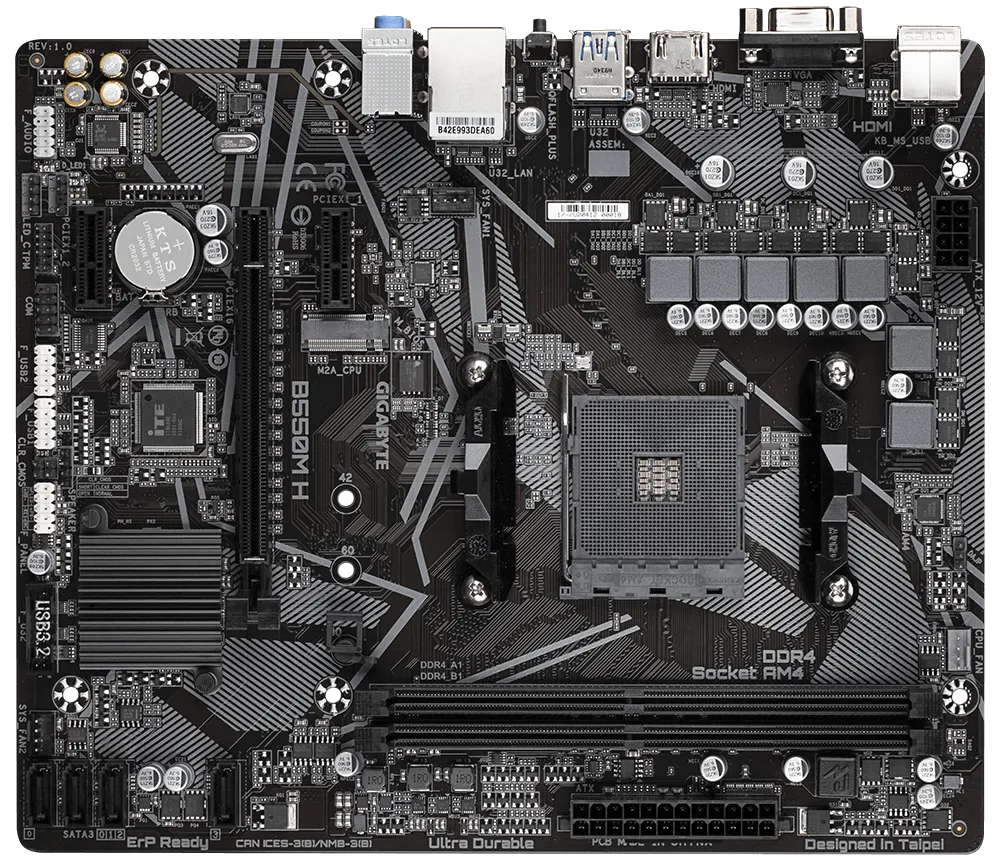

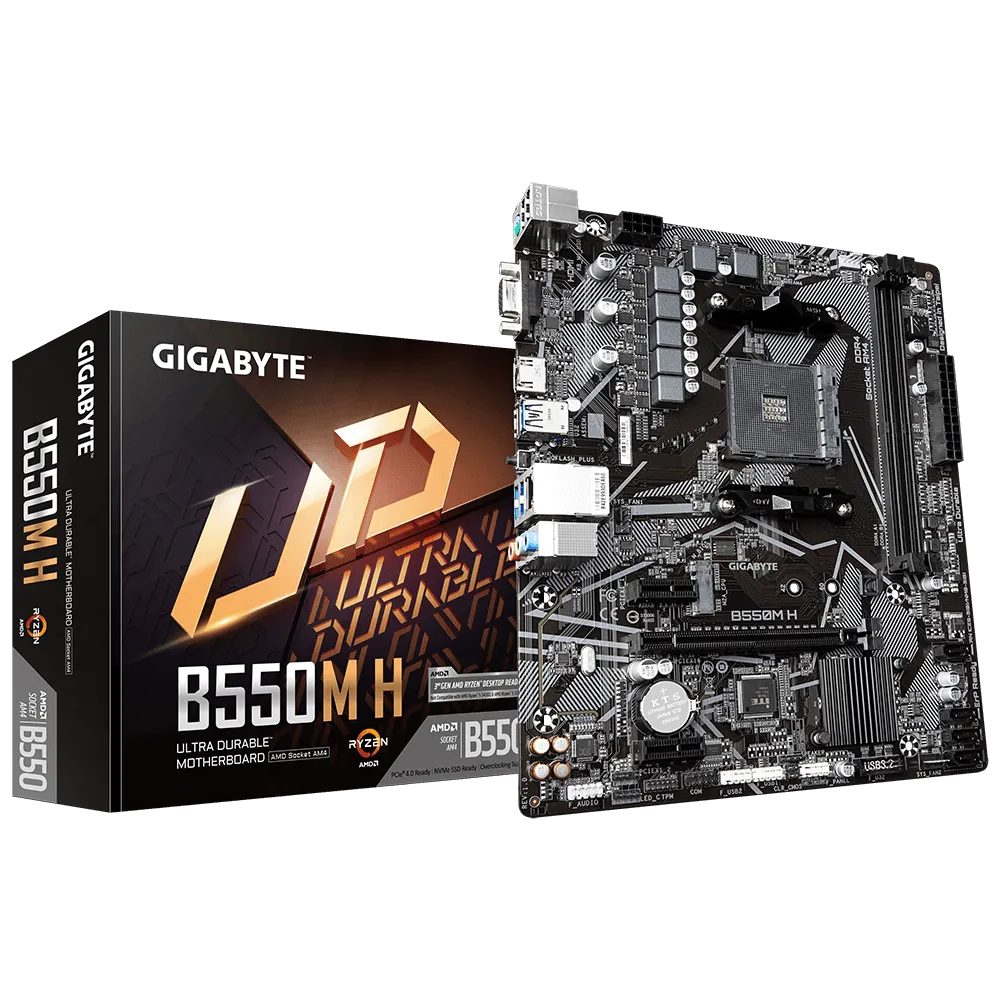

GIGABYTE B550M H DDR4 AMD Motherboard

Feature of GIGABYTE B550M H DDR4 AMD Motherboard

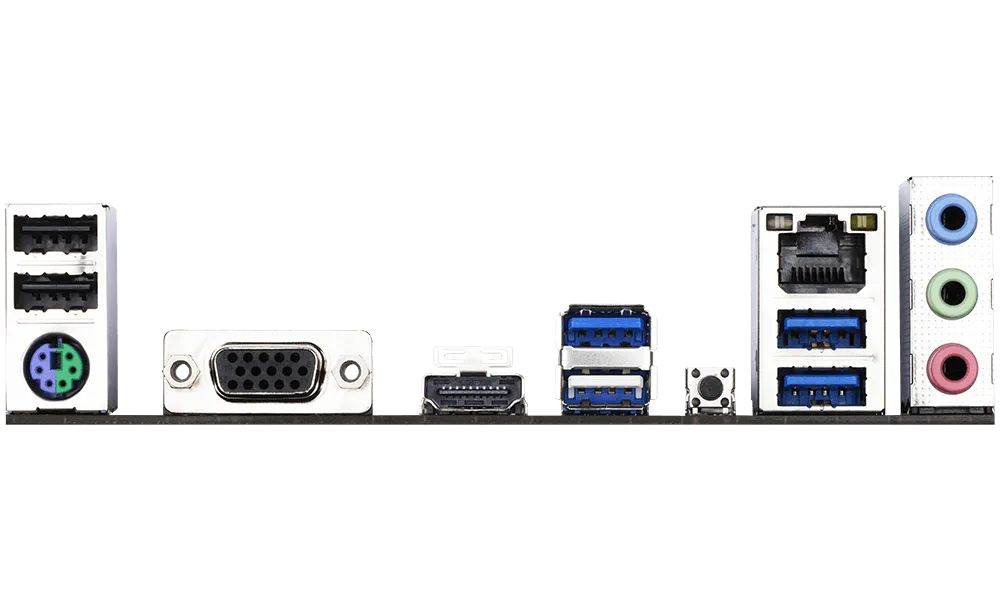

The GIGABYTE B550M H DDR4 motherboard supports 3rd gen AMD Ryzen AM4 processors, features up to 2 x DDR memory slots, PCI-E 4.0 and PCI-E 3.0 expansion slots, 1 x M.2 slots, 4 x SATA ports (6GB/s), 6 x rear USB ports (2 x USB 2.0, 4 x USB Gen 1), 3 x front panel header USB ports (2 x USB 2.0, 1 x USB 3.2 Gen 1), 1 x HDMI,1 x D-Sub, Realtek GbE LAN, Realtek ALC887 HD audio codec, and a micro-ATX motherboard form factor.

1. Supports AMD Ryzen™ 5000 Series/ Ryzen™ 5000 G-Series/ Ryzen™ 4000 G-Series and Ryzen™ 3000 Series Processors
2. Dual Channel ECC/ Non-ECC Unbuffered DDR4, 2 DIMMs
3. 4+3 Phases Pure Digital VRM Solution with Low RDS(on) MOSFETs
4. Ultra Durable™ PCIe 4.0 Ready x16 Slot
5. Ultra-Fast NVMe PCIe 4.0/3.0 M.2 Connector
6. GIGABYTE Exclusive 8118 Gaming LAN with Bandwidth Management
7. High Quality Audio Capacitors and Audio Noise Guard with LED Trace Path Lighting
8. RGB FUSION 2.0 Supports Addressable LED & RGB LED Strips
9. Smart Fan 5 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOP
10. Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card
11. Anti-Sulfur Resistors Design

GIGABYTE UD series motherboards use a 4+3 phases pure digital PWM + Low RDS(on) MOSFETs design to support the 3rd Gen AMD Ryzen™ CPUs by offering incredible precision in delivering power to the motherboard’s most power-hungry and energy-sensitive components as well as delivering enhanced system performance and ultimate hardware scalability.

The Industry’s Leading LAN Static-Electricity & Surge Protection

GIGABYTE motherboards use ICs with up to 3 times the ESD resistance levels compared to traditional ICs. This helps to better protect the motherboard and its components against potential damage caused by static electricity. GIGABYTE motherboards also feature special anti-surge ICs that protect your motherboard, and your PC from any surge in power delivery that may occur, helping to ensure that your PC is equipped to deal with any potentially irregular and inconsistent power delivery.

HDMI 2.1 for 4K / 60P / 21:9 / HDCP 2.3 Support

HDMI 2.1, which is backwards compatible with HDMI 2.0/ 1.4 and offering 48 Gb/s of bandwidth – twice times more than previous generation. This unlocks the potential for users to transfer multiple video streams, as well as a native cinematic 21:9 ratio (which most movies are shot in), Full HDR and HDCP 2.3 support, to offer the best visual experience for viewers.

High-End Audio Capacitors

GIGABYTE motherboards use high-end audio capacitors. These high quality capacitors help deliver high resolution and high fidelity audio to provide the most realistic sound effects for gamers.

Audio Noise Guard

GIGABYTE motherboards feature an audio noise guard that essentially separates the board’s sensitive analog audio components from potential noise pollution at the PCB level.

Smart Fan 5

With Smart Fan 5 users can ensure that their gaming PC can maintain its performance while staying cool. Smart Fan 5 allows users to interchange their fan headers to reflect different thermal sensors at different locations on the motherboard. Not only that, with Smart Fan 5 more hybrid fan headers that support both PWM and Voltage mode fans have been introduced to make the motherboard more liquid cooling friendly.

RGB FUSION 2.0

With B550 Motherboards, RGB Fusion 2.0 is even better with Addressable LEDs. RGB Fusion 2.0 offers users the option to control onboard RGB and external RGB / Addressable LED light strips* for their PC build. Already feature filled with colors and patterns, RGB Fusion 2.0 are now upgraded to improve the Addressable LED support. With external Addressable LED strips, where each LED is digitally addressable that users can experience even more patterns, styles, and illuminations.With B550 Motherboards support the external 5V Addressable LED lighting strips and up to 300 LED lights. RGB Fusion 2.0 with Addressable LEDs comes with new patterns and various speed settings with more to come.

Specifications of GIGABYTE B550M H DDR4 AMD Motherboard
