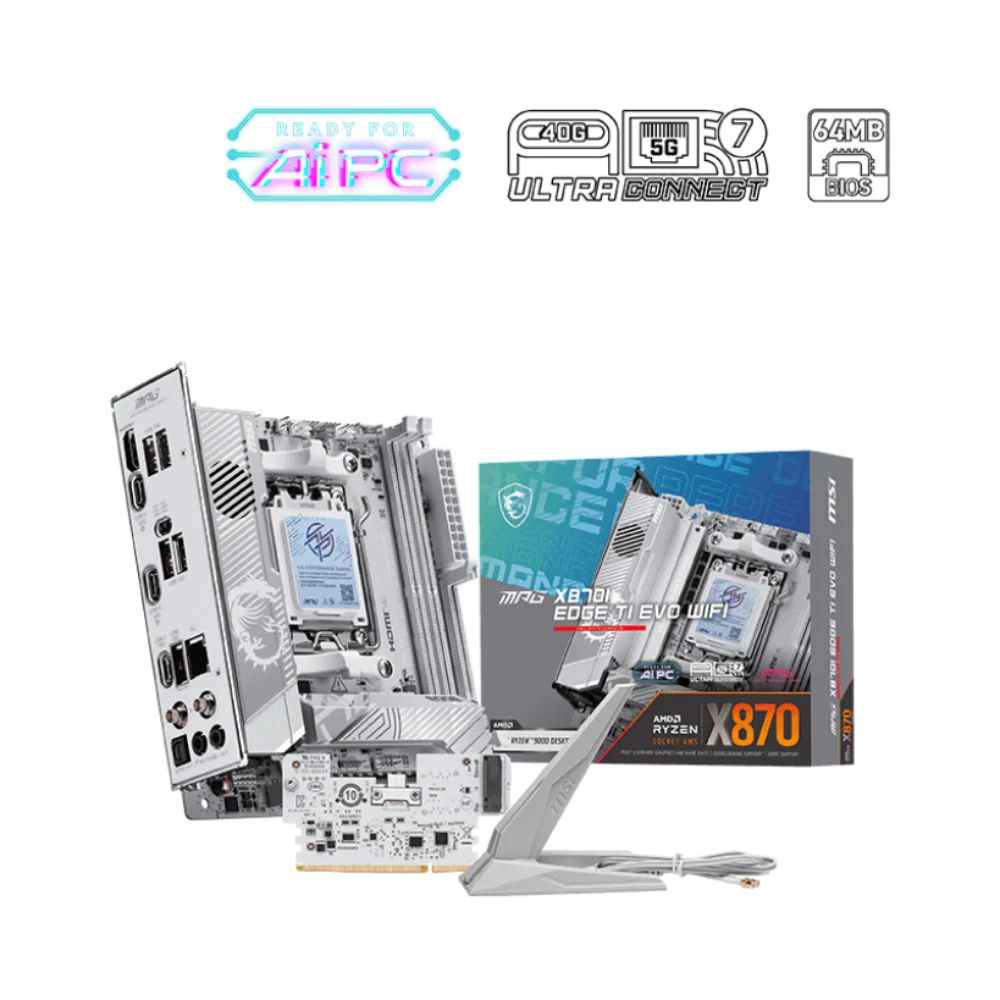

MSI MPG X870I Edge Ti Evo Wifi7 DDR5 AMD Motherboard

Name: MSI MPG X870I Edge Ti Evo Wifi7 DDR5 AMD Motherboard
Brand: MSI
SKU: msi-mpg-x870i-edge-ti-evo-wifi7-ddr5-amd-motherboard
Price: 31963.01 INR
Availability: InStock

Rs. 31,963.01 Rs. 47,999.00

Discount: Rs. 16,035.99 (33%)

Out of stock >

Add wishlist Delete wishlist Add compare Delete compare

Estimated Delivery: Jun 12 - Jun 16

Description
Additional Information
Shipping & Return
Reviews

Features of MSI MPG X870I Edge Ti Evo Wifi7 DDR5 AMD Motherboard

MPG X870I EDGE TI EVO WIFI

MPG X870I EDGE TI EVO WIFI is covered with a silver-white color scheme for white PC build lovers to show off different identity. It is also powerful because of its true Wi-Fi 7 solution, 5G LAN, USB4, and the latest PCIe 5.0 compatibility, and this is the best white theme X870 ITX motherboard for AMD Ryzen™ 9000 series processors.

MAG msi arsenal gaming

MSI's mainstream MAG series epitomizes stability and durability and is built to withstand the most intense gaming sessions. The entire lineup features robust construction with metallic-like hardness and excellent heat dissipation, ensuring stability for all critical gaming components.

MSI Motherboard ai logo

MSI motherboards are designed with advanced hardware and technology, well-supporting the demanding computing usage of gaming and AI. Moreover, we also introduce AI to MSI Center and BIOS, making everything more effortless than before.

PRE-INSTALLED I/O SHIELD

The Pre-Installed I/O Shield offers a streamlined and hassle-free installation experience by eliminating the need to manually fit the I/O shield during motherboard setup. With its built-in design, it ensures proper alignment and a secure fit, providing both protection and convenience while enhancing the overall durability of your build.

EZ ANTENNA

MSI EZ Antenna makes the process effortless by simply attaching fasteners to the motherboard without rotation.

DDR5

A huge step of DDR performance enhancement with the latest DDR5 memory. Combines with dedicated SMT welding process and MSI Memory Boost technology, MAG X870E GAMING MAX WIFI is ready to deliver the world-class memory performance.

HIGH-EFFICIENCY MODE

The High-Efficiency Mode is designed to optimize memory performance by increasing memory bandwidth and reducing latency. With the four sets of RAM timing settings, it allows users to find out the optimal configuration based on the quality of their memory modules.

Extended Heatsink

Extended Heatsink enlarges the surface of heat dissipation and maintain the performance at heavy loads.

M.2 Shield Frozr

M.2 thermal solution helps keep M.2 SSD safe and vincredible performance.

7W/mK Thermal Pad & Additional Choke Pad

High-quality 7W/mK MOSFET thermal pads and additional choke thermal pads ensure stable performance when all cores are runnging at high speed.

Frozr Heatsink

Designed with the patented fan and double ball bearings to provide best performance for enthusiast gamers.

WIFI 7 SOLUTION

Wi-Fi 7 is the latest wireless solution that takes a huge leap forward with multiple improvements to meet the traffic demand brought and the growing number of wireless devices.

STORAGE

MSI MAG series motherboards support all the latest storage standards, which allows users to connect any ultra-fast storage device. Start games faster, load levels faster and have a real advantage over your enemies.

MYSTIC LIGHT

Splash on some color and vibrant RGB lighting effects using Mystic Light utility of MSI Center, which has million colors and fancy LED effects. Enjoy the full control and creativity of your PC's lighting with one software.

Specifications of MSI MPG X870I Edge Ti Evo Wifi7 DDR5 AMD Motherboard

Model	MPG X870I EDGE TI EVO WIFI
Chipset	AMD X870
CPU	Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors Socket AM5
Memory	2x DDR5, Maximum Memory Capacity 128GB Memory Support DDR5 10000 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s Ryzen™ 9000 Series Processors max. overclocking frequency: • 1DPC 1R Max speed up to 8400+ MT/s • 1DPC 2R Max speed up to 8000+ MT/s Supports AMD POR Speed and JEDEC Speed Supports Memory Overclocking and AMD EXPOTM Supports Dual-Channel mode Supports Non-ECC, Un-buffered memory Supports CUDIMM, Clock Driver bypass mode only* * The DIMM slots on this motherboard only have single-sided latches. CUDIMM support and POR boot frequency may vary by CPU series, with manual overclocking available after boot. Certain CPUs may fail to boot, but future BIOS updates will improve compatibility. * Memory compatibility and supported speeds can vary depending on the CPU and memory configuration. For detailed information, please refer to the Memory Compatibility List available on the product’s Support page or visit https://www.msi.com/support/.
Onboard Graphics	1x HDMI™ Support HDMITM 2.1 with TMDS port, supporting a maximum resolution of 4K 60Hz* 2x Type-C DisplayPort *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
Slot	1x PCI-E x16 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E1 slot (From CPU) • Supports PCIe 5.0 x16 (For Ryzen™ 9000/ 7000 Series processors) • Supports PCIe 4.0 x8 (For Ryzen™ 8700/ 8600/ 8400 Series processors) • Supports PCIe 4.0 x4 (For Ryzen™ 8500/ 8300 Series processor) 1x FP card slot • Supports the installation of MSI 5-in-1 XPANDER card only.
Audio	Realtek® ALC4080 Codec 7.1-Channel USB High-Performance Audio Supports up to 32-Bit/384 kHz playback on front panel Supports S/PDIF output
Storage	1x M.2 M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280 devices 2x SATA 6G M.2_1 slot (From CPU) • Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors) • Supports up to PCIe 4.0 x4 (For Ryzen™ 8000 Series processors) M.2_2 slot (From X870 chipset) • Supports up to PCIe 4.0 x4 • Supports 2260/2280 storage devices • Supports single sieded M.2 SSD only 5-in-1 XPANDER Card M.2_3 slot (From X870 chipset) • Supports up to PCIe 4.0 x4 • Supports 2260/2280 storage devices • Supports single sided M.2 SSD only
RAID	• Supports RAID 0, and RAID 1 for SATA storage devices • Supports RAID 0, RAID 1 and RAID 5* for M.2 NVMe storage devices * RAID 5 configuration is only supported by Ryzen™ 9000 series processors.
USB	2x USB 2.0 (Front) 2x USB 5Gbps Type A (Front) 5x USB 10Gbps Type A (Rear) 1x USB 10Gbps Type C (Rear) 1x USB 20Gbps Type C (Front) 2x USB 40Gbps Type C (Rear)
LAN	1x Realtek® 8126 5G LAN
Internal IO	1x Power Connector(ATX_PWR) 1x Power Connector(CPU_PWR) 1x CPU Fan 1x Combo Fan (Pump_Sys Fan) 1x System Fan 1x EZ Conn-header (JAF_2) 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Addressable V2 RGB LED connector (JARGB_V2) 2x USB 2.0 ports 2x USB 5Gbps Type A ports 1x USB 20Gbps Type C ports
WIRELESS LAN & BLUETOOTH	Wi-Fi 7 The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (320MHz) up to 5.8Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax/ be Supports Bluetooth® 5.4*, MLO, 4KQAM 6GHz band support may depend on every country’s regulations and Wi-Fi 7 will be ready in Windows 11 SV3. ** The Bluetooth version may be updated, please refer to the Wi-Fi chipset vendor's website for details. Bluetooth 5.4 support schedule depends on MSFT Windows 11 plan.
LED FEATURE	4x EZ Debug LED
BACK PANEL PORTS	USB 10Gbps Type-A Clear CMOS Button USB 10Gbps Type-A 5G LAN Wi-Fi / Bluetooth Audio Connectors HDMI™ USB 40Gbps Type-C Flash BIOS Button USB 10Gbps Type-C Optical S/PDIF Out
OPERATING SYSTEM	Support for Windows® 11 64-bit
PCB Info	Mini-ITX 170mmx170mm
