COLORFUL IGame Z890 Vulcan X V20 WIfi7 DDR5 Intel Motherboard

COLORFUL IGame Z890 Vulcan X V20 WIfi7 DDR5 Intel Motherboard

Name: COLORFUL IGame Z890 Vulcan X V20 WIfi7 DDR5 Intel Motherboard
Brand: COLORFUL
Price: 49300.65 INR
Availability: InStock

Rs. 49,300.65 Rs. 89,000.00

Discount: Rs. 39,699.35 (45%)

Out of stock >

Add wishlist Delete wishlist Add compare Delete compare

Estimated Delivery: Jun 12 - Jun 16

Description
Additional Information
Shipping & Return
Reviews

Features of COLORFUL IGame Z890 Vulcan X V20 WIfi7 DDR5 Intel Motherboard

iGame series exclusive customized Cyber God Suit Super Dimension Vulcan series motherboard
iGame series customized Vulcan heat dissipation armor, with full-cover condenser to enhance heat dissipation
Support dual-channel DDR5-8800 (OC) MHz memory
Adopt 20+1+1+1 phase enhanced power supply design (Dr MOS 105A)
Provide 1 PCIe 5.0 x4 M.2 SSD slot and 4 PCIe 4.0 x4 M.2 SSD slots
Provide 1 front USB 3.2 Gen 2x2 20Gbps Type-C high-speed interface (support PD3.0 @60W)
Provide 2 rear USB4 40Gbps Type-C interfaces (support video output, up to 4K 60Hz resolution)
Equipped with Realtek 2.5G and 5G dual-speed wired network cards and BE200 WiFi 7 wireless network card, support Bluetooth 5.4
Support iGame Center lighting control software, which can adjust the lighting effects of the radiator, cooling fan and memory synchronously
I/O backplane supports one-click BIOS upgrade function and CMOS clearing function
Six major protection technologies, more stable product operation
200 processes strictly tested, quality guaranteed
PCB atomization process fully upgraded

Specifications of COLORFUL IGame Z890 Vulcan X V20 WIfi7 DDR5 Intel Motherboard

Model	iGame Z890 VULCAN X V20
Product Series	iGame Series
Chipset	Intel Z890
Processor	Supports Intel® Core™ Ultra processors that fit the LGA 1851 slot of the motherboard (*Please visit the Colorful official website www.colorful.cn for the latest processor support list)
Memory	4 DDR5 memory slots, supporting up to 192 GB of memory (a single slot can support a capacity of up to 48 GB) - Support DDR5-8800(OC)/8600(OC)/8400(OC)/8200(OC)/8000(OC)/7800(OC)/7600(OC)/7400(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400/6200/6000/5800/5600/5400/5200/5000/4800MHz memory - Support Intel® Extreme Memory Profile (XMP) memory technology - Support dual channel memory technology (* Please visit www.colorful.cn for the latest memory compatibility list)
SATA Ports	5 M.2 slots and 6 SATA 6Gb/s hard disk interfaces, Support the creation of RAID 0, RAID 1, RAID 5, and RAID 10 disk arrays using SATA or M.2 NVMe hard disk devices (SATA_ 5 and SATA_ 6 interface does not support RAID disk arrays) - M.2_1 slot: support 2280/22110 M.2 SSD (PCIe 5.0 x4, CPU channel) - M.2_2 slot: support 2280/22110 M.2 SSD (PCIe 4.0 x4, CPU channel) - M.2_3 slot: support 2280/22110 M.2 SSD (PCIe 4.0 x4, PCH channel) - M.2_4 slot: support 2280/22110 M.2 SSD (PCIe 4.0 x4, PCH channel) - M.2_5 slot: support 2242/2260/2280 M.2 SSD (PCIe 4.0 x4/SATA, PCH channel)

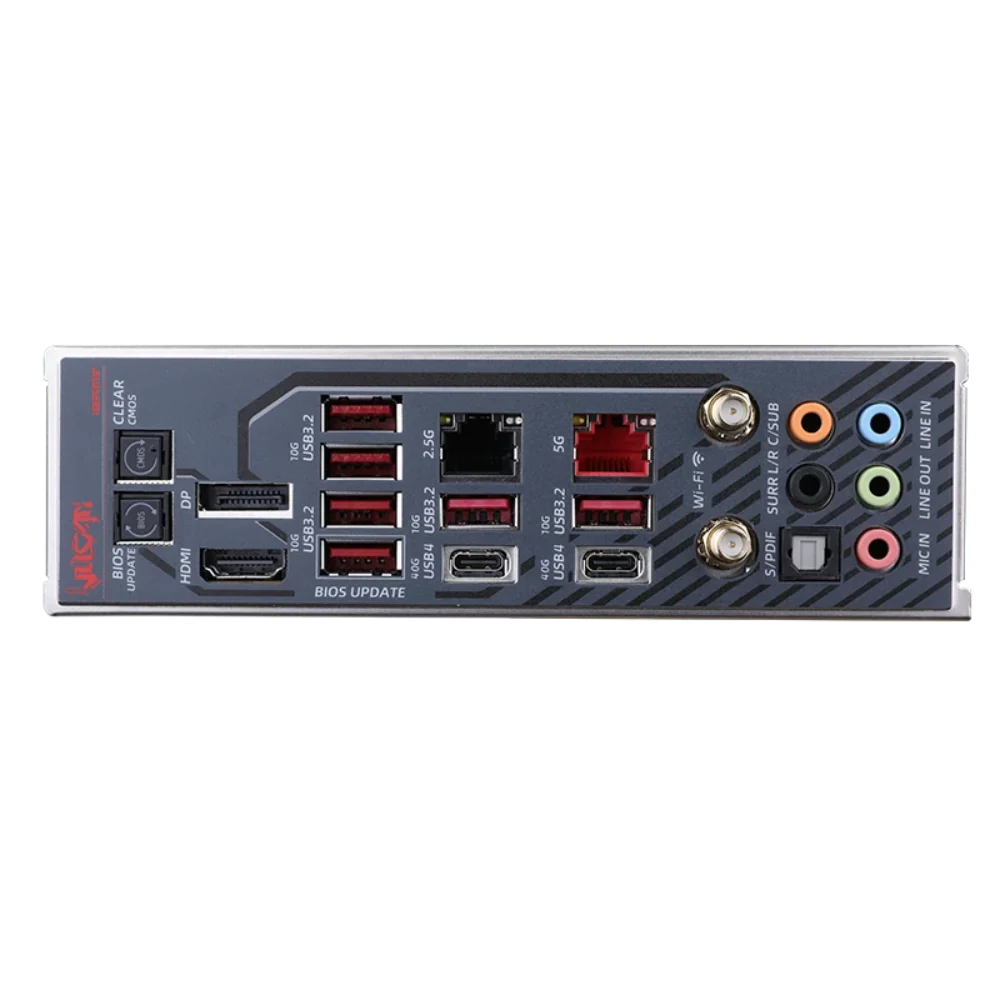

Board I/O	Rear I/O: - 6×USB 3.2 Gen 2 10Gbps Type-A interfaces - 2×USB4 40Gbps Type-C interfaces (Supports video output, up to 4K 60Hz resolution) - 1×DP 1.4 interface, Supports up to 8K 60Hz resolution - 1×HDMI 2.0 interface, Supports up to 4K 60Hz resolution - 1×2.5G network interface - 1×5G network interface - 2×Wi-Fi 7 antenna interfaces - 5×Audio interfaces - 1×S/PDIF audio interface - 1×BIOS update button - 1×CMOS clearing key On board: - 2×USB 2.0 pins can expand 4 USB 2.0 Type-A interfaces - 2×USB 3.2 Gen 1 pin can expand 4 USB 3.2 Gen 1 5Gbps Type-A interfaces - 1×USB 3.2 Gen 2x2 Type-C slot can expand 1 USB 3.2 Gen 2x2 20Gbps Type-C interface (support PD3.0 @60W) - 2×CPU fan pins - 4×System fan pins - 1×Water cooling pump pin - 3×5V 3-pin ARGB pins - 1×12V 4-pin RGB pin - 1×Front audio pin - 1×Front panel pin - 1×BIOS burner pin
Expansion Slots	1×PCIe 5.0 x16 slot (supports x16 mode or x8/x8 mode) 1×PCIe x16 slot (supports PCIe 5.0 x8 specification) 1×PCIe 4.0 x4 slot (The PCIe 5.0 x16 slot shares bandwidth with the PCIe 5.0 x8 slot. When a device is connected to the PCIe 5.0 x8 slot, the PCIe 5.0 x16 slot will operate in x8 mode)
BIOS	256M UEFI, support multiple languages
Power Management	Support S3/S4 wake-up, network S5 wake-up, support USB wake-up, support timing boot, call boot
Hardware Monitor	CPU fan speed is controllable, system fan speed is controllable, CPU temperature monitoring, system temperature monitoring, and each group of voltage monitoring
LAN	RTL8125BG 2.5Gbit LAN, RTL8126-CG 5Gbit LAN, BE200 WiFi 7 wireless network card, Bluetooth 5.4
Audio	Realtek ALC1220 high fidelity decoding chip, Support up to 7.1 channels
Configuration	E-ATX 305 x 277 mm
Other Features	Function buttons/controller: - 1×Power button - 1×Restart button - 1×Retry buttonn - 2×BCLK buttons - 1×Safe Start Button - 2×RGB light effect controller - 1×LN2 mode controller - 1×Slow speed controller - 1×BIOS switching controller
