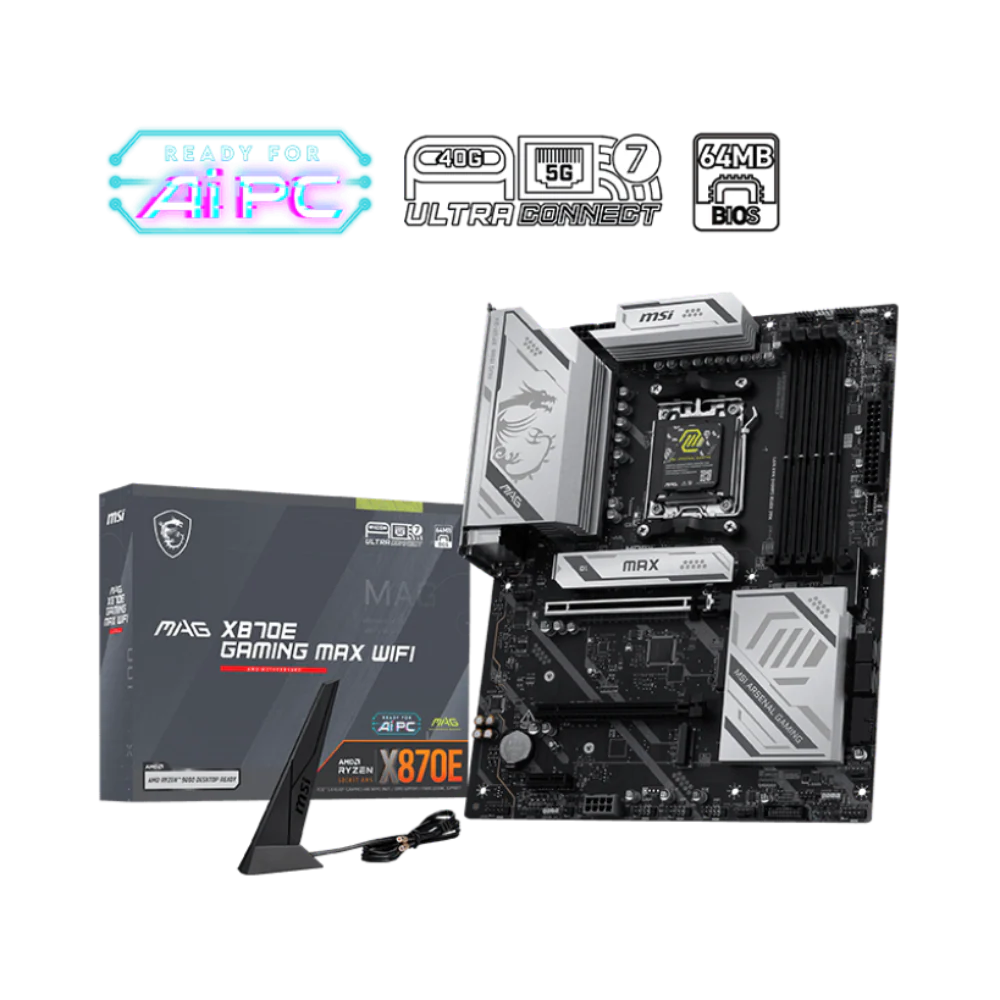

MSI MAG X870E Gaming Max Wifi7 DDR5 AMD Motherboard

Name: MSI MAG X870E Gaming Max Wifi7 DDR5 AMD Motherboard
Brand: MSI
SKU: msi-mag-x870e-gaming-max-wifi7-ddr5-amd-motherboard
Price: 23774.2 INR
Availability: InStock

Rs. 23,774.20 Rs. 42,999.00

Discount: Rs. 19,224.80 (45%)

Out of stock >

Add wishlist Delete wishlist Add compare Delete compare

Estimated Delivery: Jun 12 - Jun 16

Description
Additional Information
Shipping & Return
Reviews

Features of MSI MAG X870E Gaming Max Wifi7 DDR5 AMD Motherboard

MAG X870E GAMING MAX WIFI is designed for gamers with a stable, durable and DIY friendly foundation for their PC builds. Coming up with latest Wi-Fi 7 solution, 5G LAN, USB 40Gbps, PCIe 5.0 solutions, Supplemental PCIe Power, and exclusive EZ DIY features, it's ready for the battlefield of AMD Ryzen™ 9000 series processors.

MAG msi arsenal gaming

MSI's mainstream MAG series epitomizes stability and durability and is built to withstand the most intense gaming sessions. The entire lineup features robust construction with metallic-like hardness and excellent heat dissipation, ensuring stability for all critical gaming components.

MSI Motherboard ai logo

MSI motherboards are designed with advanced hardware and technology, well-supporting the demanding computing usage of gaming and AI. Moreover, we also introduce AI to MSI Center and BIOS, making everything more effortless than before.

PRE-INSTALLED I/O SHIELD

The Pre-Installed I/O Shield offers a streamlined and hassle-free installation experience by eliminating the need to manually fit the I/O shield during motherboard setup. With its built-in design, it ensures proper alignment and a secure fit, providing both protection and convenience while enhancing the overall durability of your build.

EZ ANTENNA

MSI EZ Antenna makes the process effortless by simply attaching fasteners to the motherboard without rotation.

DDR5

A huge step of DDR performance enhancement with the latest DDR5 memory. Combines with dedicated SMT welding process and MSI Memory Boost technology, MAG X870E GAMING MAX WIFI is ready to deliver the world-class memory performance.

HIGH-EFFICIENCY MODE

The High-Efficiency Mode is designed to optimize memory performance by increasing memory bandwidth and reducing latency. With the four sets of RAM timing settings, it allows users to find out the optimal configuration based on the quality of their memory modules.

Extended Heatsink

Extended Heatsink enlarges the surface of heat dissipation and maintain the performance at heavy loads.

Enlarged Chipset Heatsink

The enlarged heatsink is designed to reduce dust and noise and capable of maintaining high efficiency of heat dissipation.

7W/mK Thermal Pad & Additional Choke Pad

High-quality 7W/mK MOSFET thermal pads and additional choke thermal pads ensure stable performance when all cores are runnging at high speed.

Heavy Plated VRM Heatsink

The VRM heatsink covers the upper MOS and helps dissipate the heat.

WIFI 7 SOLUTION

Wi-Fi 7 is the latest wireless solution that takes a huge leap forward with multiple improvements to meet the traffic demand brought and the growing number of wireless devices.

STORAGE

MSI MAG series motherboards support all the latest storage standards, which allows users to connect any ultra-fast storage device. Start games faster, load levels faster and have a real advantage over your enemies.

LIGHTNING GEN 5 PCI-E

Doubling over the previous generation, the bandwidth of a x16 interface can reach 128GB/s.

SMT PCIE 5.0 SLOT

The advanced SMT(Surface Mount Technology) PCIE slot diminish interference and electrical noise, fully support the PCI-E 5.0 signal.

Steel Armor II

Compared to the previous generation, Steel Armor II's weight endurance has increased by 21%, ensuring excellent signal transmission quality

MYSTIC LIGHT

Splash on some color and vibrant RGB lighting effects using Mystic Light utility of MSI Center, which has million colors and fancy LED effects. Enjoy the full control and creativity of your PC's lighting with one software.

MAG X870E GAMING MAX WIFI

Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors
Supports DDR5 Memory, Dual Channel DDR5 up to 8200+ MT/s (OC)
Ultra Performance: 12+2+1 Duet Rail Power System 60A SPS, dual 8-pin CPU power connectors, Core Boost, Memory Boost, 6-layer PCB made by 2oz thickened copper and server-grade level material
Frozr Guard: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and EZ M.2 Shield Frozr II are built for high performance system and non-stop experience
EZ DIY: EZ M.2 Shield Frozr II, EZ M.2 Clip II, EZ PCIe Release and EZ Antenna
Lightning Fast Game experience: PCIe 5.0 slot, Lightning Gen 5 x4 M.2
Ultra Connect: USB4 and 5G LAN with Wi-Fi 7 Solution - the latest solution for professional and multimedia use, delivering secure, stable, and high-speed networking and data transmission
Audio Boost: Reward your ears with studio-grade sound quality for the most immersive gaming experience

Specifications of MSI MAG X870E Gaming Max Wifi7 DDR5 AMD Motherboard

Model	MAG X870E GAMING MAX WIFI
Chipset	AMD X870E
CPU	Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors Socket AM5
Memory	4x DDR5 UDIMM, Maximum Memory Capacity 256GB Memory Support DDR5 8200 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s Ryzen™ 9000 Series Processors max. overclocking frequency: • 1DPC 1R Max speed up to 8200+ MT/s • 1DPC 2R Max speed up to 6400+ MT/s • 2DPC 1R Max speed up to 6400+ MT/s • 2DPC 2R Max speed up to 6000+ MT/s Supports AMD POR Speed and JEDEC Speed Supports Memory Overclocking and AMD EXPO™ Supports Dual-Channel mode Supports Non-ECC, Un-buffered memory Supports CUDIMM, Clock Driver bypass mode only*
Onboard Graphics	1x HDMI™ Support HDMI™ TMDS 2.1, maximum resolution of 4K 60Hz* 1x Type-C DisplayPort USB4® port, supporting DisplayPort 1.4 with HBR3 over USB Type-C, maximum resolution of 4K 120Hz** Available only on processors featuring integrated graphics *Graphics specifications may vary depending on the CPU installed
Slot	2x PCI-E x16 slot 1x PCI-E x1 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 4.0 supports up to x4 (From Chipset) PCI_E3 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E1 slot • Supports PCIe 5.0 x16 (For Ryzen™ 9000/ 7000 Series processors) • Supports PCIe 4.0 x8 (For Ryzen™ 8700/ 8600/ 8400 Series processors) • Supports PCIe 4.0 x4 (For Ryzen™ 8500/ 8300 Series processor)
Audio	Realtek® ALC897 7.1-Channel High Definition Audio
Storage	3x M.2 M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 22110/2280 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices 4x SATA 6G M.2_1 slot (From CPU) • Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors) • Supports up to PCIe 4.0 x4 (For Ryzen™ 8000 Series processors)
RAID	•Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices •Supports RAID 0, RAID 1 and RAID 5 for M.2 NVMe storage devices *RAID 5 configuration is only supported by Ryzen™ 9000 / 7000 series processors.
USB	4x USB 2.0 (Rear) 6x USB 2.0 (Front) 2x USB 5Gbps Type A (Rear) 4x USB 5Gbps Type A (Front) 2x USB 10Gbps Type A (Rear) 1x USB 10Gbps Type C (Front) 1x USB 20Gbps Type C (Rear) 1x USB 40Gbps Type C (Rear)
LAN	1x Realtek® 8126 5G LAN
Internal IO	1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x Power Connector(PCIE_PWR 8pin) 1x CPU Fan 1x Combo Fan (Pump_Sys Fan) 6x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Tuning Controller connector(JDASH) 3x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 2x Direct OC Jumper (JBCLK) 6x USB 2.0 ports 4x USB 5Gbps Type A ports 1x USB 10Gbps Type C ports
WIRELESS LAN & BLUETOOTH	Wi-Fi 7 The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (160MHz) up to 2.9Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax/ be Supports Bluetooth® 5.4*, MLO, 4KQAM 6GHz band support may depend on every country’s regulations and Wi-Fi 7 will be ready in Windows 11 version 24H2. ** The Bluetooth version may be updated, please refer to the Wi-Fi chipset vendor’s website for details. Bluetooth 5.4 will be ready in Windows 11 version 24H2.
LED FEATURE	4x EZ Debug LED 1x EZ Memory Detection LED
BACK PANEL PORTS	Clear CMOS Button USB 5Gbps Type-A USB 2.0 5G LAN Wi-Fi / Bluetooth Audio connectors Flash BIOS Button HDMI™ USB 40Gbps Type-C USB 10Gbps Type-A USB 20Gbps Type-C USB 5Gbps Type-A
OPERATING SYSTEM	Support for Windows® 11 64-bit
PCB Info	ATX 304.8mmx243.84mm
