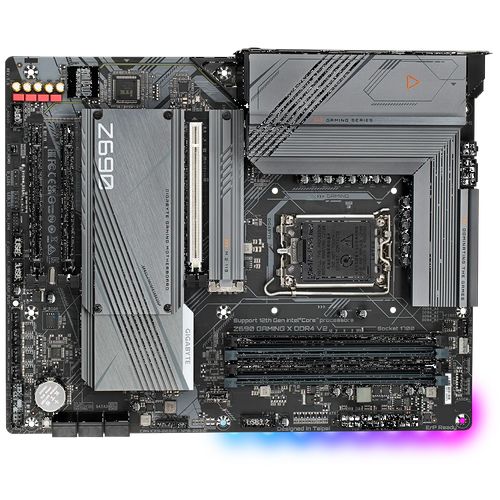

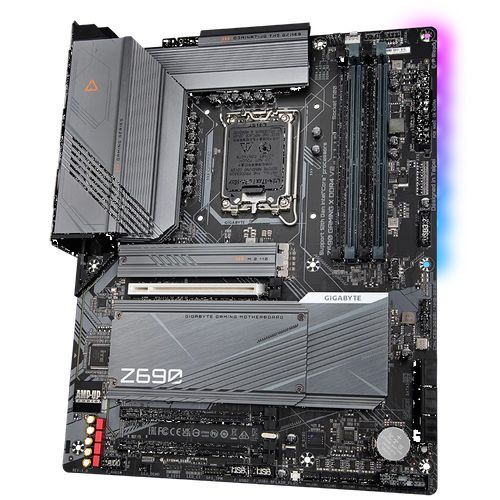

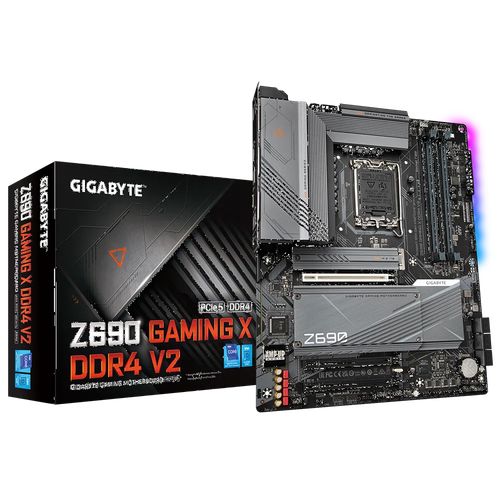

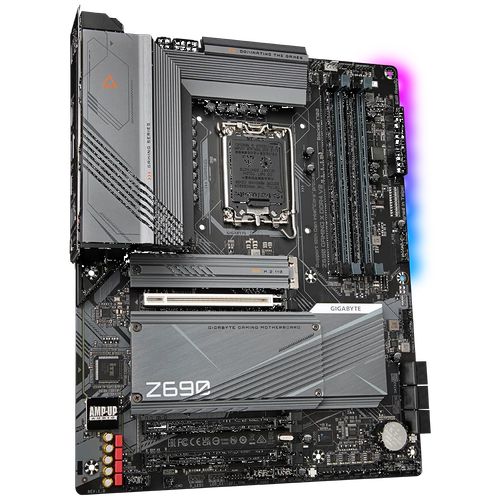

GIGABYTE Z690 Gaming X V2 DDR4 Intel Motherboard

GIGABYTE Z690 Gaming X V2 DDR4 Intel Motherboard

Name: GIGABYTE Z690 Gaming X V2 DDR4 Intel Motherboard
Brand: Gigabyte
SKU: Gigabyte-Z690-X-V2
Price: 18128.04 INR
Availability: OutOfStock

Rs. 18,128.04 Rs. 24,599.00

Discount: Rs. 6,470.96 (26%)

10 people are viewing this right now

Hurry Up! Only 0 Left in Stock!

Out of stock >

Add wishlist Delete wishlist Add compare Delete compare

Estimated Delivery: Dec 25 - Dec 29

Return within 30 days of purchase. Taxes are non-refundable.

Availability: In Stock Unavailable

Description
Additional Information
Shipping & Return
Reviews

Feature of GIGABYTE Z690 Gaming X V2 DDR4 Intel Motherboard

Intel^® Z690 GAMING Motherboard with 16*+1+2 Twin Hybrid Phases Digital Power Design , PCIe 5.0 Design, Fully Covered Thermal Design, 4 x PCIe 4.0 M.2 with Enlarged Thermal Guard, 2.5GbE LAN, 120dB Hi-Res Audio with WIMA, Rear USB 3.2 Gen2x2 TYPE-C^®, RGB FUSION 2.0, Q-Flash Plus

Supports 12th Gen Intel^® Core™ Series Processors
Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs
16*+1+2 Twin Hybrid Phases Digital Power Design with 70A Power Stage and Tantalum Polymer Capacitor
Shielded Memory Routing to Avoid Interference
Fully Covered Thermal Design with High Coverage MOSFET Heatsinks
AMP-UP Audio with ALC1220 and WIMA Audio Capacitors
Fast 2.5GbE LAN with Bandwidth Management
4 x Ultra-Fast NVMe PCIe 4.0/3.0 x4 M.2 with Enlarged Thermal Guards
SuperSpeed USB 3.2 Gen2x2 TYPE-C^® delivers up to 20Gb/s transfer speeds
RGB FUSION 2.0 with Multi-Zone Addressable LED Light Show Design, Support Addressable LED & RGB LED Strips
Smart Fan 6 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card

UNPARALLELED PERFORMANCE

Gigabyte Z690 Gaming X DDR4 With technology moving so fast, GIGABYTE still keep up with the latest trends and provide our customers with advanced features and latest technology. GIAGBYTE Z690 Series motherboards come with upgraded power solution, latest storage standards and outstanding connectivity to enable optimize performance for gaming.

NEXT GENERATION CONNECTIVITY

Gigabyte Z690 Gaming X DDR4 Motherboard let you experience ultimate connection flexibility and blazing data-transfer speed with next generation network and storage connectivity.

DEFINITIVE AESTHETICS

Gigabyte Z690 Gaming X DDR4 motherboards bundle several useful and intuitive software to help users to control every aspect of motherboard and provide customizable lighting effect with outstanding aesthetics to fit your unique personality.

ULTRA DURABLE

Gigabyte Z690 Gaming X DDR4 V2 motherboard its product durability and high-quality manufacturing process. GIGABYTE motherboards use the best components and reinforce every slots to make each of them solid and durable.

Specifications of GIGABYTE Z690 Gaming X V2 DDR4 Intel Motherboard

CPU	LGA1700 socket: Support for 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors*
	L3 cache varies with CPU
	* Please refer to "CPU Support List" for more information.
Chipset	Intel® Z690 Express Chipset
Memory	Support for DDR4 5333(O.C.)/ DDR4 5133(O.C.)/DDR4 5000(O.C.)/4933(O.C.)/4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 3000 / 2933 / 2800 / 2666 / 2400 / 2133 MHz memory modules
	4 x DDR DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
	Dual channel memory architecture
	Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
	Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
	Support for Extreme Memory Profile (XMP) memory modules
	(Please refer "Memory Support List" for more information.)
Onboard Graphics	Integrated Graphics Processor-Intel® HD Graphics support:
	1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
	* Support for HDMI 2.1 version and HDCP 2.3.
	** Support native HDMI 2.1 TMDS compatible ports.
	1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz
	* Support for DisplayPort 1.2 version and HDCP 2.3
	(Graphics specifications may vary depending on CPU support.)
Audio	Realtek® ALC1220-VB CODEC
	* The back panel line out jack supports DSD audio.
	High Definition Audio
	2-channel analog output
	Support for S/PDIF Out
	7.1-channel digital signals
	* Actual output of digital signals may vary depending on the playback content and software used, and an external DAC is required.
LAN	Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Expansion Slots	1 x PCI Express x16 slot, running at x16 (PCIEX16)
	* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
	(The PCIEX16 slot conforms to PCI Express 5.0 standard.)
	2 x PCI Express x16 slots, running at x4 (PCIEX4_1, PCIEX4_2)
	(The PCIEX4 slots conform to PCI Express 3.0 standard.)
Multi-Graphics Technology	Support for AMD Quad-GPU CrossFire™ and 2-Way AMD CrossFire™ technologies
Storage Interface	CPU:
	1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
	Chipset:
	2 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2P_SB, M2Q_SB)
	1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 SATA and PCIe 4.0 x4/x2 SSD support) (M2M_SB)
	6 x SATA 6Gb/s connectors
	Support for RAID 0, RAID 1, RAID 5, and RAID 10
	* Refer to "2-7 Internal Connectors," for the installation notices for the M.2 and SATA connectors.
	Intel® Optane™ Memory Ready
	* System acceleration with Intel® Optane™ Memory can only be enabled on the M.2 connectors supported by the Chipset.
USB	Chipset:
	1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2x2 support
	1 x USB Type-C® port with USB 3.2 Gen 2 support, available through the internal USB header
	2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
	5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header)
	Chipset+2 USB 2.0 Hubs:
	8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
Internal I/O Connectors	1 x 24-pin ATX main power connector
	1 x 8-pin ATX 12V power connector
	1 x 4-pin ATX 12V power connector
	1 x CPU fan header
	1 x water cooling CPU fan header
	3 x system fan headers
	1 x system fan/water cooling pump header
	2 x addressable LED strip headers
	2 x RGB LED strip headers
	4 x M.2 Socket 3 connectors
	6 x SATA 6Gb/s connectors
	1 x front panel header
	1 x front panel audio header
	1 x USB Type-C® header, with USB 3.2 Gen 2 support
	1 x USB 3.2 Gen 1 header
	2 x USB 2.0/1.1 headers
	2 x Thunderbolt™ add-in card connectors
	1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
	1 x reset button
	1 x reset jumper
	1 x Q-Flash Plus button
	1 x Clear CMOS jumper

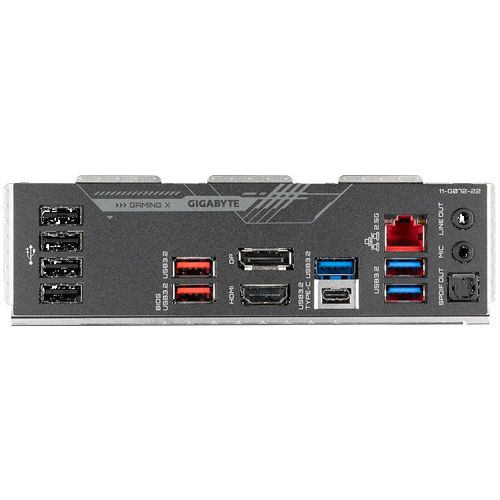

Back Panel Connectors	1 x USB Type-C® port, with USB 3.2 Gen 2x2 support
	2 x USB 3.2 Gen 2 Type-A ports (red)
	3 x USB 3.2 Gen 1 ports
	4 x USB 2.0/1.1 ports
	1 x HDMI port
	1 x DisplayPort
	1 x RJ-45 port
	1 x optical S/PDIF Out connector
	2 x audio jacks
I/O Controller	iTE® I/O Controller Chip
H/W Monitoring	Voltage detection
	Temperature detection
	Fan speed detection
	Water cooling flow rate detection
	Fan fail warning
	Fan speed control
	* Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.
BIOS	1 x 256 Mbit flash
	Use of licensed AMI UEFI BIOS
	PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features	Support for APP Center
	* Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
	@BIOS
	EasyTune
	Fast Boot
	Game Boost
	ON/OFF Charge
	RGB Fusion
	Smart Backup
	System Information Viewer
	Support for Q-Flash Plus
	Support for Q-Flash
	Support for Xpress Install
Bundle Software	Norton® Internet Security (OEM version)
	LAN bandwidth management software
Operating System	Support for Windows 11 64-bit
	Support for Windows 10 64-bit
Form Factor	ATX Form Factor; 30.5cm x 24.4cm
