GIGABYTE B660 Gaming X DDR5 Intel Motherboard

GIGABYTE B660 Gaming X DDR5 Intel Motherboard

Name: GIGABYTE B660 Gaming X DDR5 Intel Motherboard
Brand: Gigabyte
SKU: gigabyte-b660-gaming-x-ddr5
Price: 16049.46 INR
Availability: OutOfStock

Rs. 16,049.46 Rs. 24,990.00

Discount: Rs. 8,940.54 (36%)

12 people are viewing this right now

Hurry Up! Only 0 Left in Stock!

Out of stock >

Add wishlist Delete wishlist Add compare Delete compare

Estimated Delivery: Dec 25 - Dec 29

Return within 30 days of purchase. Taxes are non-refundable.

Availability: In Stock Unavailable

Description
Additional Information
Shipping & Return
Reviews

Feature of Gigabyte B660 Gaming X DDR5

XTREME MEMORY

GIGABYTE B660 Gaming X DDR5 Motherboards feature the latest DDR5 architecture and XMP 3.0 capability. The new DDR5 memory technology brings 50% more bandwidth to the platform and increases the system performance drastically by implementing Unlocked Native DDR5 Voltage, Xtreme Memory Routing and reliable SMD slot. In addition to the hardware upgrades, the user friendly UI provides full functionality to overclock higher with exclusive DDR5 tuning capability.

NEXT GENERATION CONNECTIVITY

GIGABYTE B660 Series Motherboards let you experience ultimate connection flexibility and blazing data-transfer speed with next generation network and storage connectivity.

DEFINITIVE AESTHETICS

GIGABYTE motherboards bundle several useful and intuitive software to help users to control every aspect of motherboard and provide customizable lighting effect with outstanding aesthetics to fit your unique personality.

ULTRA DURABLE

GIGABYTE Ultra Durable™ features its product durability and high-quality manufacturing process. GIGABYTE motherboards use the best components and reinforce every slots to make each of them solid and durable.

Specifications of Gigabyte B660 Gaming X DDR5

Model
Brand	GIGABYTE
Model	B660 GAMING X
Supported CPU
CPU Socket Type	LGA1700
CPU Type	12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors
Chipsets
Chipset	Intel® B660 Express Chipset
Memory
Number of Memory Slots	4 x DDR DIMM
Memory Standard	DDR5
Maximum Memory Supported	128 GB
Channel Supported	Dual Channel
Expansion Slots
PCI Express 2.0 x16	1
PCI Express x4	1
PCI Slots	1 x PCI Express x16 slot, running at x16 (PCIEX16) * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. (The PCIEX16 slot c
Storage Devices
SATA RAID	RAID 0, RAID 1, RAID 5, and RAID 10
Additional RAID Controller	4 x SATA 6Gb/s
Onboard Video
Onboard Video Chipset	Intel® B660 Express Chipset
Onboard Audio
Audio Channels	7.1-Channel High Definition Audio CODEC
Onboard LAN
LAN Chipset	Intel® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Max LAN Speed	10/100/1000

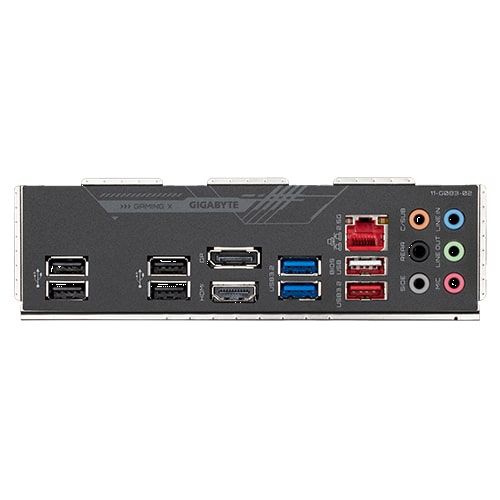

Rear Panel Ports
USB	1 x USB Type-C® port with USB 3.2 Gen 2 support, available through the internal USB header 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel 4 x USB 3.2 Gen 1 ports (2 ports on the back panel,
S/PDIF Out	Support for S/PDIF Out
Audio Ports	Realtek® Audio CODEC
Video Ports	1 x HDMI port 1 x DisplayPort
HDMI	1 x HDMI 2.0 port
Onboard USB
Onboard USB	1 x USB Type-C® header, with USB 3.2 Gen 1 support; 1 x USB 3.2 Gen 1 header; 2 x USB 2.0/1.1 headers
Onboard 1394
Onboard 1394	N/A
Physical Spec
Form Factor	ATX Form Factor
Power Pin	1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector
Dimensions	30.5 cm x 24.3 cm
