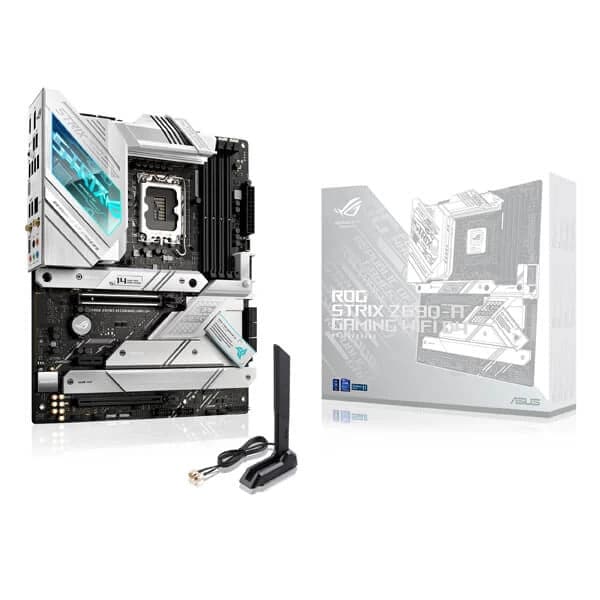

ASUS ROG Strix Z690-A Gaming Wifi DDR4 Intel Motherboard

ASUS ROG Strix Z690-A Gaming Wifi DDR4 Intel Motherboard

Name: ASUS ROG Strix Z690-A Gaming Wifi DDR4 Intel Motherboard
Brand: Asus
SKU: asus-strix-z690-a-wifi
Price: 34944.84 INR
Availability: OutOfStock

Rs. 34,944.84 Rs. 38,000.00

Discount: Rs. 3,055.16 (8%)

12 people are viewing this right now

Hurry Up! Only 0 Left in Stock!

Out of stock >

Add wishlist Delete wishlist Add compare Delete compare

Estimated Delivery: Dec 26 - Dec 30

Return within 30 days of purchase. Taxes are non-refundable.

Availability: In Stock Unavailable

Description
Additional Information
Shipping & Return
Reviews

Feature of ASUS ROG Strix Z690-A Gaming Wifi DDR4 Intel Motherboard

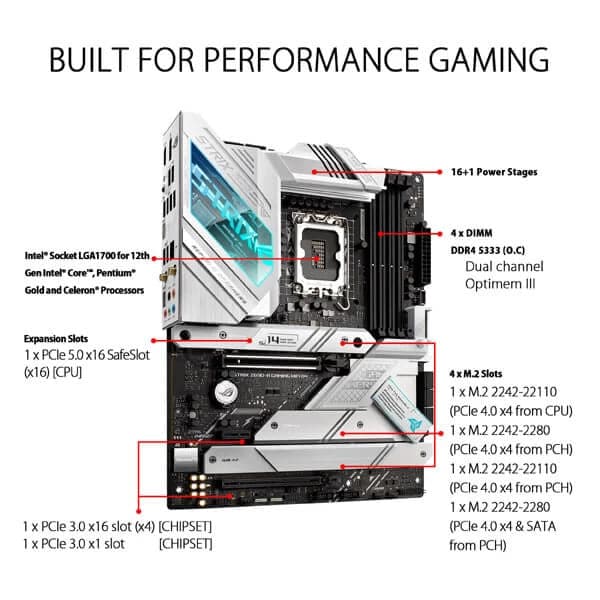

Intel®Z690 LGA 1700 ATX motherboard with PCIe®5.0, 16+1 DrMos, Two-Way AI Noise Cancelation, AI Overclocking, AI Cooling, AI Networking, WiFi 6 (802.11ax), Intel®2.5 Gb Ethernet, four M.2 slots with heatsinks PCIe 4.0 NVMe®SSD support, M.2 backplate, PCIe®Slot Q-Release, USB 3.2 Gen 2x2 Type-C®, SATA and AURA Sync RGB lighting
-Intel® LGA 1700 socket: Ready for 12th Gen Intel Core™, Pentium® Gold and Celeron® Processors
-Optimal Power Solution: 16+1 DrMos with ProCool II power connector, high-quality alloy chokes and durable capacitors to support multi-core processors

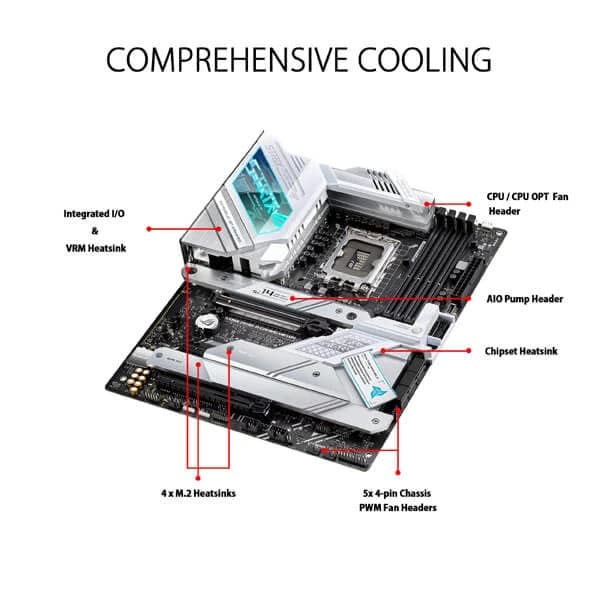

-Optimized Thermal Design: Integrated I/O cover and VRM heatsinks with high conductivity thermal pad, four onboard M.2 heatsinks and M.2 backplate for the M.2_1 slot
-High-performance Networking: On-board Intel® WiFi 6 (802.11ax) and Intel® 2.5 Gb Ethernet with ASUS LANGuard
-Best Gaming Connectivity: Supports HDMI® 2.1 and DisplayPort™ 1.4 output, four M.2 slots, as well as USB 3.2 Gen 2x2 Type-C®
-Intelligent Control: ASUS-exclusive AI Overclocking and Two-Way AI Noise Cancelation to simplify setup and improve performance
-DIY Friendly Design: PCIe®Slot Q-Release, M.2 Q-Latch, ROG Reusable Cable Organizer, pre-mounted I/O shield, BIOS FlashBack™ button, and Clr CMOS button

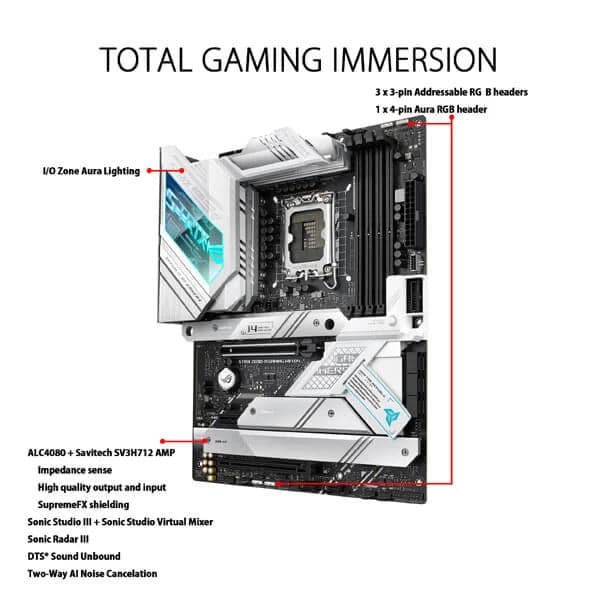

-Unmatched Personalization: ASUS-exclusive Aura Sync RGB lighting, including an RGB header and three addressable Gen 2 headers
-Industry-leading Gaming Audio: High fidelity audio with ALC4080 with Savitech SV3H712 amplifier, along with DTS® Sound Unbound and Sonic Studio III
-Renowned Software: Bundled AIDA64 Extreme 60 days free trial version and intuitive UEFI BIOS dashboard with integrated MemTest86

ROG STRIX Z690-A GAMING WIFI D4

The ROG Strix Z690-A Gaming WiFi D4 motherboard deploys robust power delivery and cooling to unleash the full force of 12th Gen Intel® Core™ processors, all orchestrated by ASUS-exclusive intelligent controls that deliver advanced user experiences. Meanwhile, onboard WiFi 6 and ample PCIe® 4.0 M.2 slots bring the speed that you need, and DIY-friendly innovations help simplify the PC building process. To top it all off, Strix Z690-A Gaming WiFi D4 dazzles with customizable RGB lighting and a refined brushed-metal finish.

ALL-ROUND PERFORMANCE

ASUS ROG Strix Z690-A Gaming Wifi DDR4 provides up-rated power delivery and optimized cooling to push any gaming build to its limits. Intelligent controls enable easy management of overclocking, cooling and networking settings, while Two-Way AI Noise Cancelation ensures crystal-clear in-game communication.ROG Strix Z690-A Gaming WiFi D4 is armed with all the essentials
required to create a gaming PC with top-tier performance.

LEADING CONNECTIVITY

ROG Strix Z690-A Gaming WiFi-A D4 delivers wickedly fast conncetivity for supersmooth online experinces and data transfers. Add alongside those perks, we've managed to cram in an advanced audio solution that allows you to pick out the smallest cues and home in on your opponents.

OptiMem III

With proprietary memory trace layout tweaks that improve signal integrity and mitigate noise, OptiMem III allows memory kits to run at lower latencies, reduced voltages, and operate at higher frequencies. Stack ROG Strix Z690-A Gaming WiFi D4 with your favorite modules and maximize the throughput of the 12th Gen Intel Core Alder Lake processor for applications that demand massive bandwidth.

PCIe Performance

With four strategically placed M.2 slots, ROG Strix Z690-A Gaming WiFi D4 takes full advantage of CPU and chipset bandwidth to usher in support for dizzyingly quick PCIe® Gen 4.0 SSDs, lightning-fast Intel NVM Express® RAID, and high-capacity drives that blaze past traditional SATA-based storage.

PLAY IN STYLE

Pair ROG Strix Z690-A Gaming WiFi D4 with other products from the diverse ROG ecosystem to create a fully customized gaming setup that reflects your personal style.

UNDENIABLY ROG STRIX

A specially illuminated acrylic display on the I/O cover gives the illusion that the circuit board is visible beneath an RGB ROG logo. Meanwhile, touches of brushed metal throughout the motherboard, plus the stitched fabric of the ROG Strix Cable organizer, deliver a variety of carefully crafted surface textures. Last but not least, a special lighting pattern built into the motherboard finishes off a colorful tour of the ROG worldview.

UEFI BIOS

The renowned ROG UEFI (BIOS) provides everything you need to configure, tweak, and tune your rig. It offers intelligently simplified options for newcomers to PC DIY, as well as more comprehensive features for seasoned veterans.

5-WAY OPTIMIZATION

Specifications of ASUS ROG Strix Z690-A Gaming Wifi DDR4 Intel Motherboard

CPU	Intel® Socket LGA1700 for 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0** * Refer to www.asus.com for CPU support list. ** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.
Chipset	Intel® Z690 Chipset
Memory	4 x DIMM, Max. 128GB, DDR4 5333(OC)/5000(OC)/4800(OC)/ 4700(OC)/4600(OC)/4500(OC)/4400(OC)/4266(OC)/4133(OC)/ 4000(OC)/3866(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/ 3333(OC)/3300(OC)/3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory* Dual Channel Memory Architecture Supports Intel® Extreme Memory Profile (XMP) OptiMem III *Actual Memory frequency support depends on the CPU types and DRAM modules, for more information refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
Graphics	1 x DisplayPort 1 x HDMI® port* Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates. * Support 8K@60Hz as specified in DisplayPort 1.4. *Support 4K@60Hz as specified in HDMI® 2.1. ** VGA resolution support depends on processors' or graphic cards' resolution.
Expansion Slots	Intel® 12th Gen Processors 1 x PCIe 5.0/4.0/3.0 x16 slot* Intel® Z690 Chipset** 1 x PCIe 3.0 x16 slot (supports x4 mode)* 1 x PCIe 3.0 x1 slot * Please check PCIe bifurcation table in User Guide Chapter 1 // support site. ** Supports Intel® Optane Memory H Series on PCH-attached PCIe slot
Storage	Intel® 12th Gen Processors M.2_1 slot (Key M), type 2242/2260/2280/22110 - Intel® 12th Gen processors support PCIe 4.0 x4 mode. Intel® Z690 Chipset M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes) 6 x SATA 6Gb/s ports* * Intel® Rapid Storage Technology supports NVMe RAID 0/1/5, SATA RAID 0/1/5/10. When M.2_4 is operating in SATA mode, SATA6G_2 will be disabled. * RAID configuration and optical disc drives are not supported on the SATA6G_E1-2 ports.
Ethernet	1 x Intel® 2.5Gb Ethernet
Wireless & Bluetooth	Intel® Wi-Fi 6 2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) Supports 2.4/5GHz frequency band Bluetooth v5.2
USB	Rear USB: Total 10 ports 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®) 3 x USB 3.2 Gen 2 ports (2 x Type-A + 1 x USB Type-C®) 4 x USB 3.2 Gen 1 ports (4 x Type-A) 2 x USB 2.0 ports (2 x Type-A) Front USB: Total 7 ports 1 x USB 3.2 Gen 2x2 connector (supports USB Type-C®) 1 x USB 3.2 Gen 1 header support(s) additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports
Audio	ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080 - Impedance sense for front and rear headphone outputs - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input - Supports up to 32-Bit/384 kHz playback Audio Features - SupremeFX Shielding Technology - Savitech SV3H712 AMP - Premium audio capacitors - Audio cover * Due to limitations in HDA bandwidth, 32-Bit/192 kHz is not supported for 7.1 Surround Sound audio. ** A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

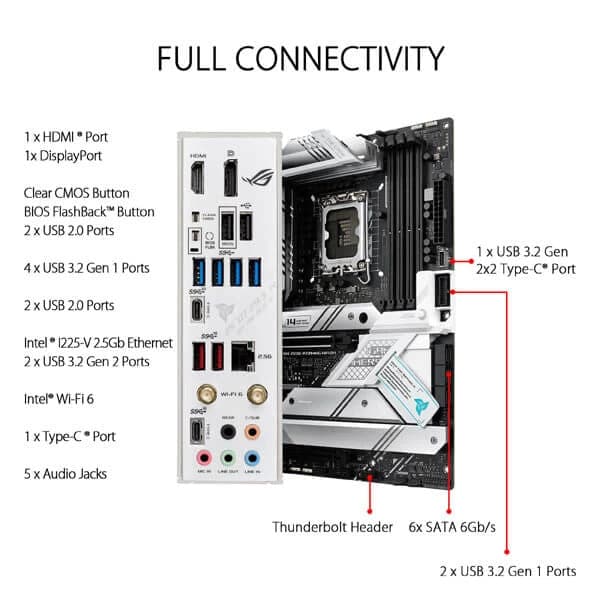

Back Panel I/O Ports	1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®) 3 x USB 3.2 Gen 2 ports (2 x Type-A, 1 x USB Type-C®) 4 x USB 3.2 Gen 1 ports (4 x Type-A) 2 x USB 2.0 ports (2 x Type-A) 1 x DisplayPort 1 x HDMI® port 1 x Wi-Fi Module 1 x Intel® 2.5Gb Ethernet port 5 x Audio jacks 1 x BIOS FlashBack™ button 1 x Clear CMOS button
Intrernal I/O Connectors	Fan and cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 5 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 2 x 8-pin +12V Power connectors Storage related 4 x M.2 slots (Key M) 6 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 2x2 connector (support USB Type-C®) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 headers 1 x AURA RGB header 1 x Clear CMOS header 1 x CPU Over Voltage jumper 1 x 12-1 pin Front Panel Audio header (AAFP) 1 x S/PDIF Out header 1 x SPI TPM header (14-1pin) 1 x 20-3 pin System Panel header with Chassis intrude function 1 x Thermal Sensor header 1 x Thunderbolt™ header
Special Features	Extreme Engine Digi+ -5K Black Metallic Capacitors ASUS Q-Design - M.2 Q-Latch - PCIe Slot Q-Release - Q-DIMM - Q-LED (CPU , DRAM , VGA , Boot Device ) - Q-Slot ASUS Thermal Solution - M.2 heatsink backplate - M.2 heatsink - VRM heatsink design ASUS EZ DIY - BIOS FlashBack™ button - BIOS FlashBack™ LED - Clear CMOS button - CPU Socket lever protector - ProCool II - Pre-mounted I/O shield - SafeSlot - SafeDIMM AURA Sync - AURA RGB header - Addressable Gen 2 headers ASUS HYDRANODE - 1 x 12-1 pin Front Panel Audio header (AAFP) - 1 x Chassis fan support* (CHA_FAN1P) * Visit ASUS Website for the latest compatibility list.
Software Features	ROG Exclusive Software - GameFirst VI - ROG CPU-Z - Sonic Studio III + Sonic Studio Virtual Mixer + Sonic Suite Companion - Sonic Radar III - DTS® Sound Unbound - Anti-virus software ASUS Exclusive Software Armoury Crate - AIDA64 Extreme (60 days free trial) - AURA Creator - AURA Sync - Fan Xpert 4 - Two-Way AI Noise Cancelation AI Suite 3 - Easy Optimization with AI Overclocking TPU EPU DIGI+ VRM Turbo app MyAsus WinRAR UEFI BIOS AI Overclocking Guide ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode FlexKey MemTest86
BIOS	256 Mb Flash ROM, UEFI AMI BIOS
Manageability	WOL by PME, PXE

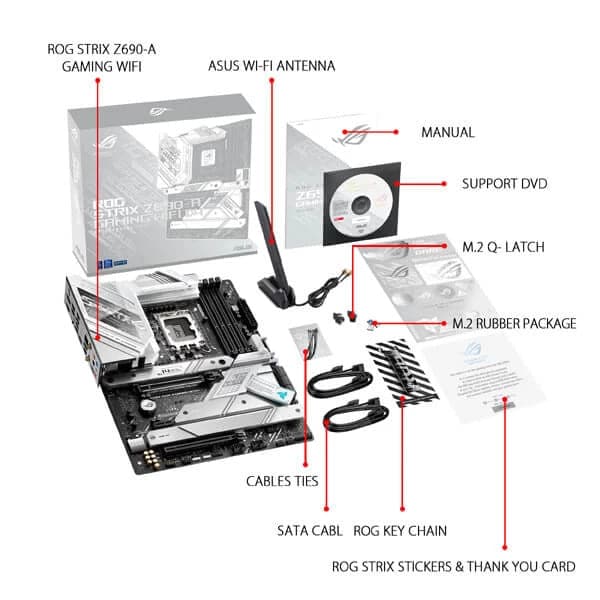

Accessories	Cables 4 x SATA 6Gb/s cables Miscellaneous 1 x ASUS Wi-Fi moving antennas 1 x Cable ties pack 1 x M.2 Rubber Package 1 x M.2 Q-Latch package 1 x ROG key chain 1 x ROG Strix stickers 1 x ROG Strix thank you card Installation Media 1 x Support DVD Documentation 1 x User guide
Operating System	Windows® 11 64-bit, Windows® 10 64-bit
Form Factor	ATX 30.5cm x 24.4cm
Warranty	3 Years
Note	*** Features, Price, Specifications are subject to change without notice.
