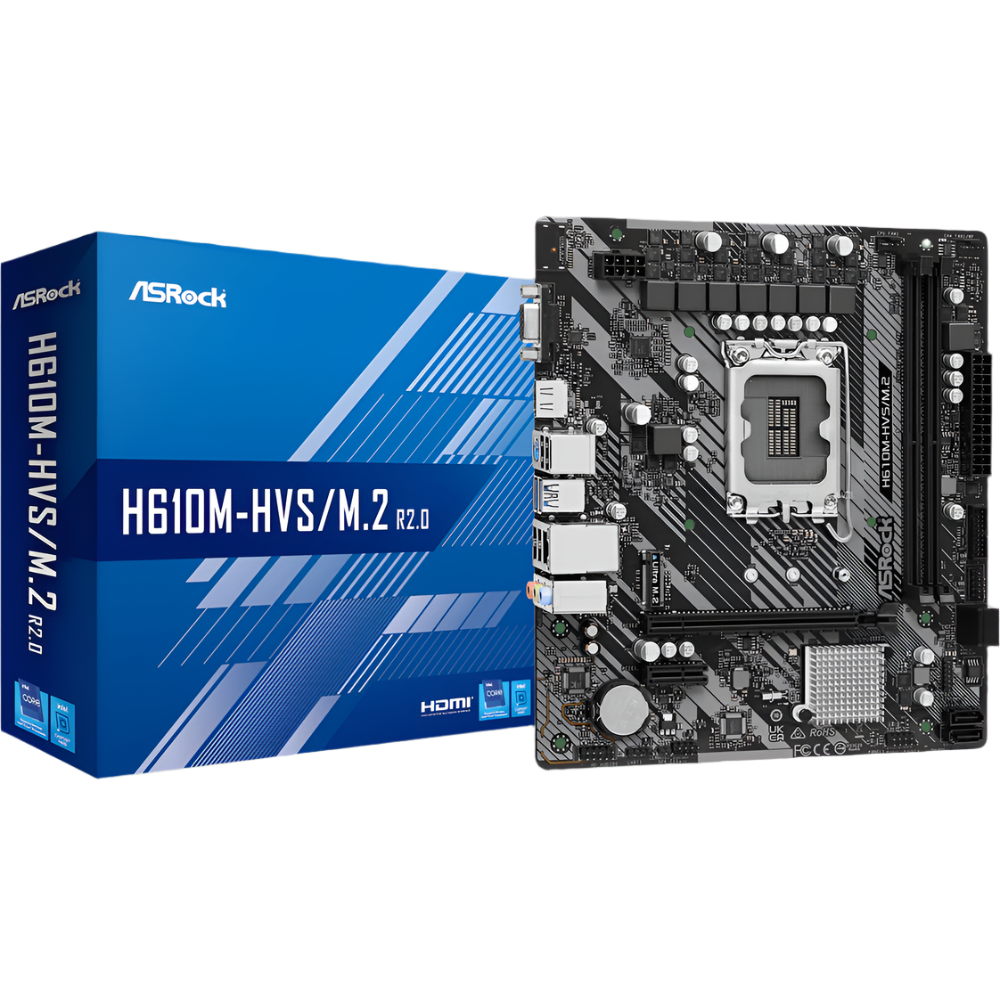

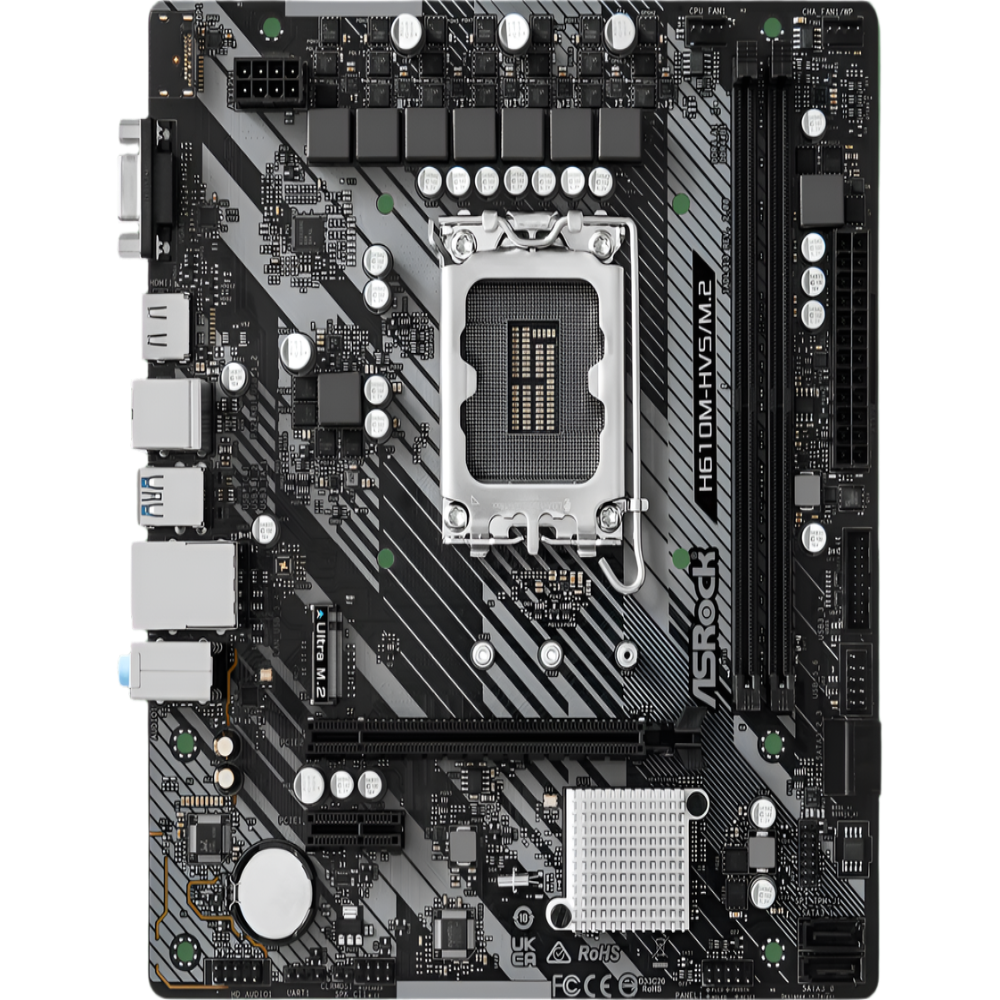

ASROCK H610M-HVS/M.2 R2.0 DDR4 Intel Motherboard

ASROCK H610M-HVS/M.2 R2.0 DDR4 Intel Motherboard

Name: ASROCK H610M-HVS/M.2 R2.0 DDR4 Intel Motherboard
Brand: ASROCK
SKU: ASRock-H610M-HVS/M.2-R2.0
Price: 6088.9 INR
Availability: InStock

Rs. 6,088.90 Rs. 8,989.00

Discount: Rs. 2,900.10 (32%)

Out of stock >

Add wishlist Delete wishlist Add compare Delete compare

Estimated Delivery: Jun 12 - Jun 16

Description
Additional Information
Shipping & Return
Reviews

Features of ASROCK H610M-HVS/M.2 R2.0 DDR4

Supports 14th, 13th & 12th Gen Intel® Core™ Processors (LGA1700)
6+1+1 Phase Power Design
Supports DDR4 3200MHz
1 PCIe 4.0 x16, 1 PCIe 3.0 x1
Graphics Output Options: HDMI, D-Sub
Realtek ALC897 7.1 CH HD Audio Codec
4 SATA3
1 Ultra M.2 (PCIe Gen3 x4)
4 USB 3.2 Gen1 (2 Rear, 2 Front)
6 USB 2.0 (4 Rear, 2 Front)
Realtek Gigabit LAN

Digi Power

Unlike traditional motherboards that use analog power, this motherboard uses a next generation digital PWM (Pulse-Width Modulation) design, which provides CPU Vcore voltage more efficiently and smoothly, so that the stability and lifespan of the motherboard is greatly enhanced.

Dual Graphics Outputs

Complete with two types of most used connectors! Packed with a D-Sub + HDMI combo, you have more graphics output options now.

HDMI 4k @60Hz

Supports the most recent HDMI 4K 60Hz graphics output specification. With the larger bandwidth and increased frame rate, the motion on your screen becomes more fluid and less blurry.

Full Spike Protection

Some sensitive digital components on the motherboard are vulnerable to power surges, the excessive current may cause your system to malfunction immediately. ASRock Full Spike Protection includes various technologies to prevent your motherboard’s components from being damaged by these unexpected voltage spikes.

Specifications of ASROCK H610M-HVS/M.2 R2.0 DDR4

Model	H610M-HVS/M.2 R2.0
Unique Feature	ASRock Super Alloy Premium Power Choke Sapphire Black PCB High Density Glass Fabric PCB ASRock Ultra M.2 (PCIe Gen3x4) ASRock Full Spike Protection (for all USB, Audio, LAN Ports) ASRock Live Update & APP Shop
CPU	Supports 14th, 13th & 12th Gen Intel® Core™ Processors (LGA1700) 6+1+1 Power Phase design Supports Intel® Hybrid Technology Supports Intel® Turbo Boost Max 3.0 Technology
Chipset	Intel® H610
Memory	Dual Channel DDR4 Memory Technology 2 x DDR4 DIMM Slots Supports DDR4 non-ECC, un-buffered memory up to 3200 Supports ECC UDIMM memory modules (operate in non-ECC mode) Max. capacity of system memory: 64GB Supports Intel® Extreme Memory Profile (XMP) 2.0
BIOS	128Mb AMI UEFI Legal BIOS with multilingual GUI support ACPI 6.0 Compliant wake up events SMBIOS 2.7 Support CPU Core/Cache, CPU Core/Cache Load-Line, CPU GT, CPU GT Load-Line, DRAM, +0.82V PCH, +1.05V PCH, VCCIN AUX, +1.8V PROC, +1.05V PROC Voltage Multi-adjustment
Graphics	Intel® Xe Graphics Architecture (Gen 12) Dual graphics output: support HDMI and D-Sub ports by independent display controllers Supports HDMI 2.1 TMDS Compatible with max. resolution up to 4K x 2K (4096x2160) @ 60Hz Supports D-Sub with max. resolution up to 1920x1200 @ 60Hz Supports HDCP 2.3 with HDMI 2.1 TMDS Compatible Port
Audio	7.1 CH HD Audio (Realtek ALC897 Audio Codec) Supports Surge Protection
LAN	PCIE x1 Gigabit LAN 10/100/1000 Mb/s 1 x Realtek RTL8111H Supports Wake-On-LAN Supports Lightning/ESD Protection Supports Energy Efficient Ethernet 802.3az Supports PXE
Slots	CPU: 1 x PCIe 4.0 x16 Slot (PCIE2), supports x16 mode* Chipset: 1 x PCIe 3.0 x1 Slot (PCIE1)
Storage	Chipset: 1 x Ultra M.2 Socket (M2_2, Key M), supports type 2242/2260/2280 PCIe Gen3x4 (32 Gb/s) mode* 4 x SATA3 6.0 Gb/s Connectors
Connector	1 x SPI TPM Header 1 x Chassis Intrusion and Speaker Header 1 x CPU Fan Connector (4-pin)* 1 x Chassis/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)** 1 x 24 pin ATX Power Connector 1 x 8 pin 12V Power Connector 1 x Front Panel Audio Connector 1 x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports ESD Protection) 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection)

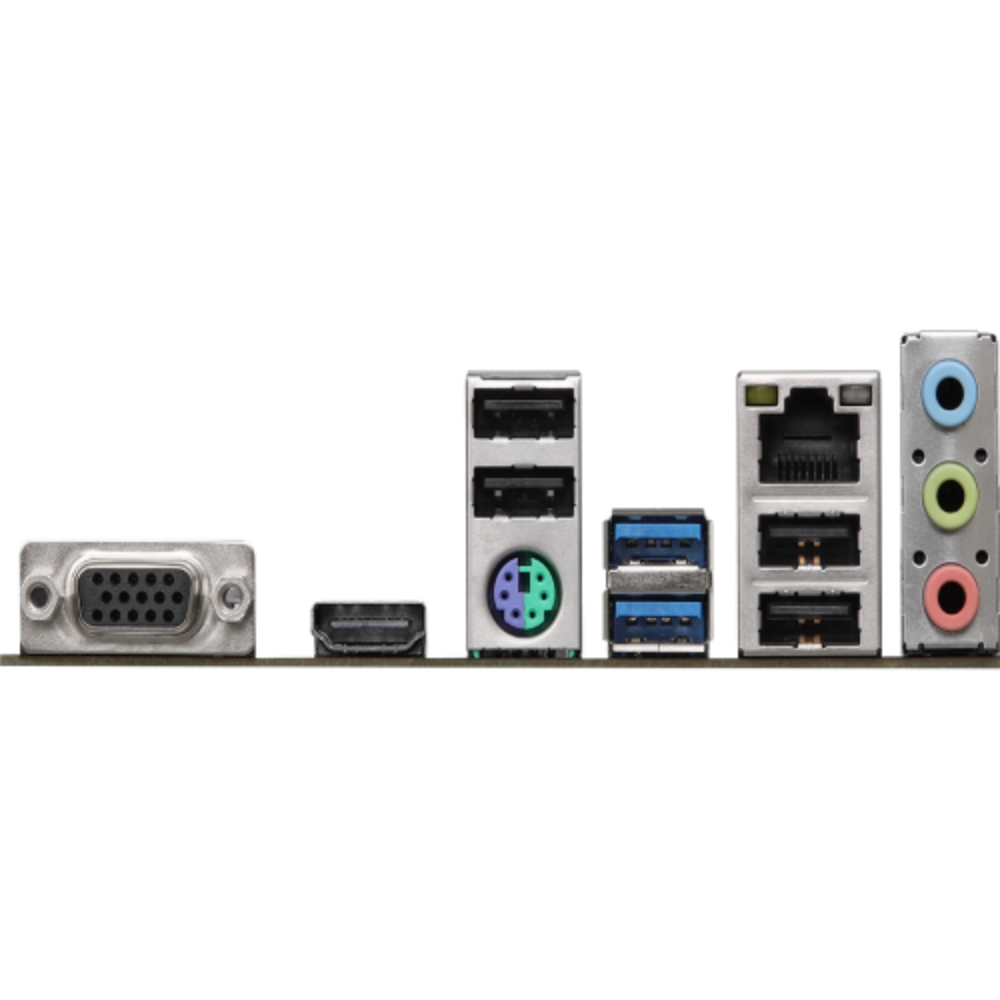

Rear Panel I/O	1 x PS/2 Mouse/Keyboard Port 1 x D-Sub Port 1 x HDMI Port 2 x USB 3.2 Gen1 Ports (Supports ESD Protection) 4 x USB 2.0 Ports (Supports ESD Protection) 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED) HD Audio Jacks: Line in / Front Speaker / Microphone
Software and UEFI	Software ASRock Motherboard Utility (A-Tuning) ASRock XFast LAN UEFI ASRock EZ Mode ASRock Full HD UEFI ASRock My Favorites in UEFI ASRock Instant Flash
Support CD	Drivers, Utilities, AntiVirus Software (Trial Version)
Accessories	Quick Installation Guide, Support CD, I/O Shield 2 x SATA Data Cables 1 x Screw for M.2 Socket
Hardware Monitor	Fan Tachometer: CPU, Chassis/Water Pump Fans Quiet Fan (Auto adjust chassis fan speed by CPU temperature): CPU, Chassis/Water Pump Fans Fan Multi-Speed Control: CPU, Chassis/Water Pump Fans CASE OPEN detection Voltage monitoring: CPU Vcore, DRAM, +0.82V PCH, +1.05V PCH, VCCIN AUX, VCCSA, +1.05V PROC, +12V, +5V, +3.3V
Form Factor	Micro ATX Form Factor: 8.66-in x 7.6-in, 22.0 cm x 19.3 cm Solid Capacitor design
OS	Microsoft® Windows® 10 64-bit / 11 64-bit
Certifications	FCC, CE ErP/EuP ready (ErP/EuP ready power supply is required)
Warranty	3 Years
Note	*** Features, Price, Specifications are subject to change without notice.
