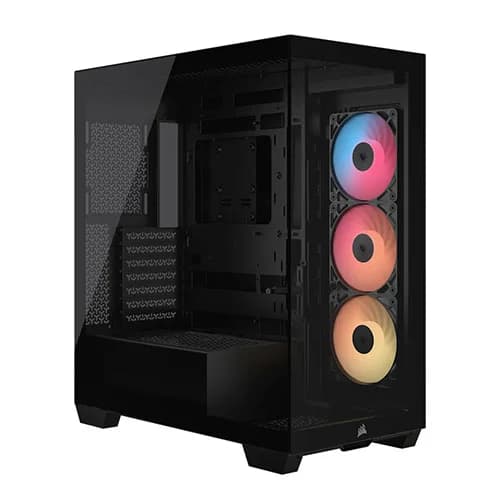

CORSAIR 3500X RS-R ARGB EATX Mid Tower Cabinet ( Black )

Features of CORSAIR 3500X RS-R ARGB EATX Mid Tower Cabinet ( Black )

• Wraparound glass view with removable front and side panels
• Three pre-installed RS120-R ARGB fans
• Builder-friendly features for a high-performance custom PC
• Side, roof, and PSU fan mounting points for great cooling
• Compatible with reverse connection motherboards

BUILD WITHOUT BOUNDARIES

You don’t need a large footprint to build a decked-out PC. The 3500X accommodates most large graphics cards and CPU coolers, 360mm radiators, and even E-ATX motherboards, without taking up your entire desk.

REVERSE MOTHERBOARD SUPPORT

Validated for use with ASUS BTF, MSI Project Zero, and GIGABYTE Project Stealth motherboards featuring connections on the back of the board, so your view isn’t spoiled by cables.

INCLUDES RS120-R ARGB PERFORMANCE FANS

Three RS120-R ARGB fans deliver great cooling and vivid lighting, with daisy-chain connections for simple setup. Their reverse-rotor design keeps the vibrant LEDs fully visible, so lighting effects remain clear and unobstructed.

These fans incorporate CORSAIR Magnetic Dome bearings, AirGuide technology, and custom-engineered fan blades, delivering exceptional cooling performance for both radiator and case setups.

COOLING PERFORMANCE

Strong cooling is paramount for a modern PC, and the 3500X excels with side, roof, and PSU fan mounts so you can cover all the angles. And with 360mm radiator mounting points in the side and roof, you’ll have plenty of potential for liquid cooling.

A BREEZE TO BUILD IN

With a modern design approach to a mainstream PC format, the 3500X has the convenient features to take the hassle out of your build.

REMOVABLE GLASS PANELS

The front and side tempered glass panels that give the 3500X its signature look are easily removable for quick access.

CABLE ROUTING

A spacious interior and roomy 38mm behind the motherboard makes cable routing easy and comfortable, while a set of DoubleShot grommets ensures it looks tidy.

SAG-FREE GRAPHICS CARDS

Includes a GPU Anti-sag Stabilization Arm to keep your GPU steady, so you never have to worry about damaging your PCIe slot.

WIDE COOLING FLEXIBILITY

Customize your cooling setup with room for up to 10x 120mm fans, plus versatile radiator mounting options including up to 360mm in the side and roof.

MODERN FRONT PANEL I/O

Puts your connections within easy reach, including a USB 3.2 Gen 2 Type-C Port, 2x USB 3.2 Gen 1 Type-A ports, and a combination audio/microphone jack.

• Reset Button
• Headphone / Mic Combo Jack
• USB 3.2 Gen 2 Type-C Port
• 2x USB 3.2 Gen 1 Type-A Ports
• Power Button

Case Supported: Mini-ITX, Micro-ATX, ATX, E-ATX (305mm x 277mm)

Case Height: 506

Case Length: 460

Case Width: 240

Material: Steel, Tempered Glass

Case Size: Mid-Tower

Radiator Compatibility: 120mm, 140mm, 240mm, 280mm, 360mm

Case Window: Tempered Glass

Compatible Liquid Coolers: H60, H100, H115, H150 (All Series)]

Internal 3.5" Drive Bays: 2

Internal 2.5" Drive Bays: 2

Maximum CPU Cooler Height: 170mm

Maximum PSU Length: 180mm

Case Front IO: (1x) USB 3.2 Gen 2 Type-C, (2x) USB 3.2 Gen 1 Type-A, (1x) Audio in/out

Maximum GPU Length: 425mm

Weight: 10.66kg

Case Expansion Slots: 7 Horizontal (or 4 Vertical)

Case Power Supply: ATX

Radiator Support - Top: 360mm, 280mm, 240mm

Radiator Support - Front: None

Radiator Support - Bottom: None

Radiator Support - Side: 360mm, 280mm, 240mm

Radiator Support - Rear: 1x 120mm

Fan Support - Top: 3x 120mm; 2x 140mm

Fan Support - Front: None

Fan Support - Bottom: 3x 120mm; 1x 140mm

Fan Support - Side: 3x 120mm; 2x 140mm

Fan Support - Rear: 1x 120mm

Front IO Motherboard Connections: 1x HD Audio; 1x USB 3.2 Gen1; 1x USB-3.2 Gen2 Type-E; 1x F_PANEL

Reverse Connector Motherboard Support: Yes

Included Fans: RS ARGB Series

Dust Filtration: Yes

Cable Routing Space: 45mm

RapidRoute Included: Compatible (Sold Separately)

Left Side Panel: Tempered Glass

Right Side Panel: Steel

Vertical Mount Support:Supported (Riser Card Sold Separately)

Specifications of CORSAIR 3500X RS-R ARGB EATX Mid Tower Cabinet ( Black )
