Features of THERMALTAKE TR2 S700
THERMALTAKE TR2 S 700W Power Supply is the newest model which saves the highest amount of energy up to 86% by its high efficiency. Thermaltake TR2 S 700W Power Supply series comes with different variations of power supply that is 500W to 700W. The load is 82%, 85% efficiency at 20%, 50% and 100% loading is guaranteed. It has an embedded intelligent cooling fan of 120mm which delivers the best cooling performance and noise suppression to the fan with an excellent flow of air. This comes with multiple cable connectors. All the cables are sleeved as to prevent blockage of the flow of air and damage at any location. It comes with 7th generation Kaby Lake processor for achieving maximum no. of energy savings.
All the components are of high quality and it enables non-stop usage with stable and reliable performance. It comes with an Active Power Factor Correction (PFC). This prevents any kind of explosion or leakage. It supports multiple core high-end graphic cards & CPU. The Reliability is MTBF>100,000 hours. Also, this product has 3 years of manufacturer warranty. The Input voltage is 230V, Input Current is 9A max with 50 Hz – 60 Hz of frequency. The outputs are +3.3V, +5V, +12V, -12V and +5Vsb which does not exceeds 700W. The dimensions are 86mm x 150mm x 160mm of height, weight and depth simultaneously with the hold-up time of 16 msec which is minimum at 80% of the full load at 115Vac/ 230Vac input. And the efficiency is 75% at 20 – 100% of load.
- Support the latest ATX 12V V2.3 & EPS 12V standards.
- High current & single 12V rail provides superior performance.
- Ultra-quiet 120mm cooling fan delivers excellent airflow at an exceptionally low noise level.
- Active PFC with Universal AC input.
- Supports multiple core high-end graphic cards & CPU. (NVIDIA SLI & ATI CrossFire Ready)
- Dimension: 150mm(W)x86mm(H)x140mm(D).
- High reliability: MTBF>100,000 hours.
- Heavy-duty protection circuitry of Over Current, Over Voltage, Over Power and Short-Circuit protections.
- Safety / EMI Approvals: UL/CUL/FCC certification.

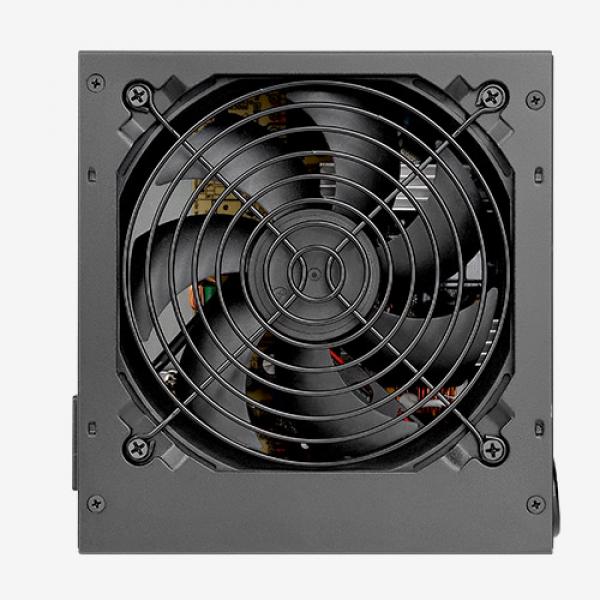

Ultra Quiet 120mm Fan
THERMALTAKE Power Supply comes with 120mm Hydraulic Bearing Fan to guarantee cool performance and silent operation.
80 PLUS 230V EU Certified
TR2 S Series saves energy through its high energy efficiency of up to 80% and is 80 PLUS® 230V Standard certified.

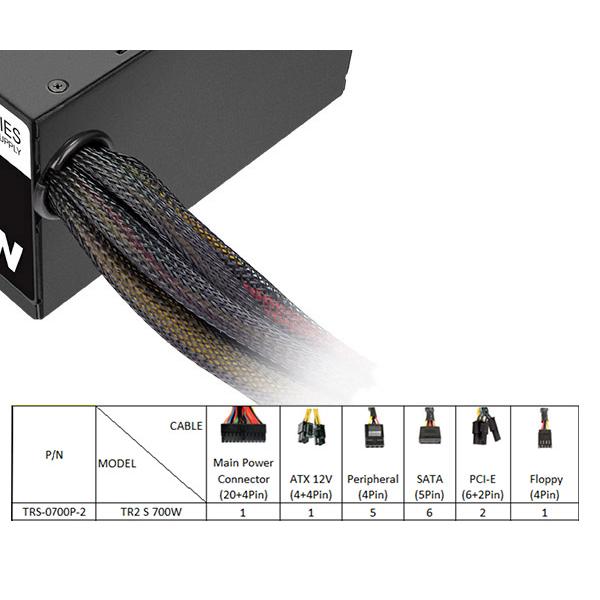

Multiple Connectors
The cables used for TR2 S Series are black and low-profile, users are able to properly route the cables in optimal location to prevent airflow blockage.

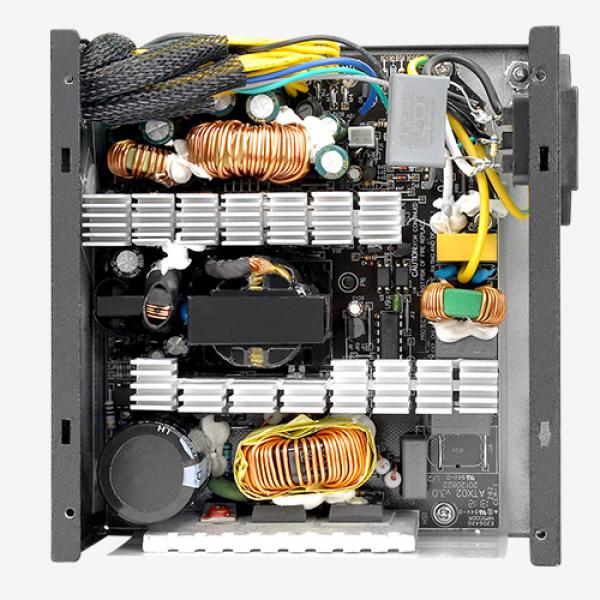

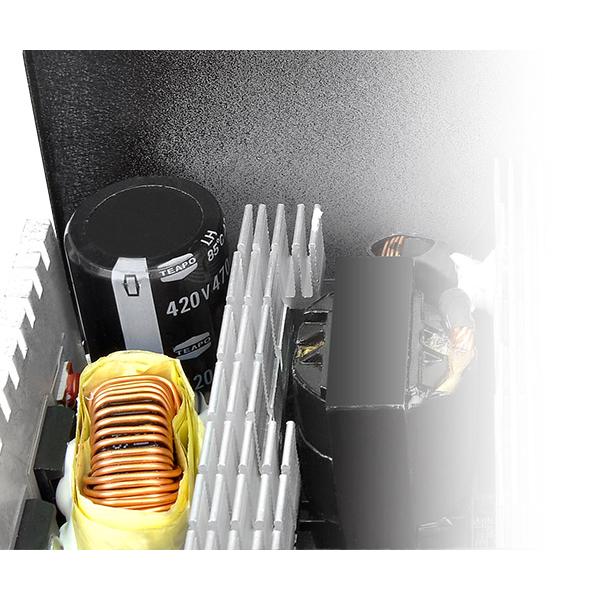

High-Quality Components
High quality components enable non-stop usage with stable and reliable performance, no more capacitor explosion and leakage.
High amperage Single +12V Rail & DC to DC Design
TR2 S Series is equipped with powerful +12V rails, superior performance under all types of system loading. The use of DC to DC circuit design provides very stable operation and enhanced voltage regulation.
Built-in Industrial Grade Protection
To protect the hardware, TR2 S series is built with industry grade protections: OCP(Over Current Protection), OVP (Over Voltage Protection), UVP(Under Voltage Protection), OPP(Over Power Protection), SCP(Short Circuit Protection), OTP(Over Temperature Protection).
Get the best 80 Plus White smps for pc price from us today!
Specifications of THERMALTAKE TR2 S700
| P/N |
TR-700 |
| Model |
TR2-700AL2NC-A |
| Type |
Intel ATX 12V 2.3 |
| Max. Output Capacity |
650W |
| Peak Output Capacity |
700W |
| Color |
Black |
| Dimension (H x W x D) |
86mm x 150mm x 160mm |
| PFC （Power Factor Correction） |
Active PFC |
| Power Good Signal |
100-500 msec |
| Hold Up Time |
16msec (minimum) @ 80% of full load at 115Vac/ 230Vac input. |
| Input current |
10A |
| Input Frequency Range |
47 Hz - 63 Hz |
| Input Voltage |
100 Vac- 240 Vac |
| Operating Temperature |
0℃ to 50℃ |
| Operating Humidity |
20% to 90%,non-condensing |
| Storage Temperature |
-20 ℃ to 70 ℃ |
| Storage Humidity |
5% to 95%, non-condensing |
| Cooling System |
120mm Fan: 1800 R.P.M. ± 10% |
| Efficiency |
75% efficiency @ 20-100% load |
| MTBF |
100,000 hrs minimum |
| Safety Approval |
UL/CUL/FCC |
| PCI-E Connector |
x 4 |
| Warranty |
3 Years |
| Note |
***Features, Price and Specifications are subject to change without notice. |
