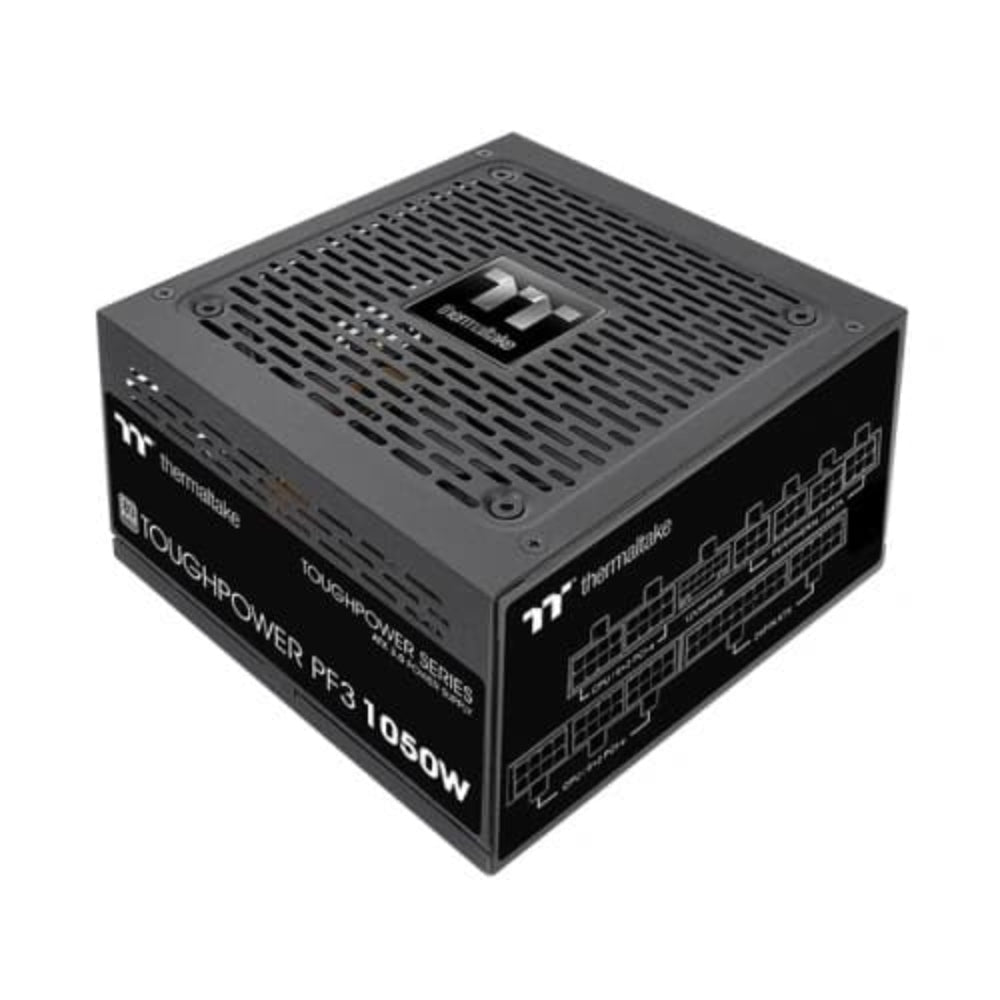

Features of THERMALTAKE ToughPower PF3 1050W 80+ Platinum Fully Modular ATX 3.0 Power Supply (1050 W)
Toughpower PF3 series is 80 PLUS Platinum certified and fully compatible with Intel’s ATX 3.0 specifications. Designed with a native PCIe Gen 5 connector, it can power up next-gen technology with one new 12VHPWR cable.
ATX 3.0 & PCIe Gen 5 Ready
1050W
Power Up Next Generation Hardware
To fully support next-gen hardware, Toughpower PF3 Platinum Series (750W/850W/1050W/1200W) is designed to meet ATX 3.0 standards, including a PCIe Gen 5.0 12VHPWR connector. The PF3 Platinum series delivers 80 PLUS Platinum efficiency, it also offers the highest stability, durability, and reliability.
Fully Compatible with Intel ATX 3.0 Standards
Toughpower PF3 Platinum series is fully compatible with Intel ATX 3.0 Specifications which supports up to 200% power excursion, reaches 70% low load efficiency and complies with required power supply timing standards.
PCIe Gen 5.0 Ready
Toughpower PF3 series comes with a 16pin connector to offer powerful and stable performance allowing the PSU to natively run next-generation GPUs.
The wattage marked on the 12VHPWR’s connector is the recommended wattage. (Ref. Intel design guideline) The native 16 PIN (12VHPWR) PCIe connector of the PF3 1050W can deliver up to 600W for PCIe 5.0 graphics cards.
Made to Comply with the Latest Graphics Cards
As the power consumption of graphics cards increase, so has their demand for power. The PF3 Platinum series is designed to support NVIDIA and AMD graphics cards, and ready to supply the graphics cards according to their different ways of connections.
80 PLUS Platinum Certified
80 Plus Platinum certification means the Toughpower PF3 converts power efficiently, resulting in lower power loss and heat buildup inside the power supply.
Compact Design with 140mm Depth
The Toughower PF3 Plantinum Series is designed to be compact with size of 140mm (D) x 86mm (H) x 150mm (W) which provides ample space for cable management.
Be Smart, Stay Quiet

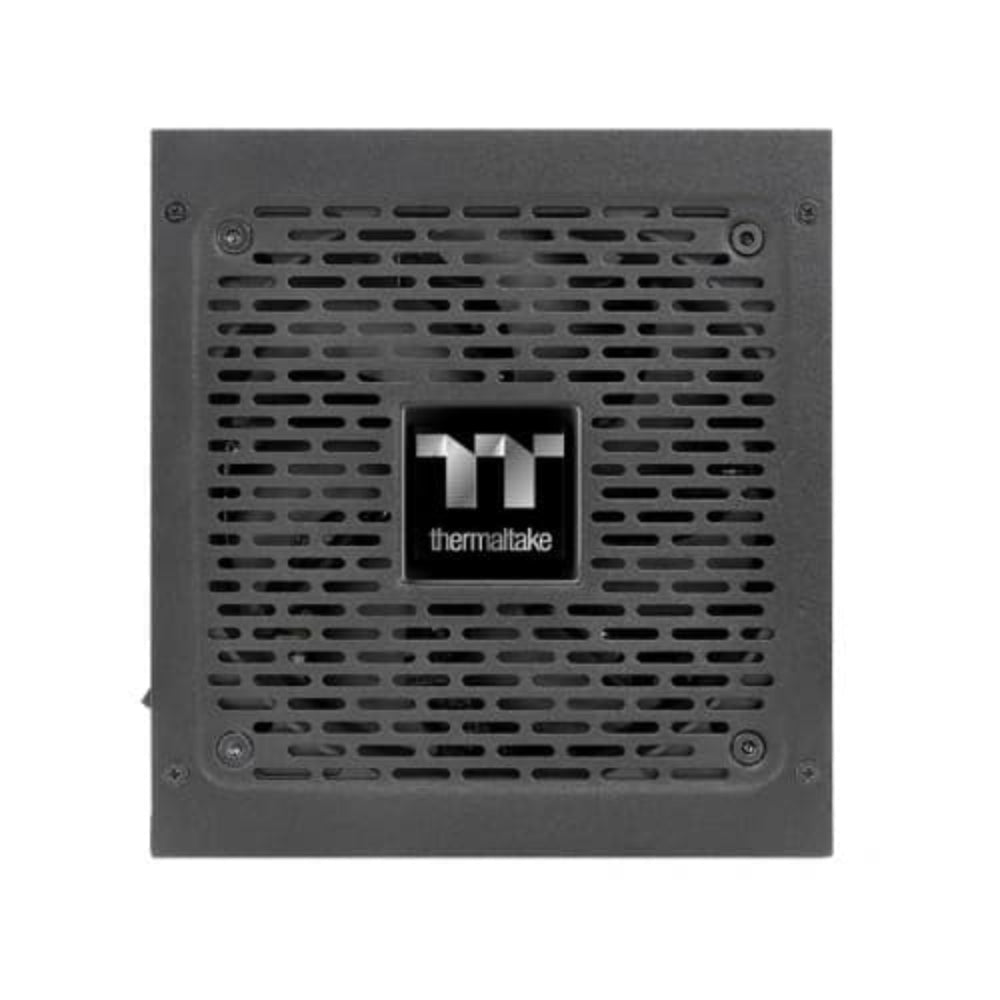

Featuring a 120mm fluid dynamic bearing fan to create the perfect balance between silence and superior cooling. Furthermore, the Smart Zero Fan will adjust the fan speed and minimizes undesired noise.
More Stable than Ever
100% high quality Japanese 105°C/221°F electrolytic capacitors provides great durability as well as offering the highest stability, while remaining reliable.
High Amperage Single +12V Rail & High-Class Technologies
Powerful single +12V rail can properly deliver the power you need for the best compatibility. The use of LLC and DC to DC circuit design provides very stable operation and enhanced voltage regulation.
Specifications of THERMALTAKE ToughPower PF3 1050W 80+ Platinum Fully Modular ATX 3.0 Power Supply (1050 W)
| Model |
PS-TPD-1050FNFAPD-3 |
| Wattage |
1050 Watt |
| Series |
TOUGHPOWER |
| Certification |
80 Plus Platinum |
| Modular |
FULLY MODULAR |
| PCIe Connector (6+2) |
5 |
| SATA Connector |
12 |
| Peripheral (4-Pin) |
4 |
| Warranty |
10 Years |
| Note*** |
***Features, Price, Specifications are subject to change without notice. Images used for representation purposes only |
