Features of THERMALTAKE Toughpower GF A3 Gold 1050W
THERMALTAKE Toughpower GF A3 series is 80 PLUS Gold certified and compatible with Intel’s ATX 3.0 specifications. Designed with a native PCIe Gen 5.0 connector, it can power up next-gen technology with one new 12VHPWR cable.
The wattage marked on the 12VHPWR’s connector is the recommended wattage. (Ref. Intel design guideline)
The native 16 PIN (12VHPWR) PCIe connector of the GF A3 1050W can deliver up to 600W for PCIe 5.0 graphics cards.
Power Up the Next Generation Hardware
To fully support next-gen hardware, Toughpower GF A3 Gold Series (650W/750W/850W/1050W/1200W) is designed to meet ATX 3.0 standards, including a PCIe Gen 5.0 12VHPWR connector. The GF A3 Gold series delivers 80 PLUS Gold efficiency, it also offers stability, durability, and reliability.
Fully Compatible with Intel ATX 3.0 Standards
Toughpower GF A3 Gold series is fully compatible with Intel ATX 3.0 Specifications which supports up to 200% power excursion, reaches 60% low load efficiency and complies with required power supply timing standards.
PCIe Gen 5.0 Ready
Toughpower GF A3 Gold series comes with a 16pin connector to offer powerful and stable performance allowing the PSU to natively run next-generation GPUs.
The wattage marked on the 12VHPWR’s connector is the recommended wattage. (Ref. Intel design guideline)
The native 16 PIN (12VHPWR) PCIe connector of the GF A3 1050W Power Supply can deliver up to 600W for PCIe 5.0 graphics cards.
Be Smart, Stay Quiet

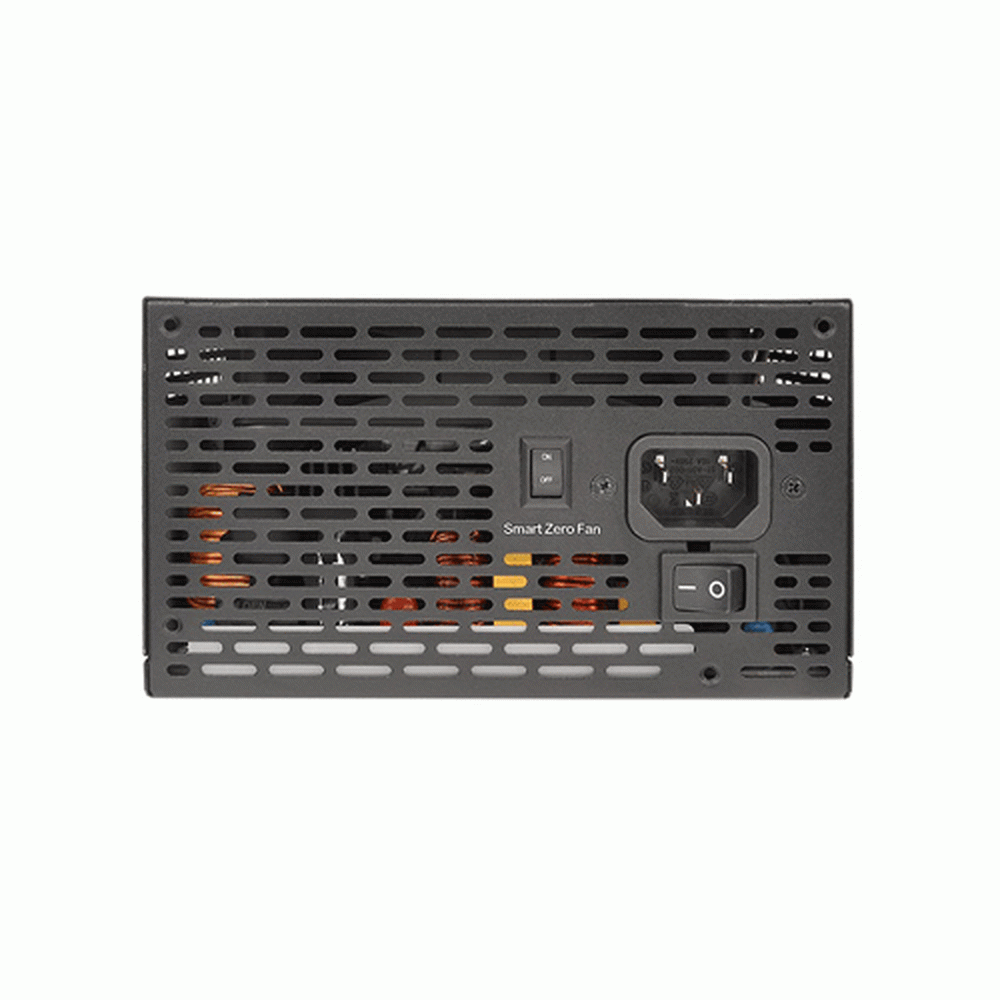

THERMALTAKE Power Supply comes with 120mm fluid bearing fan to deliver excellent airflow. Furthermore, the Smart Zero Fan will not spin until the load exceeds 30% of the power supply, minimizing undesired noise.
High Amperage Single +12V Rail & High-Class Technologies
Powerful single +12V rail can properly deliver the power you need for the best compatibility. The use of LLC and DC to DC circuit design provides very stable operation and enhanced voltage regulation.
Built-in Industrial Grade Protection
To protect the hardware, GF A3 is built with industry grade protections: OCP(Over Current Protection), OVP (Over Voltage Protection), UVP(Under Voltage Protection), OPP(Over Power Protection), SCP(Short Circuit Protection), OTP(Over Temperature Protection).

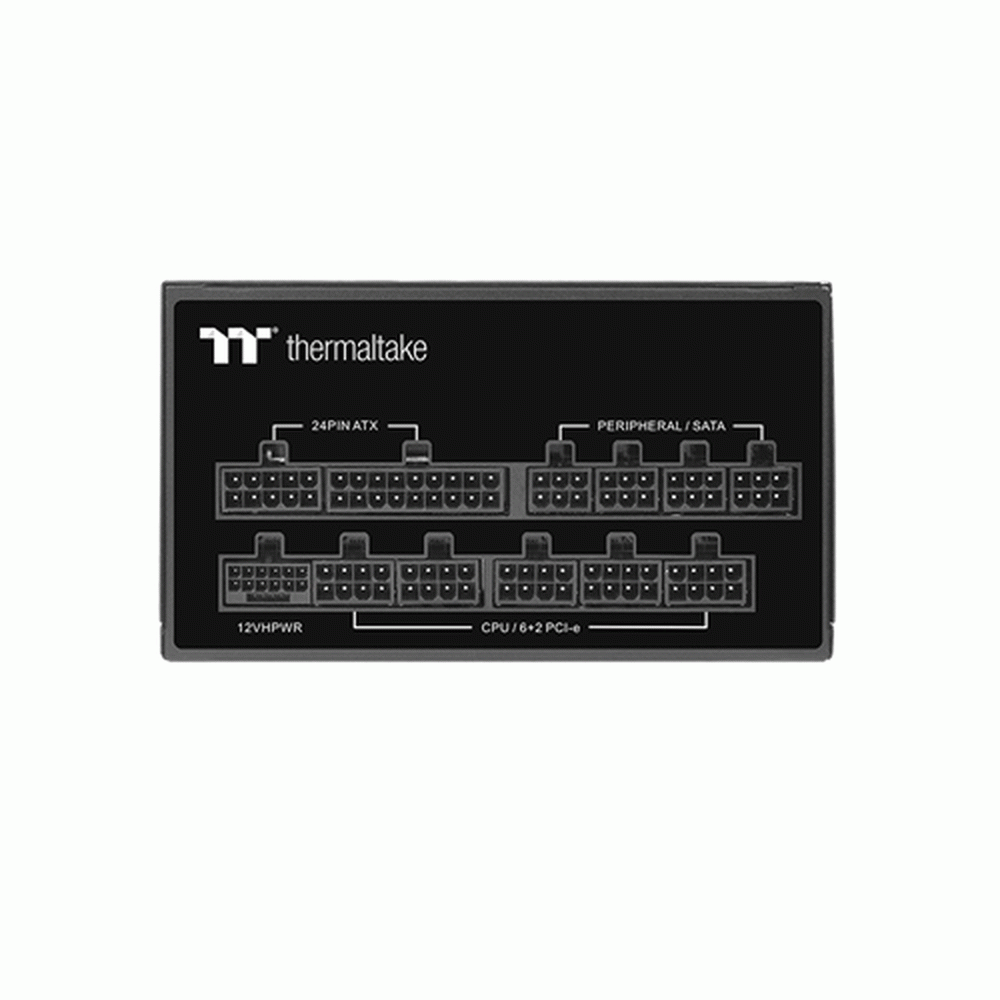

Fully Modular Low-Profile Flat Cables
Offers cable selection for users while powering the system at an advantageous voltage. Low-profile black cables make cable management easier, reduces clutter and increases airflow inside the chassis.
Get the best 80 Plus Gold smps for pc price from us today!
Specifications of THERMALTAKE Toughpower GF A3 Gold 1050W
| Model |
|
| Brand |
Thermaltake |
| Model |
PS-TPD-1050FNFAGD-H |
| Spec |
|
| Type |
Fully Modular Power Supply |
| Maximum Power |
1050W |
| Fans |
12cm FDB Fan |
| PFC |
Active PFC |
| PCI-E Connectors |
PCI-E 6+2PIN : 5 PCIE 12+4PIN : 1(600W) |
| CrossFire |
80 Plus Gold |
| Power Good Signal |
100-250 msec |
| Hold-up Time |
> 17msec |
| Efficiency |
Meet 80 PLUS Gold at 115Vac input. |
| Over Voltage Protection |
|
| Input Voltage |
100-240Vac |
| Input Frequency Range |
50Hz - 60Hz |
| Input Current |
15A Max. |
| Approvals |
CE/FCC/UKCA/ICES/LVD/TUV/cTUVus/CB/CCC/BSMI |
| Dimensions |
150mm(W) x 86mm(H) x 140mm(D) |
